10.1-inch display with a resolution of 1280x800

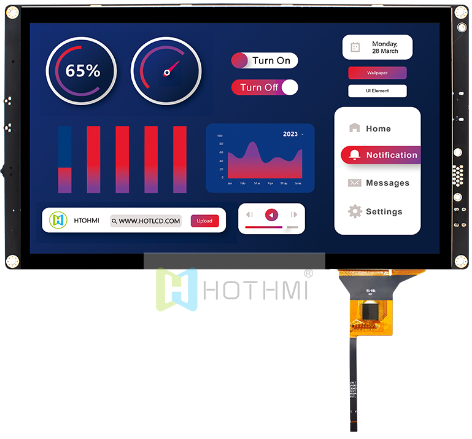

10.1-inch TFT LCD display, capacitive touch screen, 1280x800 dot matrix, LVDS interface

IPS full viewing angle, readable in sunlight, compatible with Linux/industrial control motherboard

? Model: TFT-H101D13WXIWZKN40

? Type: TFT capacitive display

? Display pixels: 1280x800 dot matrix

? Dimensions (mm): 229.46x149.10x4.70

? Display inches: 10.1"

? Effective size (mm): 216.96x135.60

? Application: industrial computers, smart devices

? Viewing angle: IPS (U80/D80/L80/R80)

? Brightness: 1000cd/m2

? Pin: FPC-40PIN

? Interface: LVDS 24-Bit

? Special reminder: Anti-static ESD 8KV

? Working temperature: -20~70℃

? Power supply voltage: 3.3V

? Driver chip: T.B.D

? Read more

10.1 inch IPS full viewing angle high brightness 1280x800 pixel TFT color LCD module with HI driver board/capacitive touch

? Model: HTM-H101D13-HI-A05C

? Type: HI with board module

? Display pixels: 1280x800 Px

? Dimensions (mm): 258.0x150.4x9.5

? Display inches: 10.1"

? AA size (mm): 216.96x135.6

? Application: Charging piles, electrical equipment, medical detectors

? Viewing angle: IPS full viewing angle

? Backlight/brightness: 500cd/M2

? Interface: HI

? Special instructions: Anti-static ESD 8KV

? Working temperature: -20~70℃

? Power supply voltage: 9V～12V

? Read more

10.1-inch color LCD display / IPS full viewing angle / 1280x800 pixels / capacitive touch screen / LVDS / high brightness sunlight readable

? Model: TFT-H101D13WXIWZKC40

? Type: TFT LCD color screen

? Display pixels: 1280x800 Px

? Dimensions (mm): 229.46x149.1

? Display inches: 10.1"

? Effective size (mm): 216.96x135.6

? Application: Industrial control equipment

? Viewing angle: IPS full viewing angle

? Brightness: 800cd/M2

? Pin: FPC-40PIN

? Interface: LVDS

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -20~70℃

? Power supply voltage: 3.3V

? Driver chip: TBD

? Read more

10.1-inch display with a resolution of 1024x600

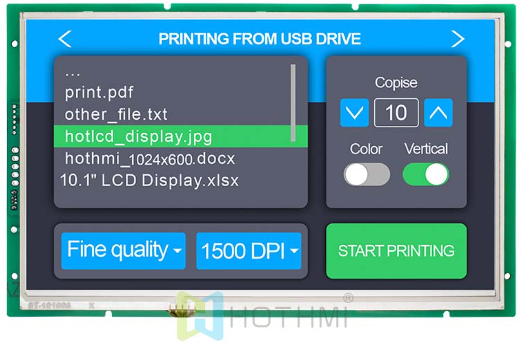

10.1 inch smart serial port screen 1024x600 IPS UART HMI TFT display

? Model: EZUIH101

? Type: 10.1-inch TFT smart HMI

? Display content: 1024x600

? Display inches: 10.1”

? Dimensions (mm): 251×153×10

? AA size (mm): 222.72×125.28

? Product application: industrial system

? Viewing angle: IPS full viewing angle

? Connection method PIN number: 11pin

? Interface method: UART/RS232

? Special instructions: Anti-static ESD 8KV

? Working temperature: -20~70℃

? Supply voltage: 5V~24V

? Read more

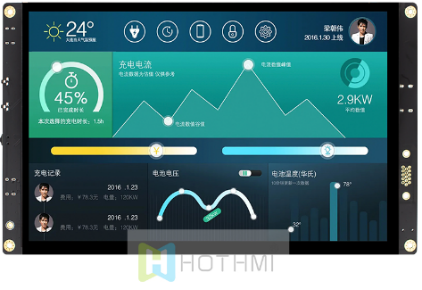

10.1 inch high brightness 1024x600 pixel TFT color LCD module with HI driver board/capacitive touch

? Model: HTM-H101A9-HI-A05C

? Type: HI with board module

? Display pixels: 1024x600 Px

? Dimensions (mm): 258x148x8.15

? Display inches: 10.1"

? AA size (mm): 222.72x125.28

? Application: Charging pile

? Viewing angle: IPS full viewing angle

? Backlight/brightness: 1300cd/M2

? Pin: 42pin

? Interface mode: HI/VGA

? Special instructions: dedicated for charging piles

? Working temperature: -20~70℃

? Supply voltage: 9V～12V

? Read more

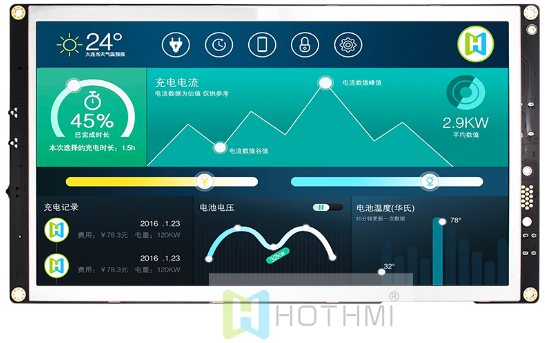

10.1 inch high brightness 1024x600 pixel TFT color LCD module with HI driver board/Raspberry Pi

? Model: HTM-H101A9-HI-A05

? Type: HI board module

? Display pixels: 1024x600 Px

? Dimensions (mm): 258x148x6.5

? Display inches: 10.1"

? AA size (mm): 222.72x125.28

? Application: Charging pile

? Viewing angle: IPS full viewing angle

? Backlight/brightness: 1300cd/M2

? Pin: 42pin

? Interface mode: HI/VGA

? Special instructions: dedicated for charging piles

? Working temperature: -20~70℃

? Supply voltage: 9V~12V

? Read more

10.1-inch display with a resolution of 1920x1200

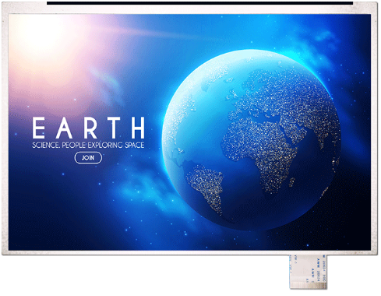

Model: 10.1 inch 1920x1200 sunlight readable TFT IPS display module/HTM-H101A04

• Type: TFT horizontal screen

• Display pixels: 1920x1200

• Dimensions (mm): 230.2x150.0

• VA size (mm): 10.1

• AA size (mm): 10.1

• Effective size mm: 216.81x135.5

• Application: automotive,

  medical, industrial control

• Viewing angle: full viewing

  angle

• Backlight/brightness: 1000cd/m2

• Interface: VGA

• Special instructions: anti-static ESD 8KV

• Working temperature: -20~60℃

• Supply voltage: 12.0V

• Driver chip: T.B.D

10.1-inch display with a resolution of 800x1280

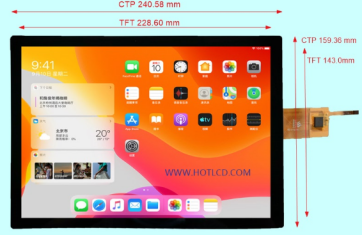

Model: 10.1-inch TFT color screen capacitive touch / 800*1280 wide viewing angle IPS / MIPI_4L / 10.1-inch /

TFT-H101W8WXIWZ1C40

Type: TFT vertical screen

Display pixels: 800x1280

Dimensions (mm): 240.58x159.36x4.45

VA size (mm): 10.1

AA size (mm): 10.1

Effective size mm: 216.58x135.36

Application: Tablet PC

Viewing angle: Full view

Backlight/brightness: 180cd/m2

Pin: 40PIN

Interface mode: MIPI

Special instructions: Anti-static ESD 8KV

Working temperature: -20~70℃

Supply voltage: 3.3v

Driver chip: EK79029+GT7291

For more products, please contact us directly!
