Hot Display November 2024 Newsletter Focus Information

Welcome to read the November 2024 Hot Display eNewsletter!

In this issue, we recommend high-brightness LCD screens! High-brightness LCD screens are LCD screens with high brightness, usually above 500cd/m2. This type of screen can still be clearly seen in strong light outdoors, presenting excellent visual effects. High-brightness LCD screens can maintain long-term brightness stability to ensure accurate communication of information. At the same time, its high resolution and color reproduction capabilities also make the displayed content clearer and more vivid. A high-brightness display can give viewers a clear and comfortable feeling.

High brightness TFT series

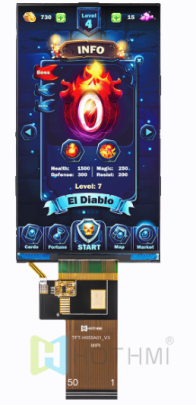

5.5-inch IPS full-view TFT/720X1280 resolution color display/NV3051 controller/high brightness TFT/MIPI interface/Arduino

? Model: TFT-H055A61HDINVKN40

? Type: TFT LCD

? Display content: 720X1280

? Display inches: 5.5"

? Dimensions (mm): 70.6x128.25

? AA size (mm): 68.04x120.96

? Product application: technical equipment, office equipment, access control

? Viewing angle: IPS full viewing angle

? Backlight type or brightness: white backlight 1000cd/M2

? Connection method PIN number: FPC-50pin

? Interface method: MIPI 4L

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -20~70℃

? Supply voltage: TP-VDD=3.3V, VIN=5.0V(Typ)

? Driver chip: NV3051F<TFT>, GT911<CTP>

? Read more

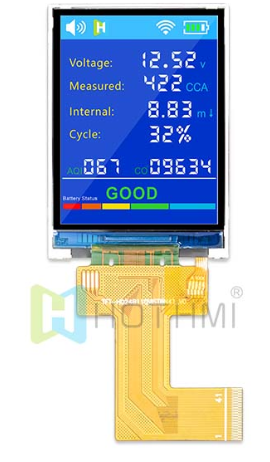

2.4 inch IPS 480x640 high brightness TFT LCD display ST7701S STM32/RK

? Model: TFT-H024A13VGIST5N40

? Type: TFT vertical screen

? Display pixels: 480x640 Px

? Dimensions (mm): 42.72x60.26x2.24

? Display inches: 2.4"

? Effective size (mm): 36.72x48.96

? Application: STM32/RK series

? Viewing angle: IPS full viewing angle

? Brightness: 500cd/M2

? Pin: FPC-40PIN

? Interface: RGB

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -30~80℃

? Power supply voltage: 3.3V

? Driver chip: ST7701S

? Read more

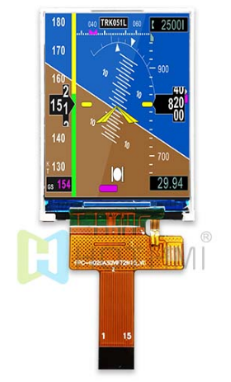

2.0寸 MIPI IPS 240x320 高亮度 TFT液晶顯示屏 JD9852 安卓

? 型號: TFT-H020A3QVIFT6N15

? 類型：TFT豎屏

? 顯示像素：240x320 Px

? 外形尺寸: 35.7x51.2x2.26

? 顯示英寸：2.0"

? 有效尺寸：30.6x41.1

? 應用：安卓主板/RK主板

? 可視角度：IPS全視角

? 亮度：600cd/M2

? 引腳：FPC-15PIN

? 接口：MIPI

? 特別說明：防靜電ESD 8KV

? 工作溫度：-30~85℃

? 電源電壓：3.3V

? 驅動芯片：JD9852

?   閱讀更多

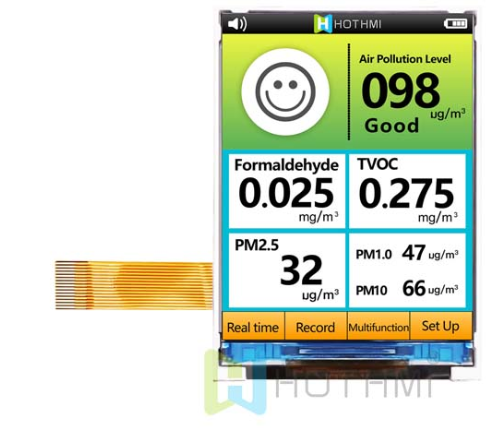

2.4 inch IPS TFT LCD display high brightness MCU ST7789V Arduino display

? Model: TFT-H024B11QVIST8N41

? Type: TFT vertical screen

? Display pixels: 240x320 Px

? Dimensions (mm): 42.52x59.86x2.2

? Display inches: 2.4"

? Effective size (mm): 36.72x48.96

? Application: C8051/Arduino/STM32

? Viewing angle: IPS full viewing angle

? Brightness: 800cd/M2

? Pin: FPC-40PIN

? Interface: MCU

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -20~70℃

? Power supply voltage: 2.8V

? Driver chip: ST7789

? Read more

2.4 inch 240x320 IPS high brightness TFT LCD display JD9852 MIPI Android

? Model: TFT-H024B12QVIFT8N15_V0

? Type: TFT vertical screen

? Display pixels: 240x320 Px

? Dimensions (mm): 42.52x59.86x2.2

? Display inches: 2.4"

? Effective size (mm): 36.72x48.96

? Application: smart home appliances

? Viewing angle: IPS full viewing angle

? Brightness: 800cd/M2

? Pin: FPC-15PIN

? Interface: MIPI DSI

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -20~70℃

? Power supply voltage: 2.8V

? Driver chip: JD9852

? Read more

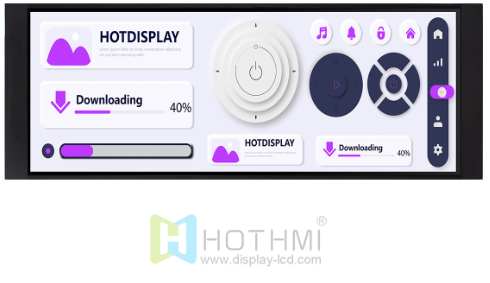

6.8-inch TFT LCD display / 480x1280 resolution / wide temperature / IPS full viewing angle / optional with or without capacitive touch / readable in sunlight / ST7701

? Model: TFT-H068A04ZAINV8N40

? Type: IPS full-view display

? Display content: 480x1280

? Display inches: 6.86”

? Dimensions (mm): 66.3*180.6*4.53

? AA size (mm): 60.192*160.512

? Product application: custom programming display

? Viewing angle: IPS (U80/D80/R80/L80)

? Backlight type or brightness: 800cd/M2

? Connection method PIN number: 40pin

? Interface method: RGB 24 Bit+3-SPI

? Special instructions: without touch screen

? Operating temperature: -20~70℃

? Supply voltage: +3.3 V

? Driver chip: ST7701

? Read more

5.0 inch IPS TFT LCD display module/800x480 dots/capacitive touch screen/wide temperature/ST7262/RGB interface/high brightness sunlight readable/3.3V/compatible with SMT32

? Model: TFT-056T1VGM2N30F

? Type: TFT wide temperature horizontal screen

? Display pixels: 800x480 dot matrix

? Dimensions (mm): 120.7x75.8x4.85

? Display inches: 5.0"

? Effective size (mm): 108x64.8

? Application: industrial control, vehicle-mounted equipment

? Viewing angle: IPS (U80/D80/R80/L80)

? Brightness: 1000cd/m2

? Pin: FPC-40PIN

? Interface: RGB

? Special reminder: Anti-static ESD 8KV

? Working temperature: -30~80℃

? Power supply voltage: 3.3V

? Driver chip: ST7262

? Read more

For more high brightness displays, please contact us directly!
