E-Newsletter Issue 4
Welcome to the mid-May 2024 edition of the Hot Display e-newsletter!
There are three solutions for making the display visible in sunlight. Strengthen the backlight brightness of the display to reach more than 500 nits, and use a fully reflective display or a transflective display. Among the three, the transflective display is the best solution. For the definitions and comparison of the advantages and disadvantages of these three, please click this link：Tranflective TFT
In this issue,Hot Display‘s strong technical engineering team combines market demand to launch a series of semi-transparent and semi-reflective TFTs visible in sunlight. Let's explore these excellent products together.
2.4-inch transflective TFT display TN 240x320px sunlight readable MCU interface/can be equipped with touch display
?Model: TFT-H024A22AVIST1N40
?Type: TN display
? Display pixels: 240x320 Px
? Overall dimensions (mm): 42.72x58.65x2.61
?Display inches: 2.4"
? Effective size (mm): 36.72x49.26
? Application: C8051/Arduino/STM32 series
? Viewing angle: Normally White (Trans-Reflective)
?Brightness: 100cd/m2
? Pin: FPC-40PIN
?Interface: MCU 8080
? Special reminder: Anti-static ESD 8KV
? Working temperature: -30~80℃
?Power supply voltage: 3.3V
? Driver chip: ST7789

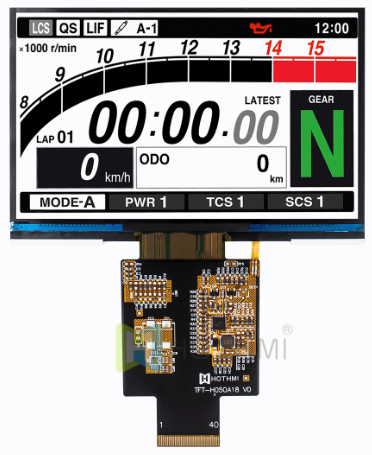

5" transflective TFT display TN 800x480px sunlight readable RGB interface/can be equipped with touch display
?Model: TFT-H050A18SVRJDNN40
?Type: TN display
? Display pixels: 800x480 Px
? Overall dimensions (mm): 112.20x74.80x3.0
? Display inches: 5.0"
? Effective size (mm): 108x64.8
? Application: STM32/RK series
? Viewing angle: Normally White (Trans-Reflective)
?Brightness: 50cd/m2
? Pin: FPC-40PIN
? Interface: RGB
? Special reminder: Anti-static ESD 8KV
? Working temperature: -20~70℃
?Power supply voltage: 3.3V
? Driver chip: T.B.D
Recommended articles about displays that are viewable under sunlight
For more information please contact us directly!
