The summer solstice is one of the 24 solar terms, which falls on June 20, 21, or 22 of the Gregorian calendar every year. On the summer solstice, the sun moves to 90 degrees of ecliptic longitude (the summer solstice point, currently in Gemini), and the position of the sun directly above the ground reaches the northernmost end of the year, almost directly above the Tropic of Cancer. At this time, the daytime in various parts of the northern hemisphere reaches the longest time of the year. For the Tropic of Cancer and areas north of it, the summer solstice is also the day when the sun is at its highest altitude at noon in the year. In Beijing, the daytime on the summer solstice can last up to 15 hours, and the sun is at a height of 73°32′ at noon. On this day, the northern hemisphere receives the most solar radiation, nearly twice as much as the southern hemisphere.
Today is the day when the sun is at its highest altitude. At noon, "there is no shadow on the pole", and the sun shines vertically on the ground. The display screen of Hot Display is not afraid of direct sunlight and is clearly visible!
Hot Display Today's theme display is a long strip series TFT:
7-inch IPS full-view color LCD display/280x1424 dot matrix color screen module/touch screen/RGB interface/wide temperature range
? Model: TFT-H070A18ZBINV7N40
? Type: TFT long strip display
? Display pixels: 280x1424 Px
? Dimensions (mm): 38.20x182.47x3.45
? Display inches: 7.0"
? Effective size (mm): 33.6x170.88
? Application: DJ console
? Viewing angle: IPS full viewing angle
? Brightness: 750cd/M2
? Pin: 40 PIN
? Interface: RGB
? Special note: Visible in sunlight
? Operating temperature: -30~80℃
? Power supply voltage: 3.3V
? Driver chip: ST7703

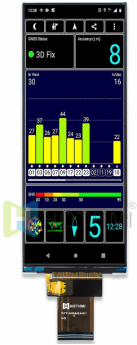

Full viewing angle IPS/6.2 inch TFT LCD display module/360x960 dot matrix color screen module/RGB interface ST7701S/STM32
? Model: TFT-H062A01ZDIST2N40
? Type: TFT bar screen
? Display pixels: 360x960 Px
? Dimensions (mm): 58.20x155.0x2.30
? Display inches: 6.2"
? Effective size (mm): 55.3x147.46
? Application: STM32/RK series
? Viewing angle: IPS (U89/D89/L89/R89)
? Brightness: 250cd/m2
? Pin: FPC-40PIN
? Interface: RGB 24 Bit
? Special reminder: Anti-static ESD 8KV
? Operating temperature: -20~60℃
? Power supply voltage: 3.3V
? Driver chip: ST7701S

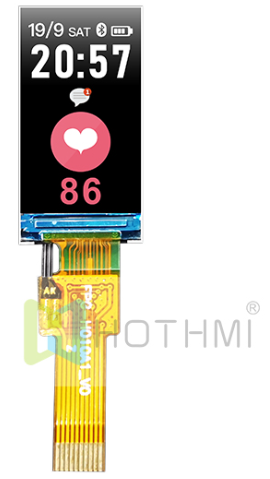

0.96 inch TFT LCD color display module/80x160px color screen module/SPI serial port
? Model: SPEC-H010A11AIST4N10
? Type: TFT long strip display
? Display pixels: 80x160 Px
? Dimensions (mm): 13.50x27.95x2.03
? Display inches: 0.96"
? Effective size (mm): 10.80x21.696
? Application: Oximeter
? Viewing angle: 12 o'clock
? Brightness: 400cd/M2
? Pin: FPC-10PIN
? Interface: SPI
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Power supply voltage: 2.8V
? Driver chip: ST7735S
To learn more about long strip displays, please contact us directly!
