What is the resolution of a 3.0-inch TFT?
July 07, 2024
3134
China LCD TFT Display Manufacturer, Global Supplier
HOTHMI's recent R&D achievements, technological breakthroughs and developments
July 07, 2024
3134
3.0-inch TFT display is a common display on the market and is widely used. Different products have different requirements for display resolution. Currently, the common resolutions of 3.0-inch displays on the market are 480*854, 268*800, 360*640, and 360*480.

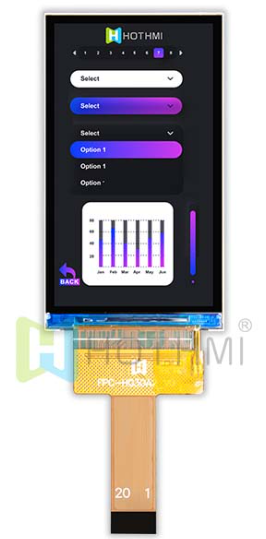

3.0-inch TFT with a resolution of 480*854
3.0 inch IPS 480x854 MIPI DSI TFT LCD display ST7701S Android system
? Model: TFT-H030A2FWIST2N20
? Type: TFT vertical screen
? Display pixels: 480x854 Px
? Dimensions (mm): 41.8x73.97x2.15
? Display inches: 3.0"
? Effective size (mm): 36.72x65.28
? Application: Android motherboard/RK motherboard
? Viewing angle: IPS full viewing angle
? Brightness: 200cd/M2
? Pin: FPC-20PIN
? Interface: MIPI
? Special instructions: Anti-static ESD 8KV
? Working temperature: -30~85℃
? Power supply voltage: 2.8V
? Driver chip: ST7701S

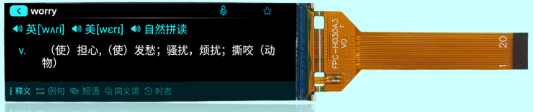

3.0-inch TFT with a resolution of 268*800
Model: 3-inch long strip TFT | resolution 268*800 | full viewing angle IPS | TFT-H030A3ZCIST5N20
?Type: TFT long strip
?Display pixels: 268x800
?Dimensions (mm): 79.85x26.42x1.70
?VA尺寸(mm)：3.0
?AA尺寸(mm) ：3.0
?Effective size mm: 72.00x24.12
?Application: translation pen, electronic label
?Viewing angle: full viewing angle
?Backlight/brightness: 500cd/m2
?Pin: 20pin
?Interface mode: MIPI
?Special instructions: anti-static ESD 8KV
?Operating temperature: -20~70℃
?Supply voltage: 3.3V
?Driver chip: ST7701S

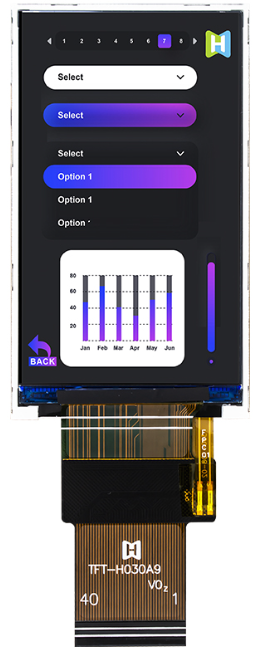

3.0-inch TFT with a resolution of 360*640
3 inch IPS TFT LCD color display RGB 360x640 pixels
? Model: TFT-H030A9NHIST4N40
? Type: TFT vertical screen
? Display pixels: 360x640
? Dimensions (mm): 43.68x77.02x2.3
? Display inches: 3.0"
? AA size (mm): 36.72x65.28
? Application: Handheld devices
? Viewing angle: full viewing angle
? Brightness: 400cd/m2
? PIN: 40pin
? Interface mode: RGB
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -30~80℃
? Supply voltage: 3.3V
? Driver chip: ST7701
3.0-inch TFT with a resolution of 360*480
Model: 3.0-inch TFT | Resolution 360*480 | MIPI interface | Full viewing angle IPS | TFT-H030A5NHIST4N20
?Type: TFT vertical screen
?Display pixels: 360x480
?Dimensions (mm): 42.7x74.4x2.2
?VA size (mm): 3.0
?AA size (mm): 3.0
?Effective size mm: 36.72x65.28
?Application: Sports DV camera
?Viewing angle: full viewing angle
?Backlight/brightness: 450cd/m2
?Pin: 20pin
?Interface mode: MIPI
?Special instructions: Anti-static ESD 8KV
?Working temperature: -30~80℃
?Supply voltage: 3.3V
?Driver chip: ST7701
For more 3.0-inch TFT related products, please contact us directly!
