China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Graphic LCD Modules / 3.3" 160x160 Graphic LCD Module | STN+Gray With White Backlight

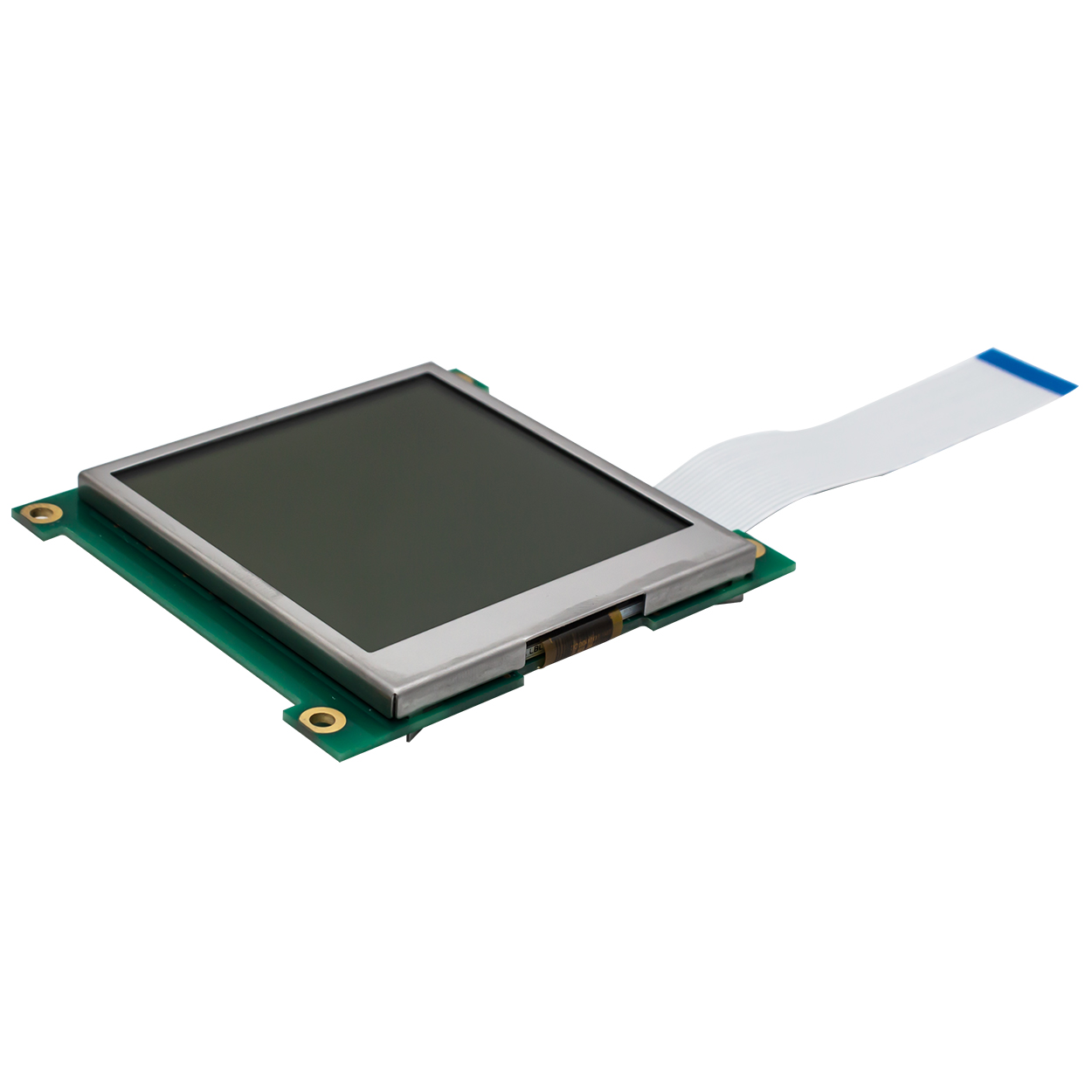

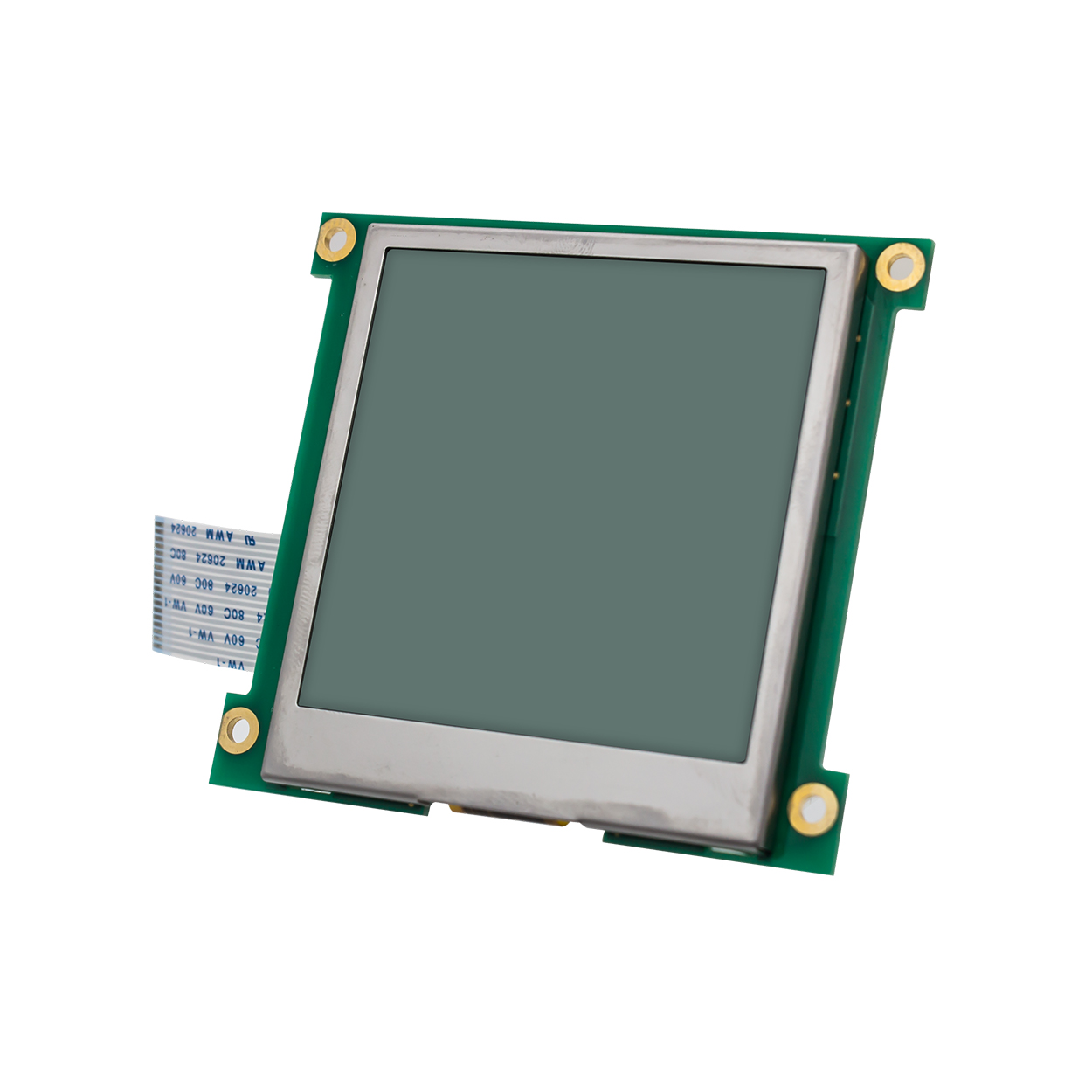

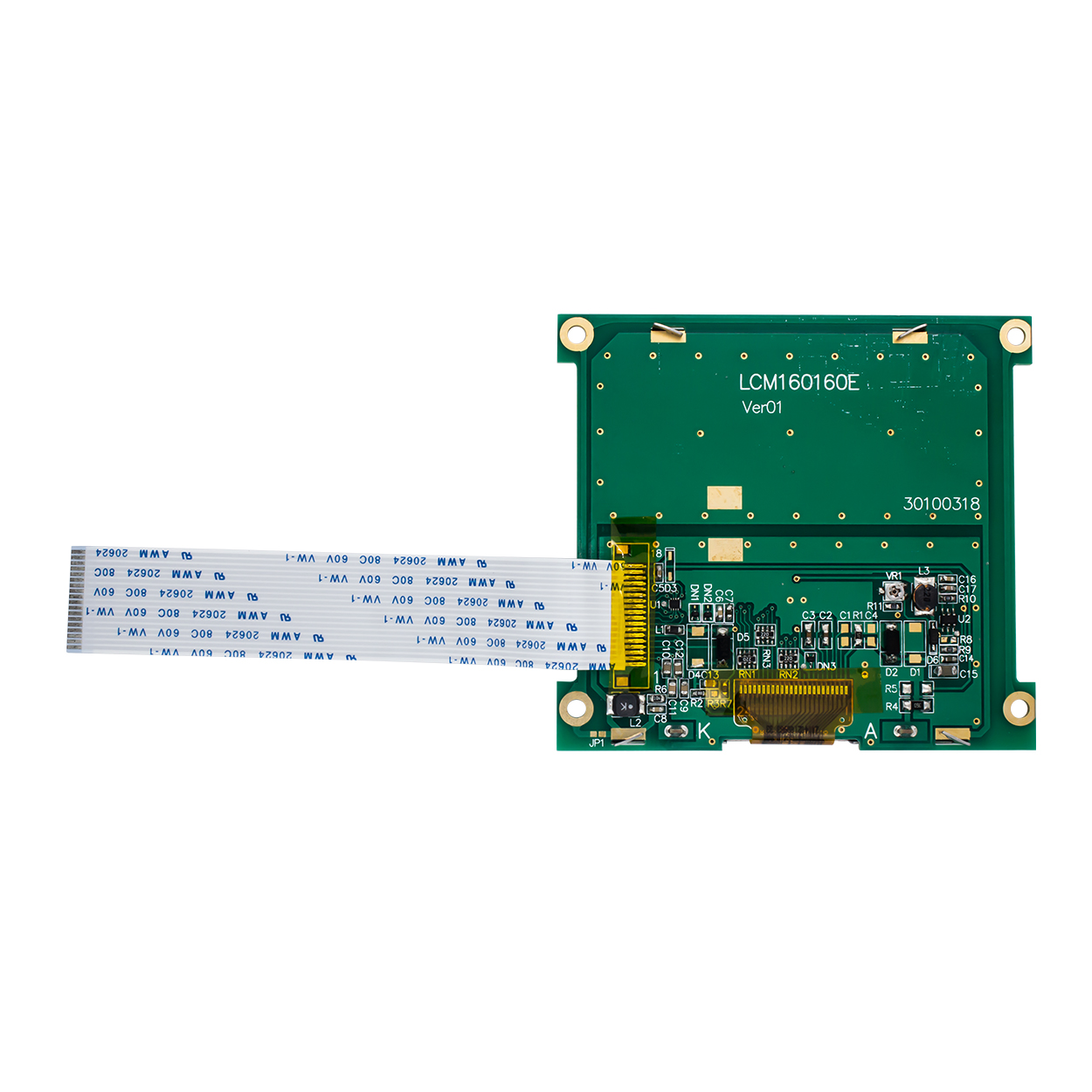

3.3" 160x160 Graphic LCD Module | STN+Gray With White Backlight

? Model: HTM160160E-11W-N3P

? Type: Graphic LCD Module
? Display pixels:160X160
? Dimensions (mm): 83.8*76.5*8.5
? VA size (mm): 60.0*60.0
? AA size (mm): 54.4*54.4
? Pixel pitch (mm): 0.34*0.34
? Application: Instruments
? Viewing angle: 6H
? Backlight/brightness: white
? Pin: FPC-18PIN
? Interface: MCU
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 3.3V
? Driver chip: UC1698

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Graphic LCD Module | STN+ | 3.3" 160X160 Gray Background with Blue Text | UC1698 | MCU | Arduino | 3.3V

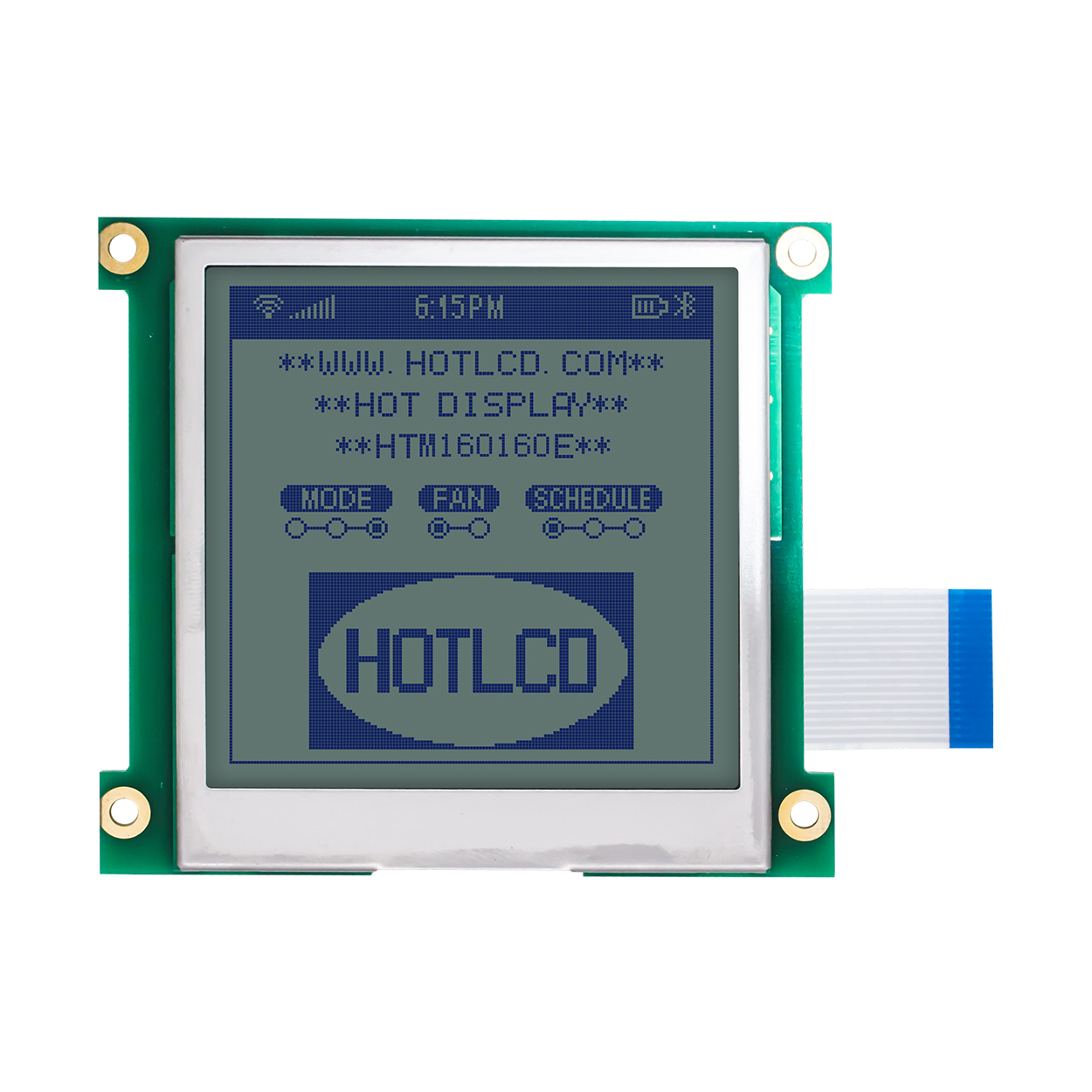

This Graphic LCD Module 160x160 Graphic LCD Display Module displays blue pixels on a gray background. This translucent LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its translucency to reflect the image back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This Graphic LCD Display Module is created with a built-in negative voltage and comes with a built-in UC1698 controller. It is also fully compatible with Arduino/ C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

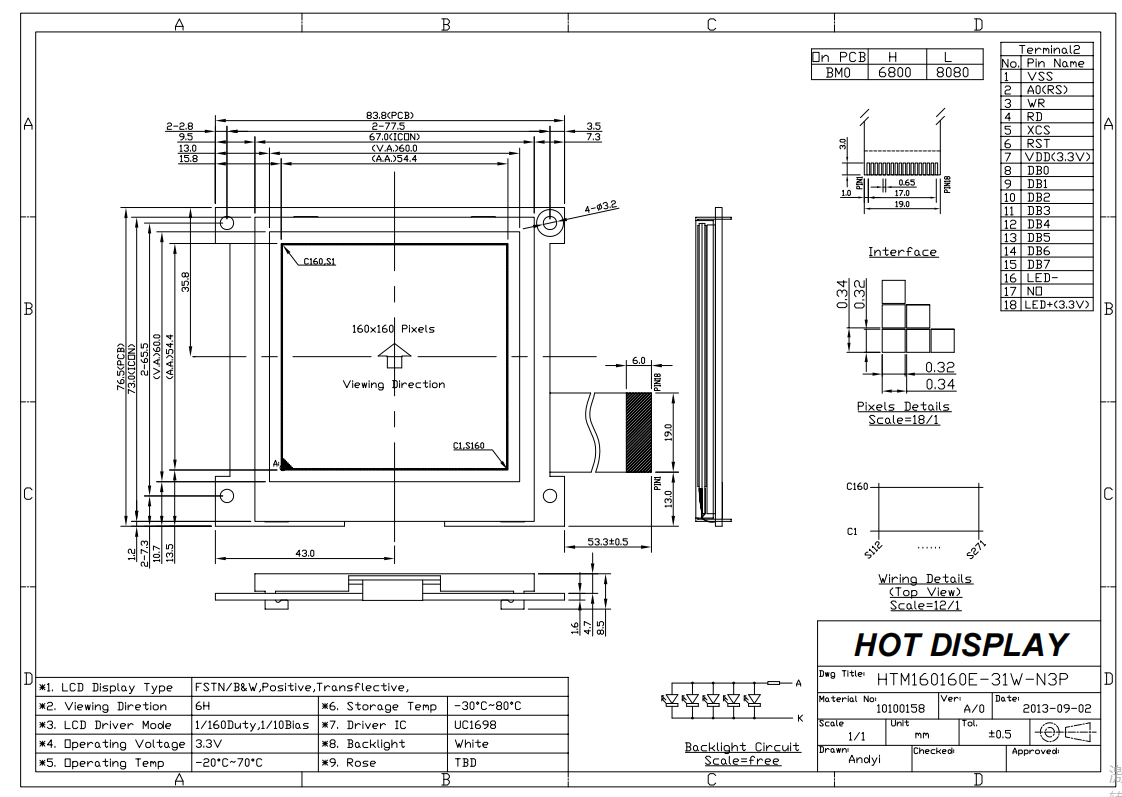

Item	Specification content	Unit
Name	HTM160160E-11W-N3P
Number of dots	160 × 160	dots
Module size	83.8 x 76.5x 8.5 (MAX)	mm
Visual (VA) area	60x 60	mm
Effective (AA) area	54.4 x 54.4	mm
Dot (pixel) spacing	0.34 x 0.34	mm
IC	UC1698
Power supply voltage	3.3V	V
Backlight	White
Display mode	STN(+)
Drive mode (Duty)	1/160 duty cycle
Type	Graphic LCD Module
Features	Transflective
