China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / Character LCD Modules Yellow/Green 2X16 Backlight LCD with STN+ Yellow/Green Display Arduino display

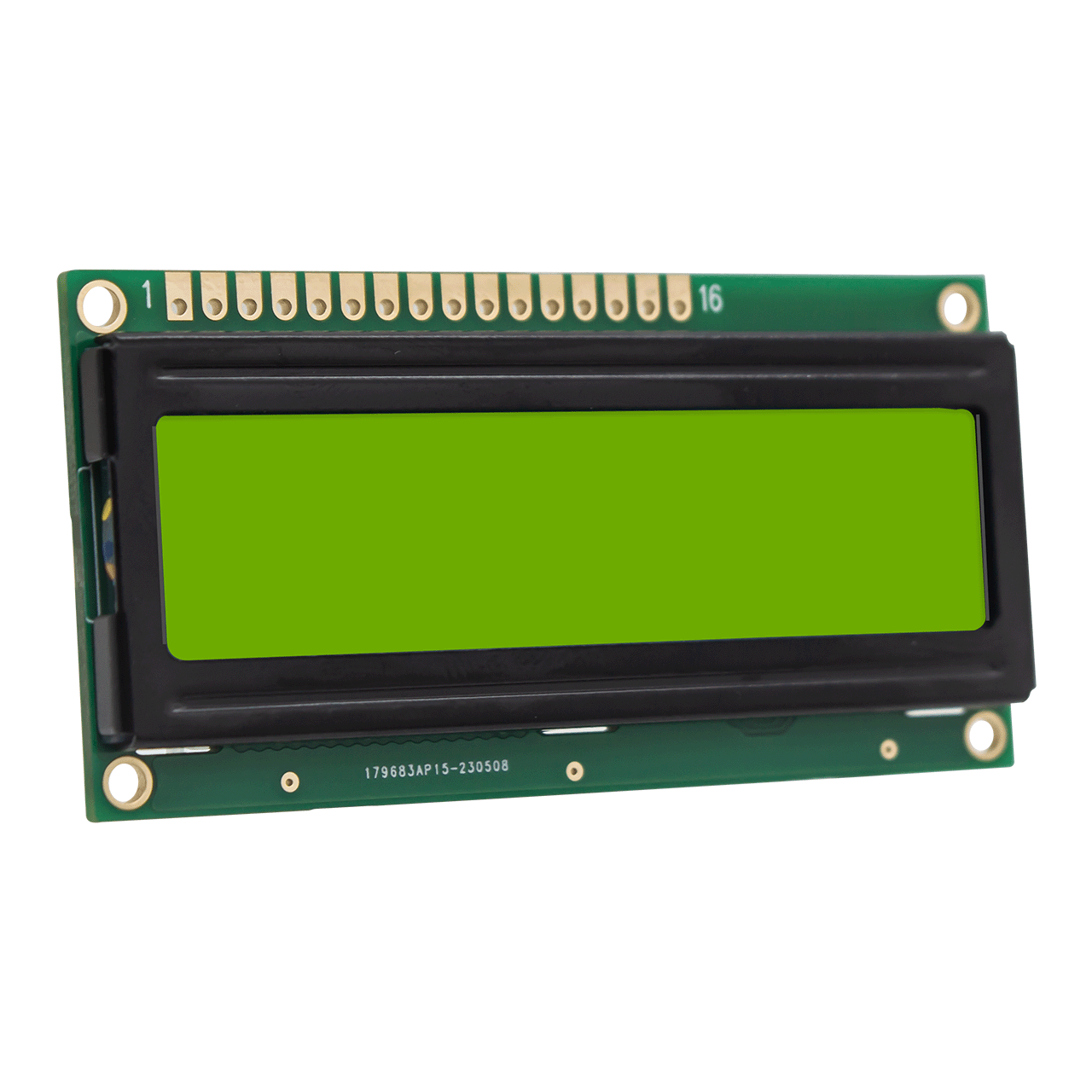

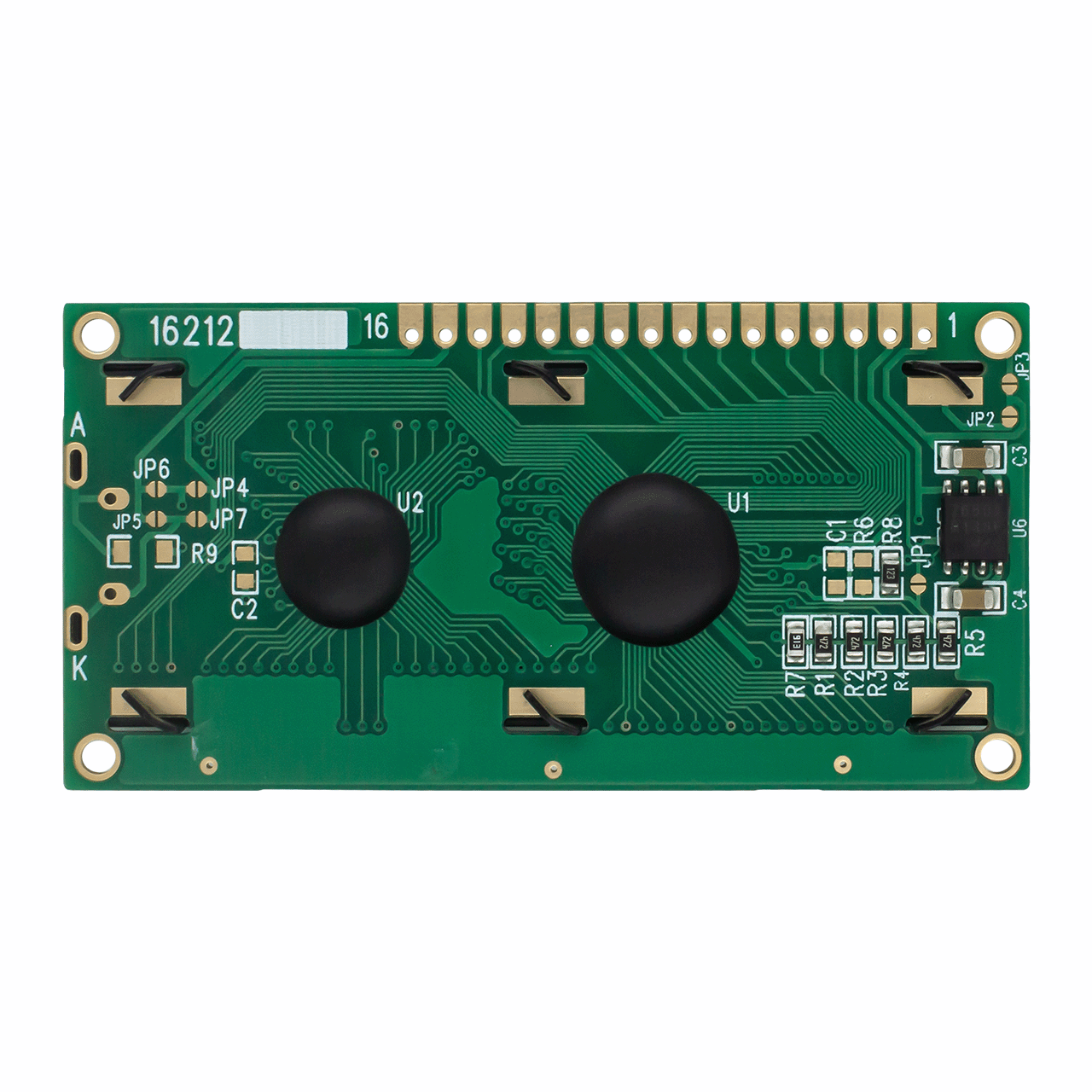

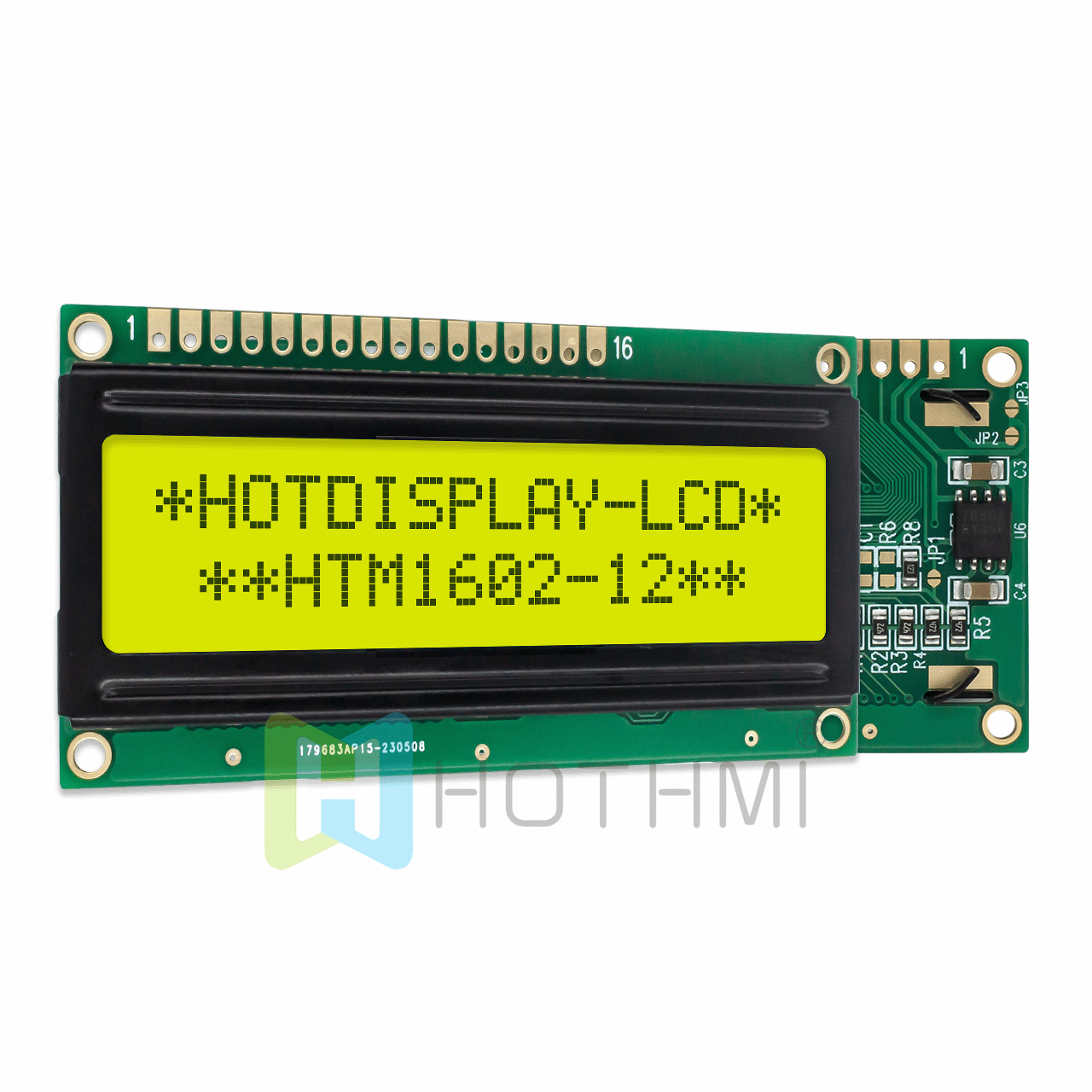

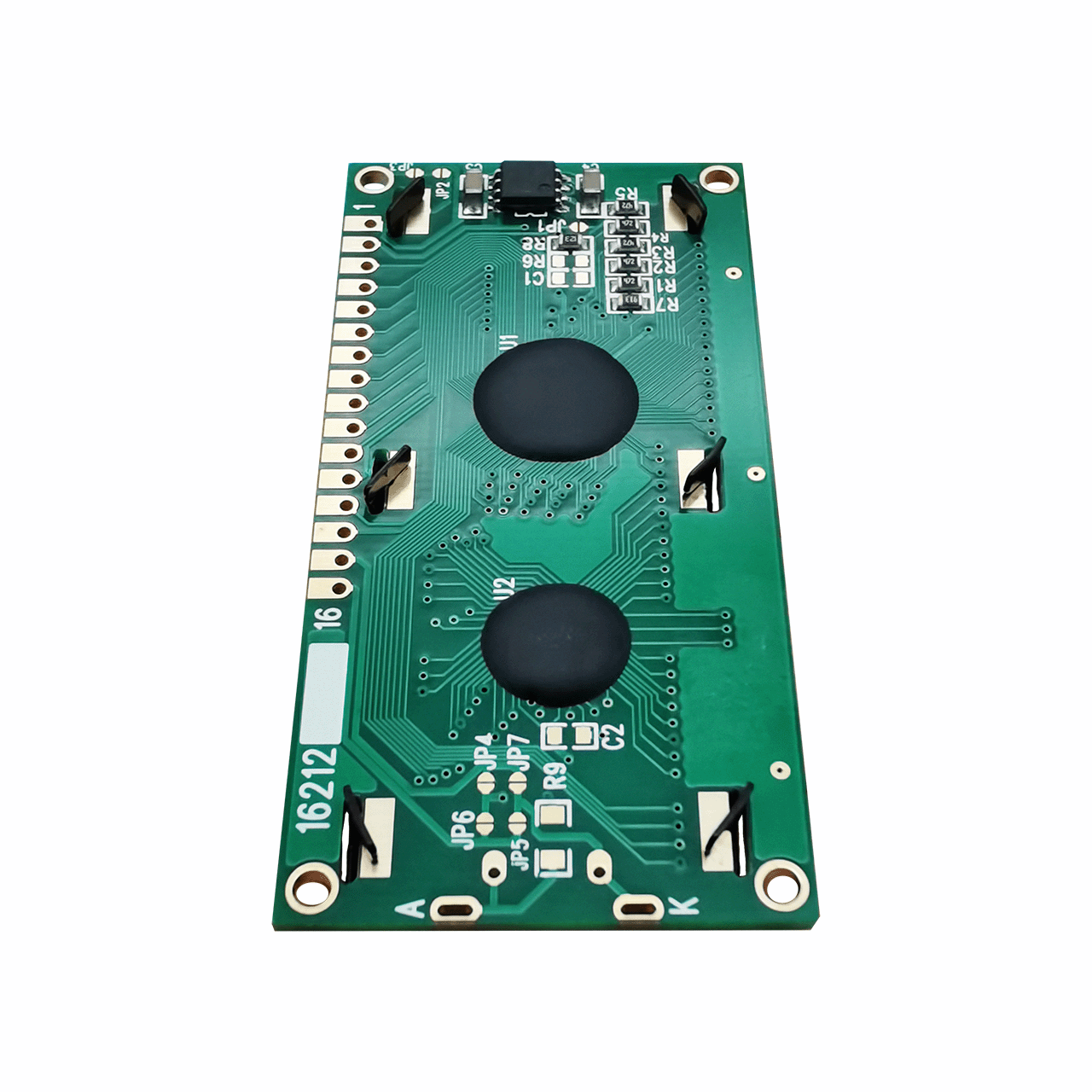

Character LCD Modules Yellow/Green 2X16 Backlight LCD with STN+ Yellow/Green Display Arduino display

? Model: HTM1602-12-01Y-A5P

? Type: Character LCD Modules
? Display content: 16x2 characters
? Overall dimensions (mm): 72.0x36.0x10.1
? VA size (mm): 64.5x16.0
? AA size (mm): 56.2x11.5
? Point spacing mm: 0.6x0.7
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: yellow/green light
? Connection method PIN number: 16PIN
? Interface mode: MCU/8bit
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Modules Yellow/Green 2X16 Backlight LCD with STN+ Yellow/Green Display Arduino display

Character LCD Modules, the 2 x 16-character LCD photo display brings your data to life with black pixels contrasting against a vibrant yellow and green background. This transflective LCD screen has been specially designed to ensure optimal visibility in different lighting conditions. In bright sunlight, the display reflects the environmental light back to the viewer through its reflective layer to ensure the screen is easy to see. In a darker environment, the backlight of the screen turns on, providing additional illumination, ensuring that the display is always easy to read regardless of the lighting conditions.
What?
The wide operating temperature range from -20 to 70° Celsius makes this LCD monitor an ideal starting point for harsh conditions. The HTM1602-12 display offers an optimized viewing of 6.00pm and works seamlessly on a 5.0V supply voltage. This high quality single line LCD display is compatible with Arduino C8051 and other development boards, is RoHS compliant and has passed strict quality tests.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-1602-12-01Y-A5P	April 04, 2024	3.33MB

Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.

parameter	Specification content	Unit
model	HTM1602-12-01Y-A5P
resolution	8 words × 2lines	dots
Module size	72.0（W） × 36.0（H） × 10.1 （D）mm	mm
Visual (VA) area	64.5 × 16.0mm	mm
Valid (AA) area	56.2x11.5	mm
Pixel pitch	0.60 × 0.70	mm
IC	ST7066U
Application voltage	5.0V	V
backlight	Yellow/green backlight
display mode	FSTN+
Drive mode	1/16 duty cycle
product type	Charcter LCD
characteristic	Tansflective Polarizer
