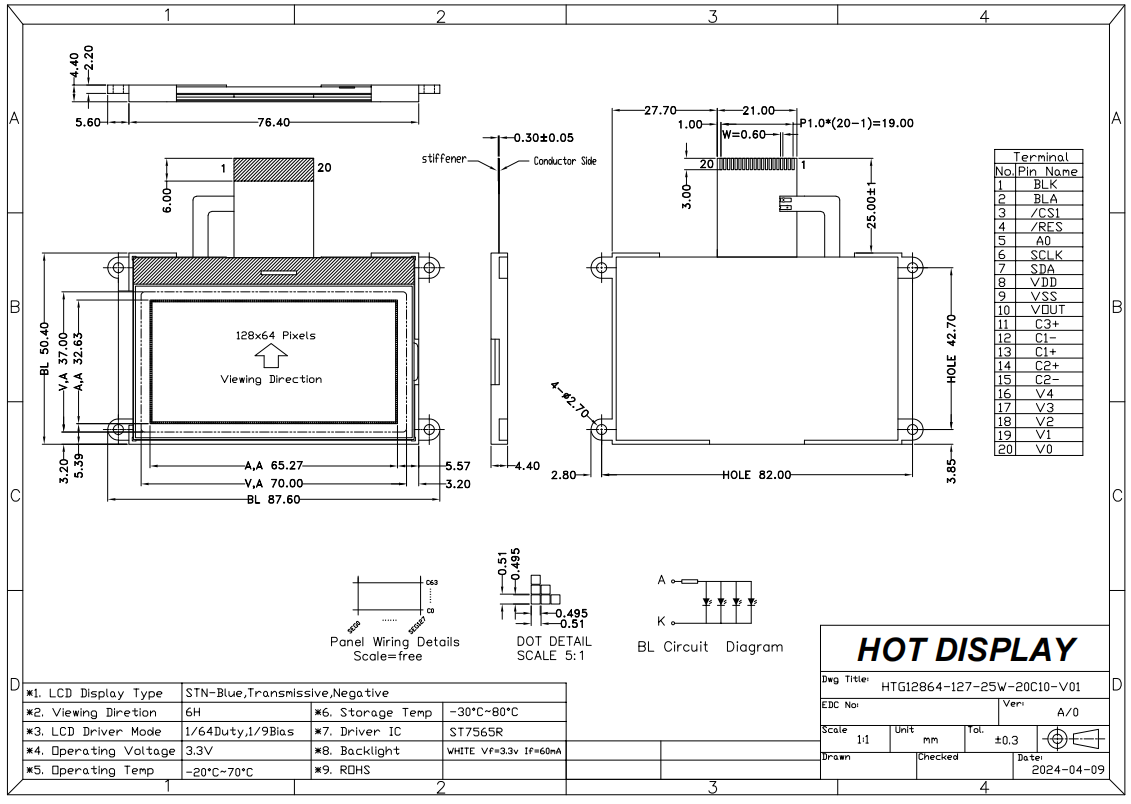

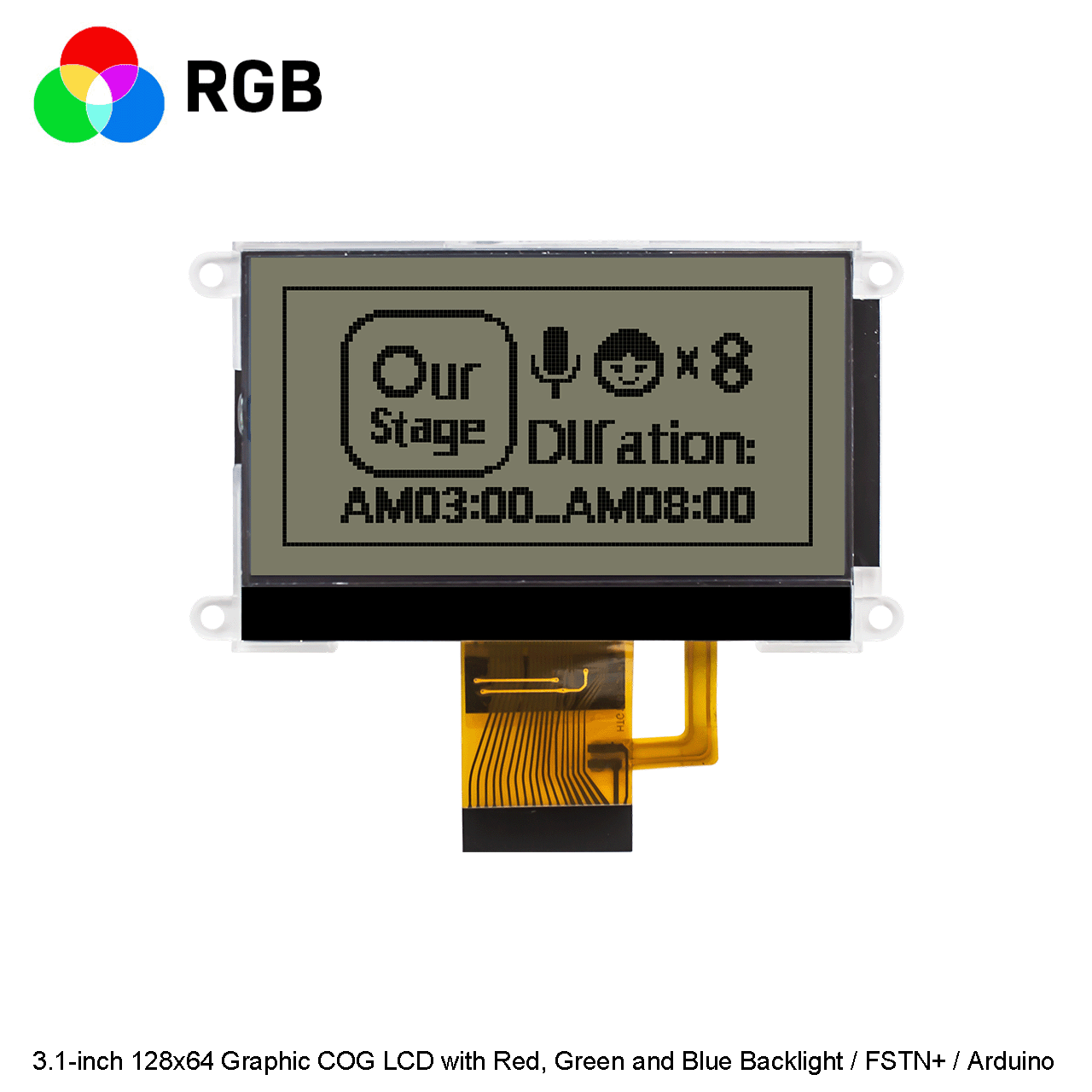

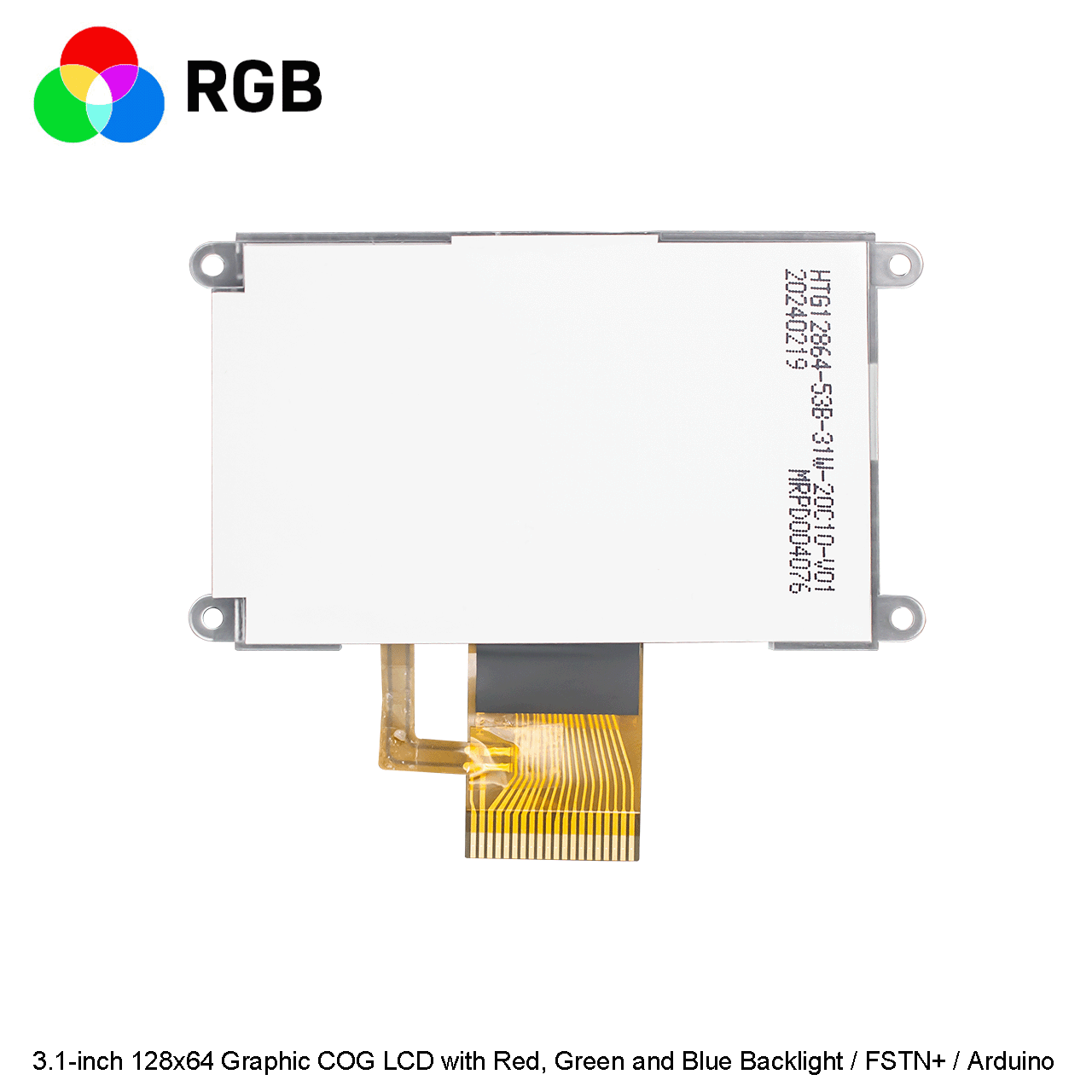

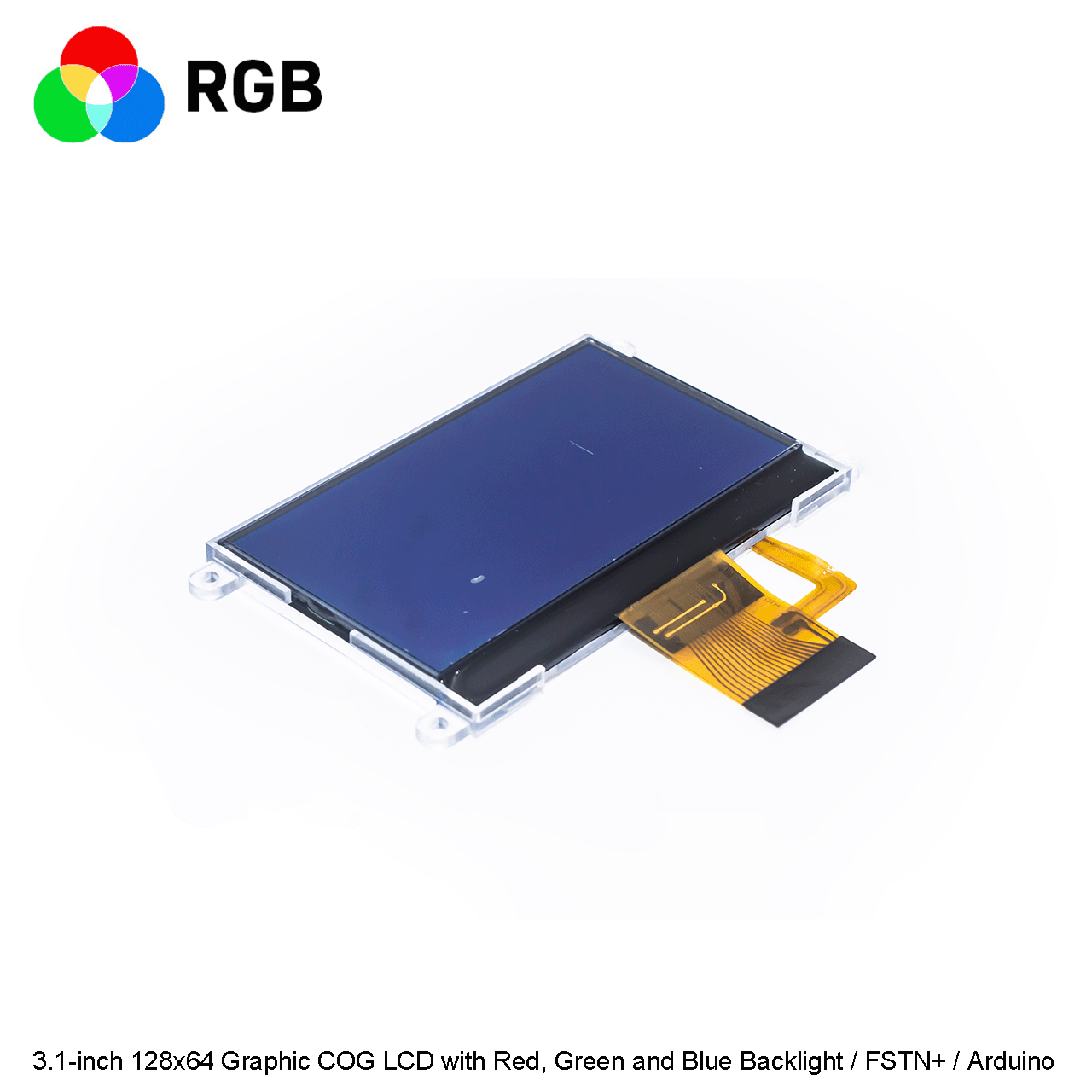

3.1-inch 128x64 Graphic COG LCD Display / LCD with Red, Green and Blue Backlight / FSTN+ / MCU Interface / ST7565R Controller / Arduino
The Hot Display 128x64 Graphic Chip-on-Glass (COG) LCD Display Module displays dark grey pixels on a red, green and blue background. This fully transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its fully transmissive polarizer to allow the backlight to pass through completely, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight to provide high contrast and present clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of lighting conditions.
This Graphic LCD Display Module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a wide range of applications. This model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, it operates on a 3V supply voltage, and is RoHS compliant.
