China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / 5.0"～7.0"TFT LCD Display Panels / 5 Inch Capacitive Touch Screen TFT LCD With ST7262 Driver IC

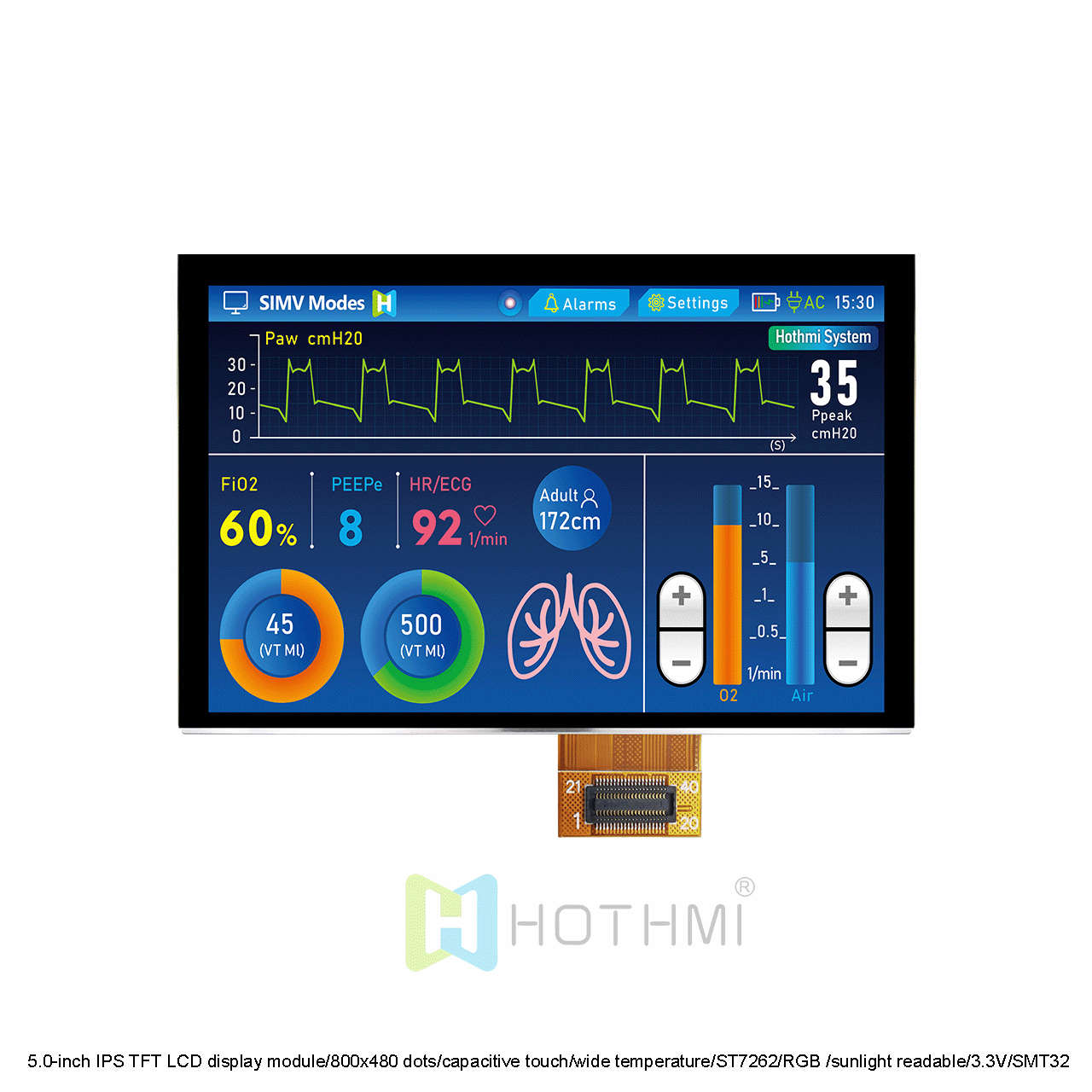

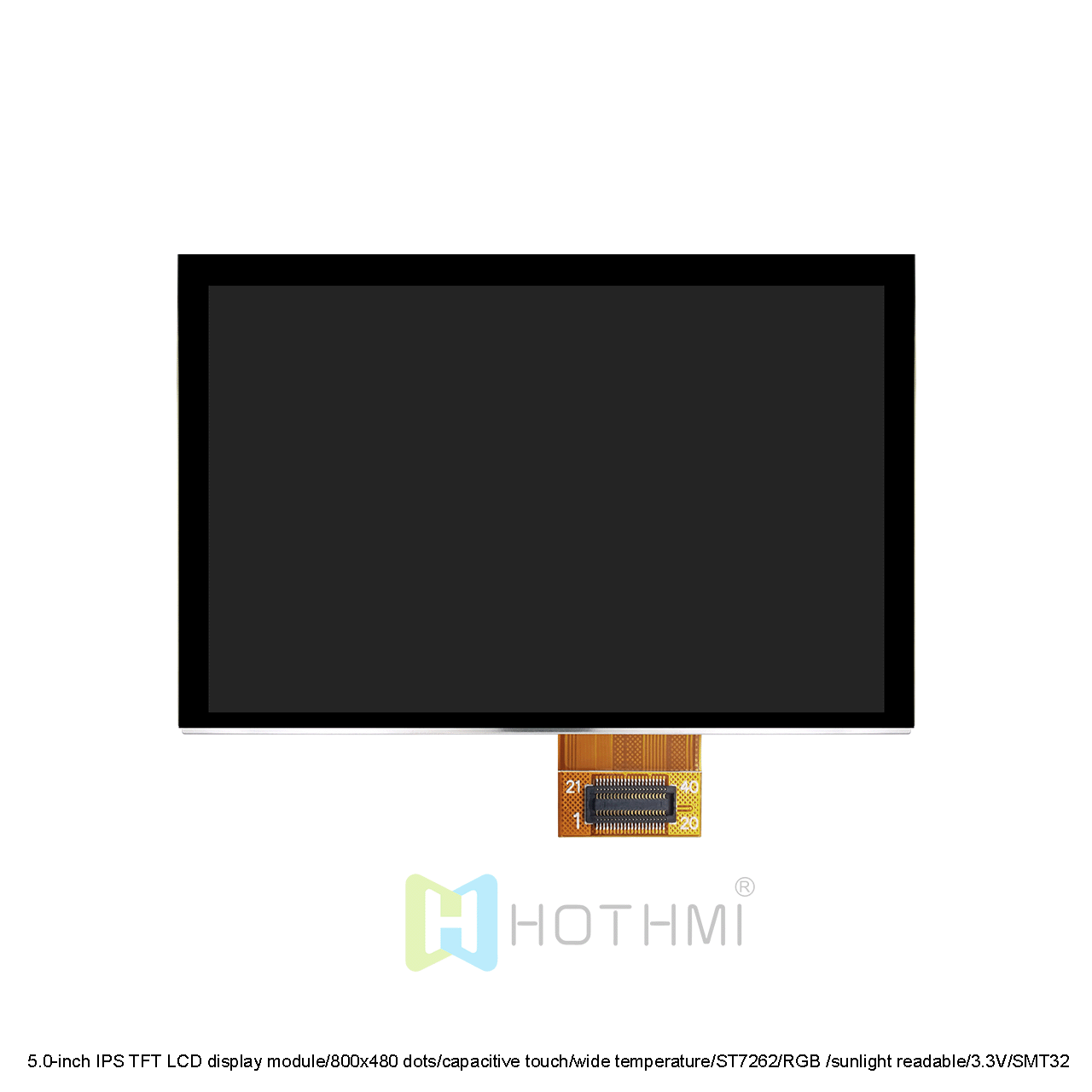

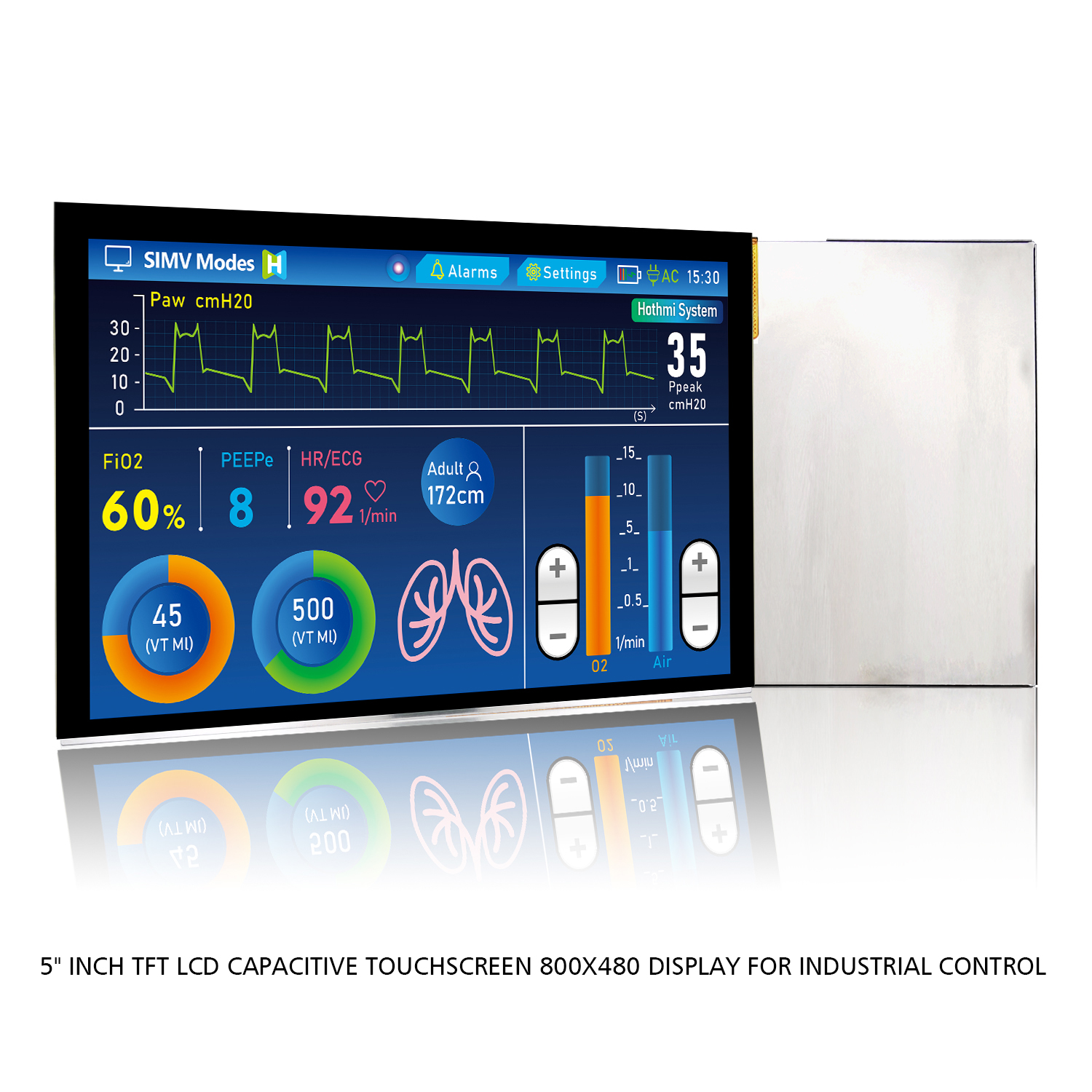

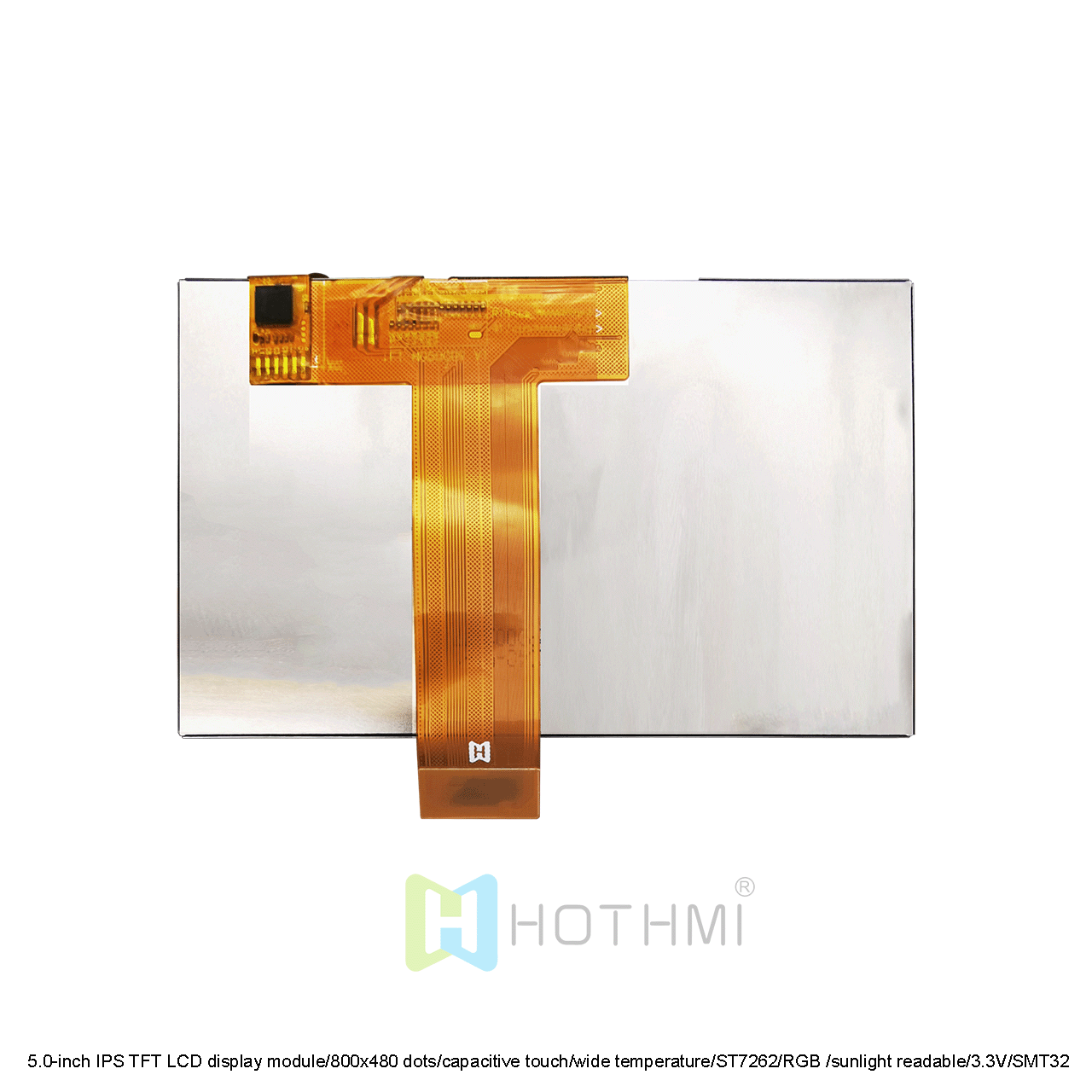

5 Inch Capacitive Touch Screen TFT LCD With ST7262 Driver IC

? Model: TFT-H050C09SVISTKC40

? Type: IPS full-viewing angle TFT display
? Display pixels: 800x480 px
? Dimensions (mm): 120.7X75.8X4.85
? Display inches: 5.0"
? AA size (mm): 108X64.8
? Application: industrial control systems, portable electronic devices
? Viewing angle: IPS
? Backlight/brightness: 1000cd/m2
? Pin: FPC-40 pin
? Interface mode: 24-bit RGB I/F
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -30~80℃
? Supply voltage: 3.3V
? Driver chip: ST7262 (TFT), Atmel mXT640T (CTP)

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

Product Description
Customized Services
Attributes

5.0-inch 800x480 color capacitive touch TFT screen/IPS TFT LCD screen/RGB interface/ST7262 controller/high brightness capacitive touch TFT LCD/sunlight viewable/plug-in FPC/STM32/RK
5.0-inch 800x480 resolution color TFT screen/IPS TFT LCD screen/RGB interface/ST7262 controller/high brightness TFT LCD/sunlight viewable/plug-in FPC is a 5.0-inch IPS TFT LCD display with a resolution of 800x480 pixels. The display has a high contrast ratio, capable of deep blacks and vivid colors. This model has a high brightness of 1000 nits, and the display is still clearly visible in a sunny environment. IPS technology enables full viewing angles. The TFT controller of the TFT-H050C09SVISTKC40 is the ST7262, with capacitive touch function, allowing users to interact with the display through bare finger touch and multi-touch input. The control chip of the capacitive touch screen is the Atmel mXT640T. 24-bit RGB I/F interface is used for data transmission with the display.
This is suitable for a wide range of applications, including industrial control systems, home automation and portable electronic devices.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H050C09SVISTKC40
Diagonal size	5.0”	Inch
Resolution	800x480px	Dot
Dimensions	120.7X75.8X4.85	mm
Active area (AA)	108X64.8	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	2:1
Backlight type	LED white
TFT driver IC	ST7262(TFT),Atmel mXT640T(CTP)
Brightness	1000	cd/m2
Operating temperature	-30~80℃	℃
Storage temperature	-30~85℃	℃
