China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / 5.0"～7.0"TFT LCD Display Panels / 7 Inch High Brightness TFT LCD With RGB Interface

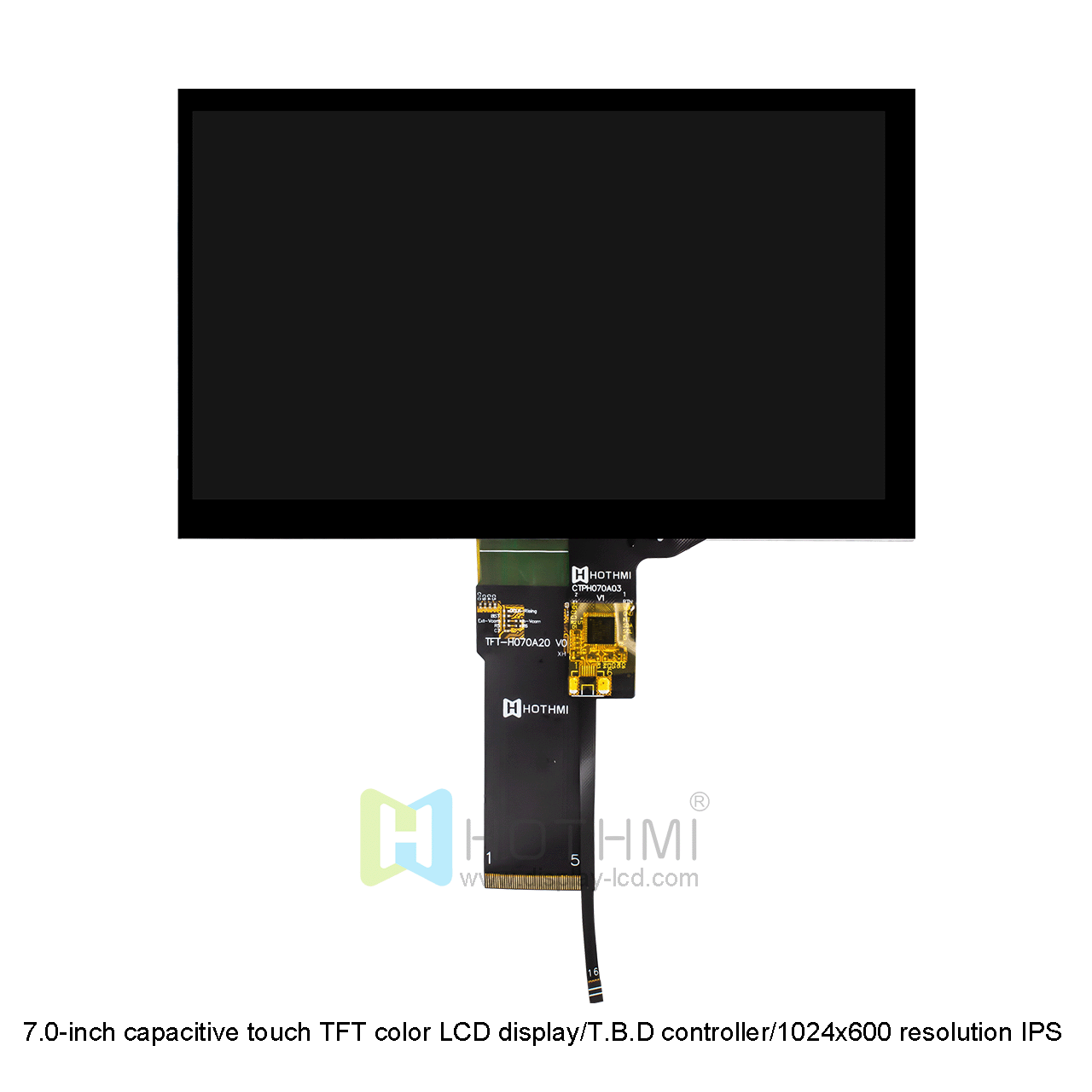

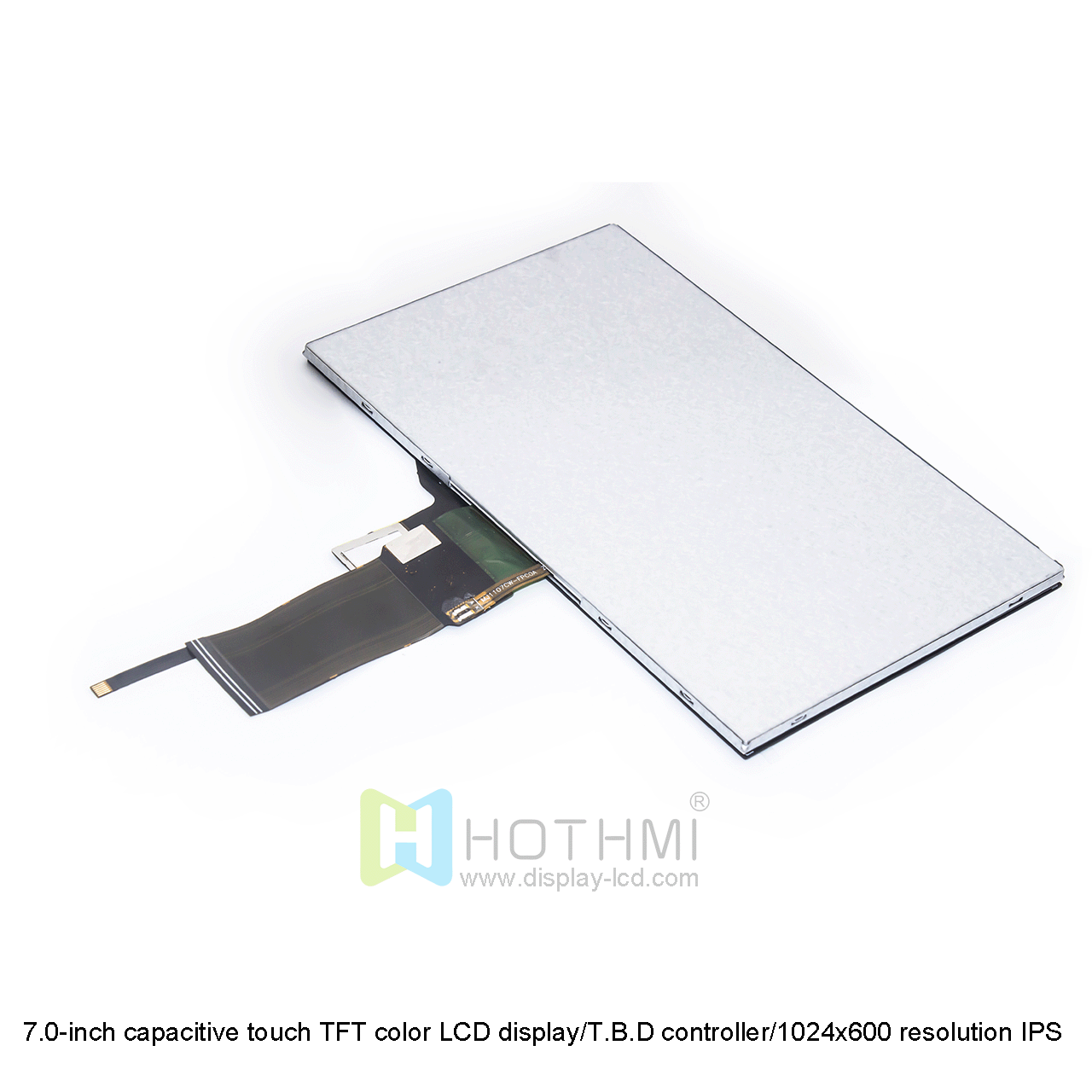

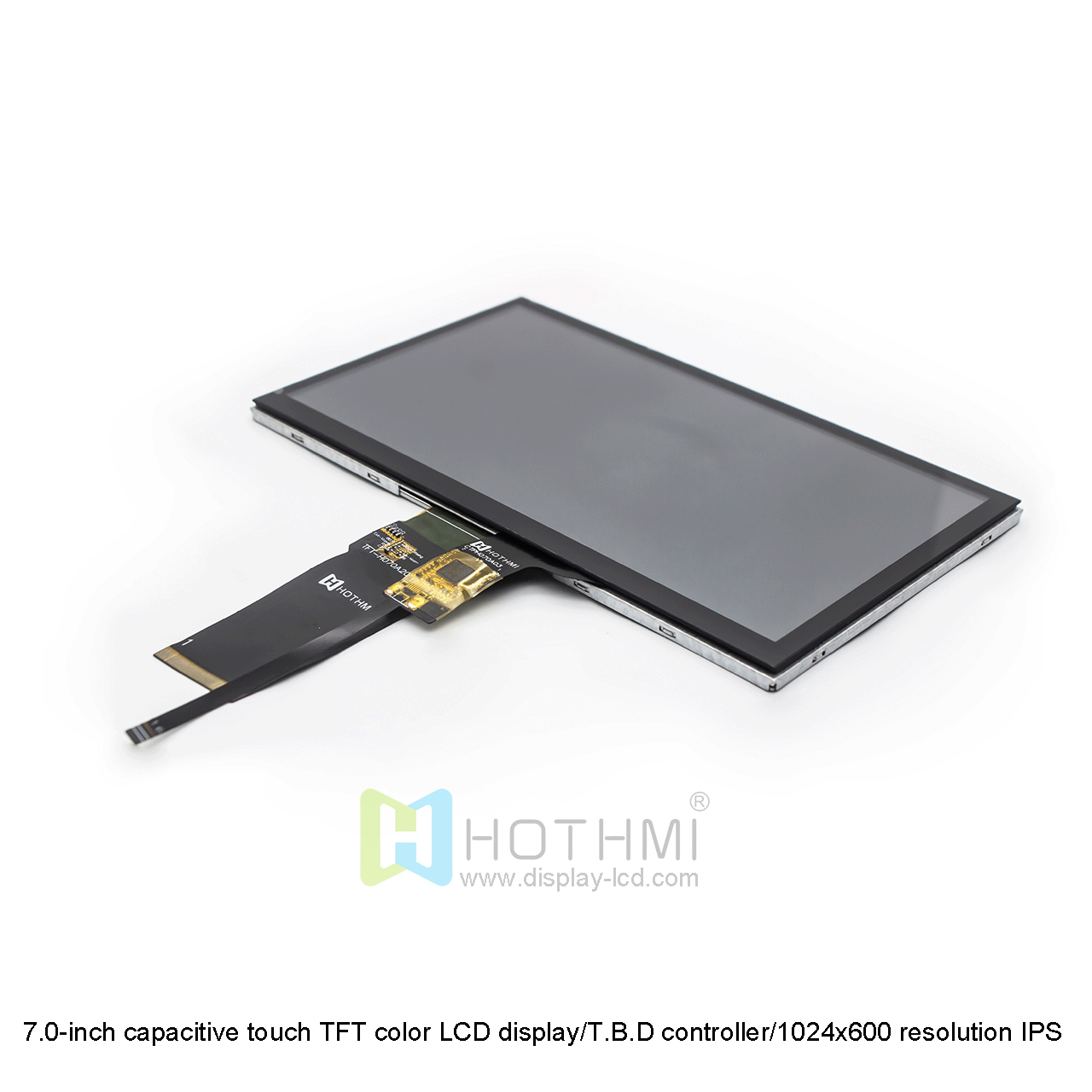

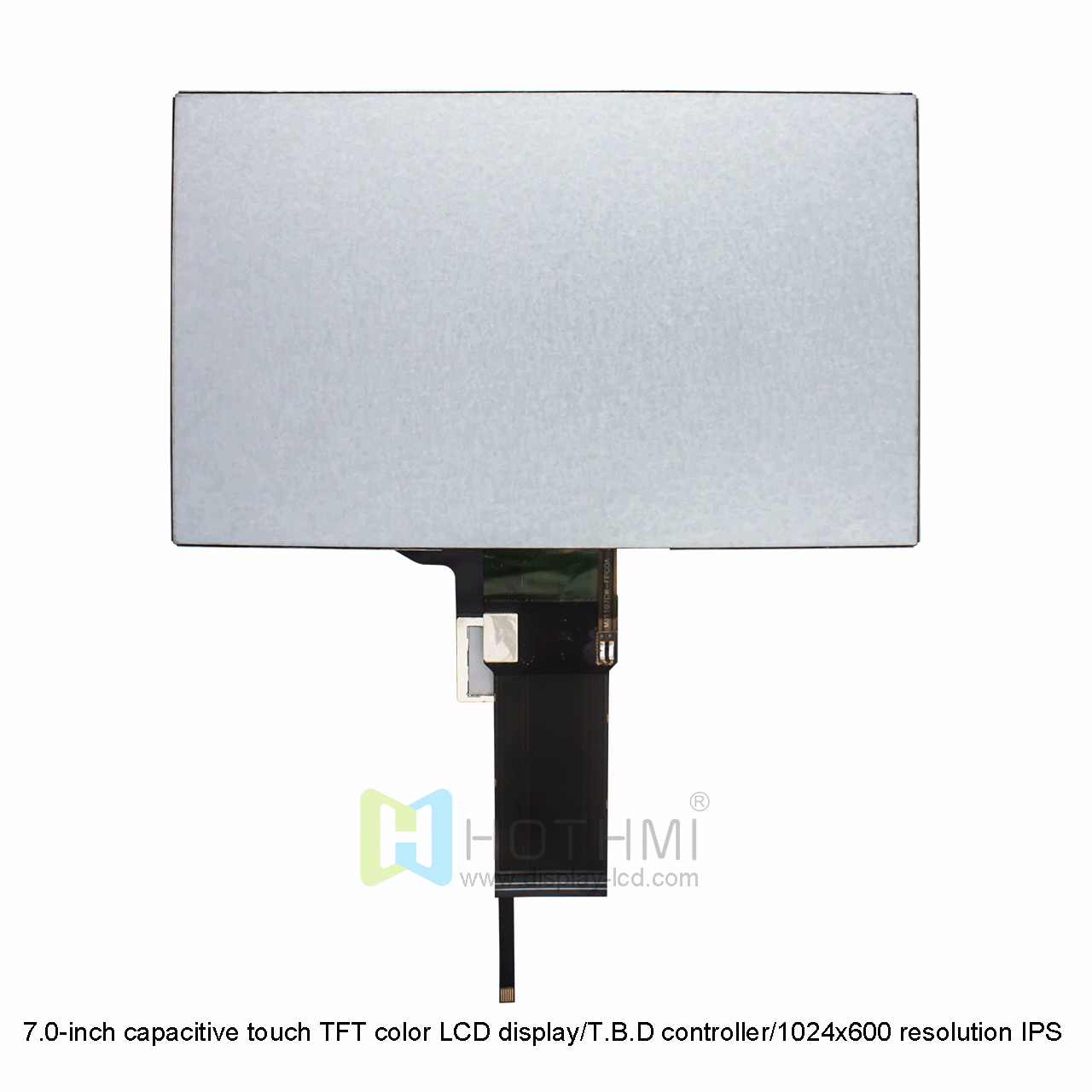

7 Inch High Brightness TFT LCD With RGB Interface

? Model: TFT-H070A20WSIFTGN50

? Type: TFT standard display
? Display pixels: 1024x600 px
? Dimensions (mm): 164.9X100.0X3.45
? Display inches: 7.0"
? AA size (mm): 154.21x85.92
? Application: Industrial control systems, portable electronic devices
? Viewing angle: IPS full viewing angle
? Backlight/brightness: 1900cd/m2
? Pin: FPC-50 pin
? Interface: RGB
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 3.3V
? Driver chip: GT911<CTP>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

Product Description
Customized Services
Attributes

TFT-H070A20WSIFTGN50 | 7 Inch High Brightness TFT LCD With RGB Interface
7.0-inch capacitive touch TFT color LCD display/1024x600 resolution IPS full-view color screen/ FPC plug-inontroller TFT-H070A20WSIFT7C50 This display is IPS full-view, no matter which direction you look at it, you can clearly see the displayed content. This model uses FPC connection, and FPC requires a connector. Just connect with our optional welding FPC connector, which is easy to insert or remove. This display also has a brightness of up to 700cd/m2. It can also be viewed in the sun. This model is equipped with capacitive touch function, the control chip of the touch chip is GT911, and the multi-touch setting is smooth and unobstructed.
For users using 8051 microcontrollers, we have also prepared a detailed tutorial, which includes interface information, demonstration code and development kits. You can contact us for request and study. Our monitors are RoHS compliant and comply with strict environmental and safety standards.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H070A20WSIFTGN50
Diagonal size	7.0”	Inch
Resolution	1024x600	Dot
Dimensions	164.9X100X3.45	mm
Active area (AA)	154.21X85.92	mm
LCD type	TFT LCD Display	mm
Display viewing angle	IPS
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	——
Brightness	1900	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-40~80℃	℃
