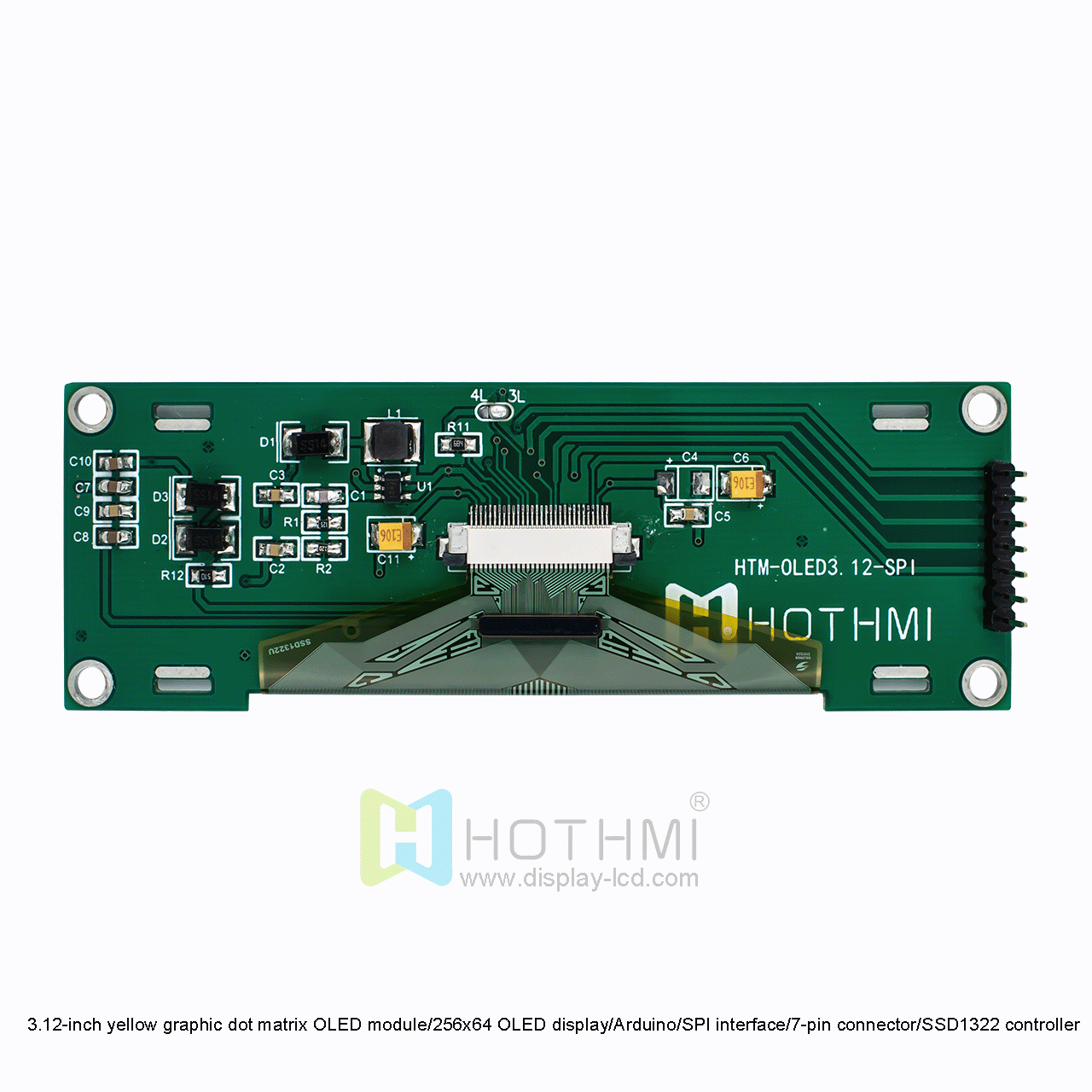

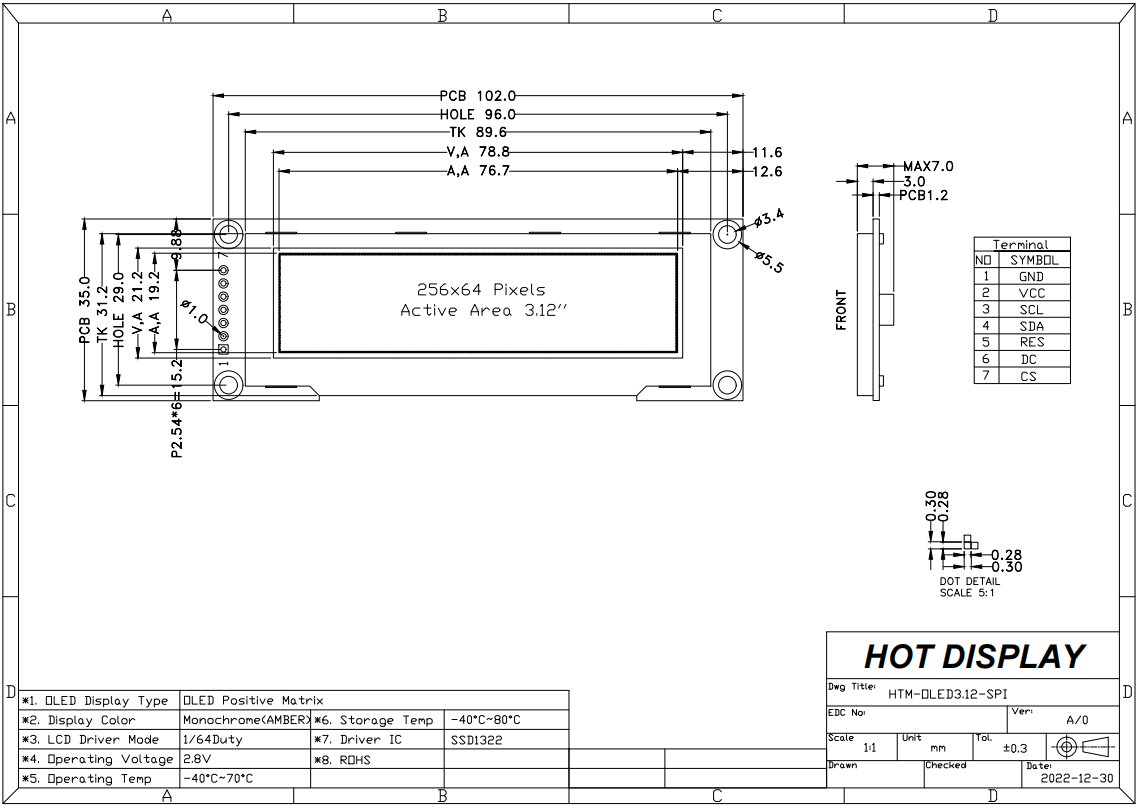

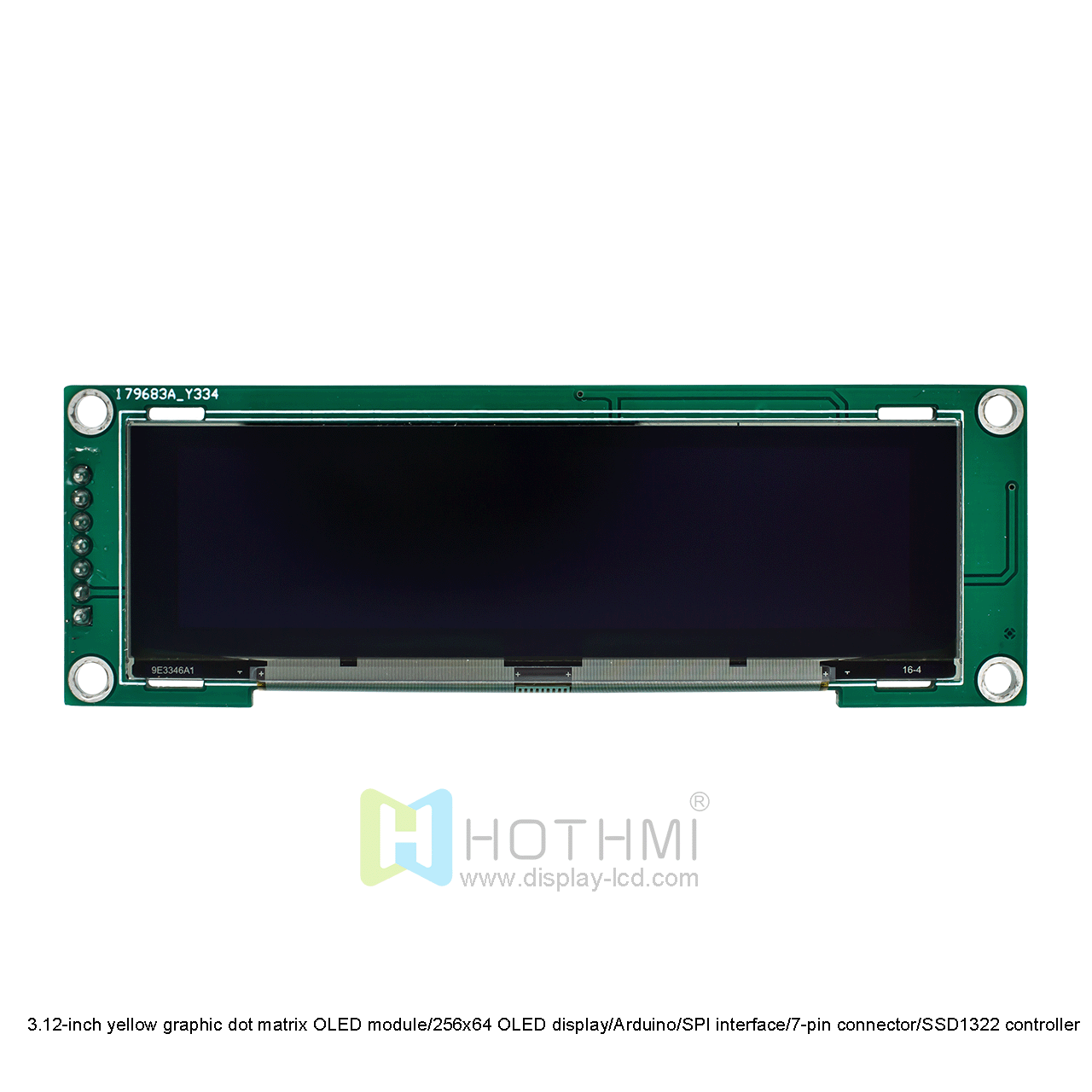

HTM-OLED3.12-SPI-Y|25664yellow graphic OLED module/Arduino/SPI interface/7-pin connector/SSD1322
This product 25664yellow graphic OLED module. OLED display technology is self-luminous and is designed to provide high visibility and ensure easy reading from any angle in different environments. This model has a resolution of 256x64 and belongs to a graphic OLED display. The viewing effect is high contrast, showing bright yellow graphics on a deep black background. We also have blue, green, and white options for the same product. With this OLED, you can expect the fastest response time. It is a passive matrix display with a built-in SPI interface option, fully compatible with Arduino, and seamlessly integrates with many different electronic systems for a variety of applications. The display also comes with a 7-pin connector and a built-in SSD1322 controller. The HTM-OLED3.12-SPI-Y model is designed to withstand extreme working conditions and performs well when used in a temperature range of -40 to 85 degrees Celsius. It requires a 3.3V power supply to operate and is RoHS compliant.
Highlights: 1. Self-luminous display, no backlight required, low power consumption.
2. Display color contrast is sharp.
3. With driver board, easy to use.
