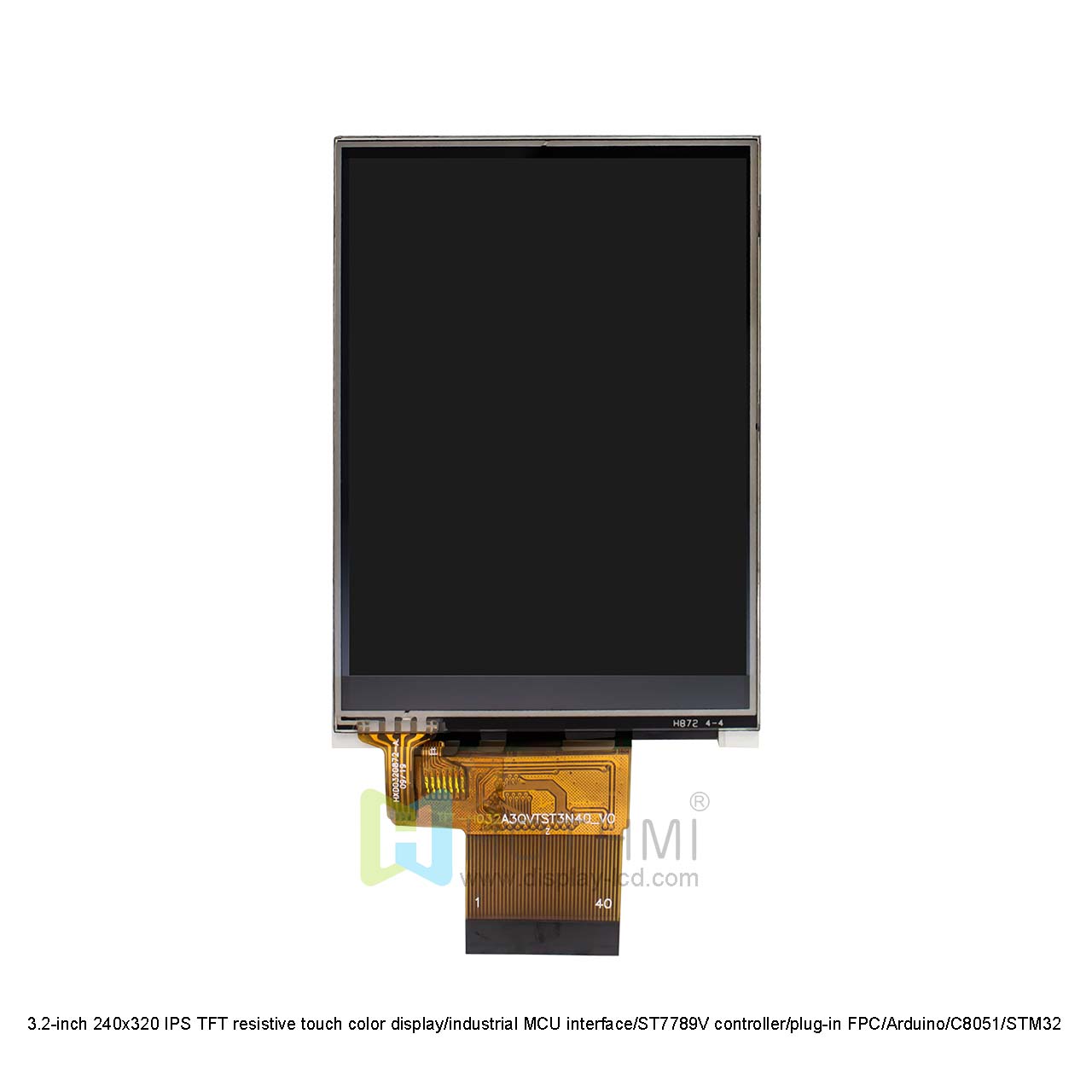

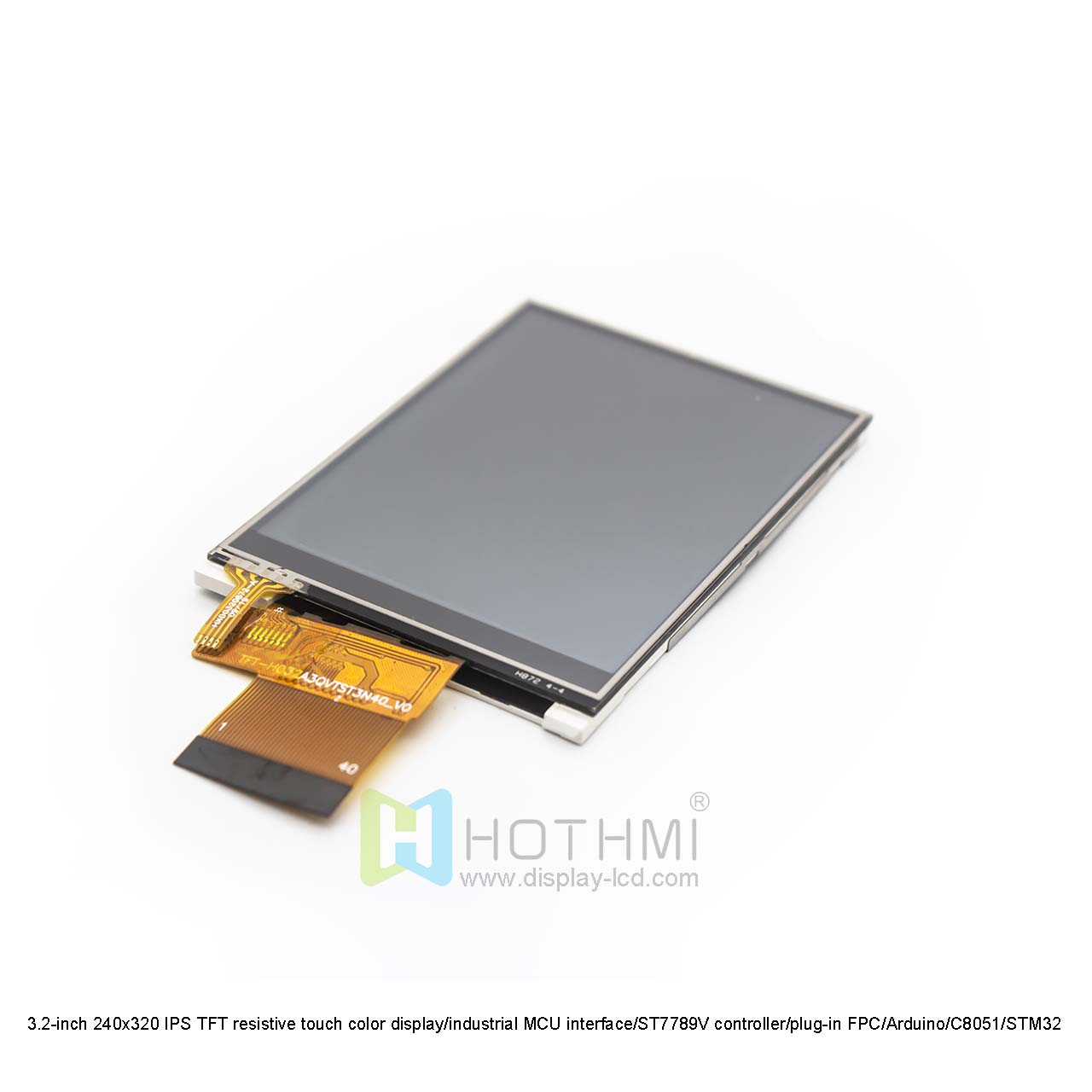

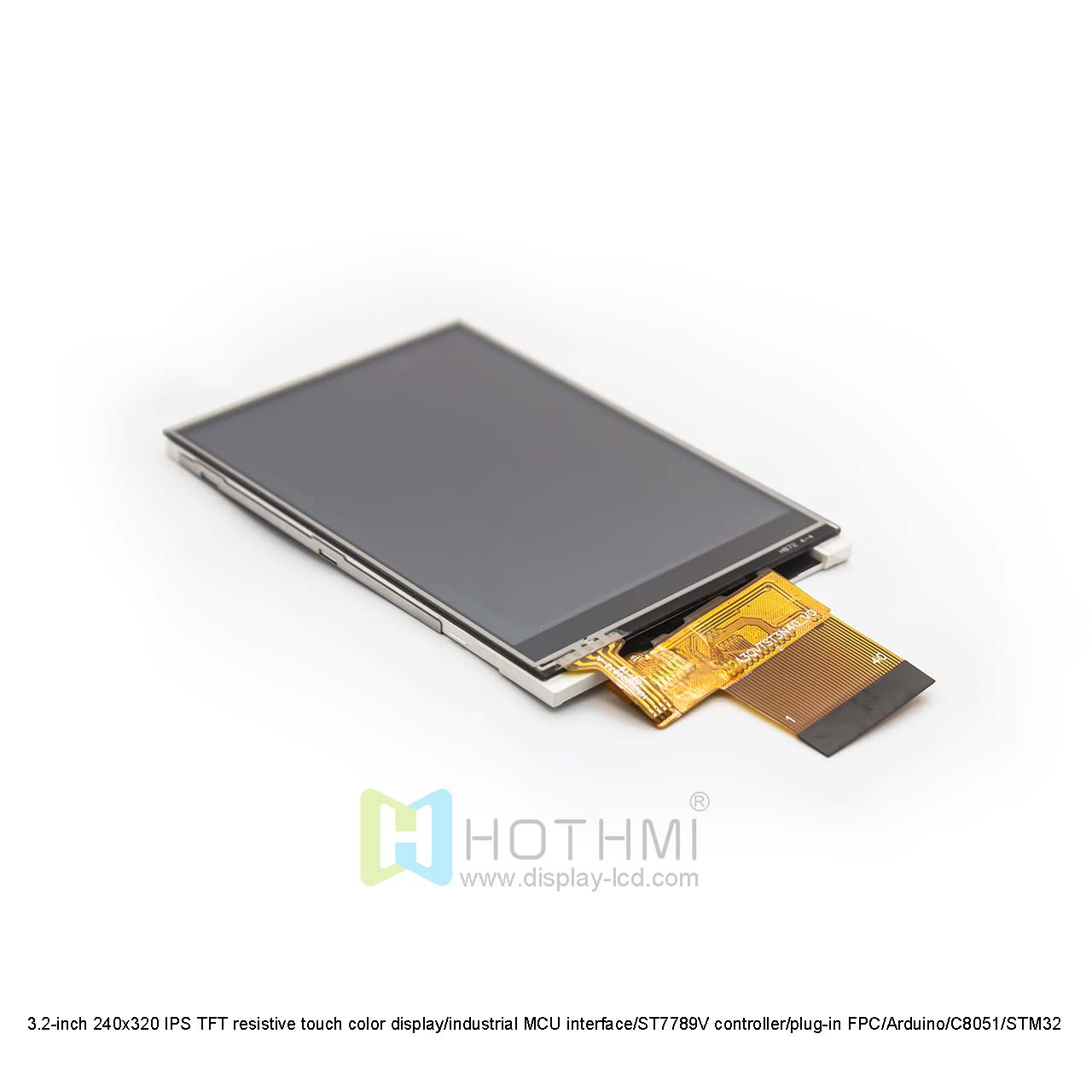

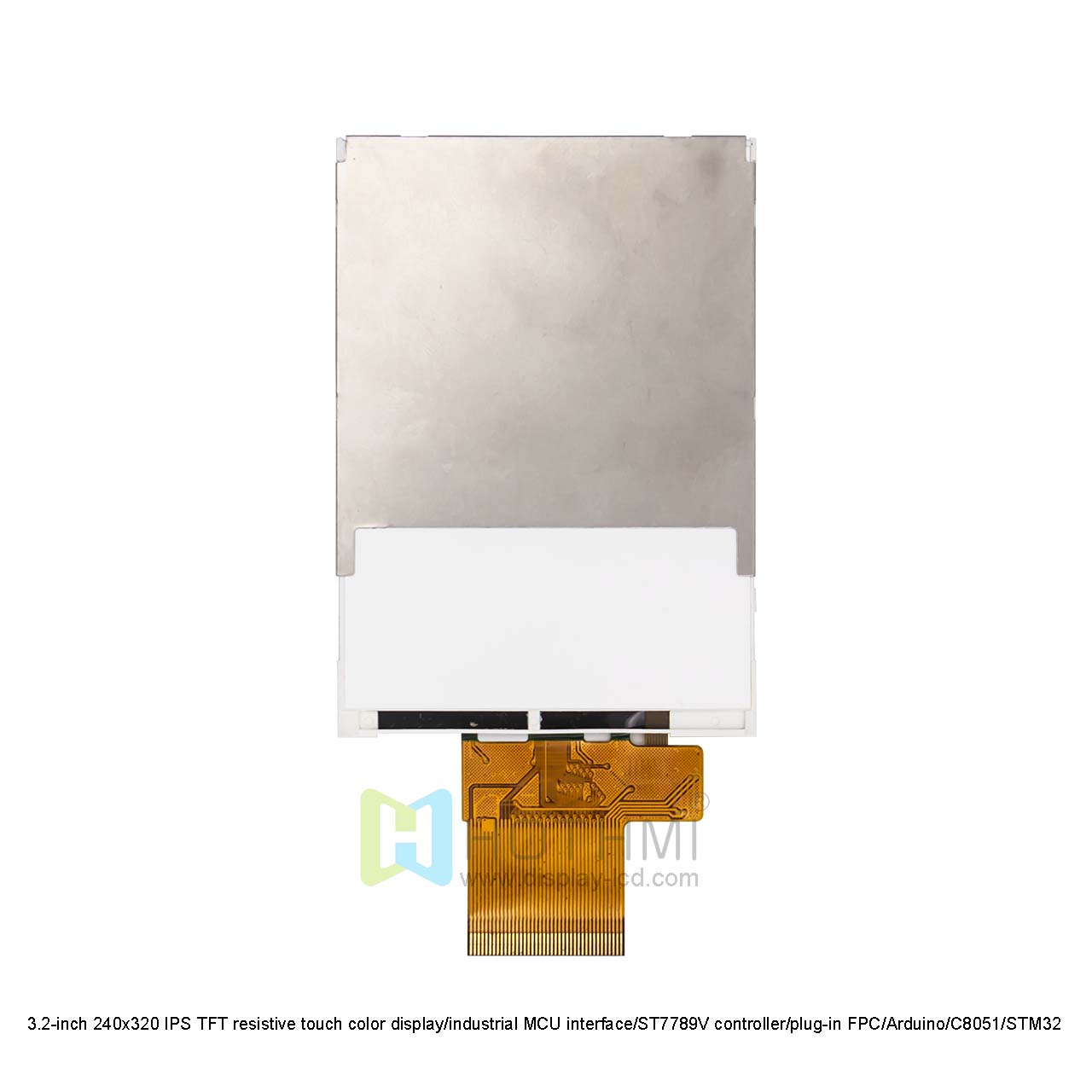

3.2-inch 240x320 IPS TFT resistive touch color display/industrial MCU interface/ST7789V controller/plug-in FPC/Arduino/C8051/STM32
This standard 3.2-inch TFT LCD display TFT-H032A3QVTST3R40 has a resolution of 240x320 pixels, IPS full viewing angle, and high-quality viewing effects regardless of the direction. The standard brightness LED backlight brightness is 350 nits. Although this transmissive LCD does not have a touch screen, its compact size, 2.8V low-voltage power supply, and impressive display quality make it an excellent choice for projects that require portrait mode visual output without touch function. This model comes with resistive touch function, which is smooth and comfortable to use.

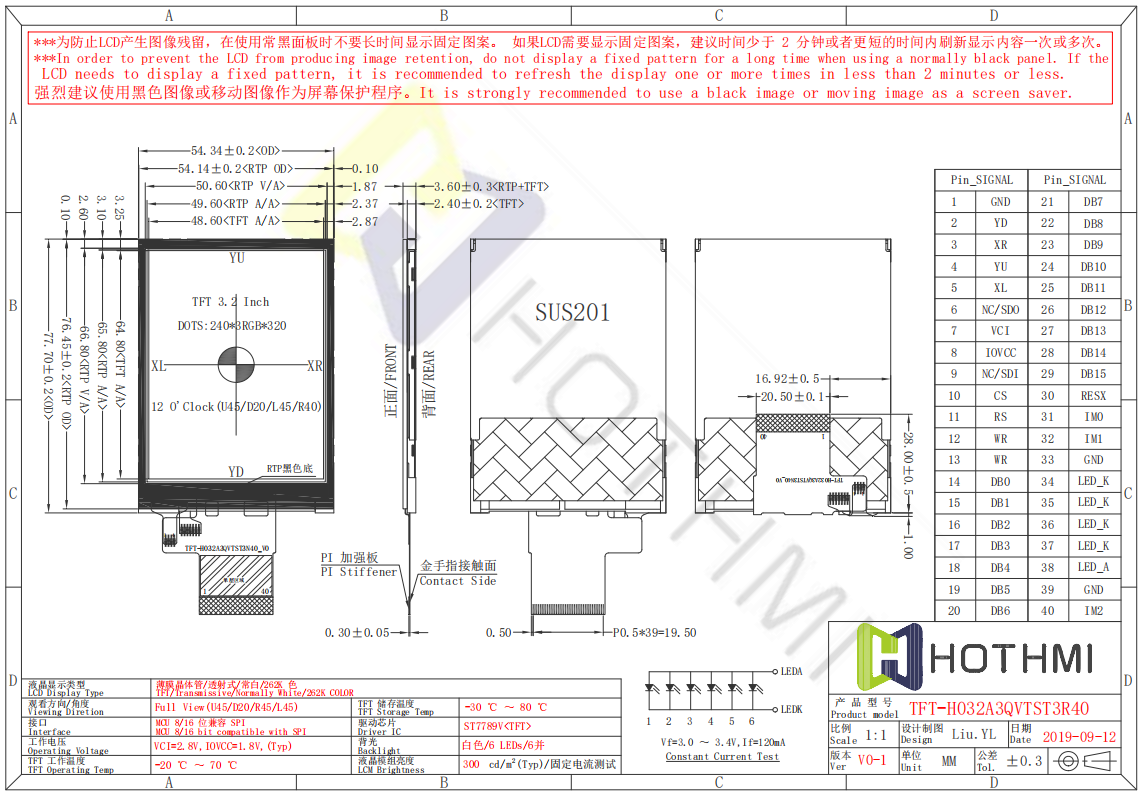

This 3.2-inch LCD display uses a 40PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly simpler and easier to operate. This TFT LCD display is powered by the ST7789V controller, which provides excellent performance and reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Popular industries for this TFT form factor include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also ideal for DIY or prototyping projects due to their compatibility with Arduino. The MCU interface enables fast and efficient communication between the Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with a wide range of Arduino models. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
