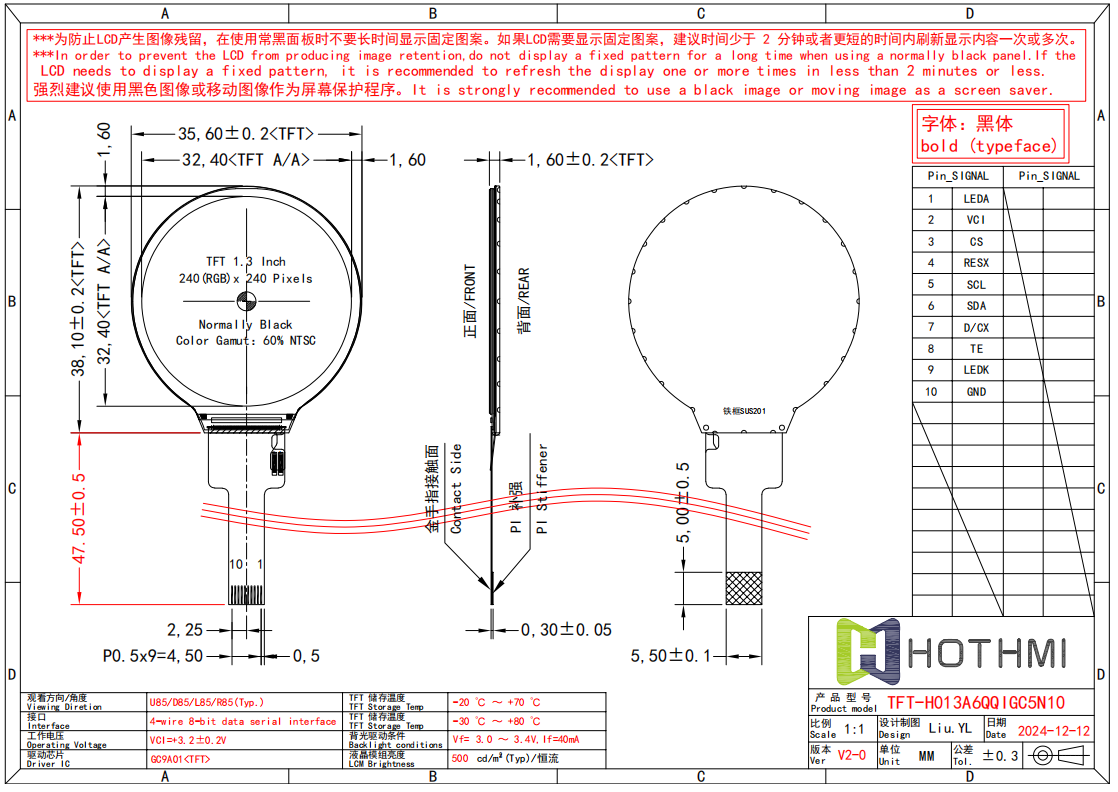

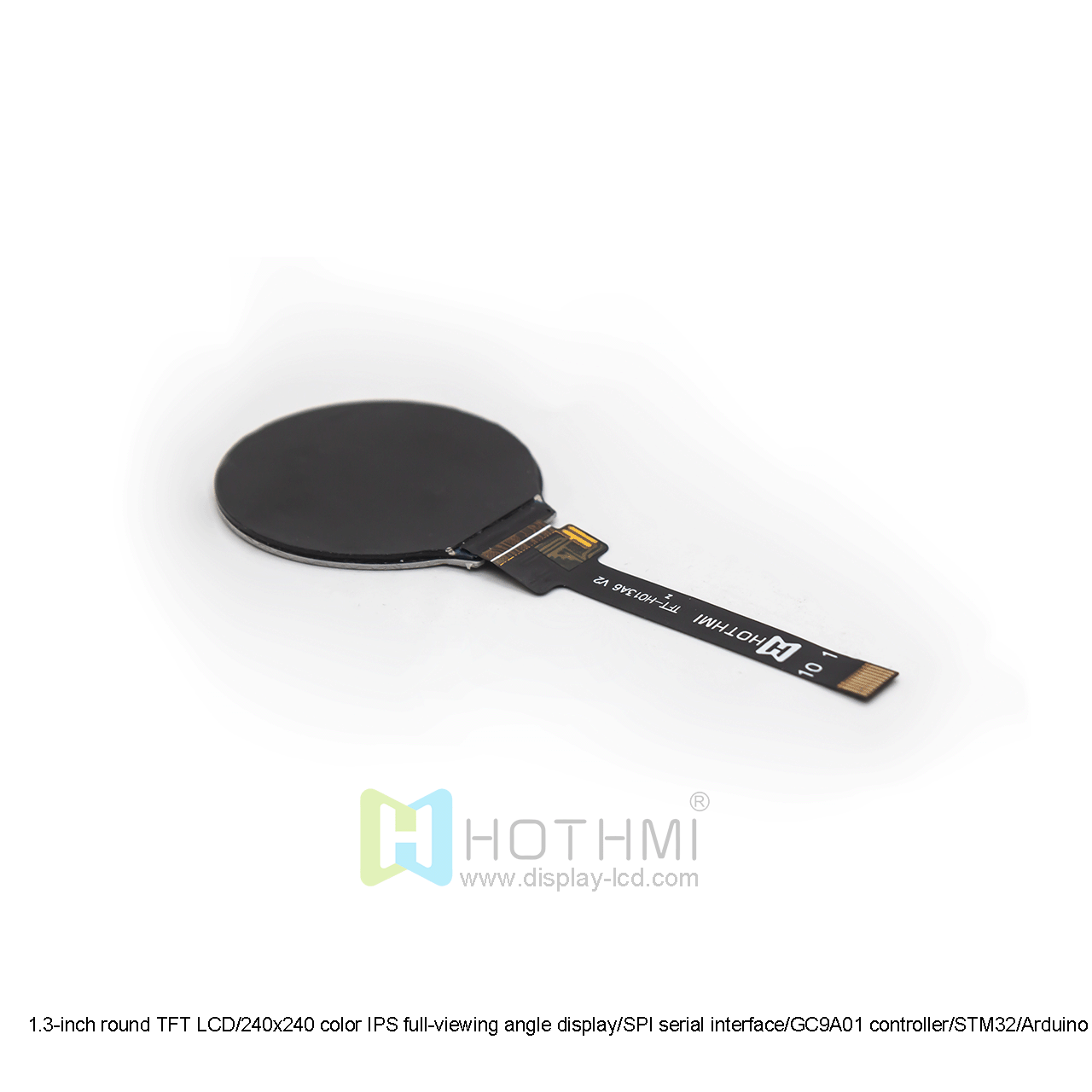

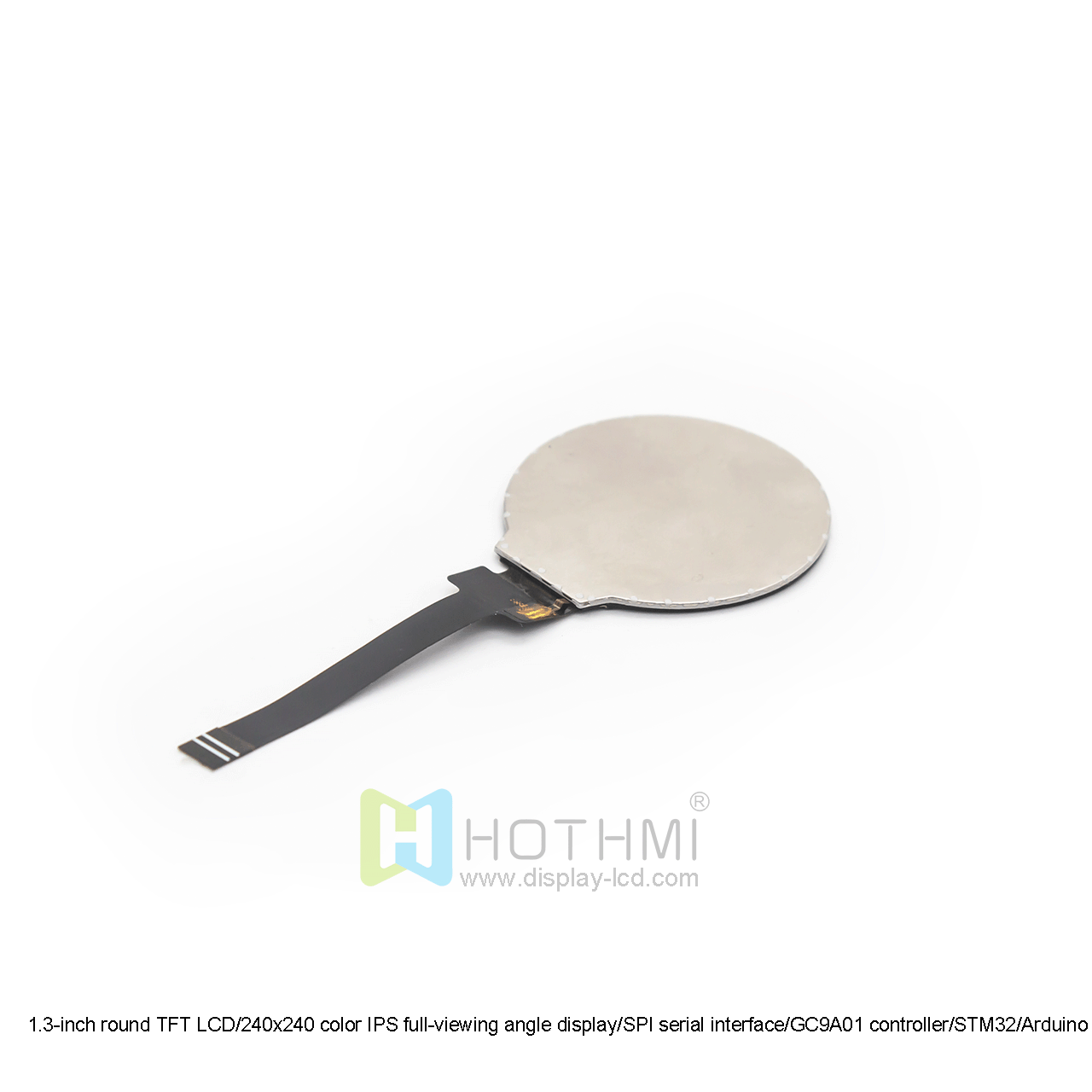

TFT-H013A6QQIGC5N10 | 1.3 Inch round TFT LCD | 240x240 GC9A01 Controller | SPI Serial Interface | Sunlight Readable Display

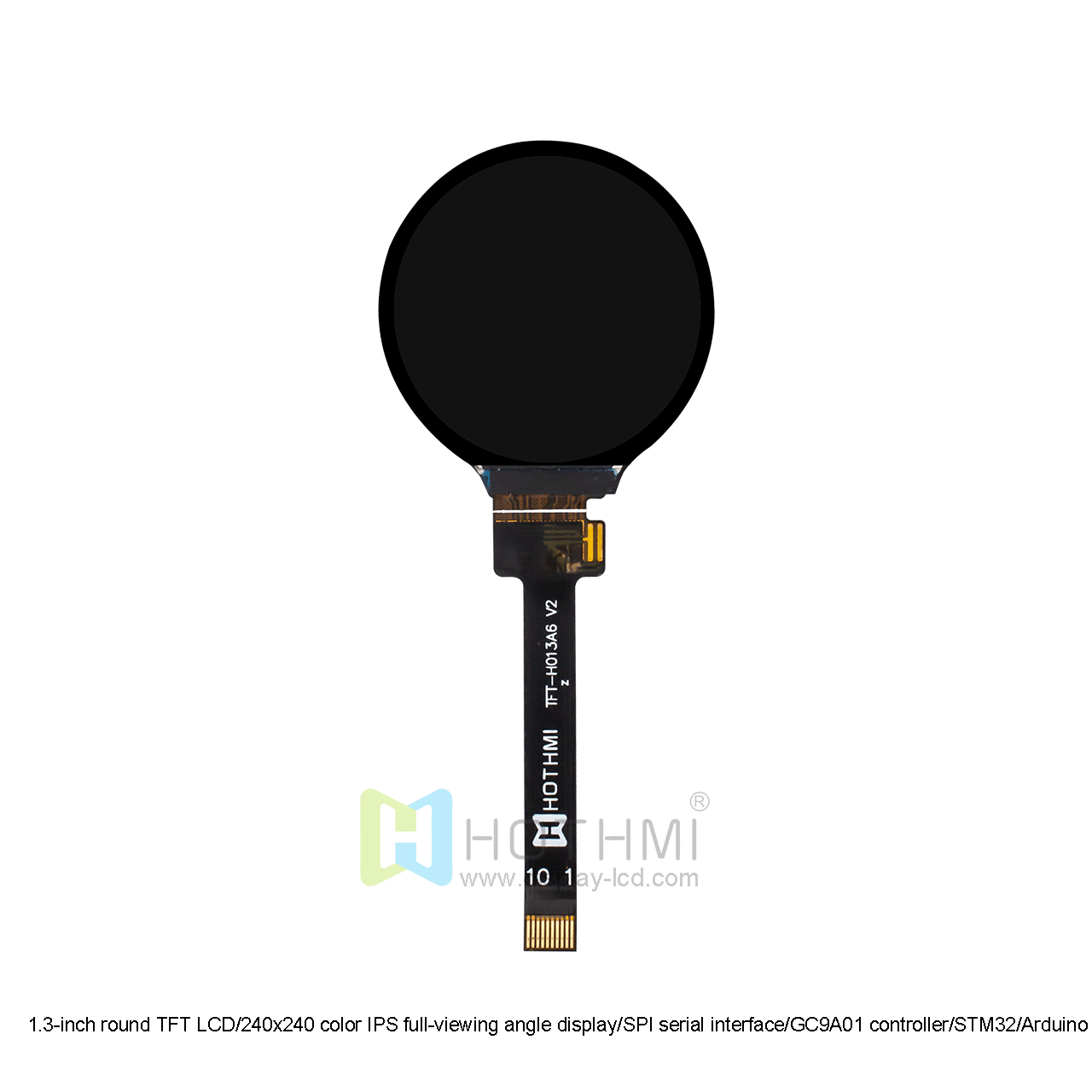

This standard 1.3 inch round TFT LCD has a resolution of 240x240 pixels, IPS full viewing angle, and excellent viewing effect no matter which direction you look at it, with a brightness of 500cd/m2. The compact size, 3.3V low voltage power supply and impressive display quality make this display a great choice for projects without touch function.

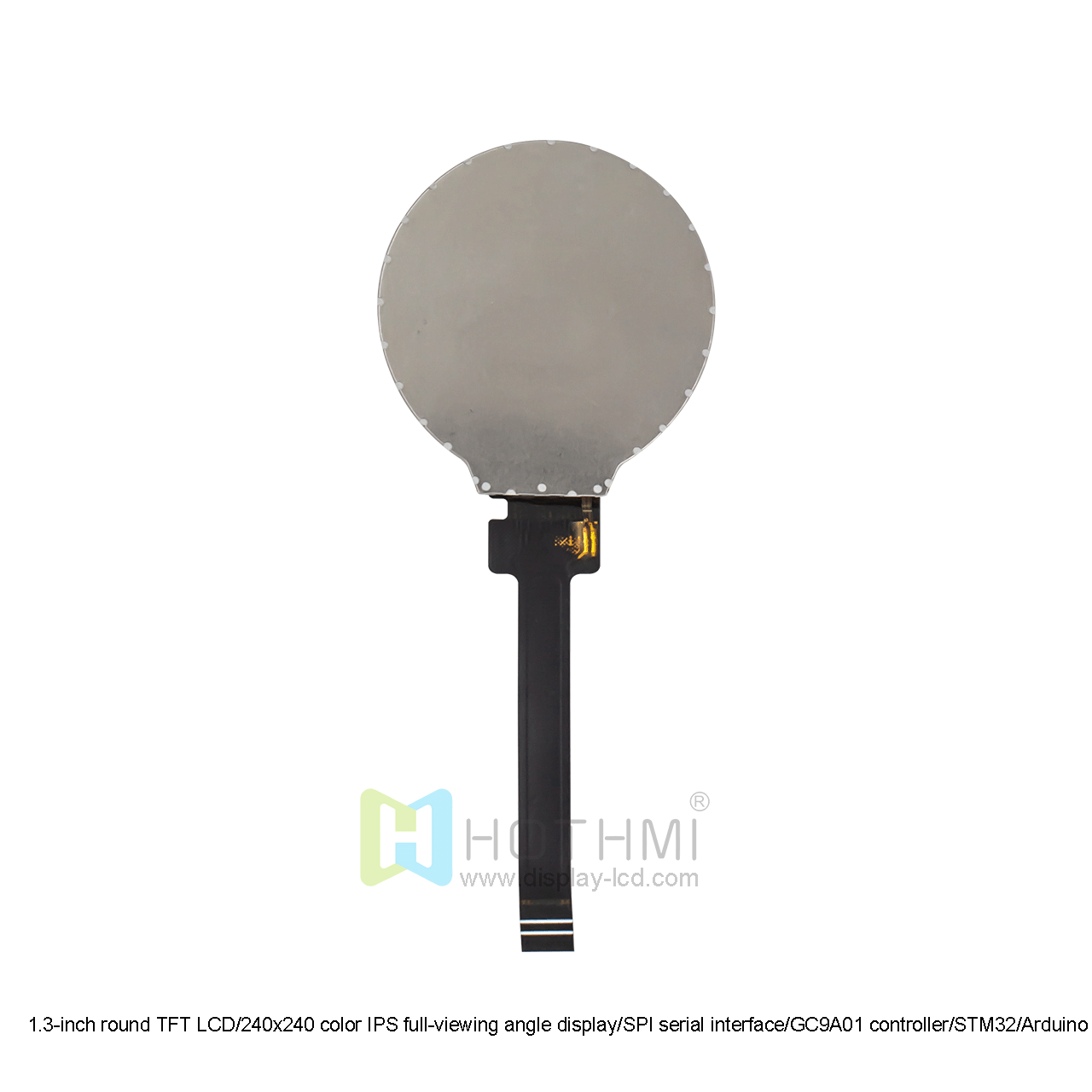

This 1.3 inch round TFT LCD uses 10PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This 1.3 inch round TFT LCD is powered by the GC9A01 controller. The controller optimizes the functions of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with C8051/STM32/Arduino, they are also very suitable for DIY or prototype projects. The SPI interface enables fast and efficient communication between the C8051/STM32/Arduino series, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
This1.3 inch round TFT LCD features a unique cable with a length of 47.5mm, which is easy for users to assemble on the driver board. The same display also provides models with different cable lengths and brightness, TFT-H013A6QQIGC7N10 and TFT-H013A6QQIGC7N10-V1. At the same time, we also provide a module with a driver board, HTM-H013A6-UART-A02. For the same size circular display, we also provide 16PIN MIPI interface TFT-H013A1HQIST3N16 circular display, which may provide you with more choices.
