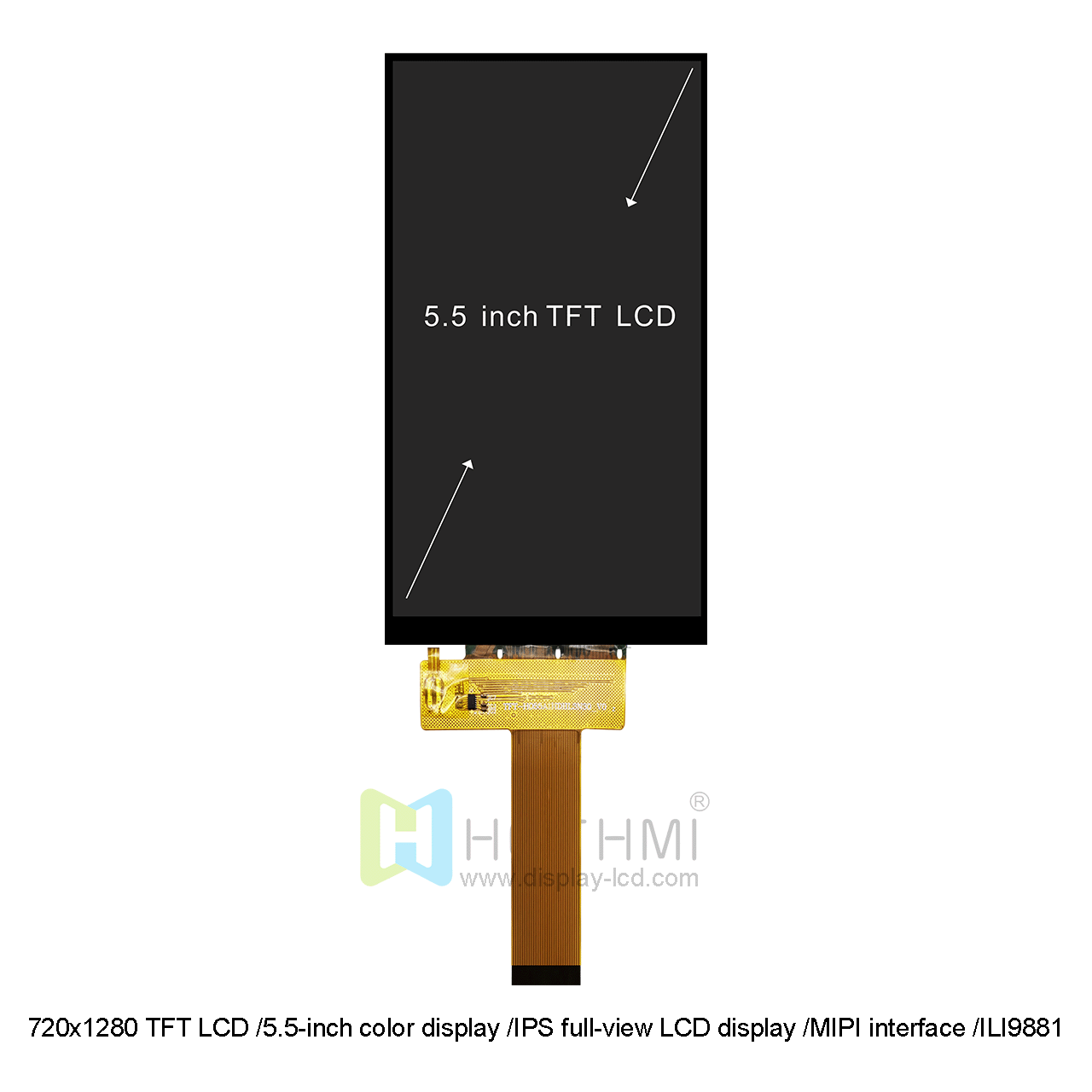

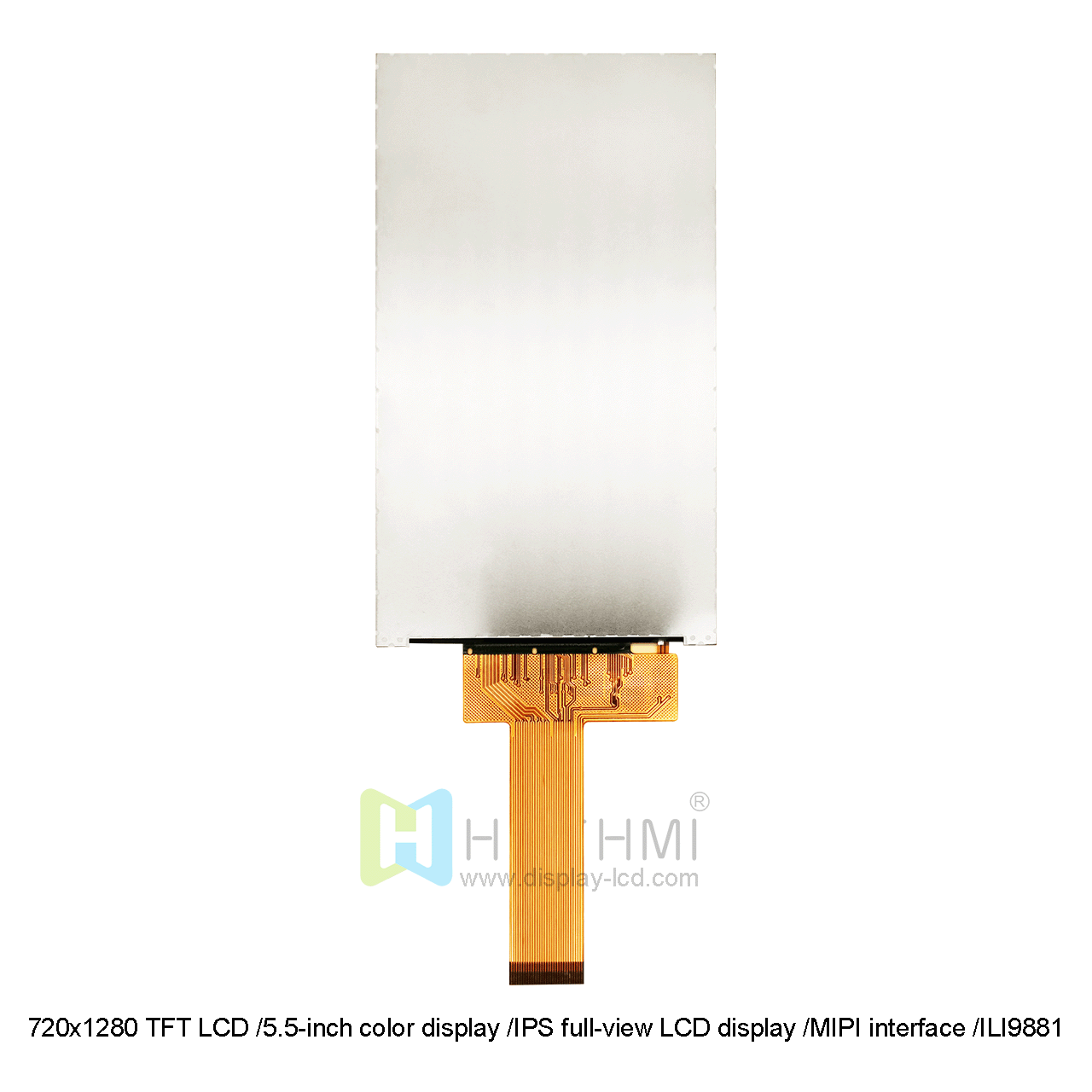

720x1280 TFT LCD /5.5-inch color display/ IPS full-viewing angle LCD display/MIPI interface/ILI9881 controller/Android/RK motherboard

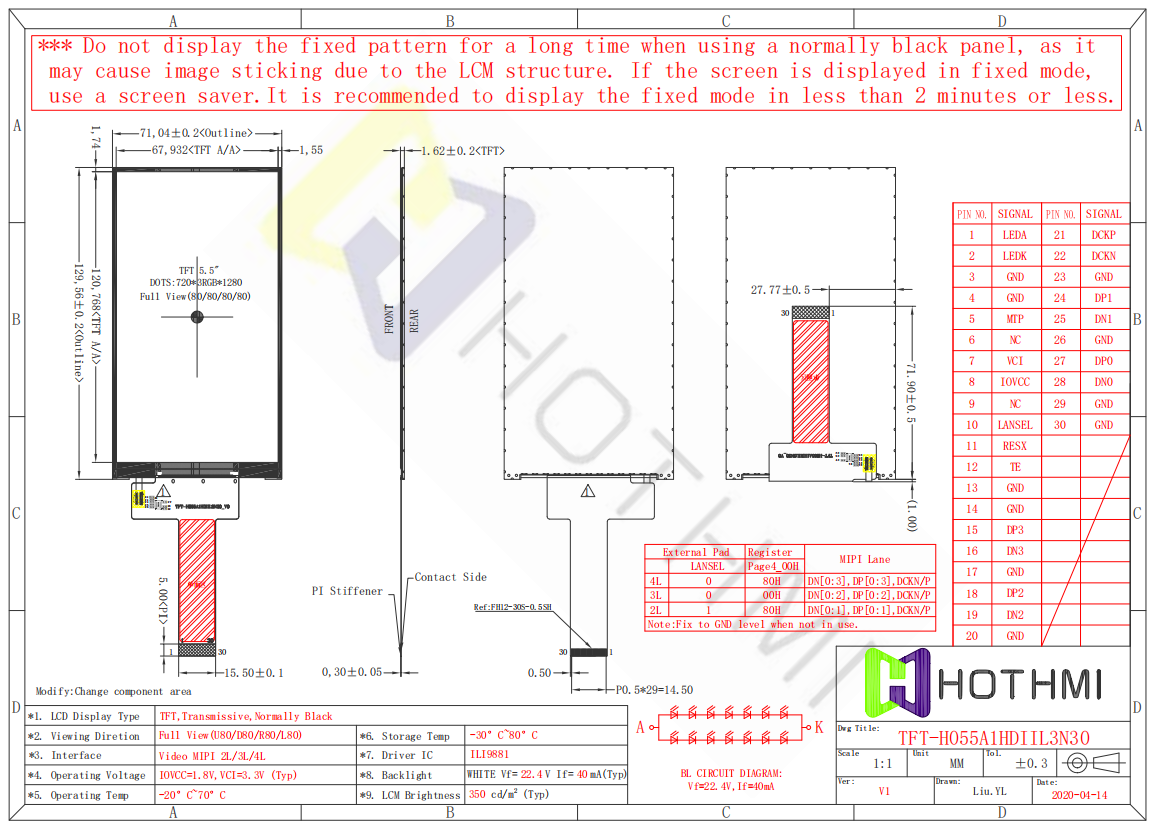

This standard 5.5 display TFT-H055A1HDIIL3N30 has a resolution of 720x1280 pixels, IPS full-viewing angle, and excellent viewing effect no matter which direction you watch from, with a brightness of 350cd/m2. The compact size, 3.3V low-voltage power supply, and impressive display quality make this display an excellent choice for projects without touch function.
This 5.5-inch LCD display uses a 30PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the ILI9881 controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include the Internet of Things, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with Android/RK motherboards, they are also very suitable for DIY or prototype projects. The MIPI interface enables fast and efficient communication between Android/RK motherboards, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
