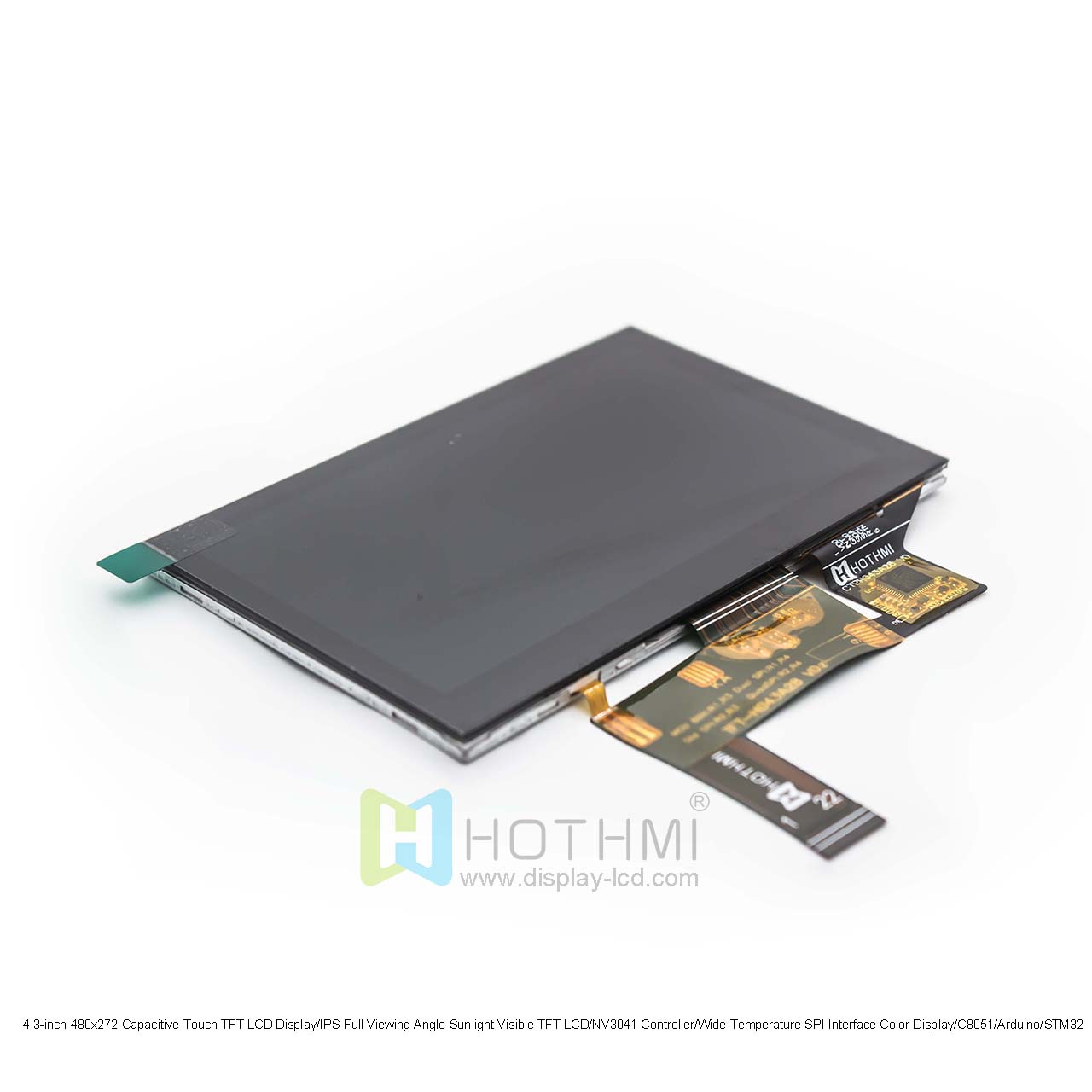

4.3 inch TFT LCD Display | 480x272 Optical Bonding Capacitive aTouch TFT LCD Display | QSPI/MCU Interface | Sunlight Readable Display

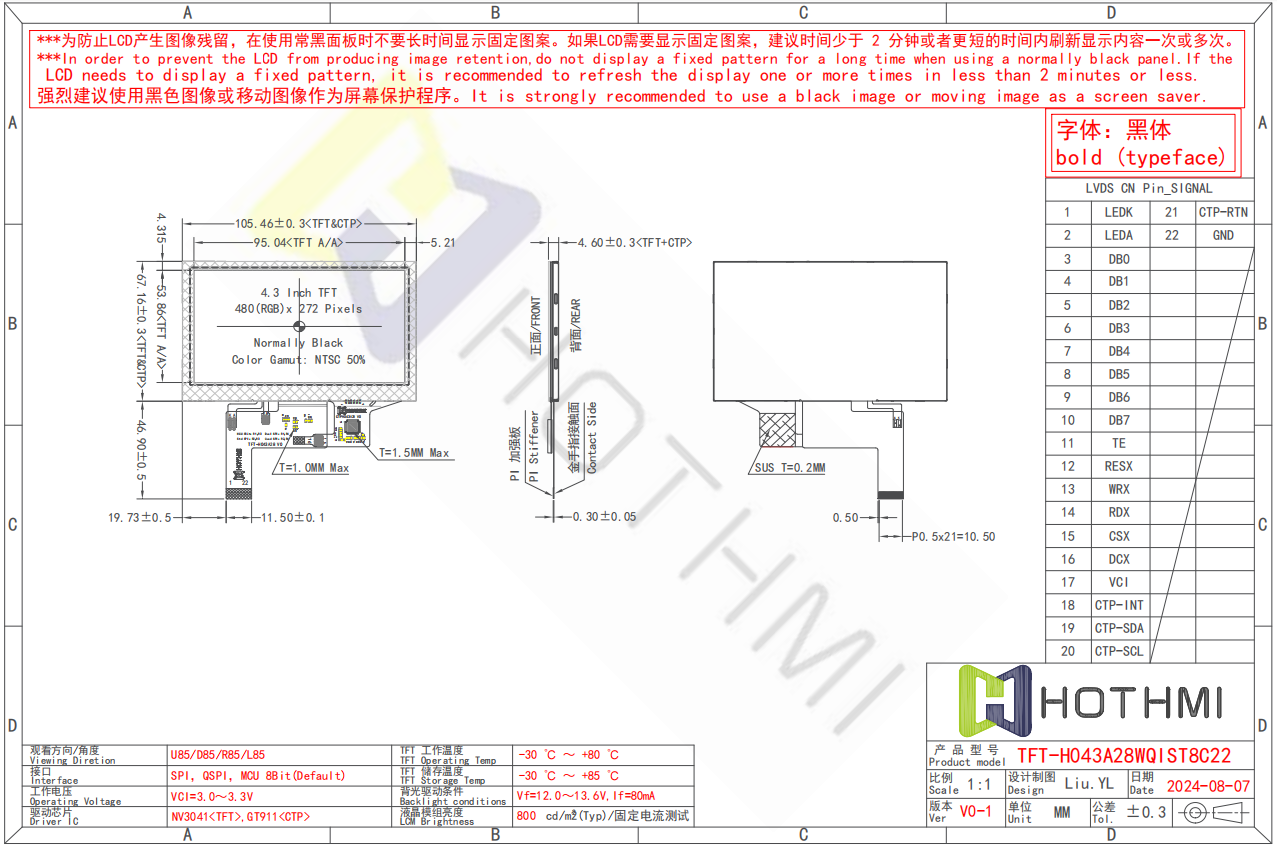

TFT-H043A28WQIST8C22 is a 4.3-inch IPS TFT LCD display with a resolution of 480x272 pixels. The display has a high contrast ratio of 800:1, which can present deep blacks and vivid colors. IPS technology enables full viewing angles, and combined with ultra-high brightness, the display provides amazing clarity, excellent high-quality color reproduction, better image consistency, and high contrast at full viewing angles.
This 4.3-inch 480x272 capacitive touch TFT LCD display has a built-in NV3041 controller, which optimizes the functions of the display to ensure smooth operation and accurate presentation of images and graphics. The LCD uses FPC connection to ensure easy electrical connection. Just plug the FPC into the development board with a connector. The QSPI and MCU compatible interfaces of this product make it more unique, giving developers more flexibility to use it for data transmission. This model is suitable for C8051/Arduino/STM32 series. Suitable industries include Internet of Things, industrial automation, consumer electronics, test and measurement, and handheld devices. Suitable for a wide range of applications, including industrial control systems, home automation and portable electronics.
Touch screen introduction: This 4.3-inch TFT-matched capacitive touch screen is perfectly bonded to the display TFT-H043A28WQISTKN22 at a 1:1 ratio. The optical bonding process allows the entire module to present a high-quality picture when working. The GT911 control chip makes the touch more sensitive, and the 5-point touch mode presents a high touch stability. In addition to the 1:1 touch screen, we also provide users with customized touch panels, customized printing patterns, LOGO, color and other solutions.
This model is a 4.3-inch horizontal display. We also provide a 4.3-inch vertical display TFT-H043B16WVINT4N40, and a 4.3-inch resistive touch display TFT-H043B15WVIST3R45. This series also has versions with different FPC cables, such as: TFT-H043A2WQIST5R40, TFT-H043A21WQIST8C40 and other related products. Users can also choose to customize the cable according to actual conditions.
All Hot Display products are RoHS compliant and comply with strict environmental and safety standards.
