China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / 16x2 Character LCD Module | 1602 DFSTN LCD Display | ST7066U

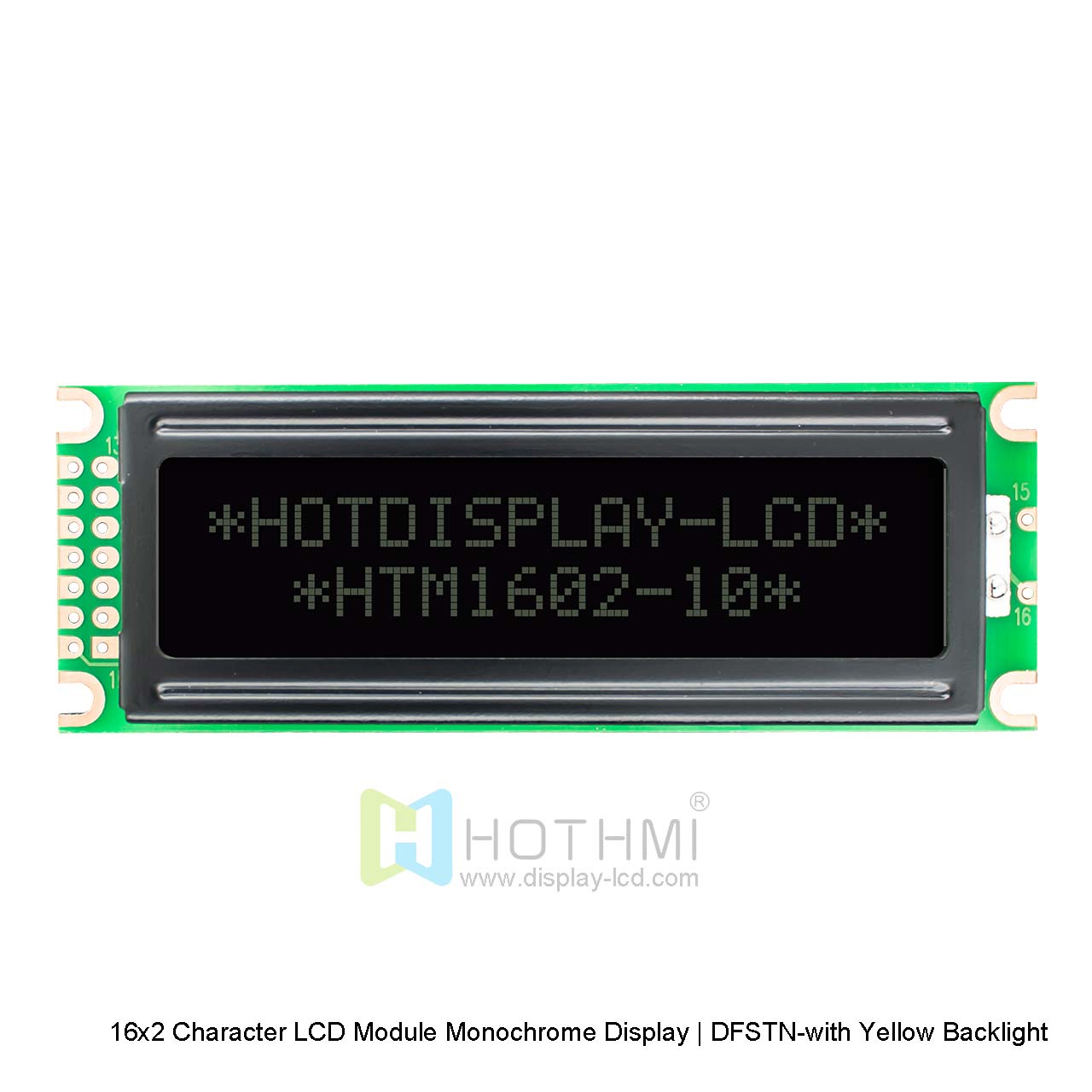

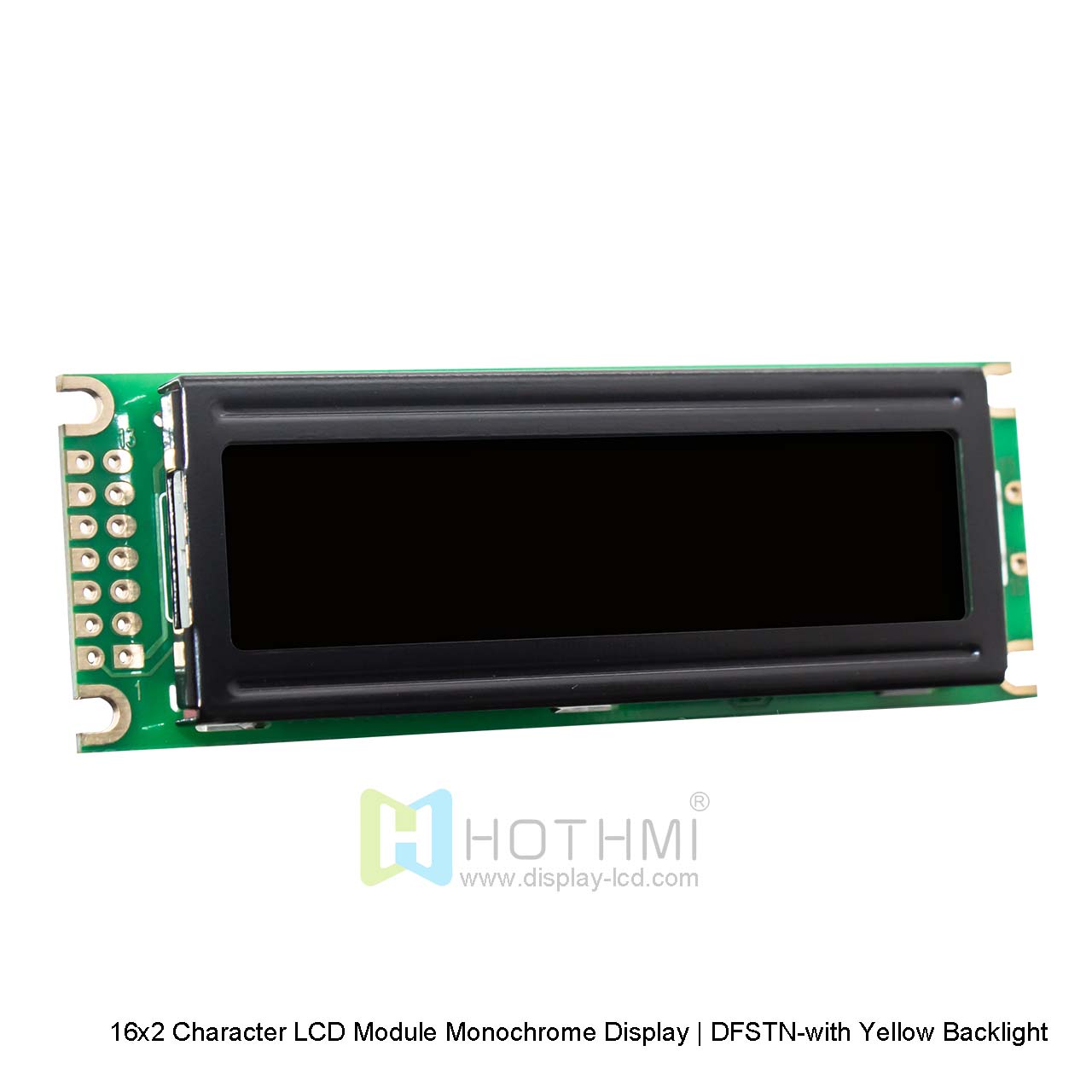

16x2 Character LCD Module | 1602 DFSTN LCD Display | ST7066U

? Model: HTM1602-10-41Y-T5P

? Type: 16x2 Character LCD Module
? Display content: 16x2 characters
? Dimensions (mm): 85.0x29.5x13.1
? VA window size (mm): 64.5x15.8
? AA size (mm): 55.8x10.64
? Dot pitch mm: 0.62x0.64
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: yellow light
? Connection method PIN number: 16PIN
? Interface method: MCU
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Supply voltage: 5.0v
? Driver chip：ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

16x2 Character LCD Module | 1602 DFSTN LCD Display | ST7066U
HOT Display 16x2 Character LCD Module ,with ST7066U driver chip is a high-performance character type liquid crystal display module that can display up to 32 characters on two lines, each line contains 16 yellow pixel characters, and is presented on a black background. This 16x2 Character LCD Module uses translucent DFSTN (Double Film Super-Twisted Nematic) negative liquid crystal technology to ensure clear contrast and requires a backlight for enhanced visibility.

Main features:
Display specifications: 16x2 Character LCD Module
Display type: DFSTN negative liquid crystal, yellow characters on black background
Backlight: Backlight is required for better visibility
Viewing angle direction: Optimum viewing angle is 6:00 direction
Controller: Built-in ST7066U controller, compatible with common character LCD drivers
Operating voltage: 5.0V/3.3V DC power supply
Interface compatibility: Compatible with Arduino and other popular microcontrollers and development boards
Operating temperature: -20°C to 70°C, suitable for a variety of environmental conditions

This16x2 Character LCD Module ,which contain ST7066U driver chip is suitable for a variety of embedded systems, electronic instruments, industrial equipment and DIY electronic projects, providing stable display effects and wide compatibility, making it an ideal choice for many applications.

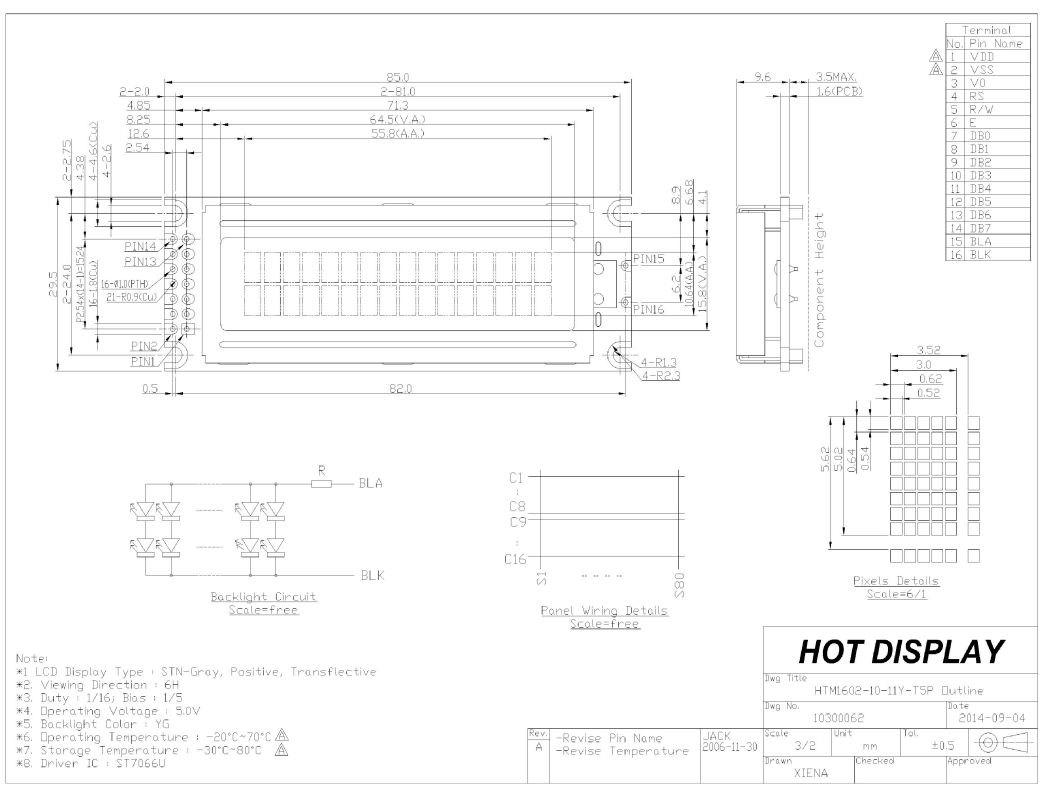

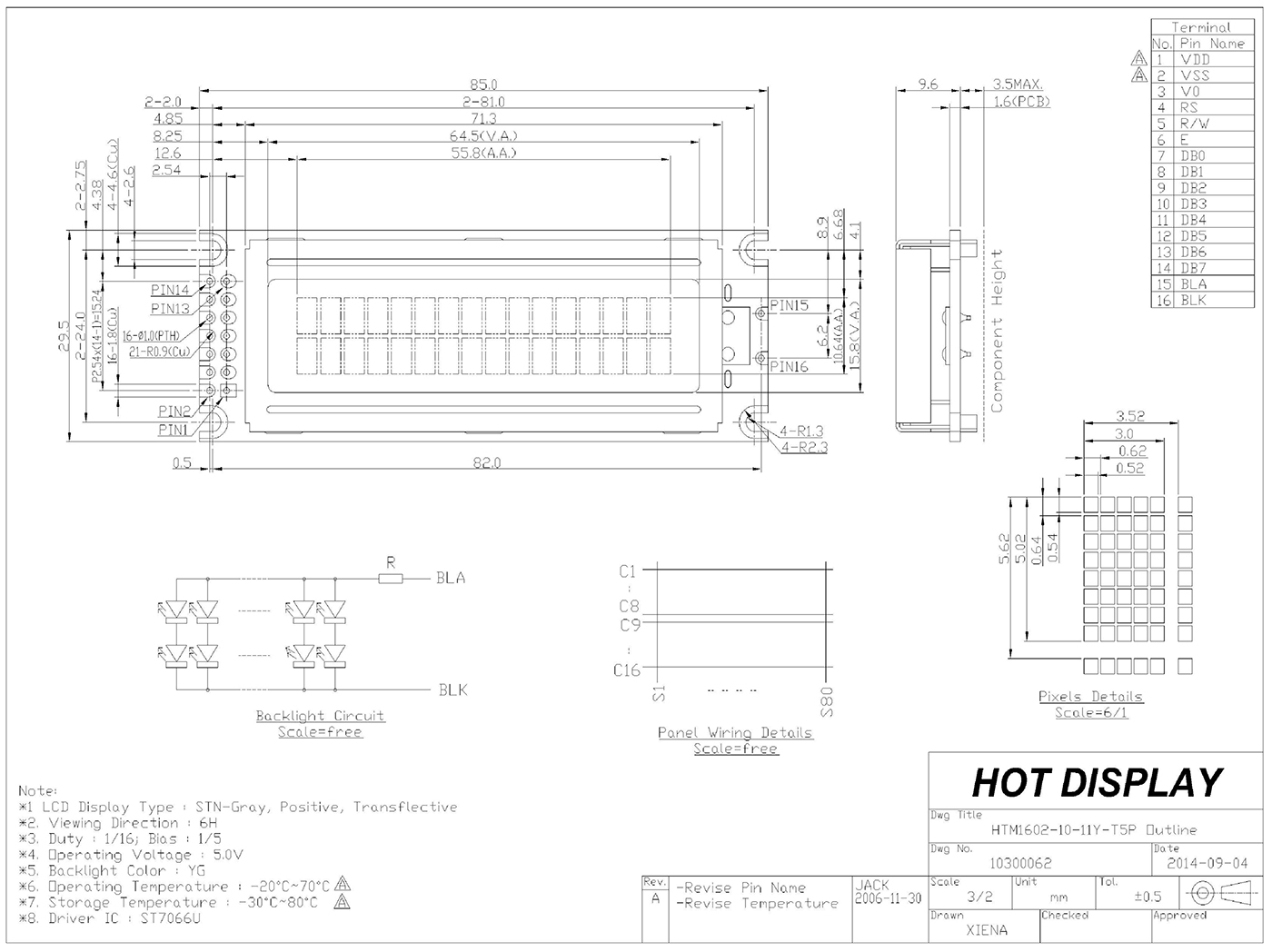

Item	Specification conntent	Unit
Name	HTM1602-10-41Y-T5P
Dot matrix	16x2	dots
Dimensions	85.0x29.5x13.1	mm
VA size	64.5x15.8	mm
AA size	55.8x10.64	mm
Pixel pitch	0.62x0.64	mm
Driver chip	ST7066U
Applied voltage	5.0	V
Backlight illumination	Yellow
Display mode	DFSTN(-)
Drive mode	1/16 duty cycle
Product type	Character LCD
Polarizer type	Transflective
