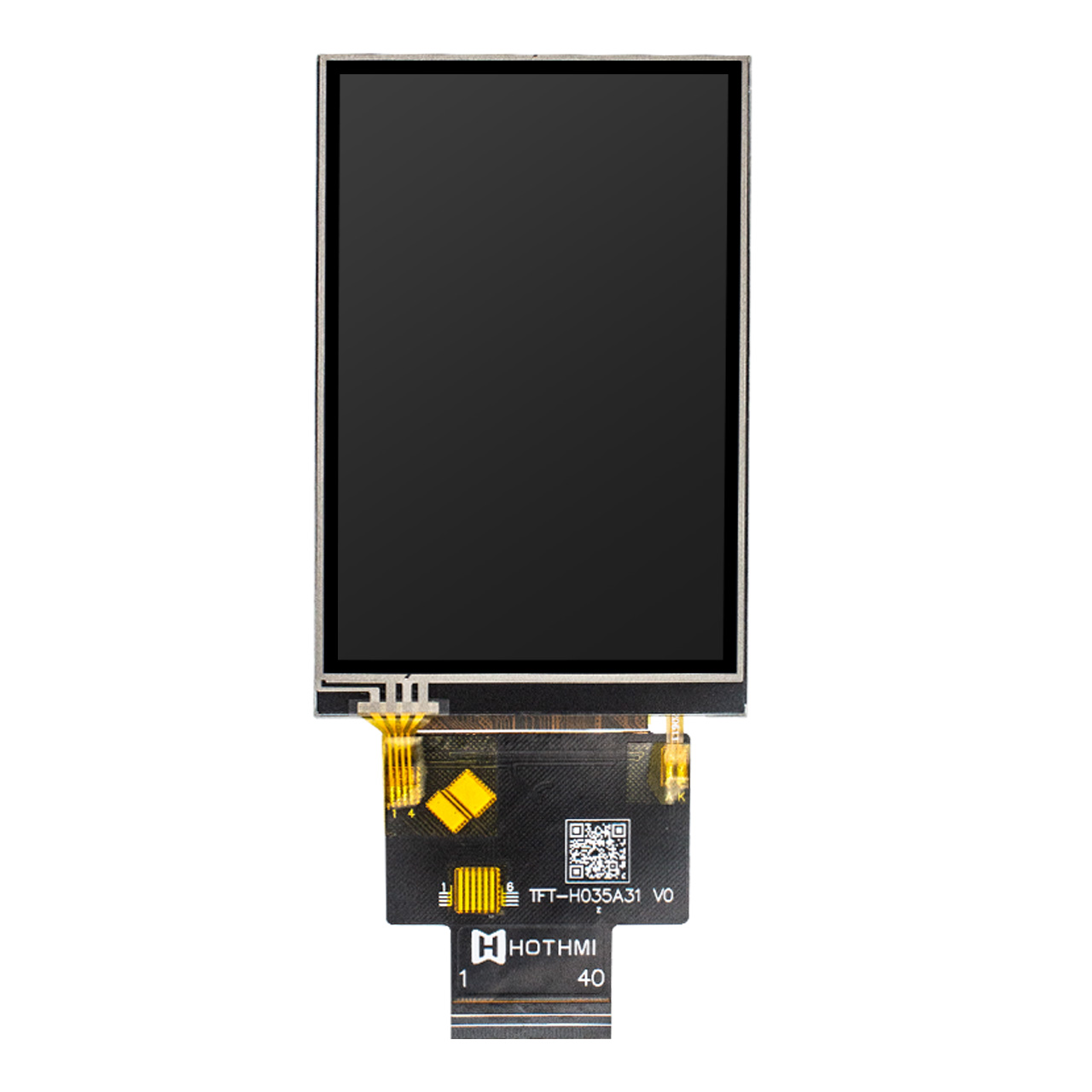

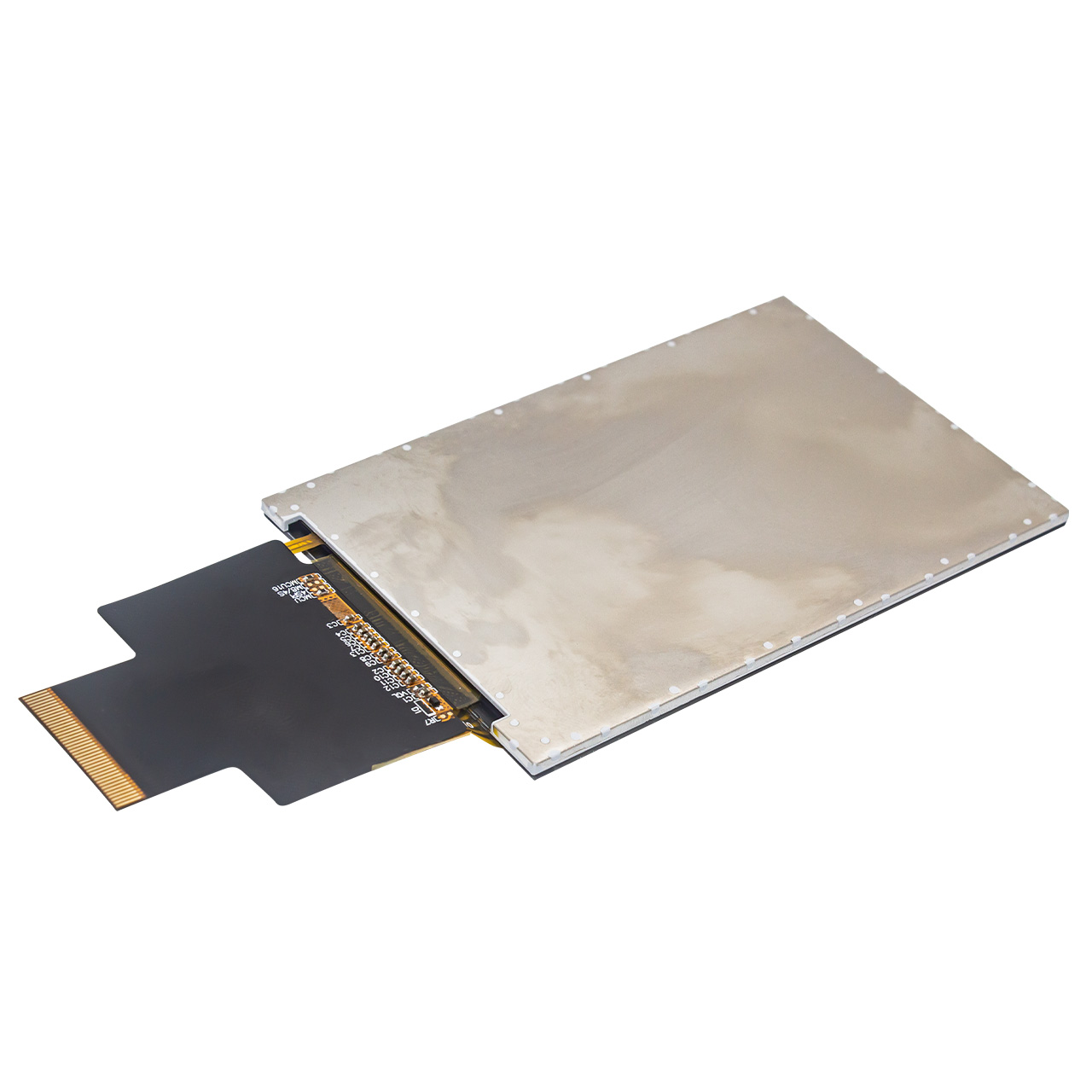

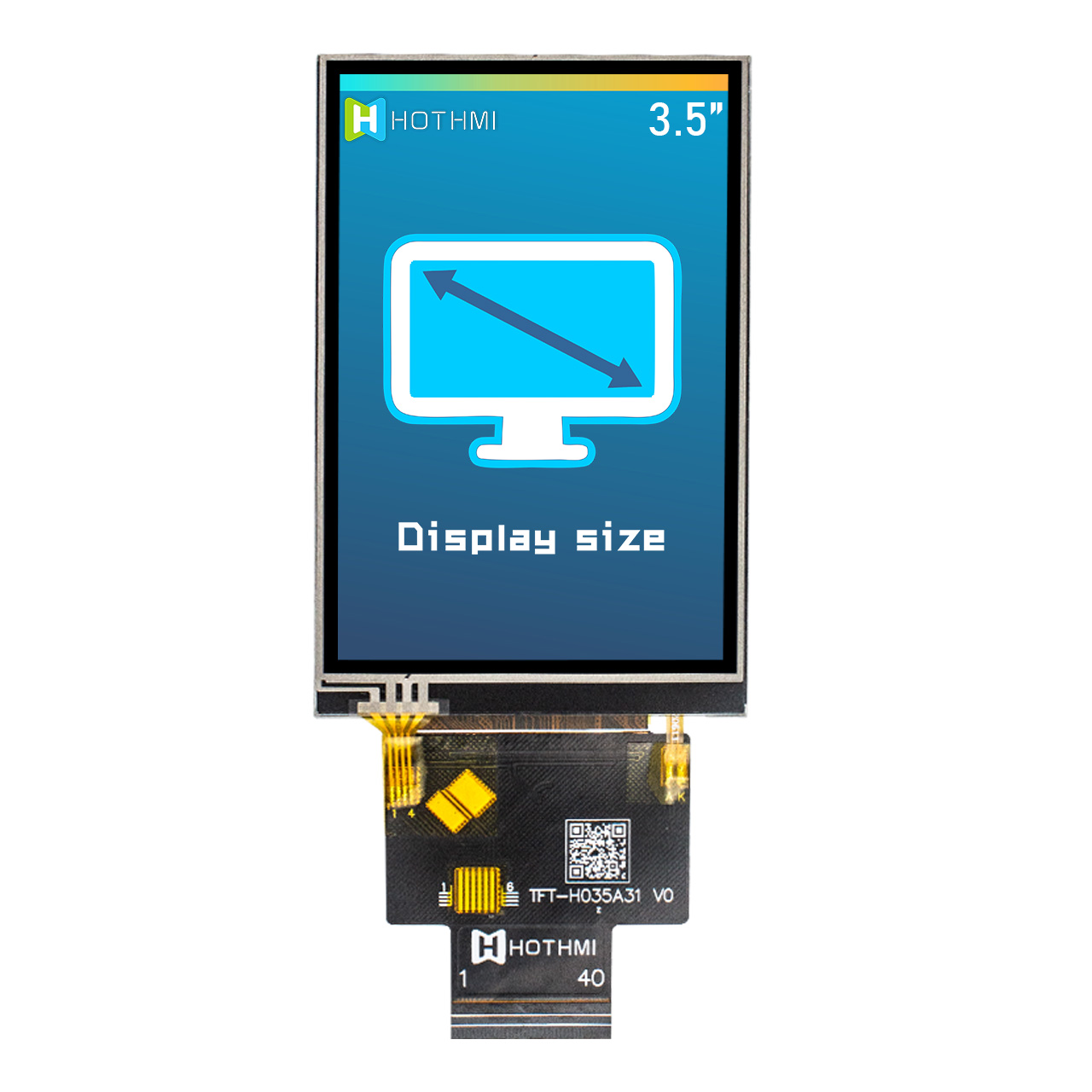

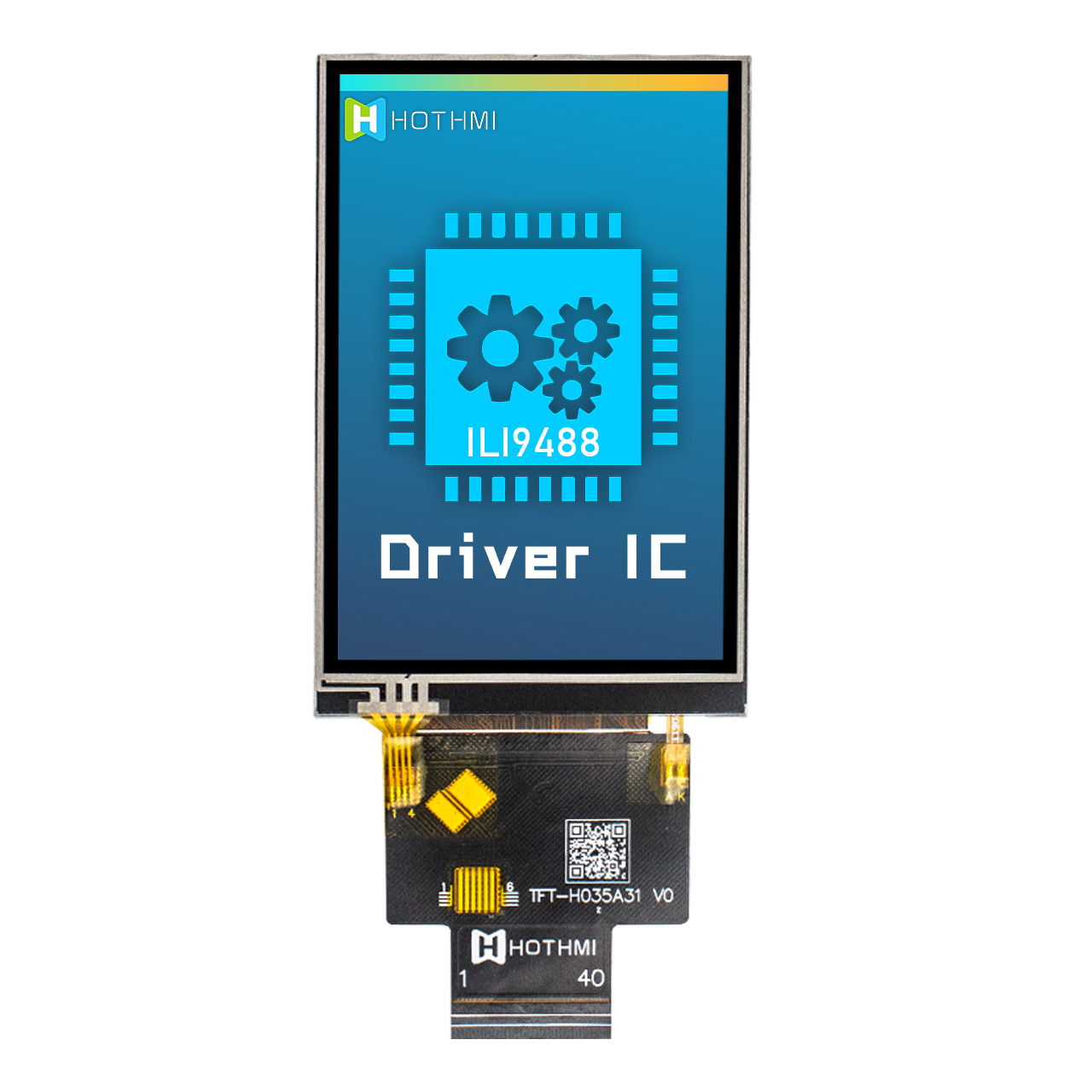

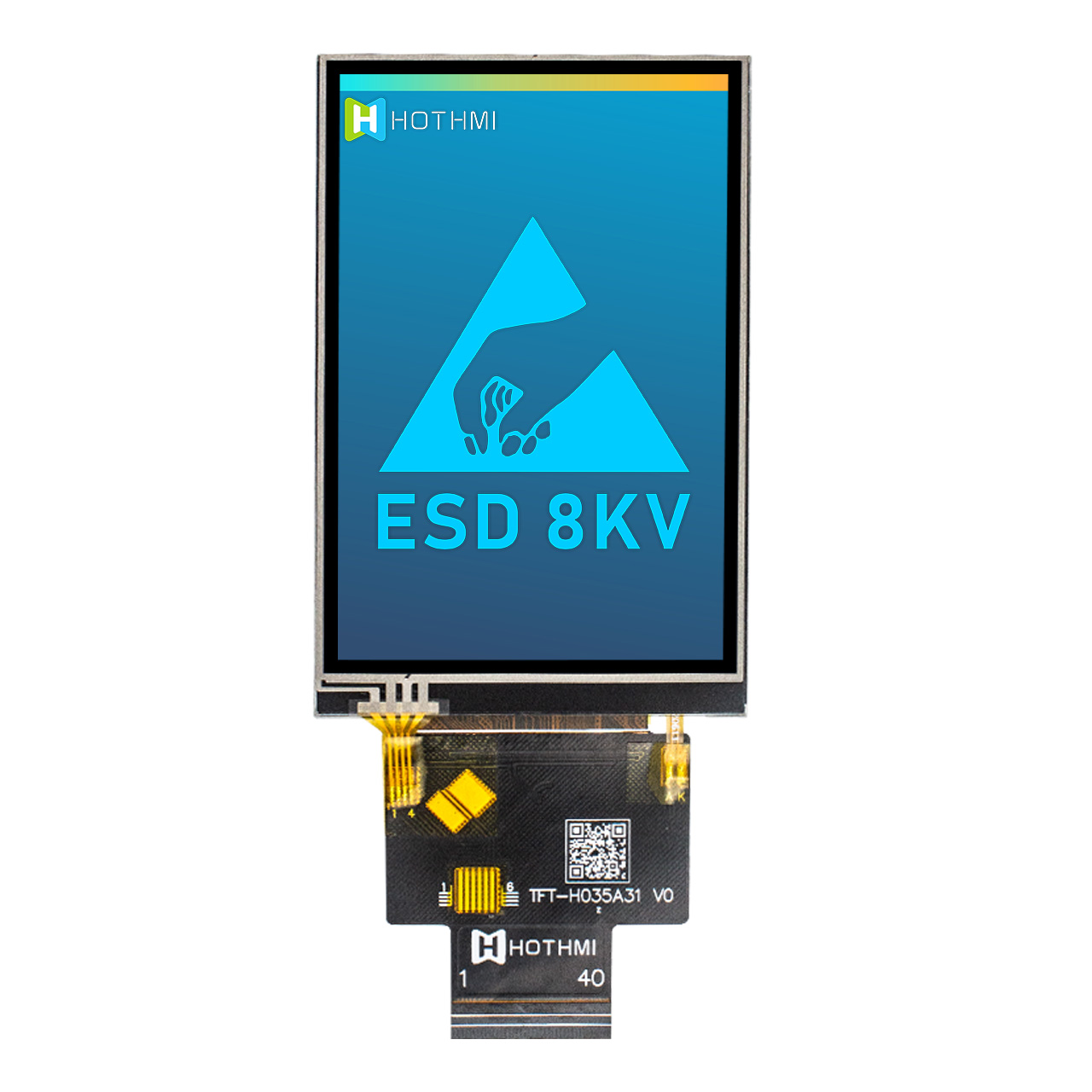

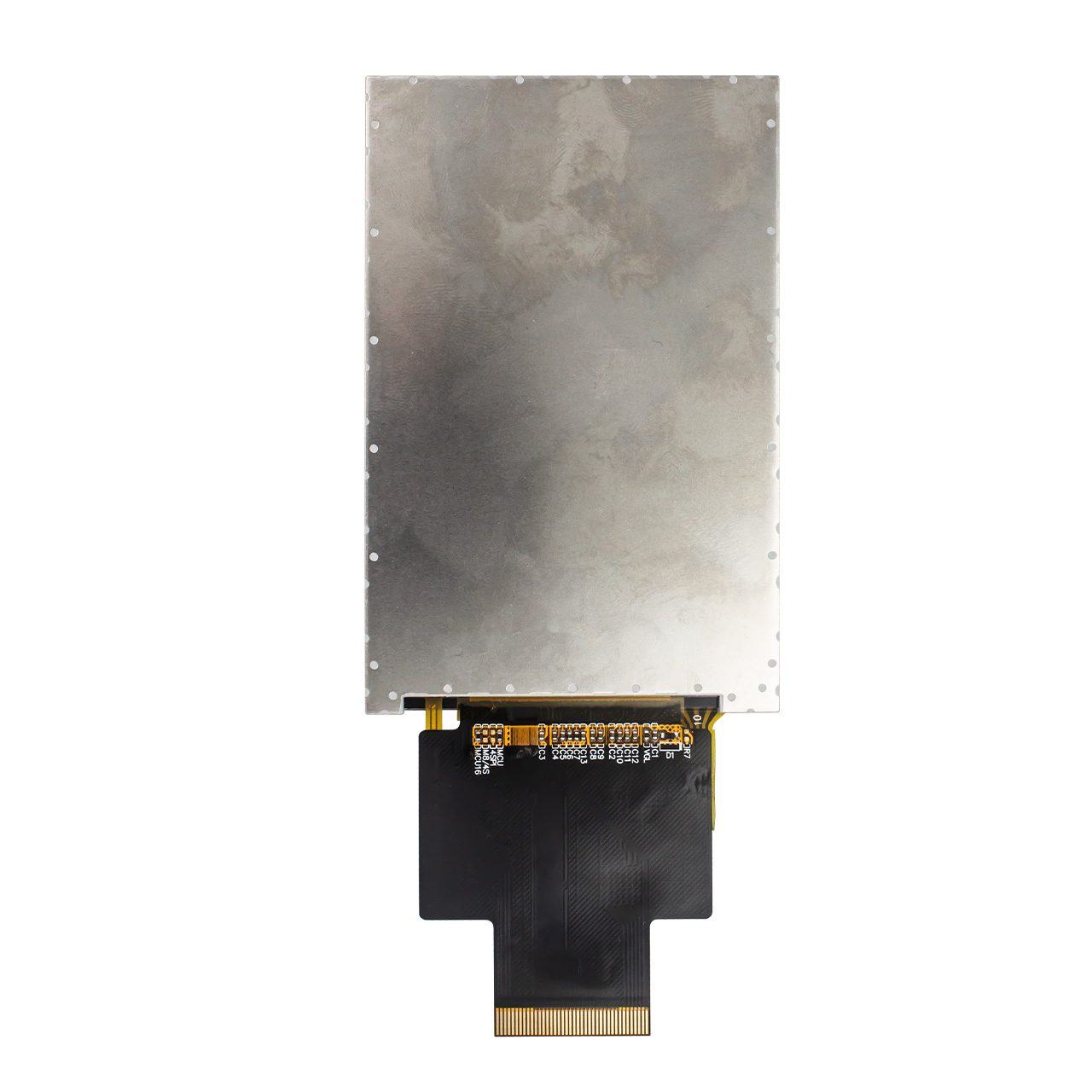

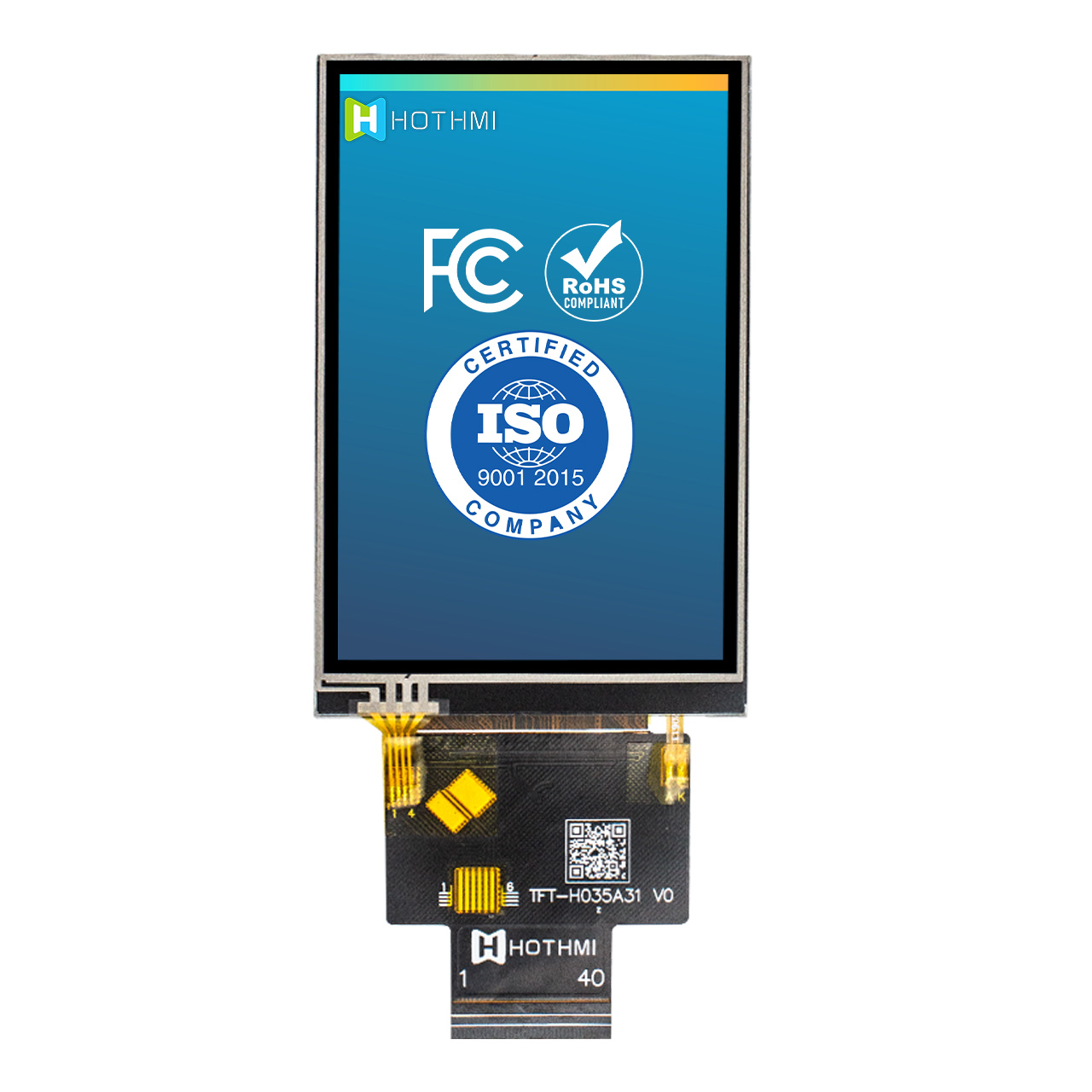

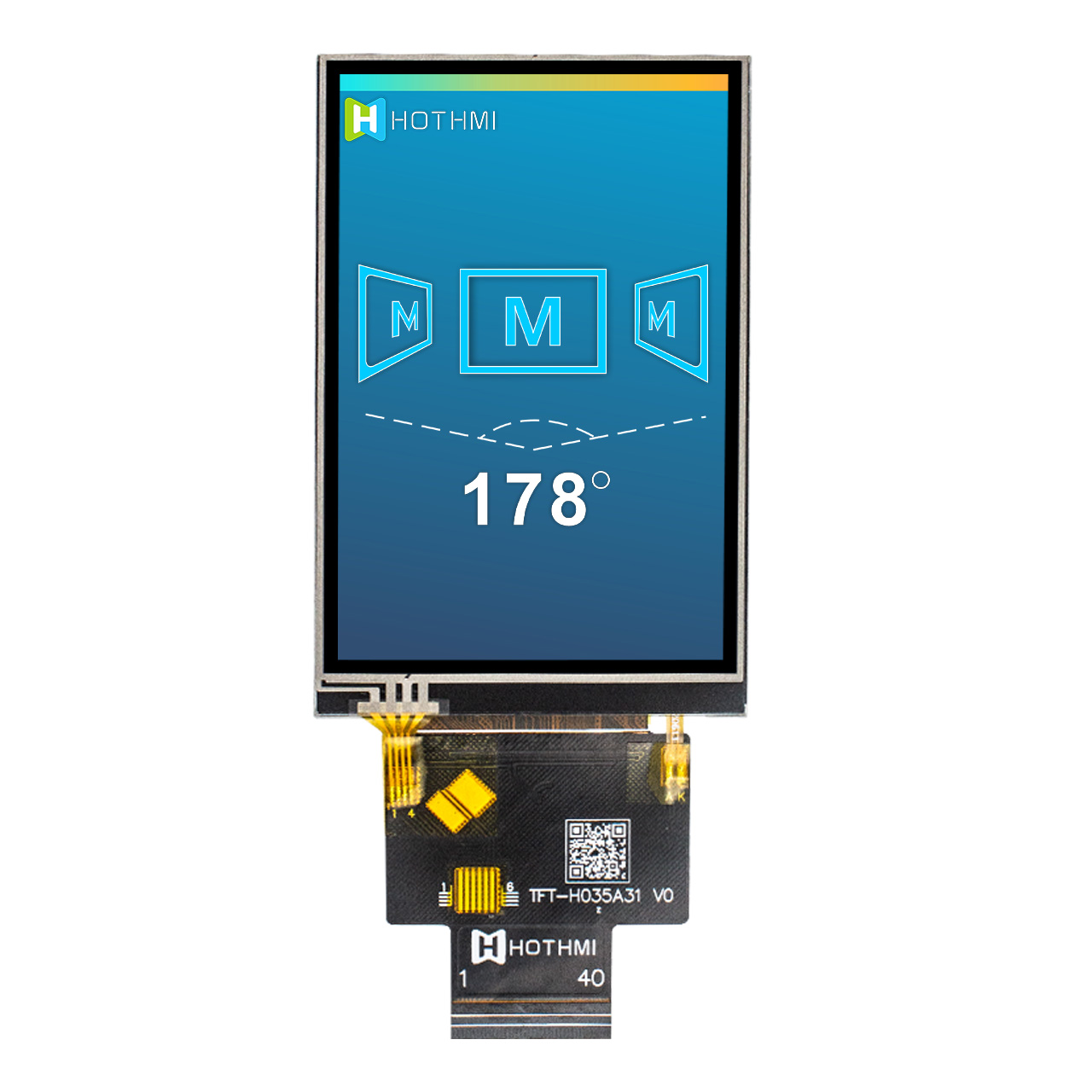

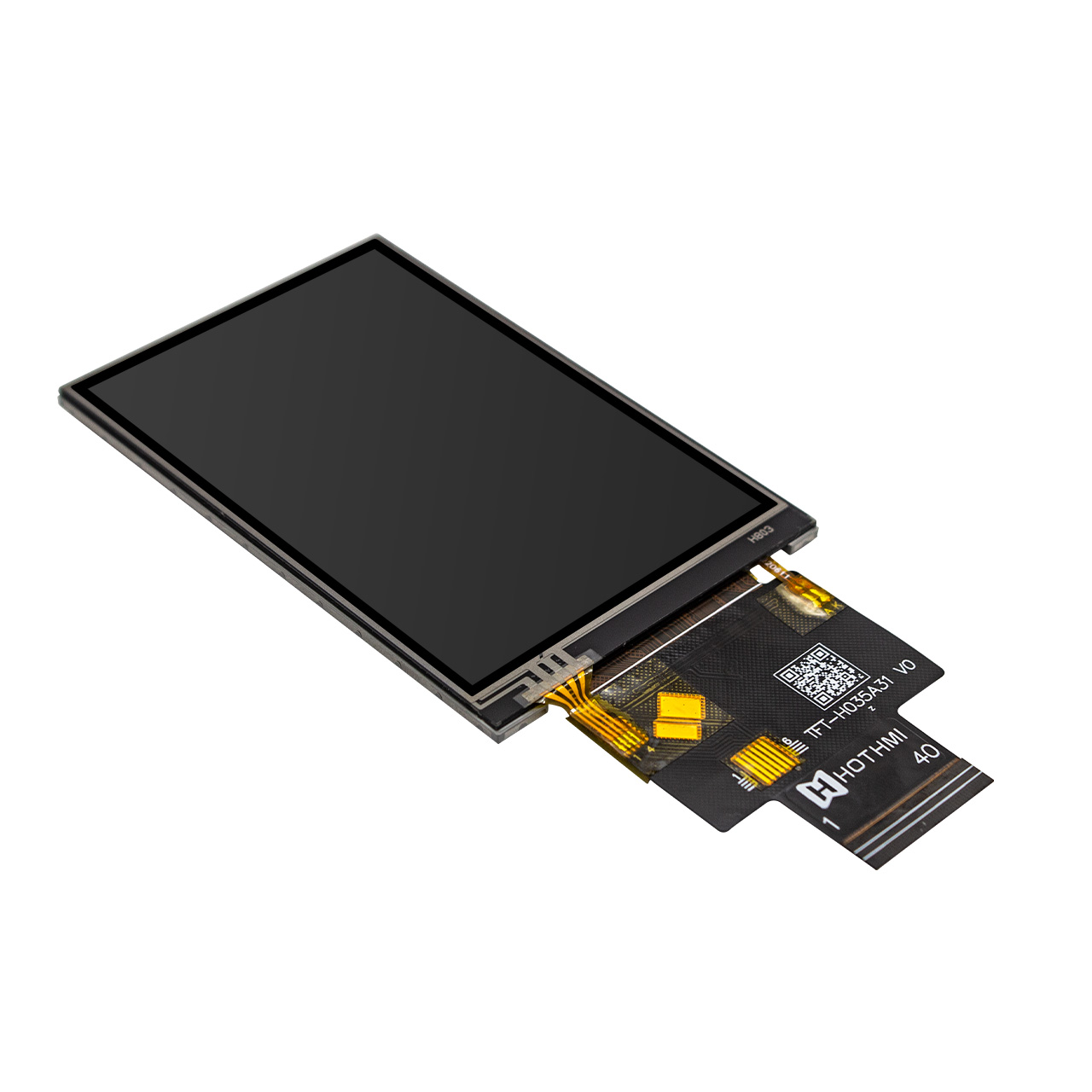

TFT-H035A31HVIIL3R40 | 3.5 Inch TFT LCD Display with resistive touchscreen | ILI9488 Controller

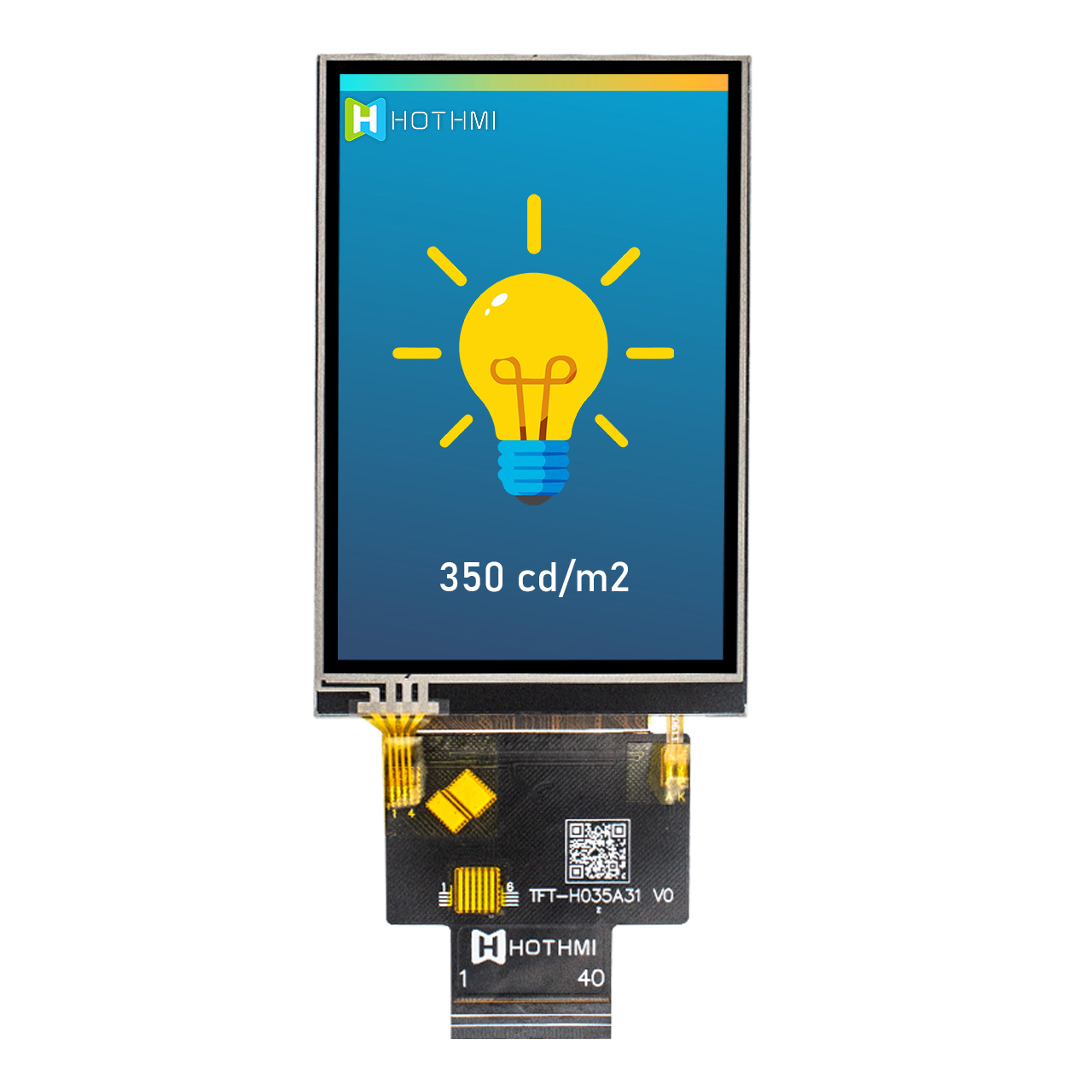

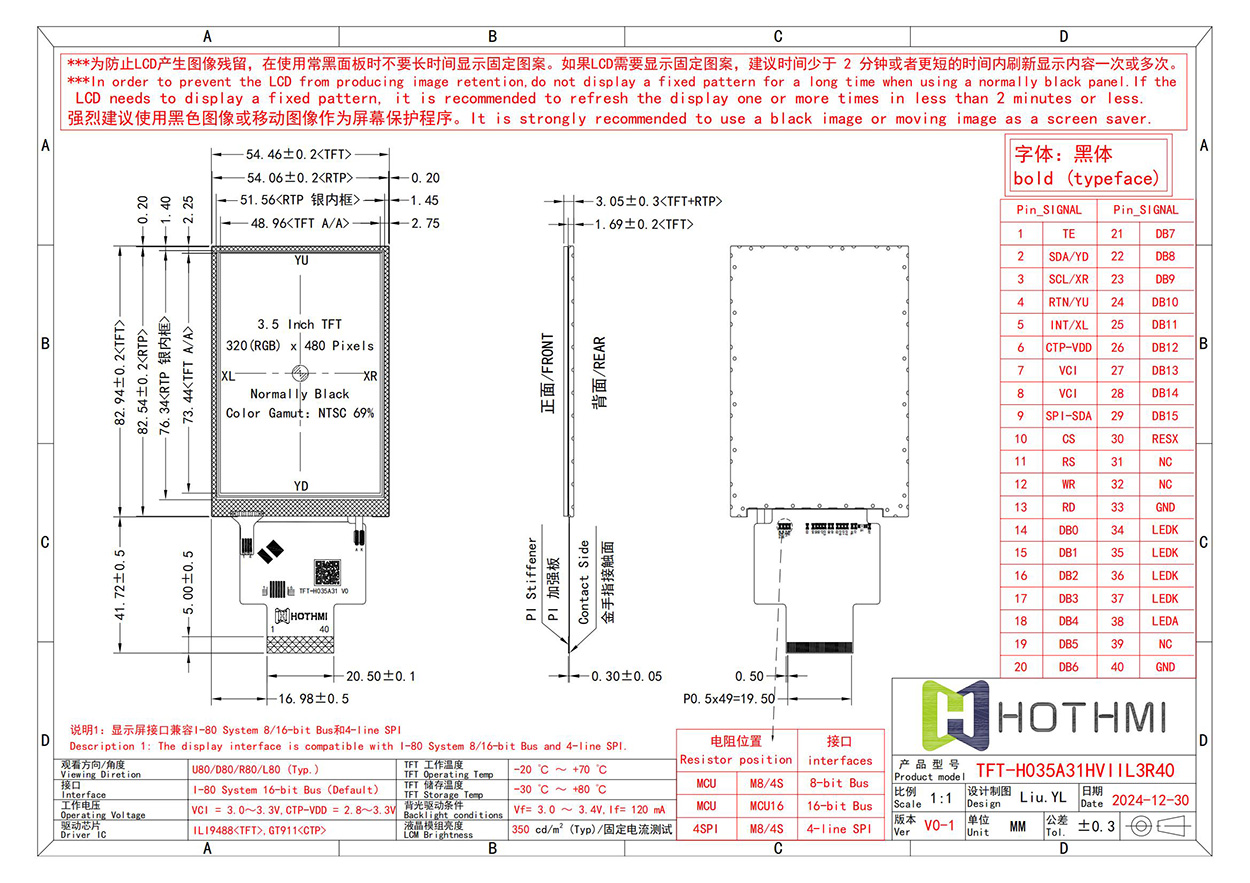

TFT-H035A31HVIIL3R40 is a high-performance 3.5-inch TFT LCD display designed for harsh environments and diverse application scenarios. The product adopts Normally Black panel technology, with a resolution of 320 (RGB) × 480 pixels, which can present clear and delicate image effects, and supports NTSC 69% wide color gamut, with vivid and lifelike color performance, suitable for industrial control, smart home and portable devices. Its operating temperature range covers -30℃ to +80℃, and the storage temperature reaches -20℃ to +70℃. Combined with a high brightness of 350 cd/m2 and a VCI wide voltage design (3.0～3.3V), it ensures stable operation in complex environments. The interface is compatible with I-80 System 8/16-bit bus and 4-wire SPI, with flexible adaptation and easy to quickly integrate with a variety of main control chips. The product has specially optimized the anti-image retention function and built-in dynamic refresh mechanism. It is recommended to use a black or dynamic screen saver to extend the screen life. Whether it is precision instruments or consumer electronics, TFT-H035A31HVIIL3R40 provides strong support for your display solutions with excellent reliability and adaptability.
