6.8-inch CTP GT911 controller with I2C interface | 5-point touch G+G plug-in PACP

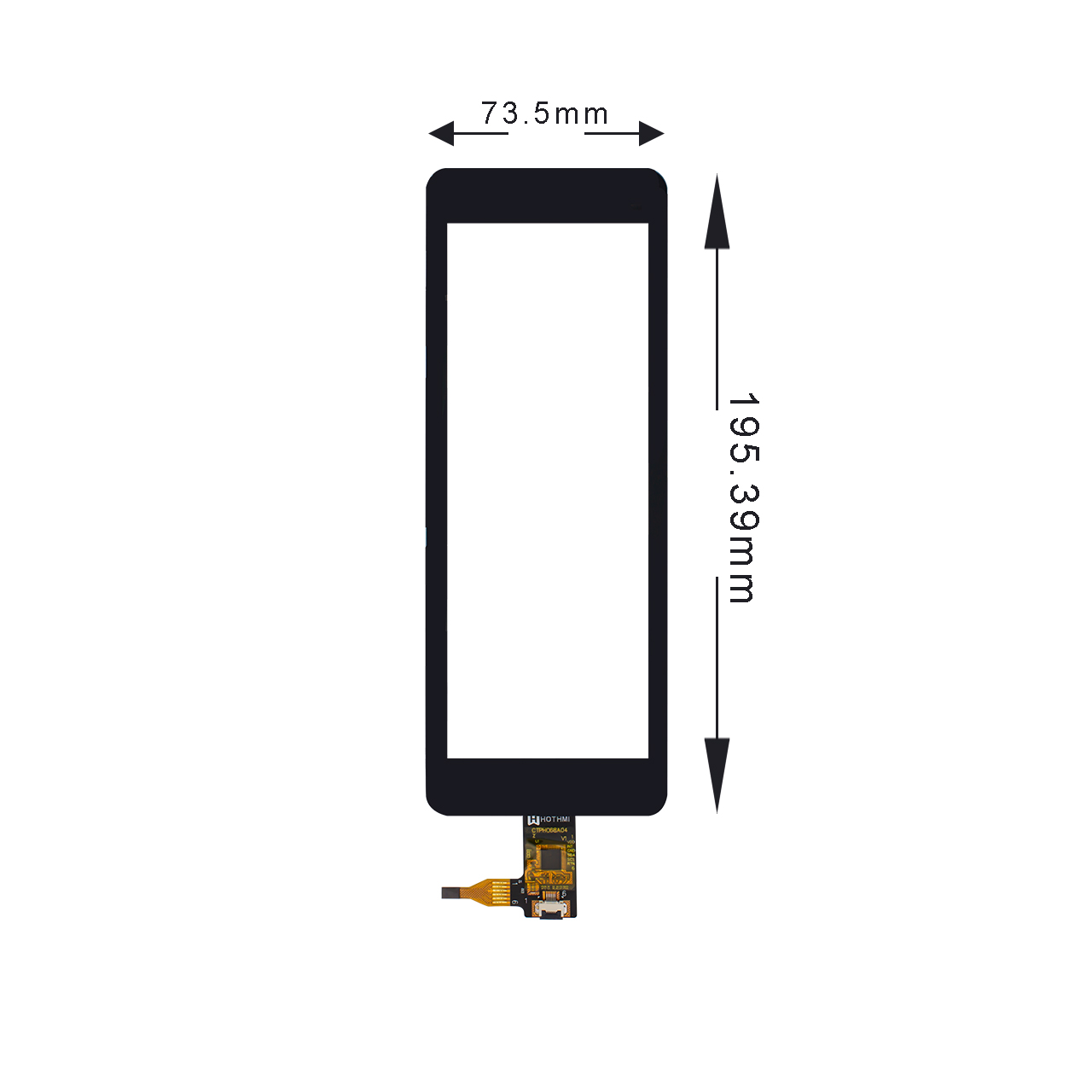

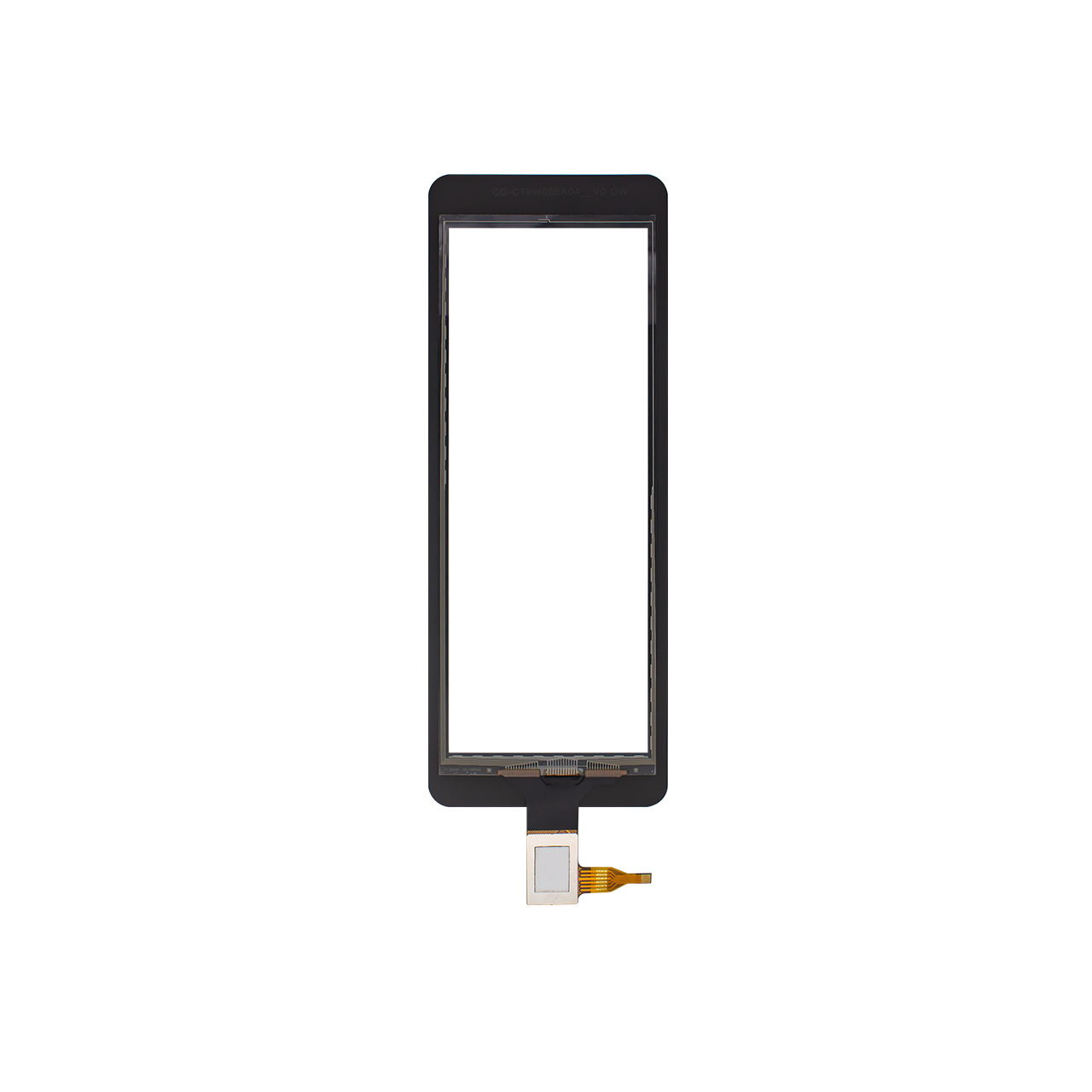

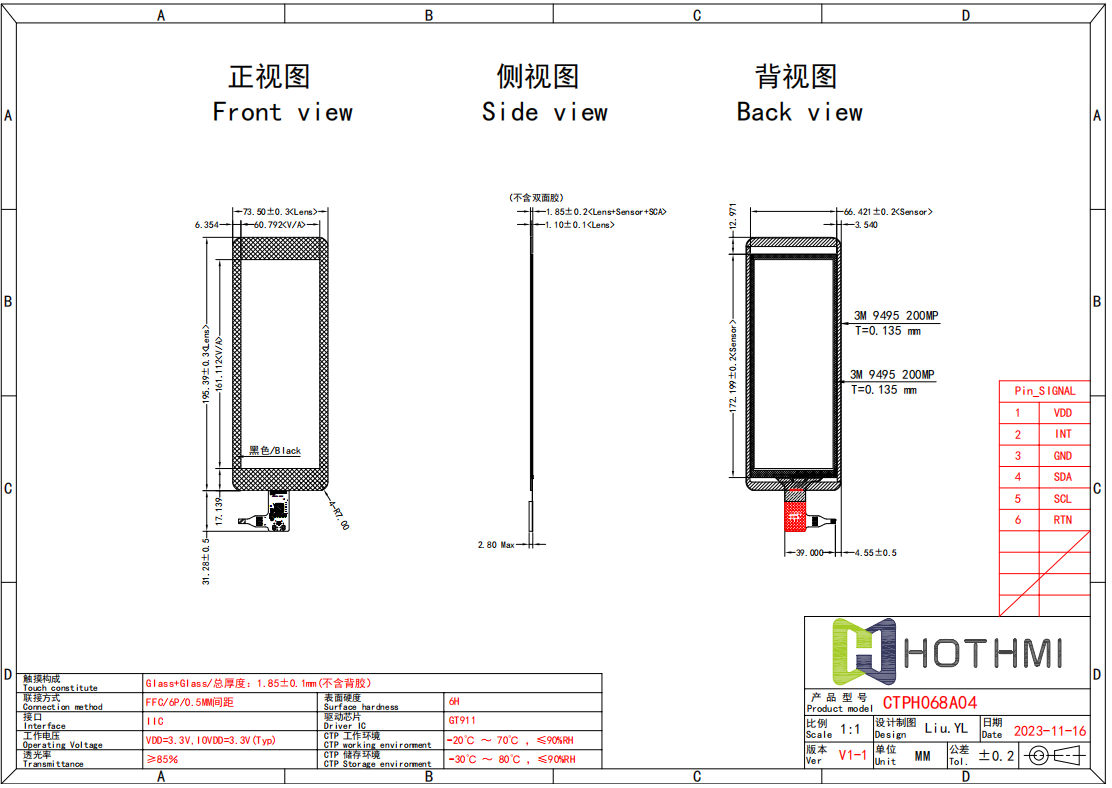

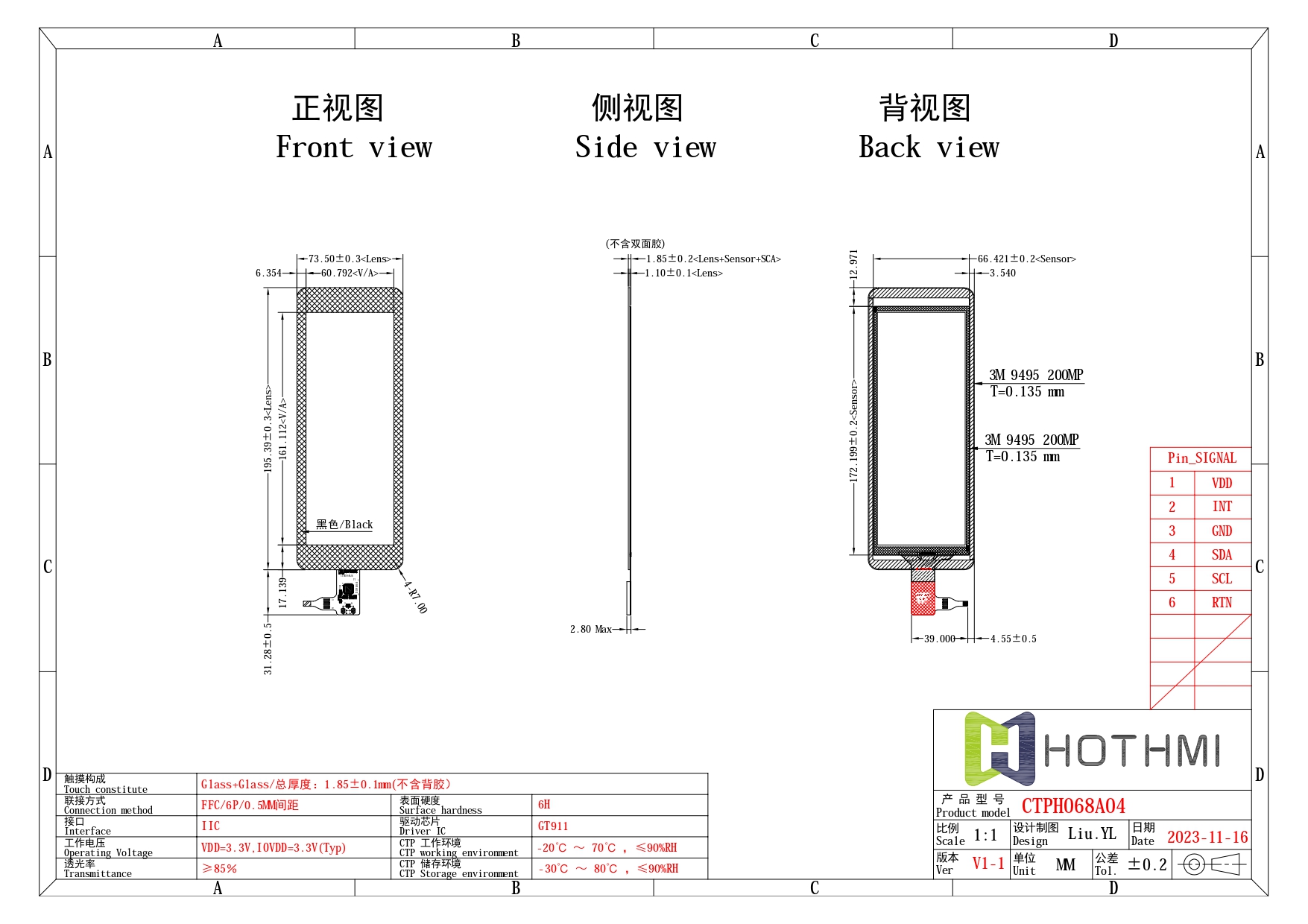

Amid the rapid development of smart display technology, the 6.8-inch capacitive touchscreen CTP-H068A04 has become a market hotspot thanks to its superior performance and user-friendly design. This touchscreen module, powered by the GT911 controller with an I2C interface, features a convenient 6-pin FFC connector for stable connection. Its large G+G cover plate structure not only provides excellent mechanical strength, but also, through its sophisticated design, ensures that the touchscreen area perfectly covers the 6.8-inch display area, eliminating the bezel drop issue common with traditional modules.
This product pays special attention to user experience details, offering flexible adjustments to the cover plate size, shape, and silkscreen pattern based on customer needs. A variety of surface treatments, including AR, AG, and AF, are available to ensure a superior touch experience in diverse lighting environments.

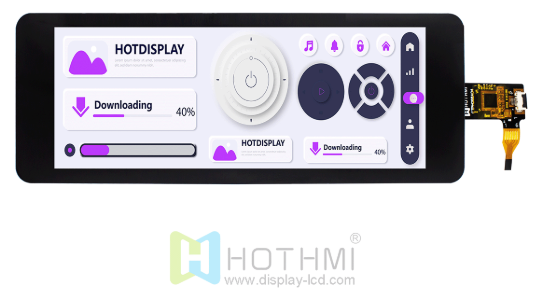

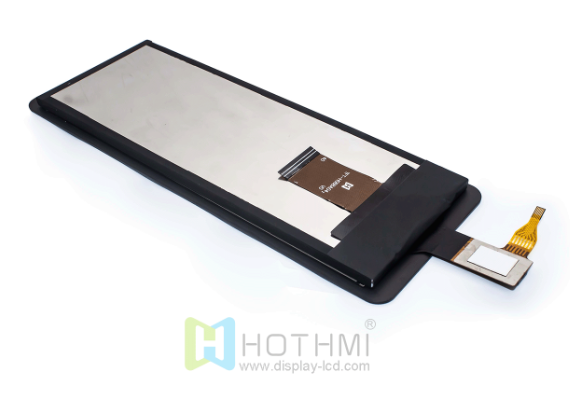

When fully laminated with the TFT-H068A04ZAINV8N40 display, it forms the high-performance TFT-H068A04ZAINV6C40 touch display module. The finished product assembled with TFT through full lamination process is shown in the figure below:
Its full-viewing angle, high-definition display makes it an ideal choice for industrial control equipment. This model features a different cable design, the CTP-H068A04-V1-0. To simplify customer integration, we also offer the plug-and-play HTM-H068A04-UART-A01C smart display module. All products strictly comply with ROHS environmental standards and are customizable from interface configuration to cable length, fully meeting the needs of various smart devices for high-quality touch solutions.
