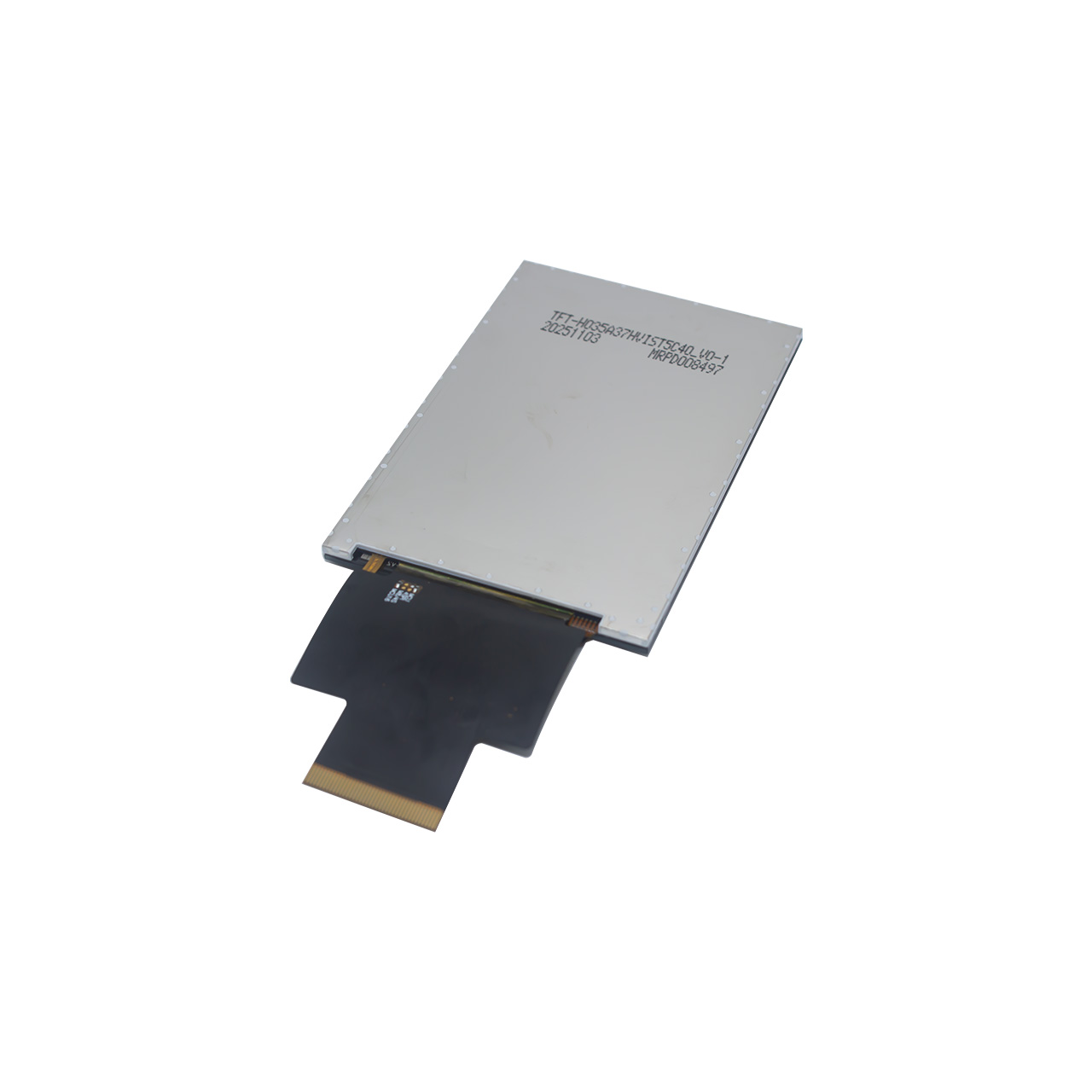

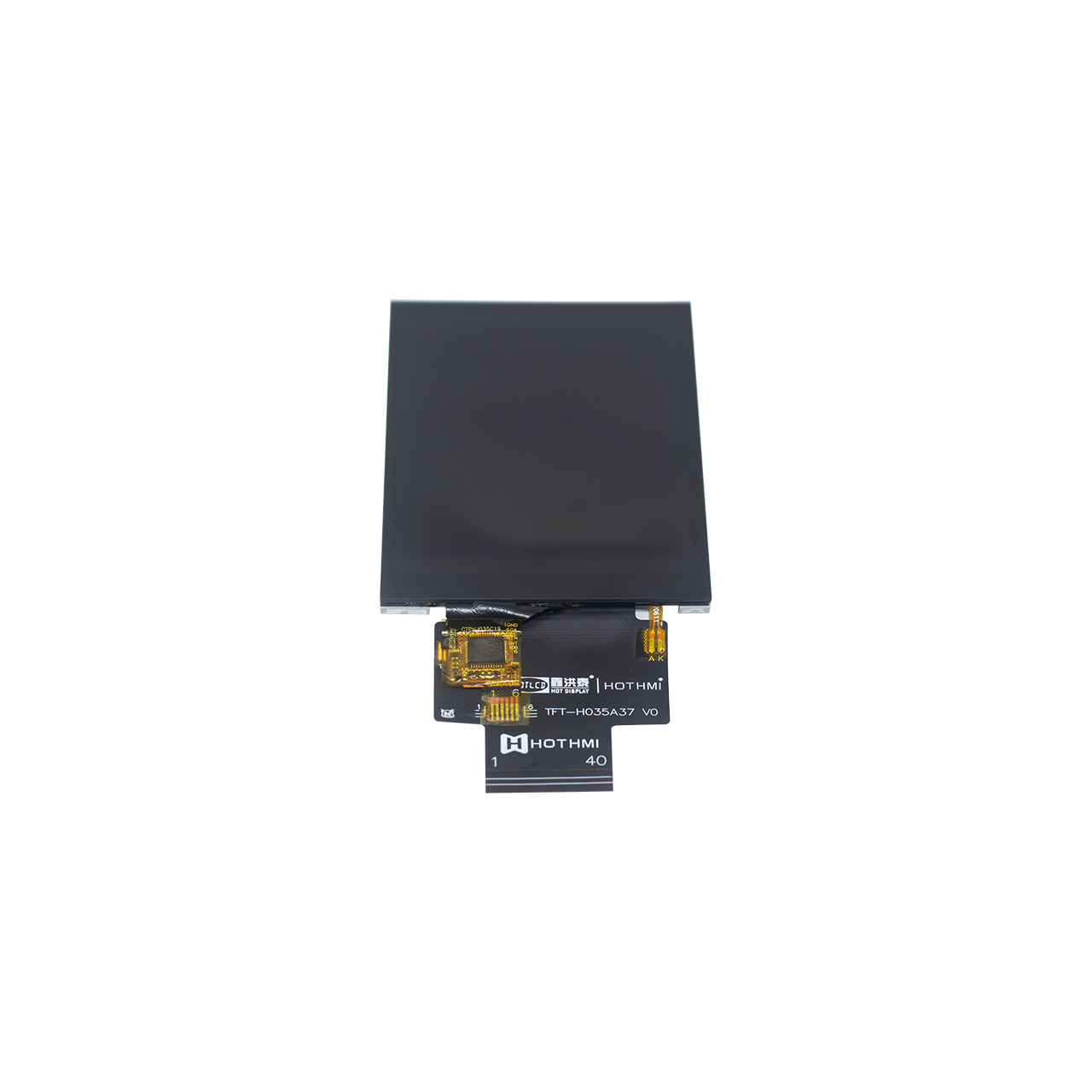

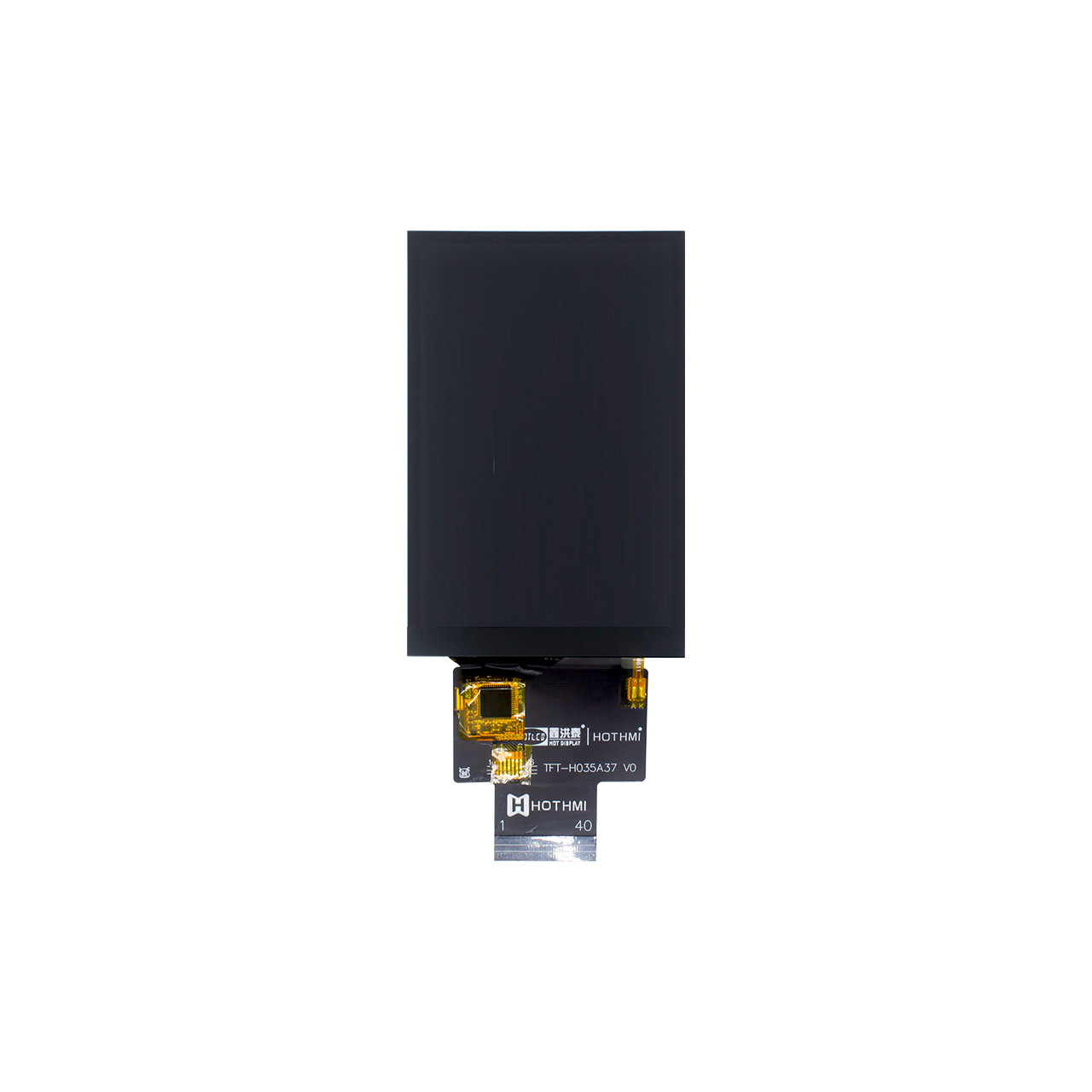

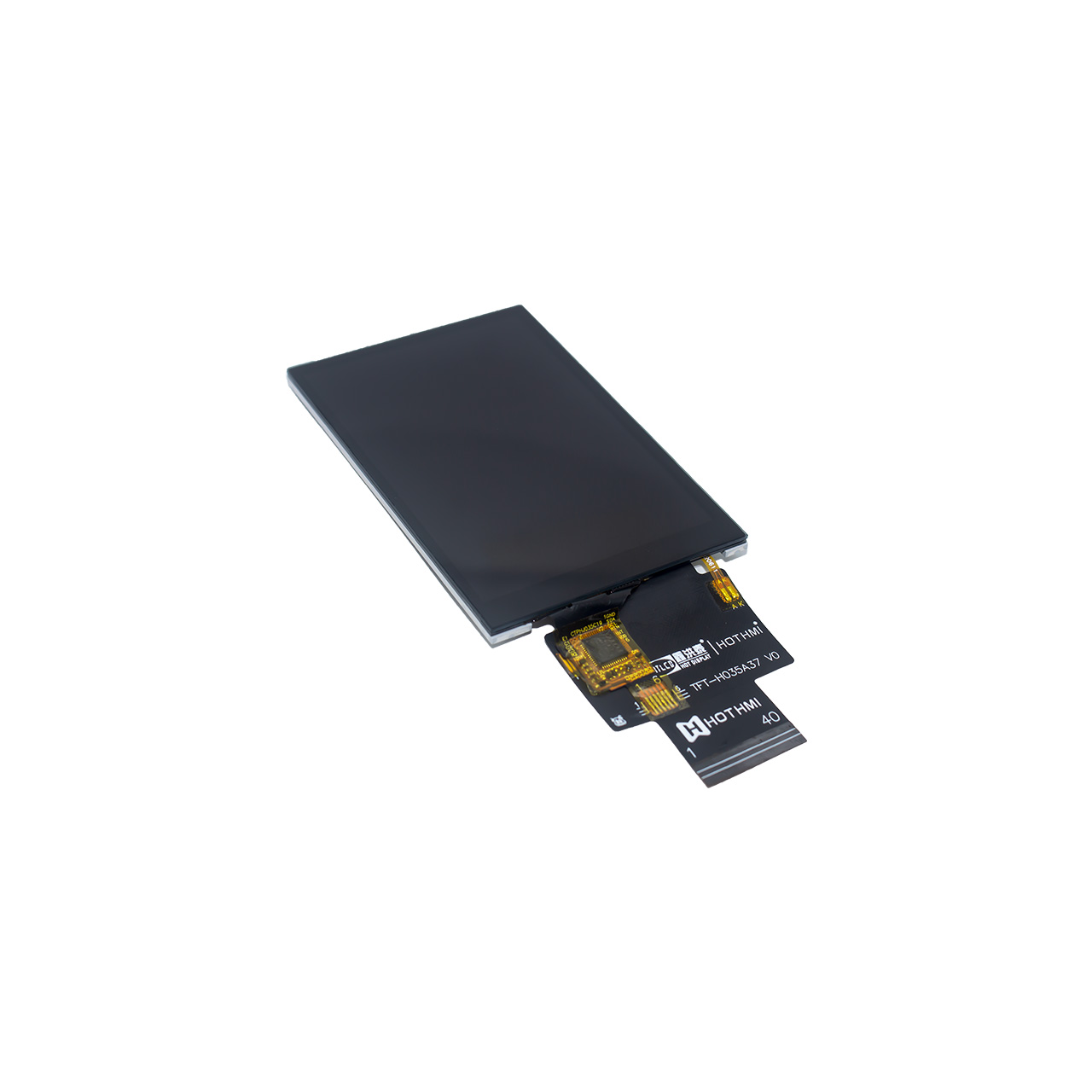

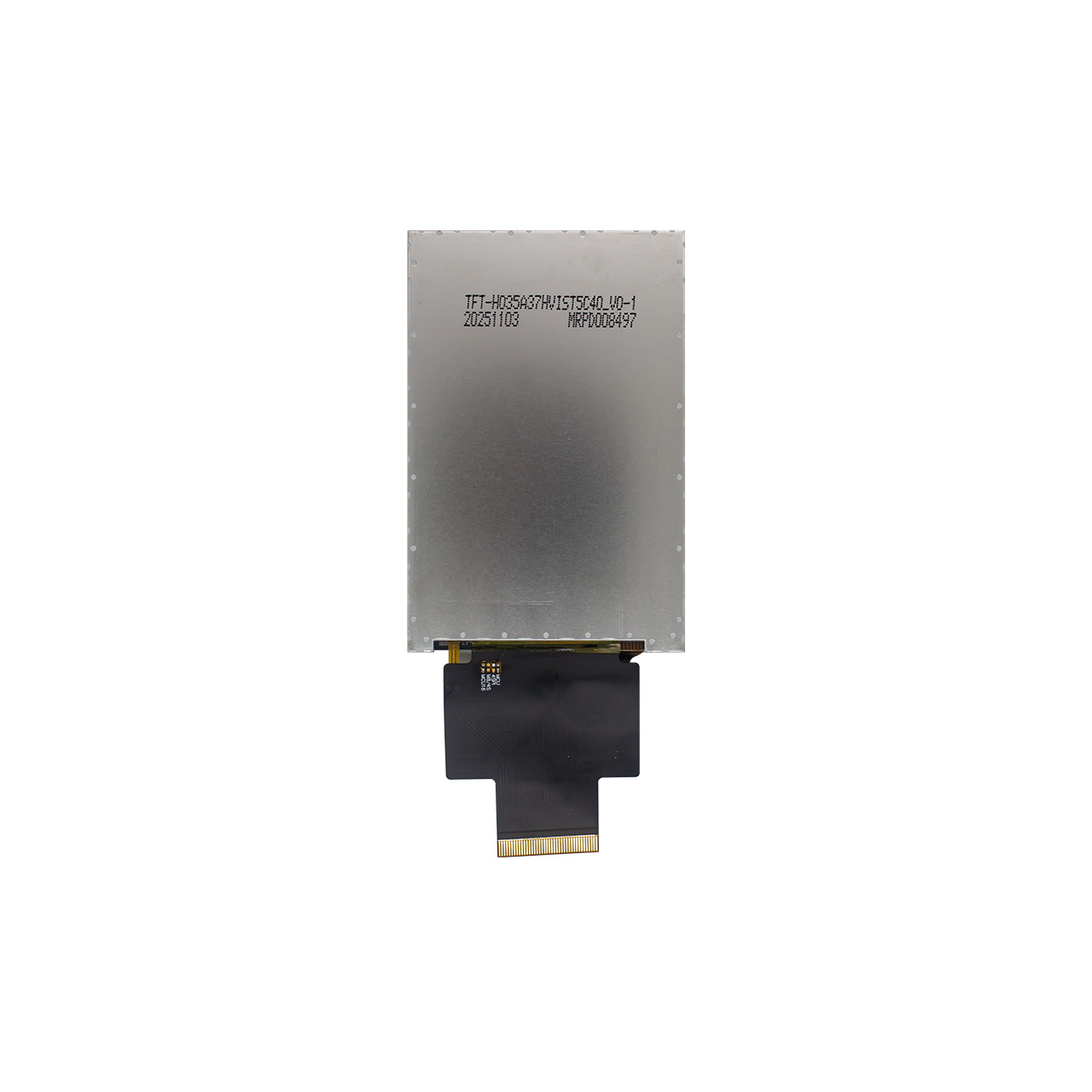

TFT-H035A37HVIST5C40 | 3.5-inch capacitive touchscreen TFT LCD with MCU interface | 320x480 IPS HD TFT display
The 3.5 Inch Capacitive Touch TFT LCD is a high-performance standard TFT display module engineered for a diverse range of electronic applications. Featuring a sharp resolution of 320x480 pixels, this 3.5 Inch Capacitive Touch TFT LCD delivers clear and vibrant visuals, enhanced by its IPS technology which guarantees a full viewing angle for consistent image quality from any perspective. The robust 500 cd/m2 backlight ensures excellent readability even under bright lighting conditions.
Designed with versatility in mind, the 3.5 Inch Capacitive Touch TFT LCD is ideally suited for instrumentation and portable electronic devices, offering a compact physical dimension of 54.46x82.94x3.79mm and an active area of 48.96x73.44mm. It integrates a responsive capacitive touch panel, providing an intuitive user interface experience. The module operates on a 3.3V supply voltage and is built to withstand an operating temperature range from -20°C to +70°C, ensuring reliable performance in various environments.
Interfacing is streamlined through a 40-pin FPC connector and an MCU interface, supported by the ST7365P driver IC for efficient control. Furthermore, the 3.5 Inch Capacitive Touch TFT LCD is designed with durability in mind, featuring ESD protection of up to 8kV. This combination of a bright, wide-view display, responsive touch, and a robust build makes it a superior choice for demanding embedded projects.
