HOME / Product / Character LCD Modules / character LCD modules with 1X16 monochrome white background and gray characters | STN+ gray with white side backlight 5.0V-Arduino

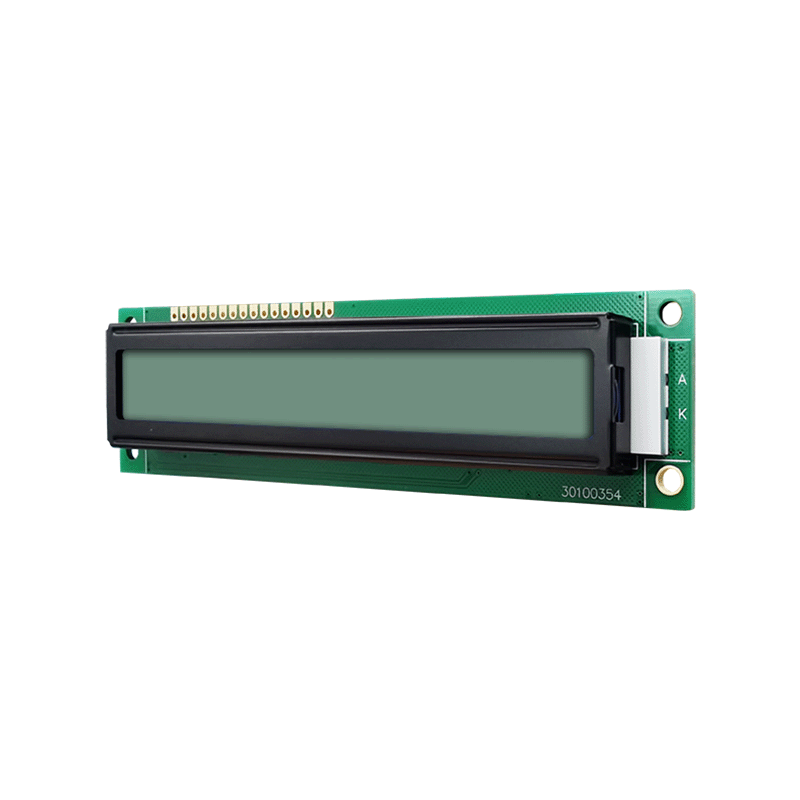

character LCD modules with 1X16 monochrome white background and gray characters | STN+ gray with white side backlight 5.0V-Arduino

? Model: HTM1601C-11W-A5P

? Product type: character LCD modules
? Display content: 16x1 characters
? Overall dimensions (mm): 122.0x33.0x8.0
? View window size (mm): 99.0x13.0
? Display size (mm): 94.73x9.56
? Point spacing mm: 1.17x1.04
? Product application: industrial control
? Viewing angle: 6H
? Backlight: white light
? Number of PINs: 16PIN
? Interface: MCU
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

character LCD modules with 1X16 monochrome white background and gray characters | STN+ gray with white side backlight 5.0V-Arduino
character LCD modules character, monochrome LCD, displays 16 characters in one line with dark pixels on a gray background. This particular transflective LCD remains visible under ambient light or can be used in poor lighting conditions with the added backlight. The operating temperature range is -20 to 70 degrees Celsius. The viewing angle is 6:00, and it operates with a supply voltage of 5.0V and comes with a built-in ST7066U controller. This RoHS-compliant eight-character display is compatible with Arduino and other similar development boards.

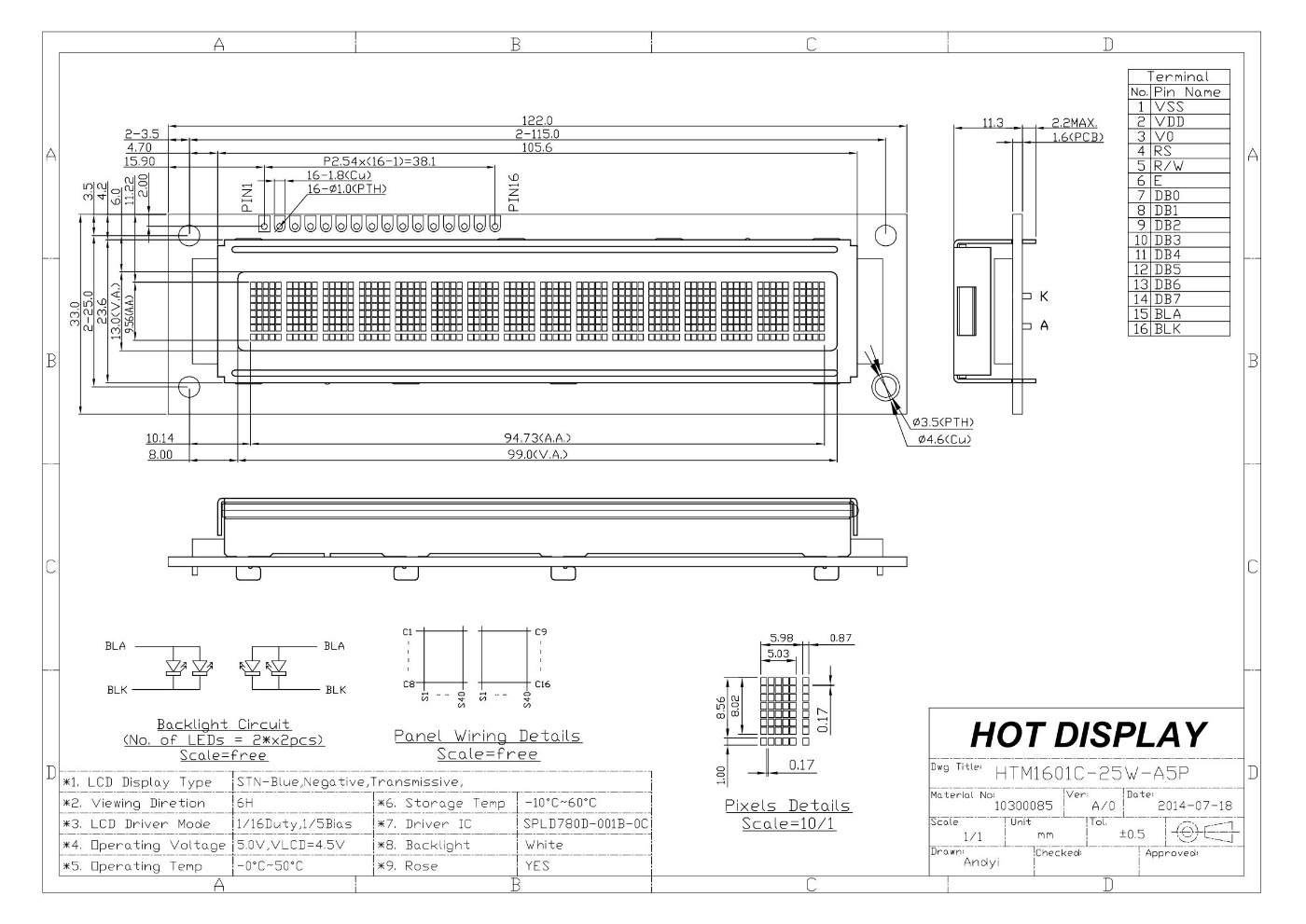

Item	Specification content	Unit
model	HTM1601C-11W-A5P
words × lines	16words × 1line	dots
Module size	122x33x11.3 (MAX)	mm
Visual (VA) area	99x13	mm
Valid (AA) area	94.73x9.56	mm
Point (pixel) spacing	1.04x1.17	mm
IC	ST7066U
voltage	5V	V
backlight	White light
model	STN(+)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD module
characteristic	Transflective polarizer
