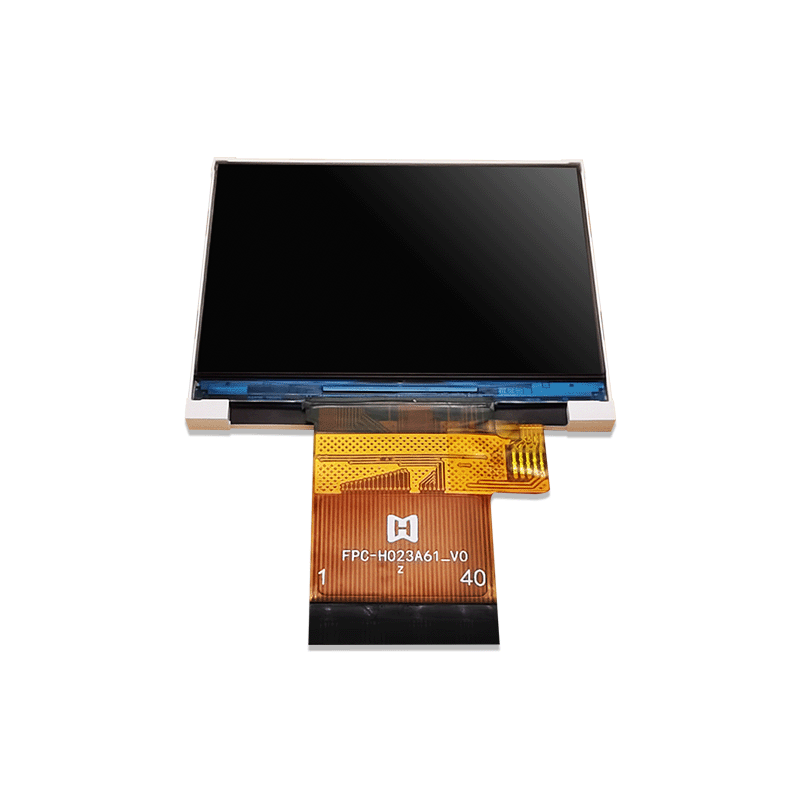

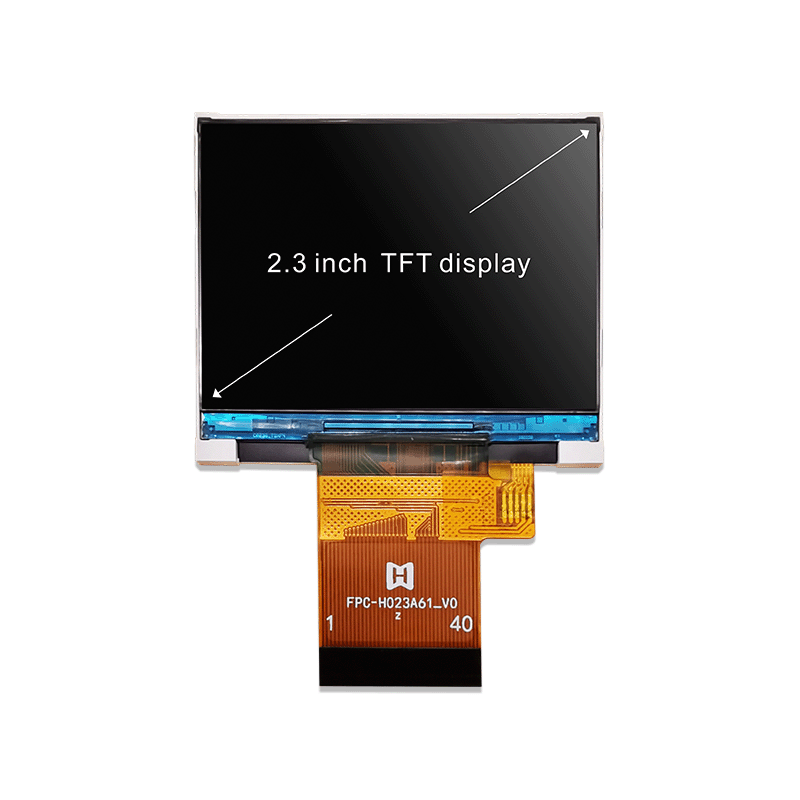

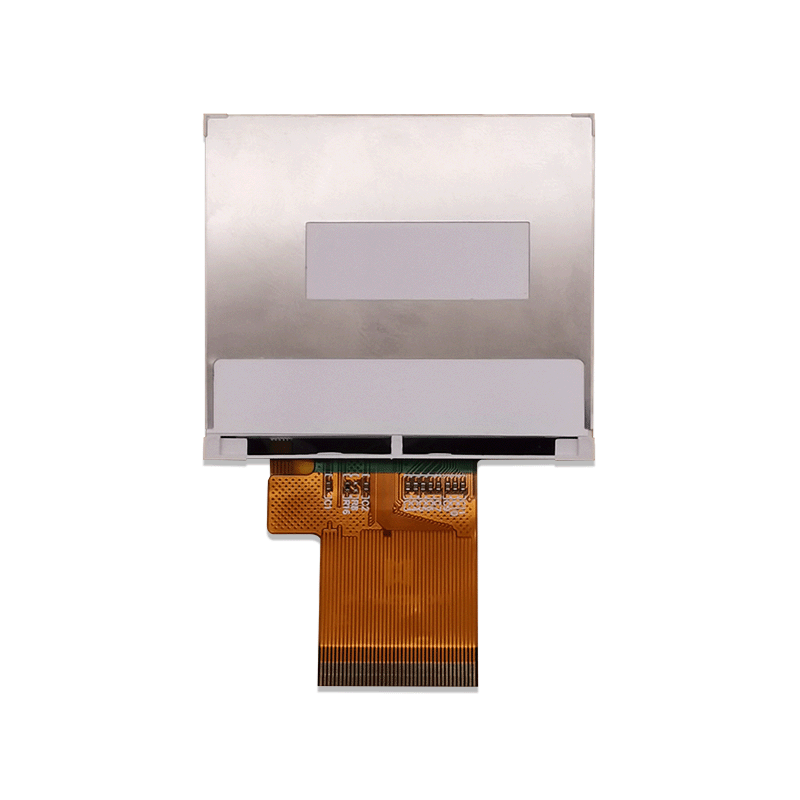

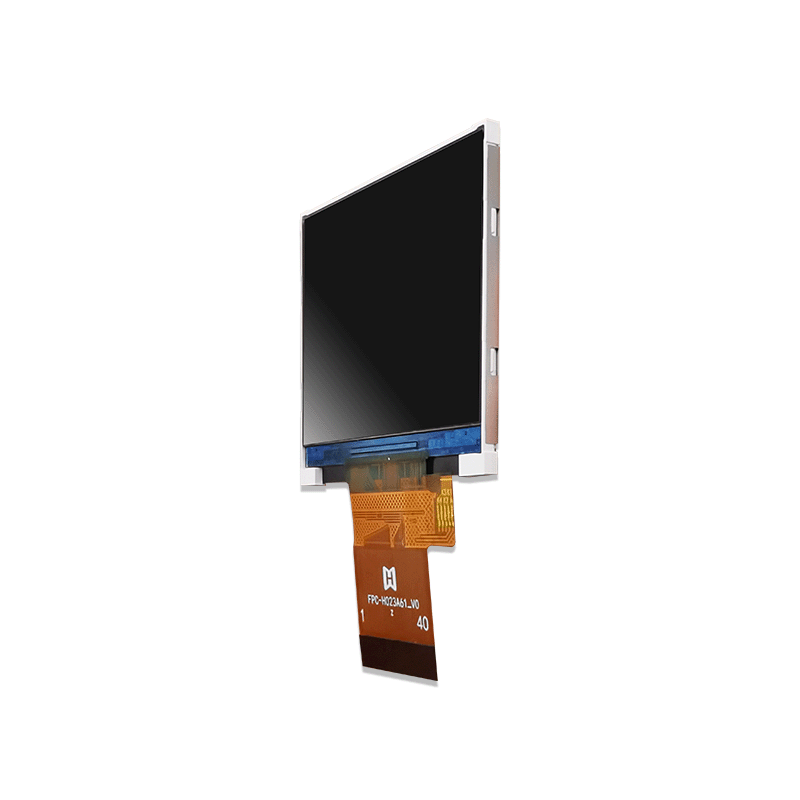

TFT-H023A61LQTIL2N40 | 2.3 inchTFT LCD display | 320x240 MCU Interface | IPS Full-Viewing TFT For Arduino
This 2.3-inch TFT LCD display features a 320x240 pixel resolution, an optimal viewing angle of 12H, and an LED backlight with a brightness of 250 Cd/m2. The transmissive LCD is compact and operates on a 2.8V power supply, ensuring easy electrical connection. This model comes with a flexible FPC cable for easy connection and removal. Users simply solder the connector to the driver board and then plug the FPC end of the display into the driver board. The display's driver chip is the ILI9342, providing a communication interface for the MCU, ensuring smooth operation and stable, easy implementation of Arduino/C8051 projects, delivering exceptional performance and reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics.
The sleek and lightweight design conceals a myriad of interface possibilities, combining moderate brightness with IPS viewing angles to deliver high-quality, high-definition image quality. This version lacks touch functionality, but we support customized capacitive and resistive touch solutions, which, combined with custom cover plates, offer developers endless possibilities. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.
