China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / 16x2 Character LCD Module | Blue Display With White Side Backlight

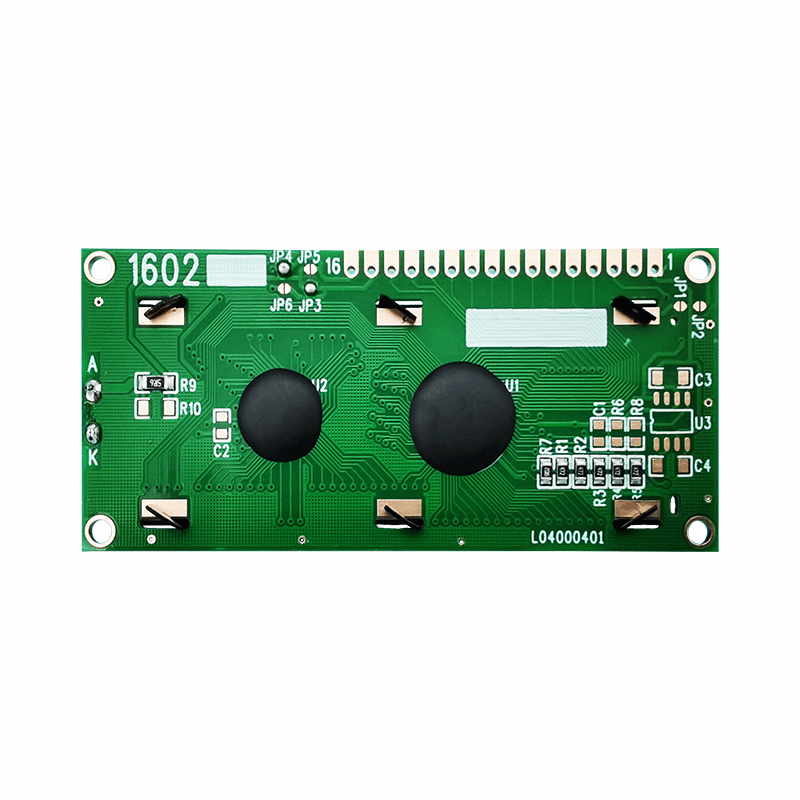

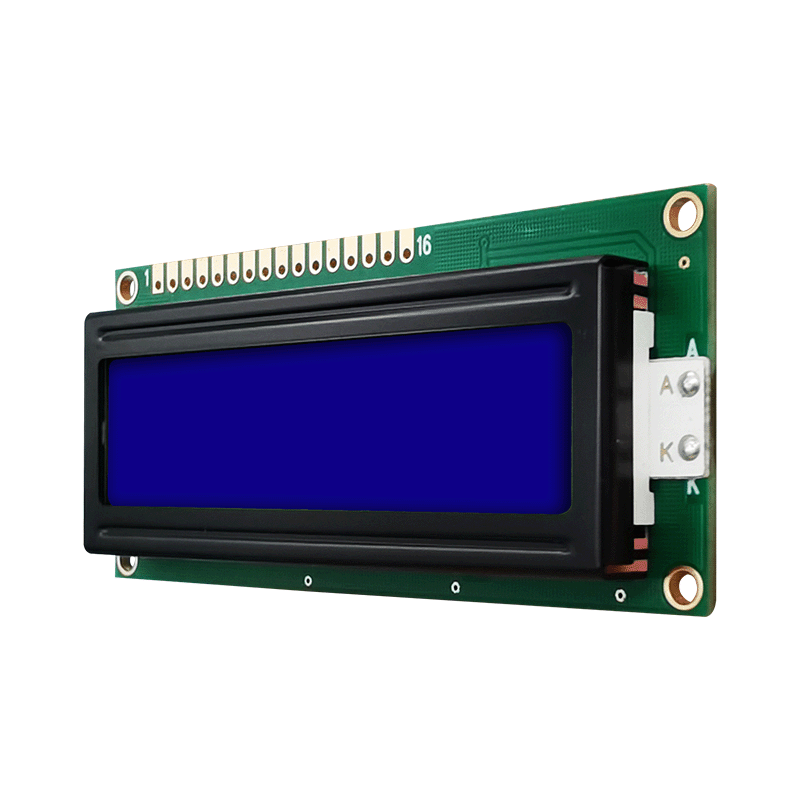

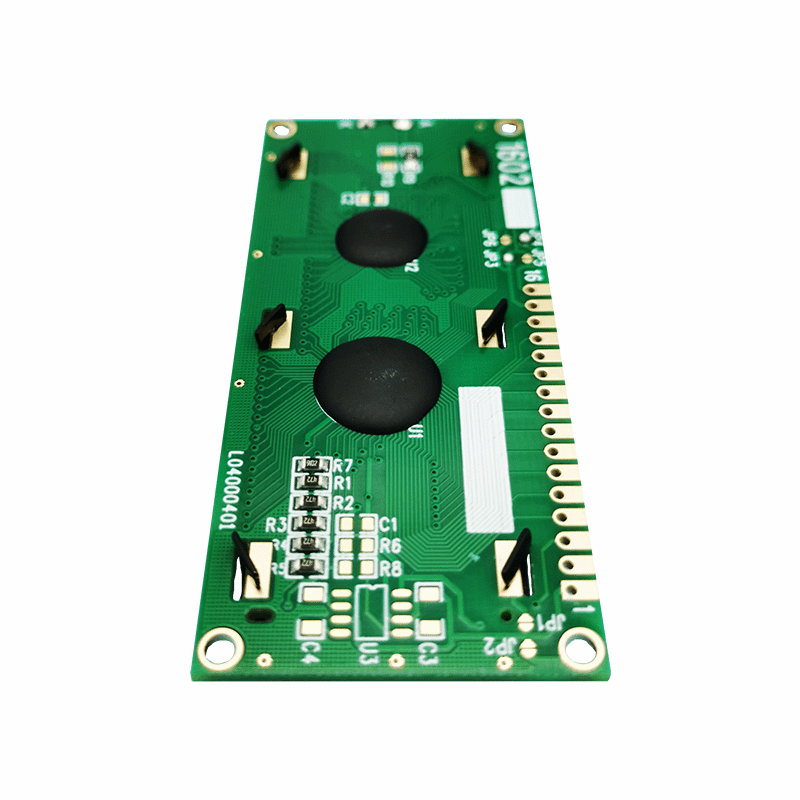

16x2 Character LCD Module | Blue Display With White Side Backlight

? Model: HTM1602A-25W-A5P

? Type: Character LCD Modules
? Display content: 16x2 characters
? Overall dimensions (mm): 80.0x36.0x13.1
? VA size (mm): 64.5x15.8
? AA size (mm): 55.8x10.64
? Point spacing mm: 0.62x0.64
? Product application: industrial control
? Viewing angle: 6H
? Backlight type or: White
? Number of PINs: 16PIN
? Interface mode: MCU/8bit
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Modules STN- 1602 Blue LCD Module Display with White Side Backlight 5.0V-Arduino
Character LCD Modules16x2 character Liquid Crystal Display shows characters with white pixels on a blue background when powered on. This transmissive LCD Display requires a backlight for visibility while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM1602A-25W-A5P display has an optimal view of 6:00. This display operates at 5.0V supply voltage and is RoHS compliant.

entry name	Specification parameters	unit
Model name	HTM1602A-25W-A5P
Character display line	16 words × 2 lines	dots

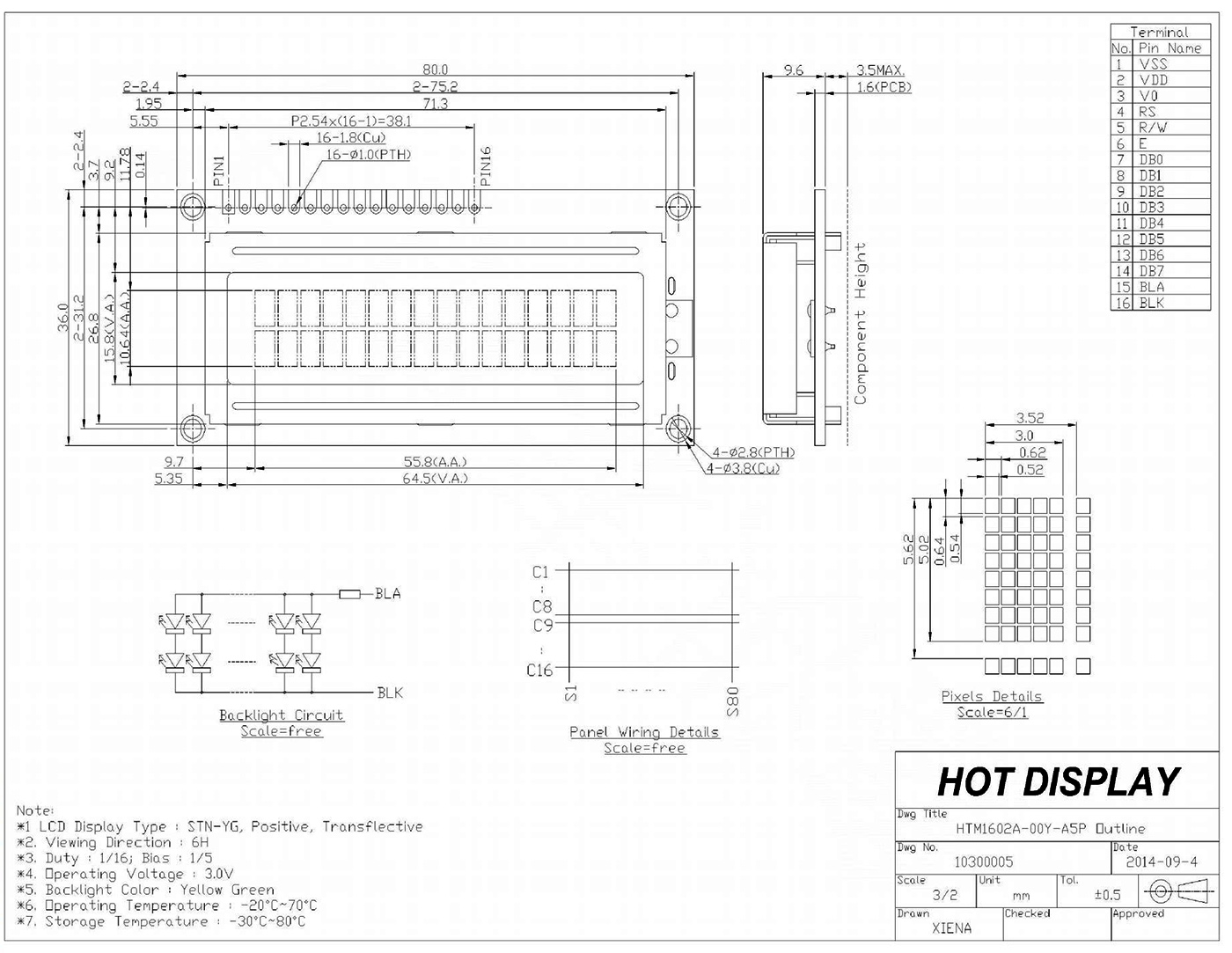

Module Size	80.0 (W) × 36.0 (H) × 13.1 (D)mm	mm
Visible (VA) area	64.0x15.8(H)	mm
Effective Area (AA)	55.8(W)x10.64(H)mm	mm
Point (Pixel) Size	0.52×0.54mm	mm
Point (pixel) spacing	0.62(W) × 0.64(H)mm	mm
Driver chip	ST7066U driver
/Application voltage	5.0V	V
Backlight	White backlight
mode	STN-blue
Driving method	1/16 duty cycle
type	character module
characteristic	transmissive
