HOME / Product / Graphic OLED Displays Module / 1.5 inch 128x128 Yellow Graphic OLED Module MONO DISPLAY SH1107

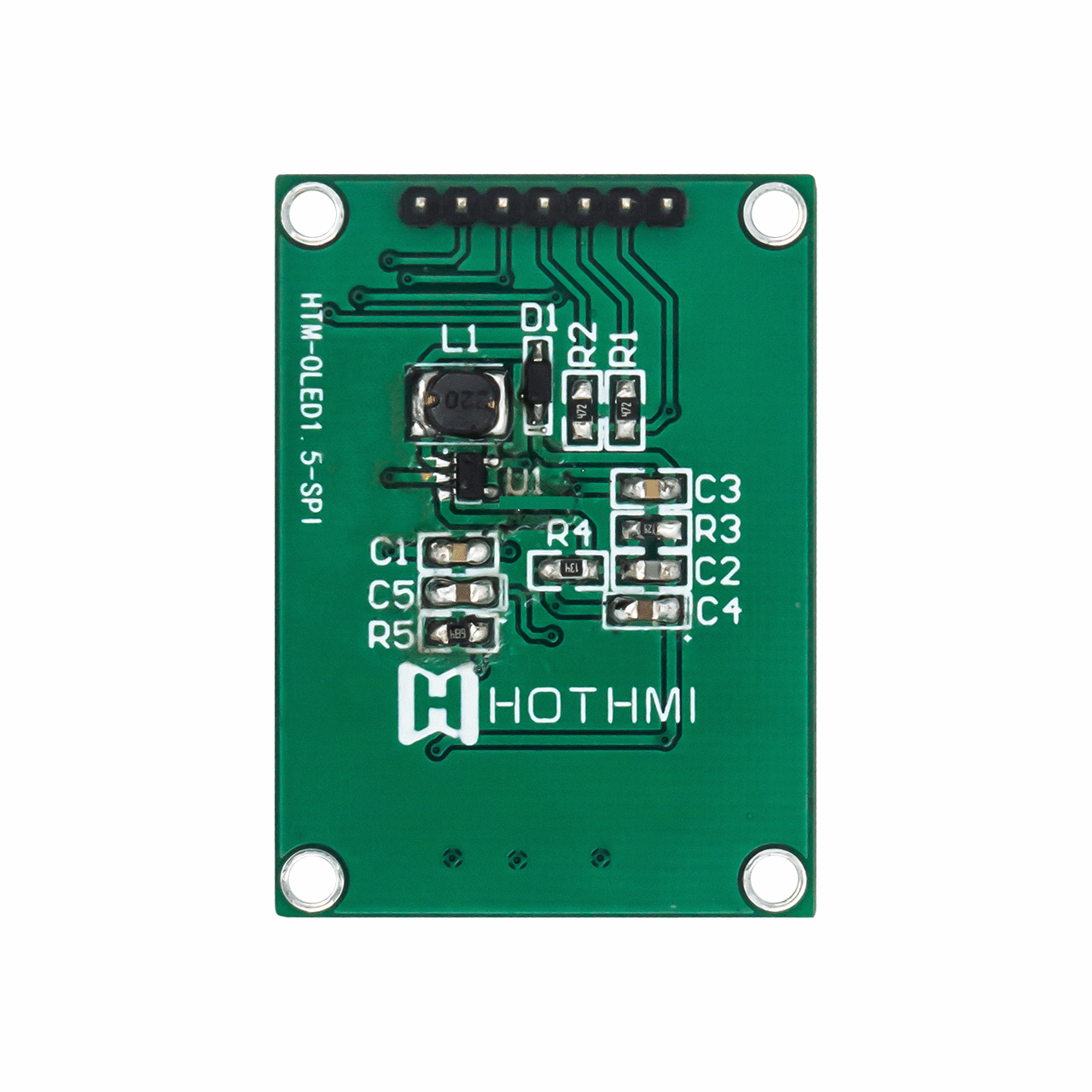

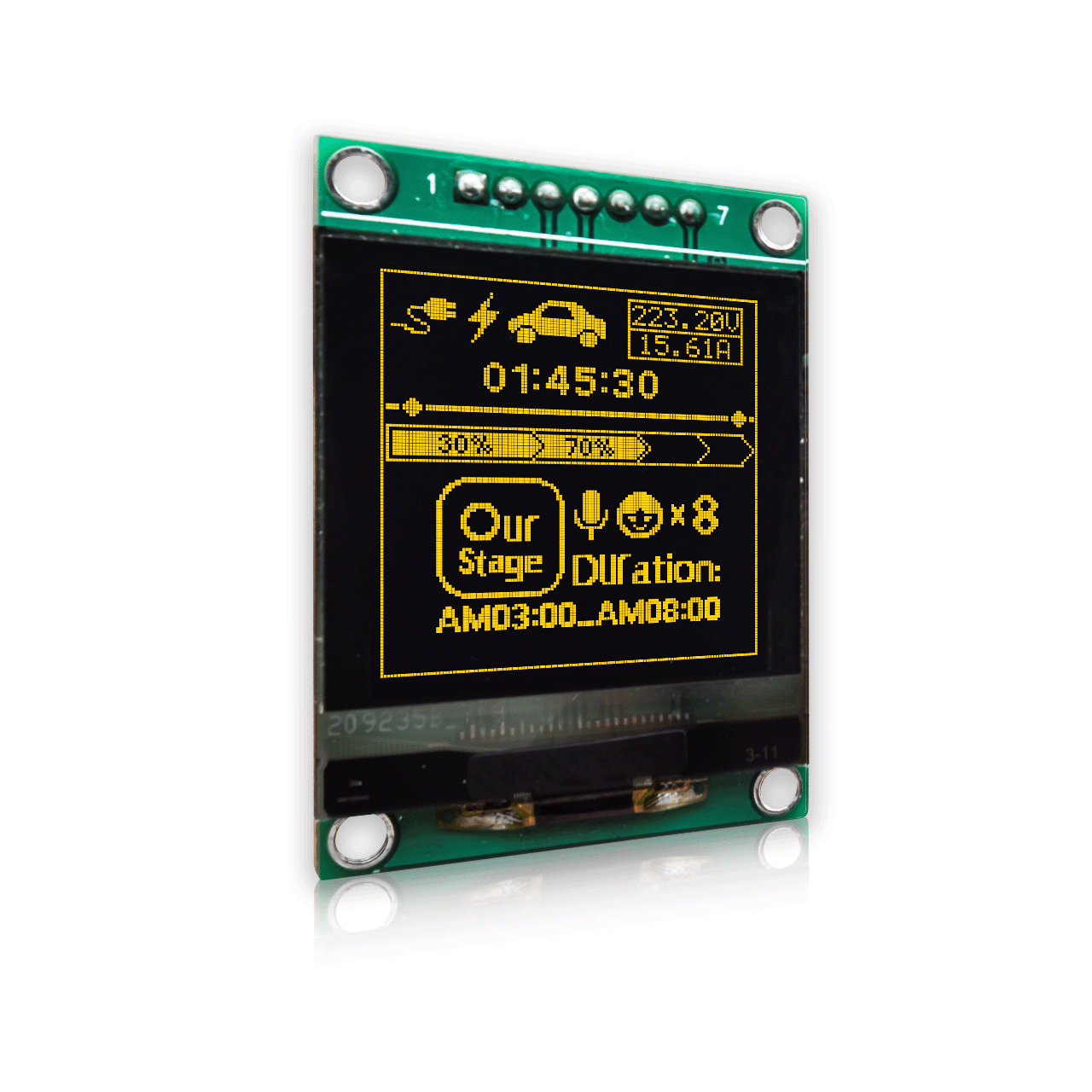

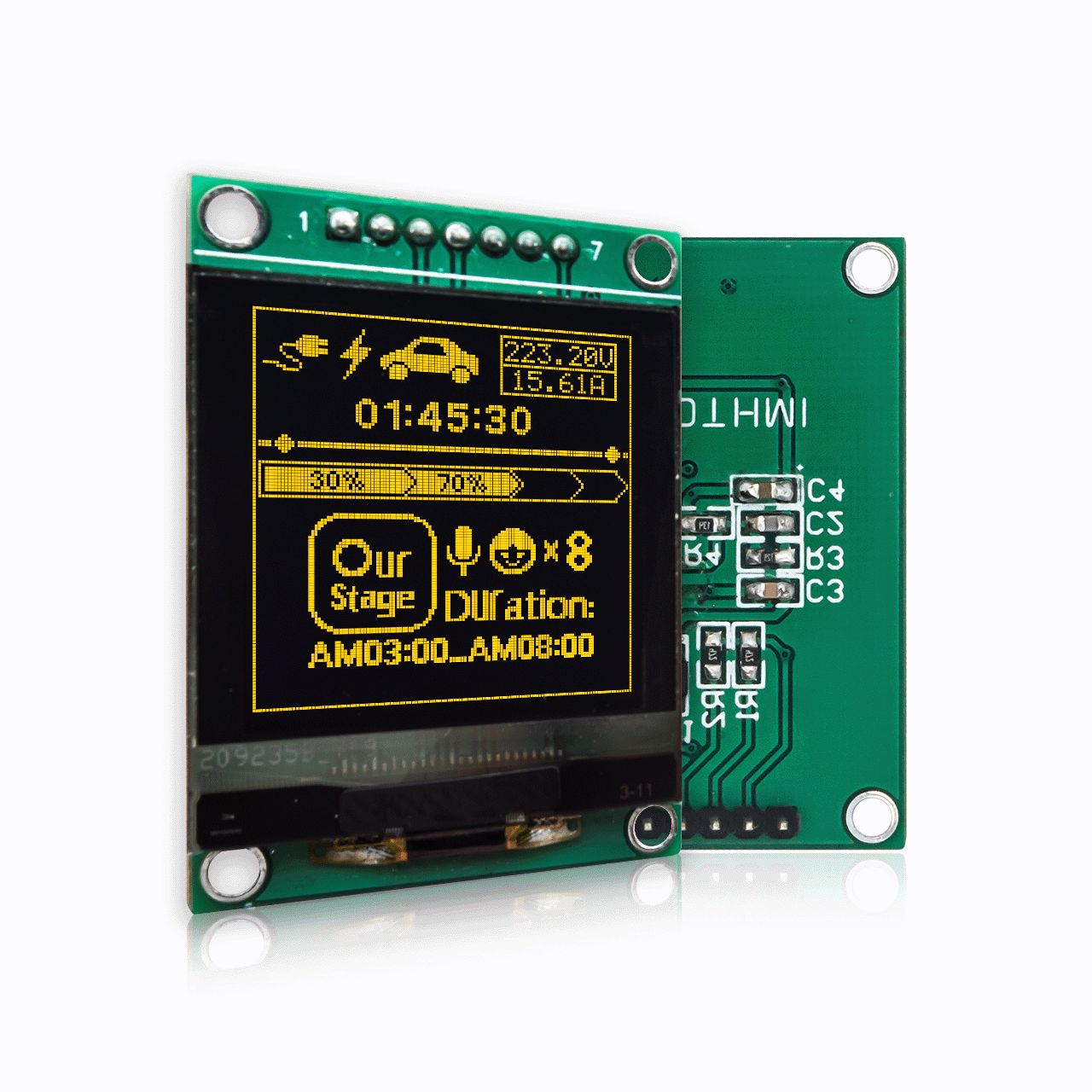

1.5 inch 128x128 Yellow Graphic OLED Module MONO DISPLAY SH1107

? Model: HTM-OLED 1.5-SPI-Y

? Size:1.50" diagonal
? Display Format:128x128 Pixels
? Display Type:Graphic OLED Module
? Display Color:Monochrome Yellow

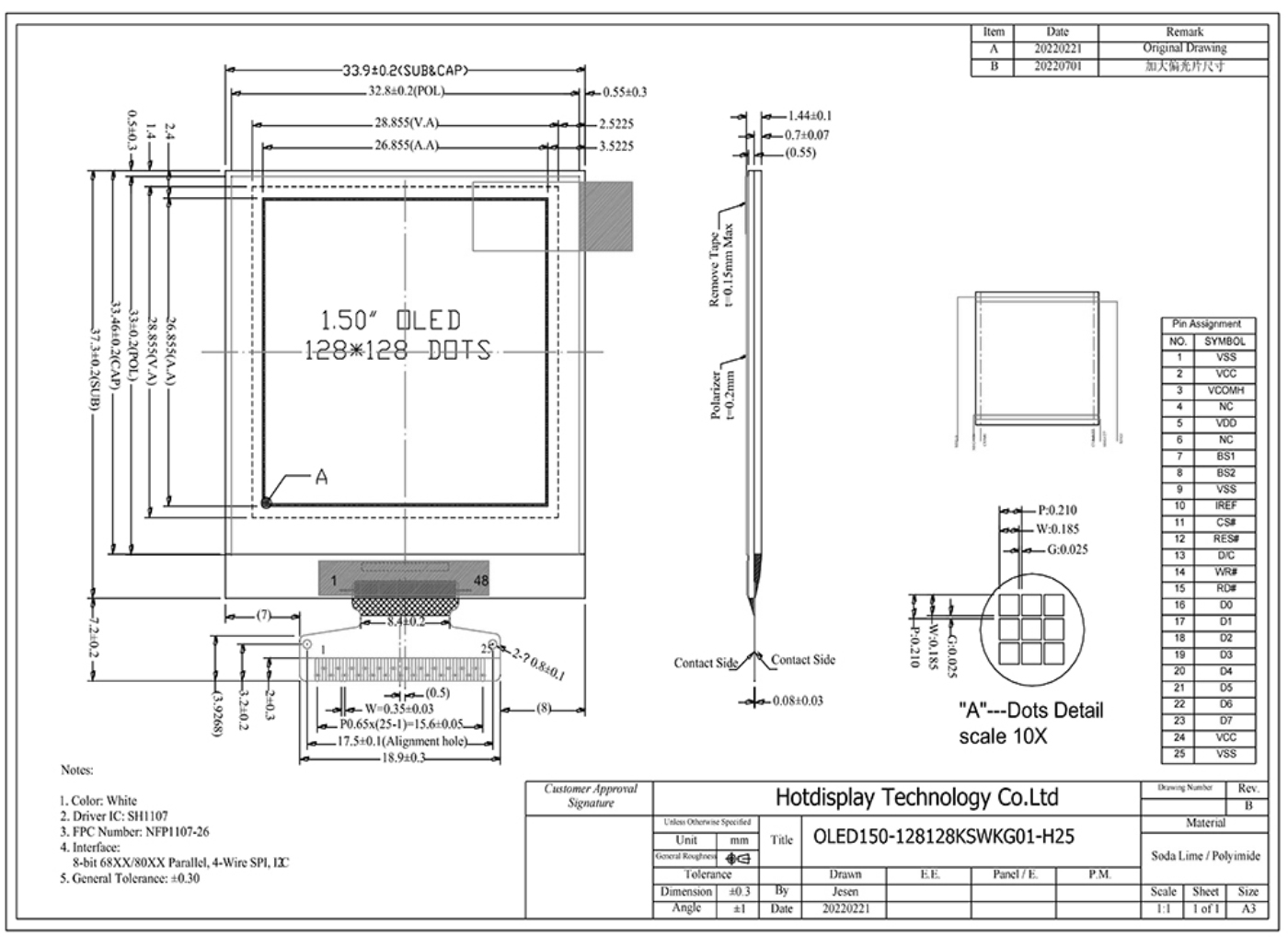

? Outline(mm):33.9x37.3x1.44
? AA(mm):26.855x26.855
? Supply Voltage:3.3V
? Interface:SPI
? Backlight brightness: 100cd/m2
? Compatibility:Arduino
? Controller Type:SH1107
? Operating Temperature: -40°C ~ 85°C
? Storage Temperature: -40°C ~ 90°C
? Added Feature: EMI shielding

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

HTM-OLED 1.5-SPI-Y | 128x128 Pixels | Graphic OLED Module | Yellow Monochrome Color | Parallel, Serial or I2C Interface

This 128x128 resolution graphic OLED display offers high contrast viewing with vibrant Yellow graphics set against a deep black background. The OLED display technology is self-illuminating and engineered to provide high visibility and ensure easy readability from any angle in different environments. With this OLED, you can expect top speed response times. It is a passive-matrix display built with 6800/8080 parallel, serial SPI, or I2C interface options, and it’s fully compatible with Arduino, which allows for seamless integration with many different electronic systems for a wide range of applications.

Designed to withstand extreme operating conditions, the HTM-OLED 1.5-SPI-Y model operates exceptionally when used within a temperature range from -40 to 85 degrees Celsius. It has a built-in SH1107 controller, requires a 3.3V power supply for operation, and is RoHS compliant.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.

Quality Standards

At HOTLCD Display We Strive Every Day To Provide Our Customers With The Highest Quality Products. This Means Quality, Engineering, And Manufacturing Teams Are Aligned To Exceed Your Expectations.

Our Customers Should Expect Their Products To Meet Or Exceed The Following Standards:

All Products

Reliability Testing	Customers Can Expect All Production Parts To Meet Or Exceed Operational Requirements Over Temperature, Humidity, And Vibration.
Glass Cleanliness	Customers Can Expect Glass To Be Protected By Liners And Presented Mindful Of Cleanliness Standards. This Means Glass Will Be Clean Of Contaminants, Fingerprints, And Other Foreign Material.
Bezel Appearance	Bezels Will Be Uniformly Painted Free Of Foreign Materials And Distracting Cosmetic Blemishes. Our Standards Maintain A Clean Scratch-Free Surface.
PCB Appearance	PCB’s Are Delivered With Long-Term Reliability In Mind. Finishes Are Free Of Bubbles, Foreign Contaminants, And Meet All UL Fire Requirements. PCB Materials Will Always Be Delivered Within Industry Norms. PCB Edges Will Be Cleanly Cut And Void Of Burrs.
Soldering	Soldering Of All Leaded And SMT Components Is Consistent In Providing The Mechanical Security And Electrical Connectivity.
Consistency	Our Manufacturing And Inspection Processes Ensure Product Consistency From Lot To Lot. This Means Orders Processed Over The Years Will Continually Meet Your Expectations. We Do This By Exacting Manufacturing Specifications, With Attention To Detail In Our Processes, And By Comparing To The Golden Units.
Product Integrity	Quality In Product Manufacturing Ensures Integrity In Construction. Customers Can Expect Tight Assembly Without Worry Of Loose Parts Or Missing Material. Our Products Will Meet All Environmental Expectations Including Temp, Humidity, & Vibration Conditions.
Glass Color	While Normal Variations Of Glass Color May Occur (Due To Manufacturing Tolerances), Hotdisplay Display Maintains Color Compliance Per Internal Approved Color Charts. These Charts Are Maintained To Ensure Any Minor Glass Deviations Are Identified And Corrected As Needed.
ESD Protection & Safety	All Devices Are Designed And Handled In Consideration Of ESD Protection. This Includes ESD-SAFE Packaging Within Anti-Static Bags, Wraps, And Trays. Customers Are Reminded To Always Follow ESD Safety To Best Protect The Devices.
