China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / Character LCD Module MONO Display | Arduino-2X16 DFSTN- with Side White Backlight

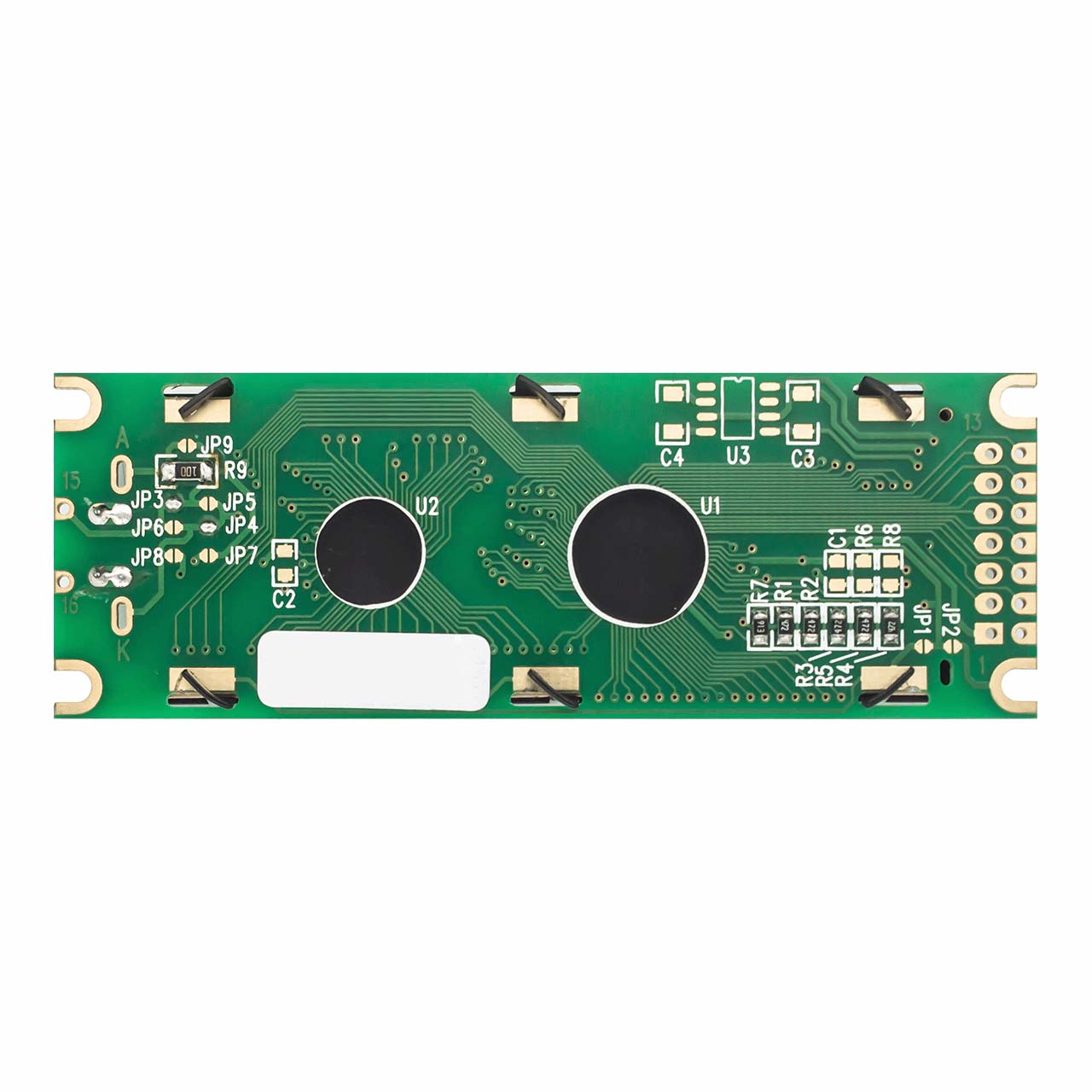

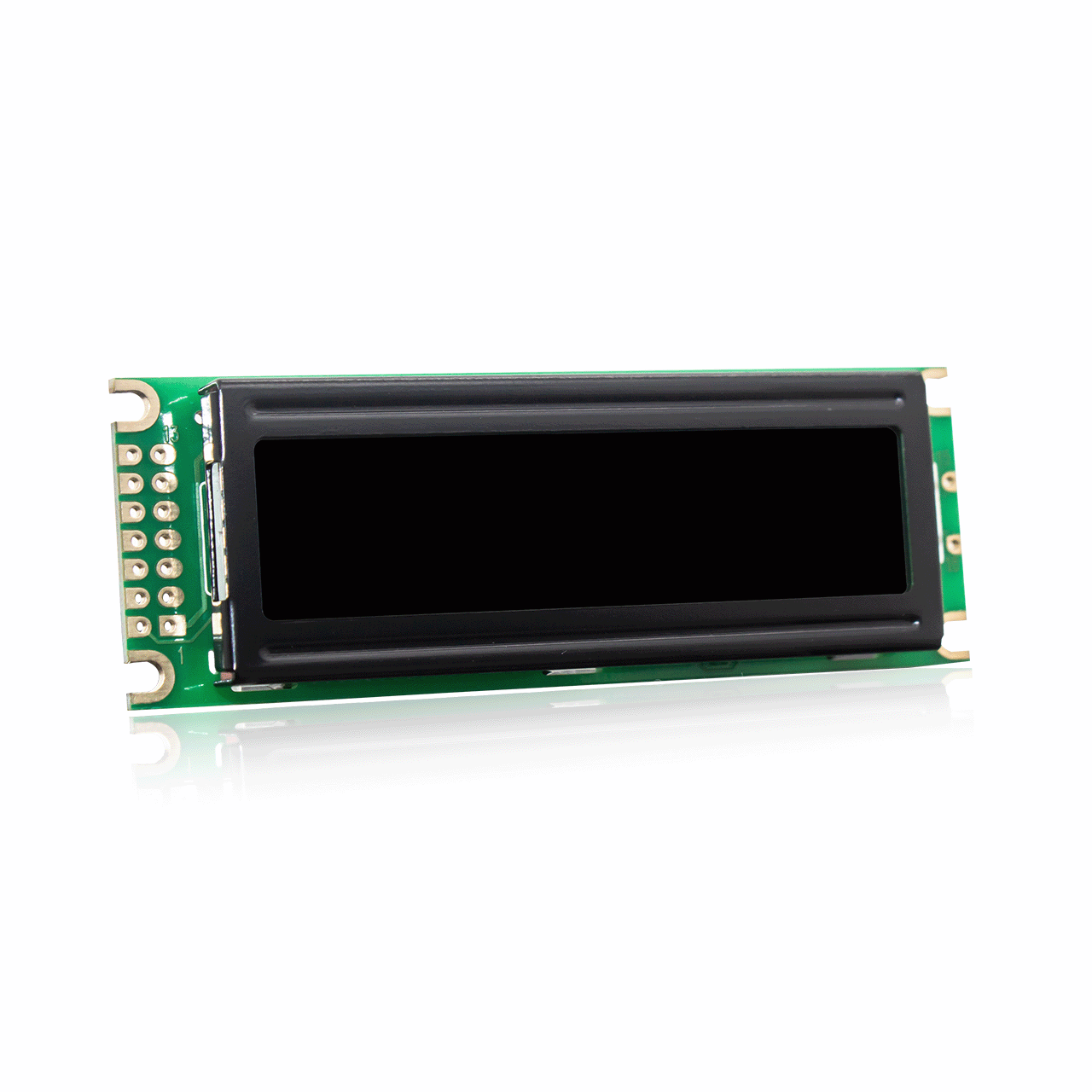

Character LCD Module MONO Display | Arduino-2X16 DFSTN- with Side White Backlight

? Model: HTM1602-10-47W-T5P

? Type: Character LCD Module
? Display content: 16x2 characters

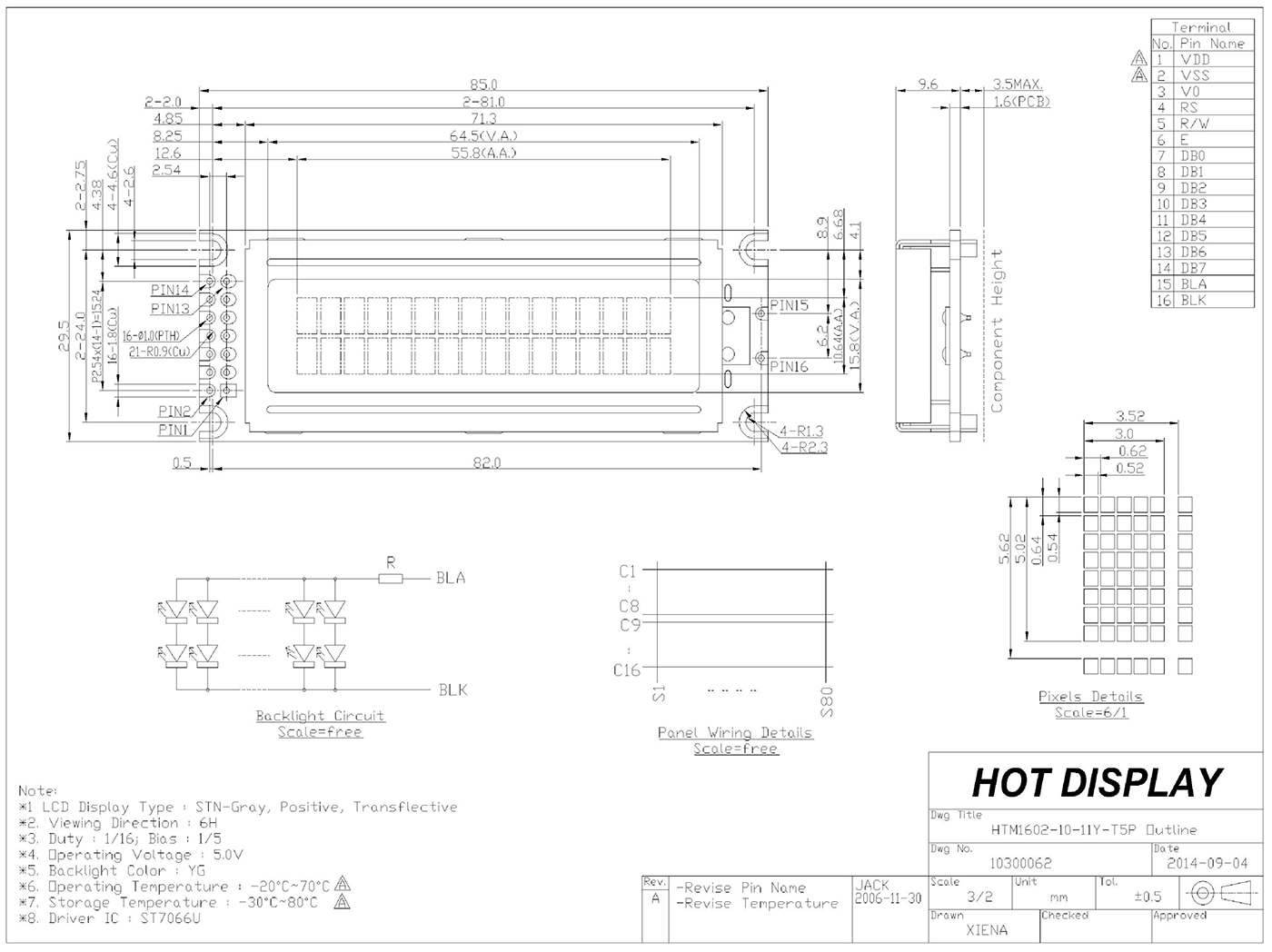

? Overall dimensions (mm): 85.0x29.5x13.1
? VA window size (mm): 64.5x15.8
? AA size (mm): 55.8x10.64
? Point spacing mm: 0.62x0.64
? Product application: industrial control
?Viewing angle: 12H
? Backlight type: white light
? Connection method PIN number: 16PIN
?Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
?Power supply voltage: 5.0v
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Module MONO Display |Arduino-2X16 DFSTN- with Side White Backlight

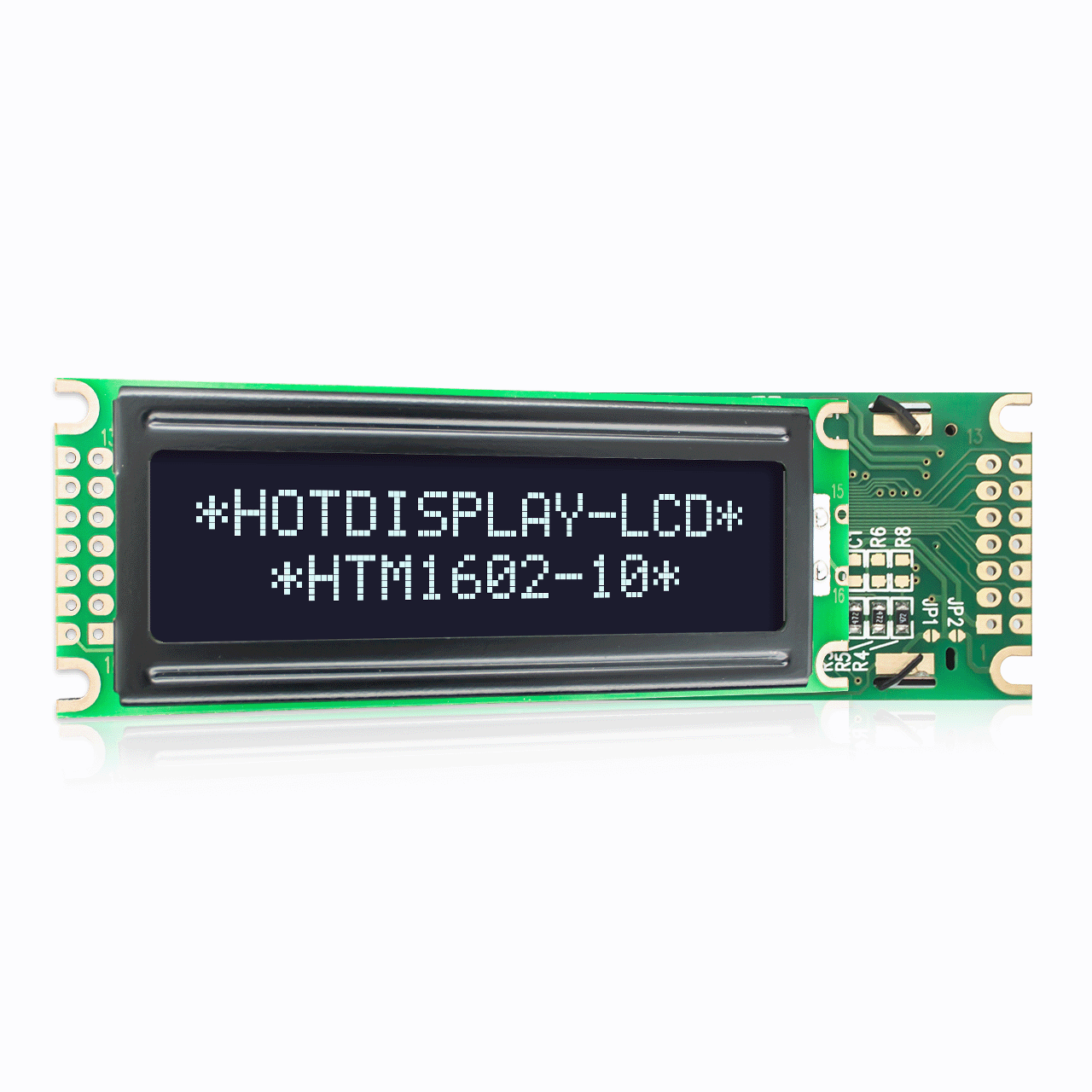

This Character LCD Module 16x2 character LCD displays bright white pixels on a black background. The transparent display mode adopts built-in LED backlight, providing optimal visibility in low light conditions. This HTM1602-10-47W-A5P monitor has an optimal viewing angle of 6:00, a wide operating temperature range of -20 to 70 degrees Celsius, and operates at a 5V power supply voltage. This Arduino compatible monitor comes with an ST7066U controller, providing excellent viewing experience and performance at an affordable price.

Product parameters	Specification content	unit
Model name	HTM1602-10-47W-T5P
Character display line	16 x 2	dots
Module Size	85.0x29.5x13.1 (MAX)	mm
Visible (VA) area	64.5x15.80	mm
AA size	55.8 (W) x 10.64 (H) mm	mm
Point (Pixel) Size	0.52 x 0.54	mm
Point (pixel) spacing	0.62 (W) x 0.64 (H) mm	mm
Driver chip	ST7066U
supply voltage	5V	V
Backlight	White LED
display mode	DFSTN-
Driving method	Duty cycle 1/16
type	Character LCD
characteristic	Transmissive reflection
