China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / 16x4 Character LCD Module | FSTN(+) With Backlight

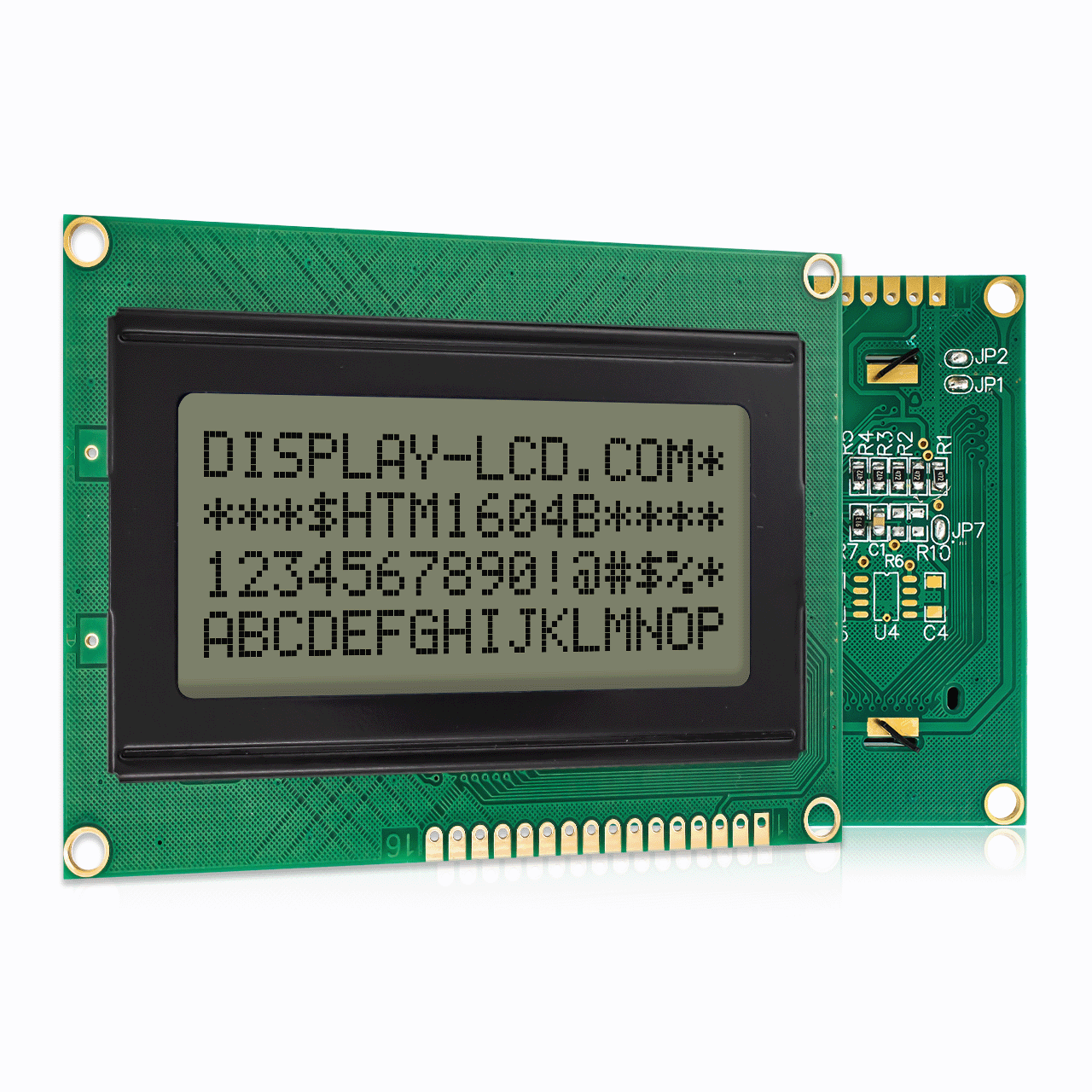

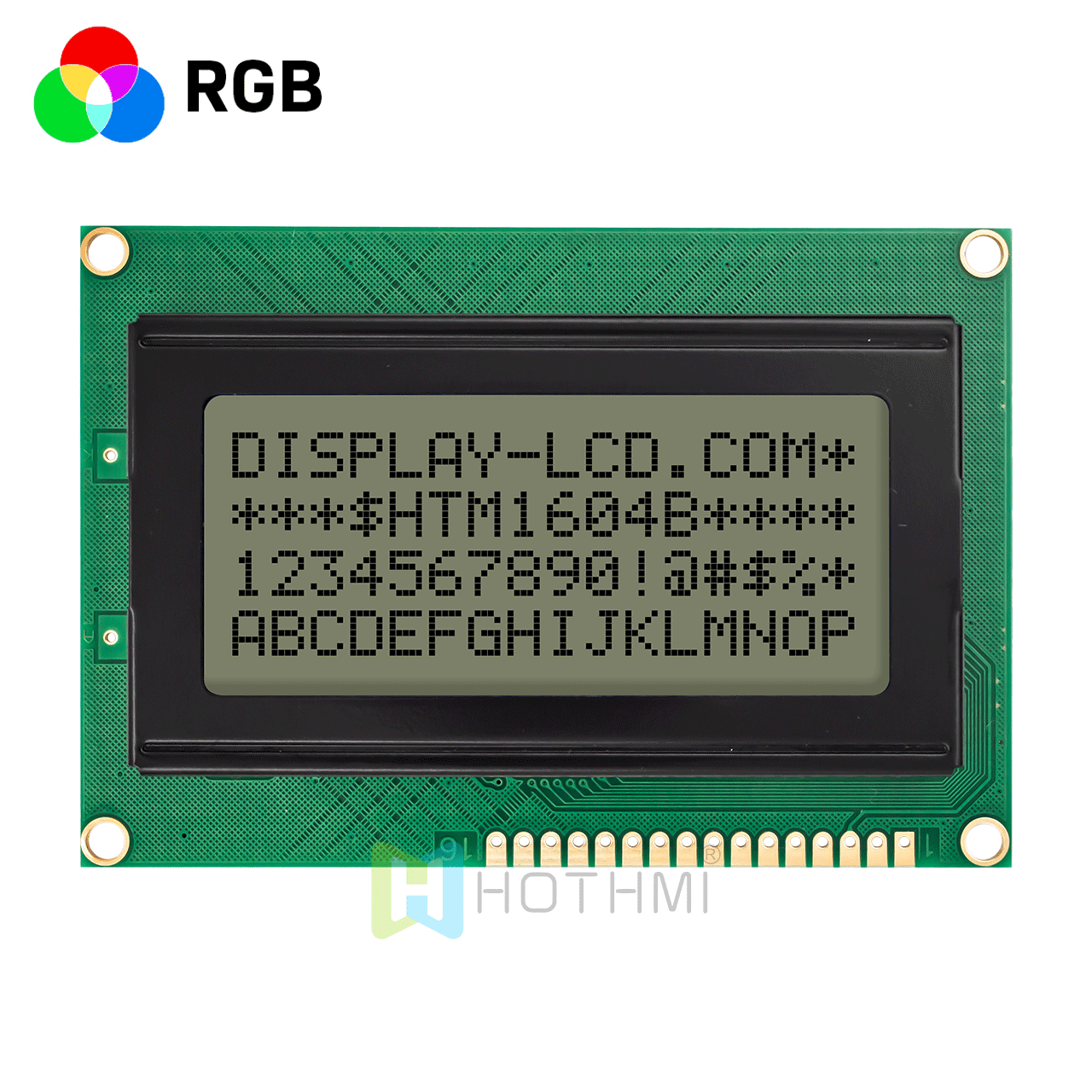

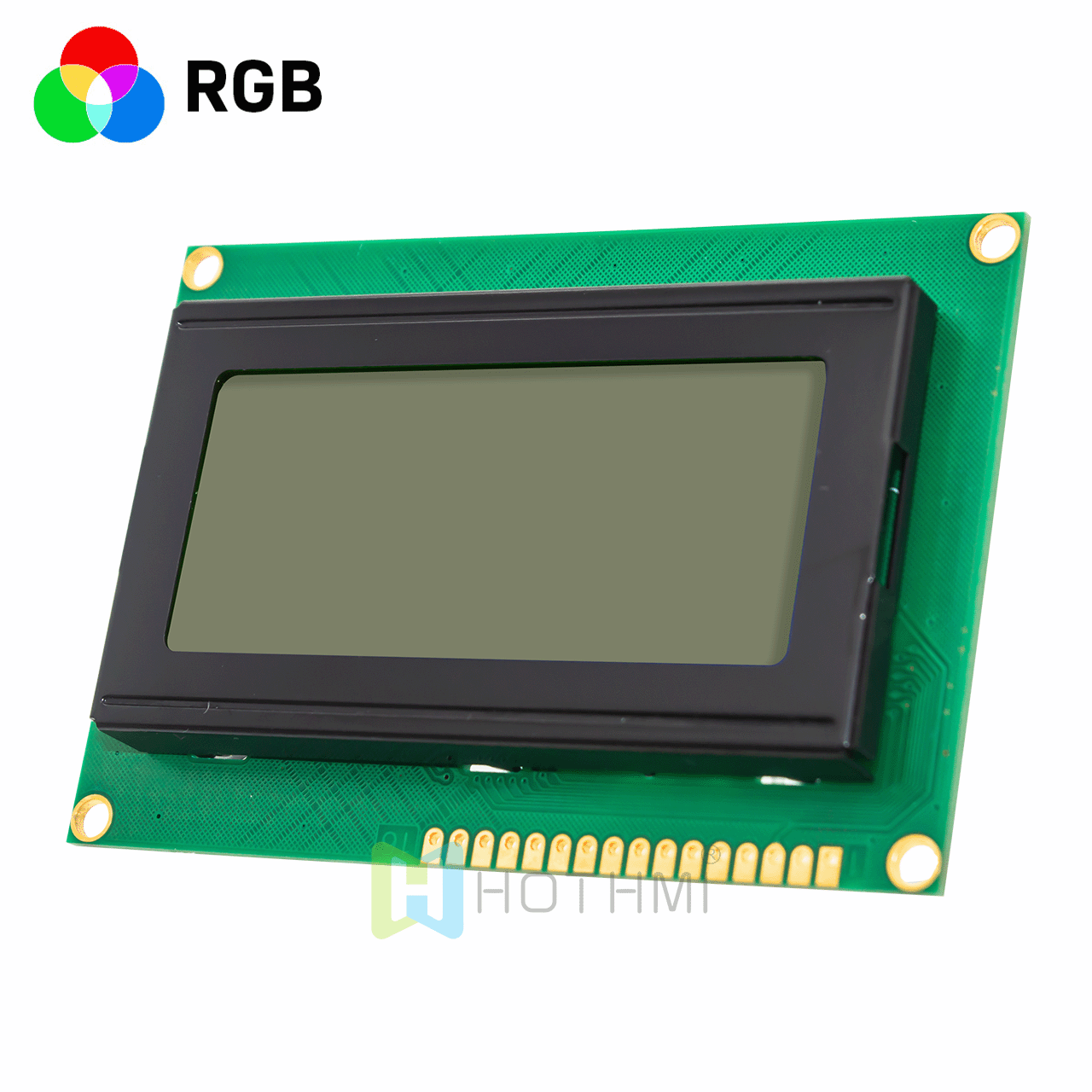

16x4 Character LCD Module | FSTN(+) With Backlight

? Model: HTM1604B-35S-A5P

? Type: character LCD Module
? Display content: 4x16 characters

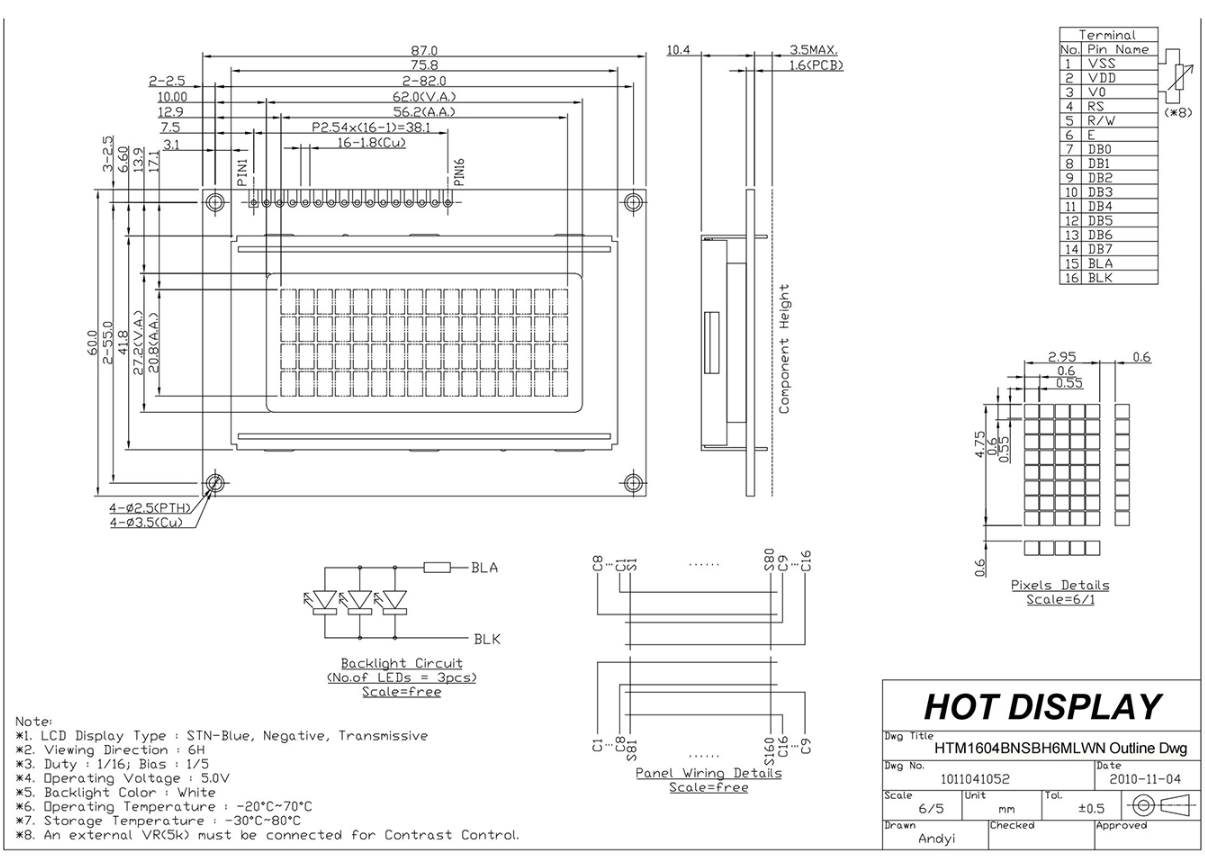

? Overall dimensions (mm): 87x60x10.4
? VA size (mm): 62x27.2
? AA size (mm): 56.2x20.8
? Point spacing mm: 0.6x0.6
? Product application: Instrumentation
? Viewing angle: 6H
? Backlight: red/green/blue
? Connection method PIN number: 16pin
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Supply voltage: 5.0V
? Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

character LCD Module |4x16 FSTN(+) RGB side backlight display | Arduino | MCU interface | ST7066U controller | Total transflective display | 5.0V
character LCD Module HTM-1604B-35S-A5P 4x16 LCD display shows up to 64 characters as four rows each with sixty-four characters of bright pixels on a black background when powered on. This RGB display includes three backlight colors built into each display, which enables you to choose from a red, green or a blue backlight color. You can also mix the intensities of those colors to create new custom colors. This transmissive FSTN positive Liquid Crystal Display requires a backlight for visibility while offering an optimal 6:00 view. This HTM-1604B-35S-A5P display is fully compatible with Arduino, making it a convenient choice for DIY electronics projects and educational purposes. It also has a wide operating temperature range from -20 to 70 degrees Celsius, a ST7066U controller, operates at 5V supply voltage, and is RoHS compliant.

Item	Specification conntent	Unit
name	HTM1604B-35S-A5P
Number of dots	16words × 4lines	dots
Module size	87x60x10.4(MAX)	mm
Visual (VA) area	62.0（W） × 27.2（H）	mm
Valid (AA) area	56.2（W） × 20.8（H）	mm
Point (pixel) spacing	0.60 × 0.60mm	mm
IC	ST7066U driver chip
voltage	5.0V	V
back light	RGB red/green/blue
display mode	FSTN positive
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Totally transflective polarizer
