China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / character LCD Module | FSTN+Monochrome 2X20 white background gray character display with white backlight + English/Japanese/Russian character library | 5.0v| STU7066U | Arduino

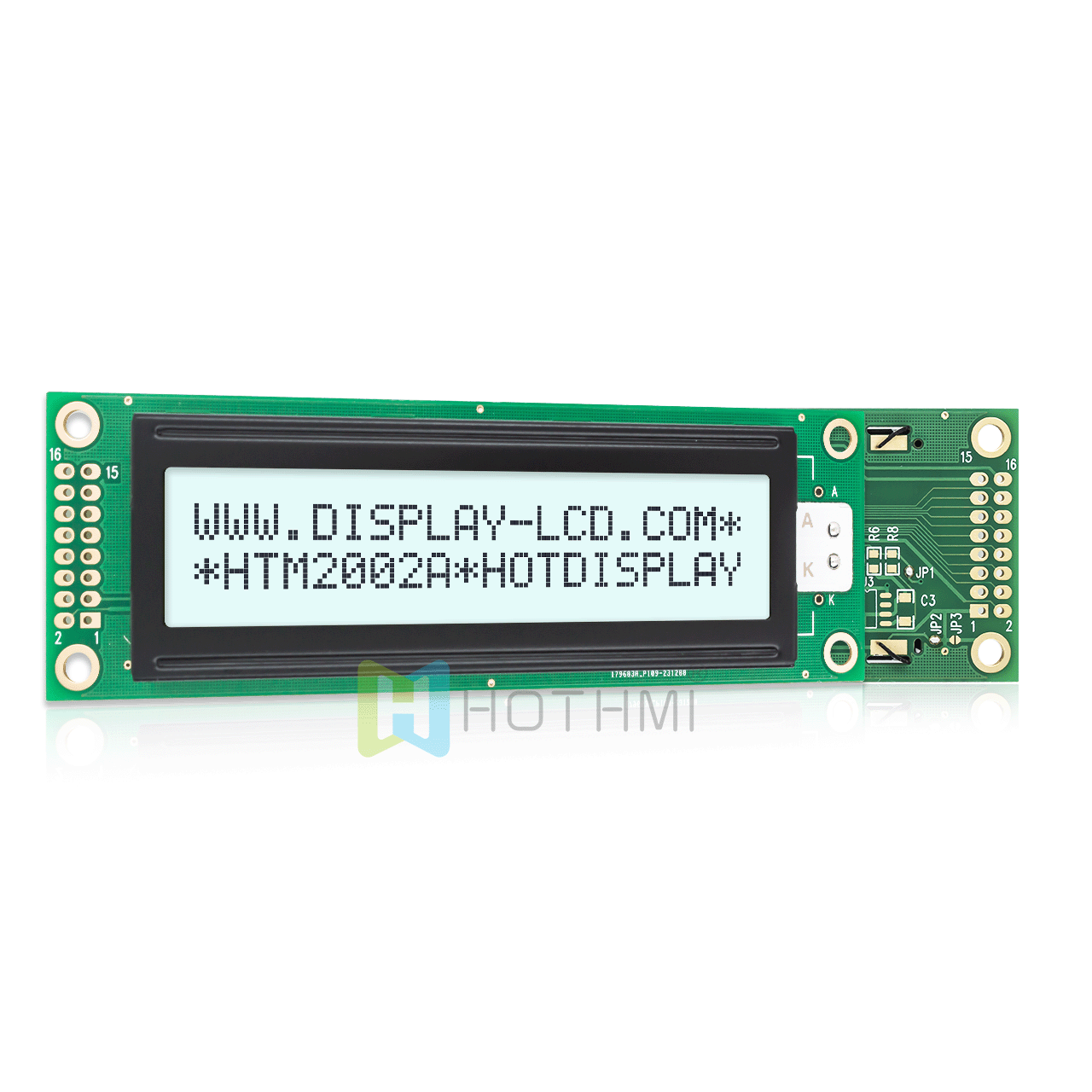

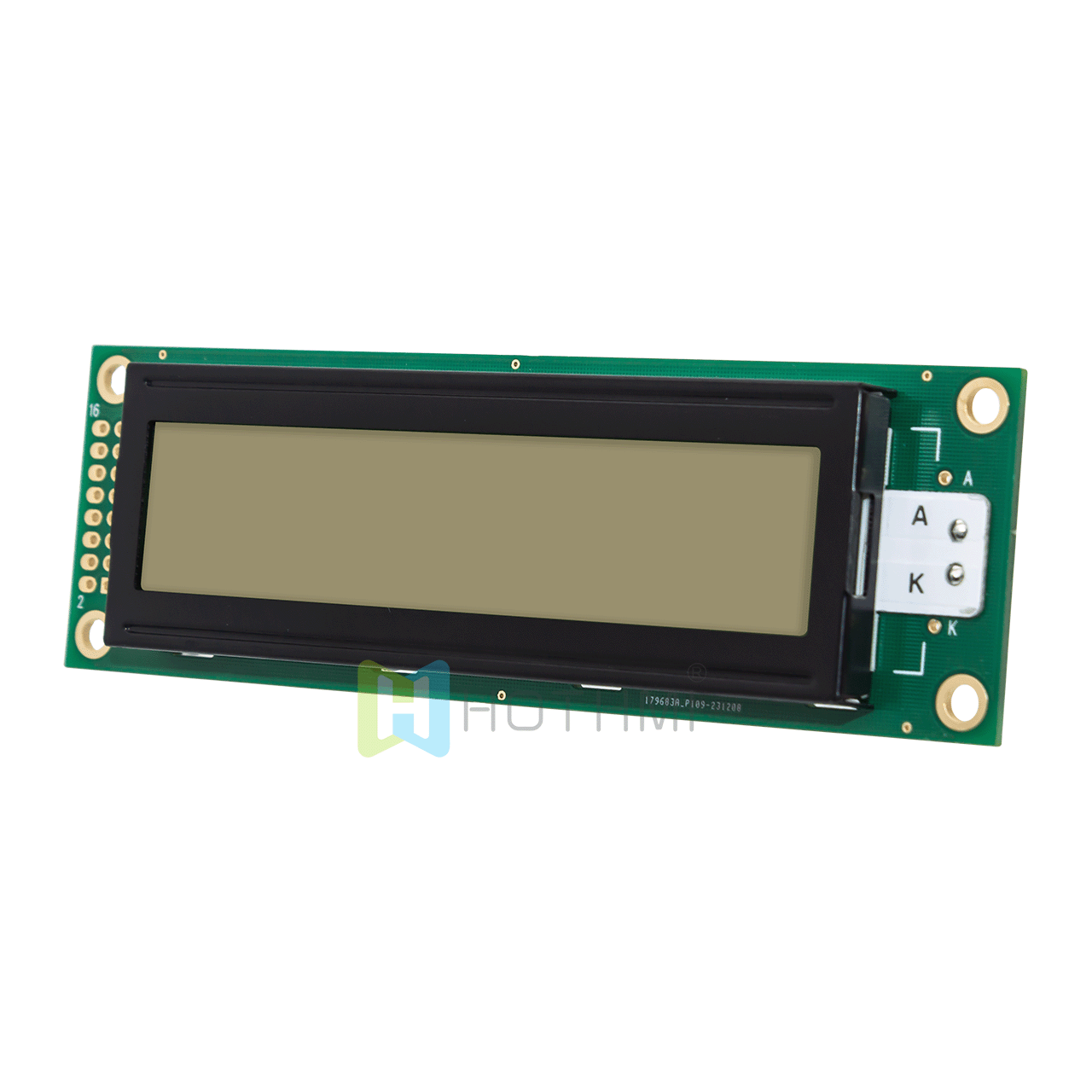

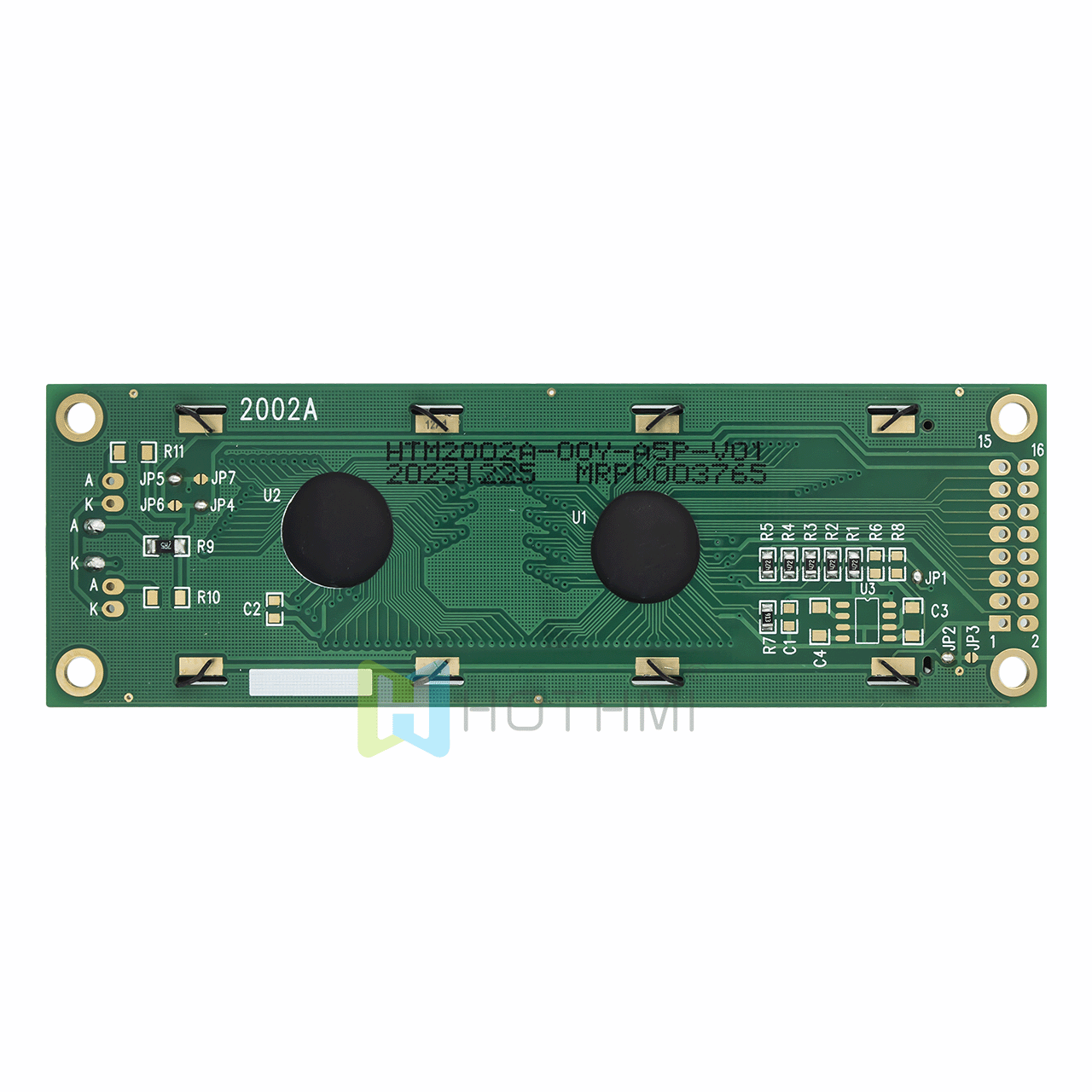

character LCD Module | FSTN+Monochrome 2X20 white background gray character display with white backlight + English/Japanese/Russian character library | 5.0v| STU7066U | Arduino

? Model: HTM2002A-31W-A5P

? Type: character LCD Module
? Display content: 20x2 characters

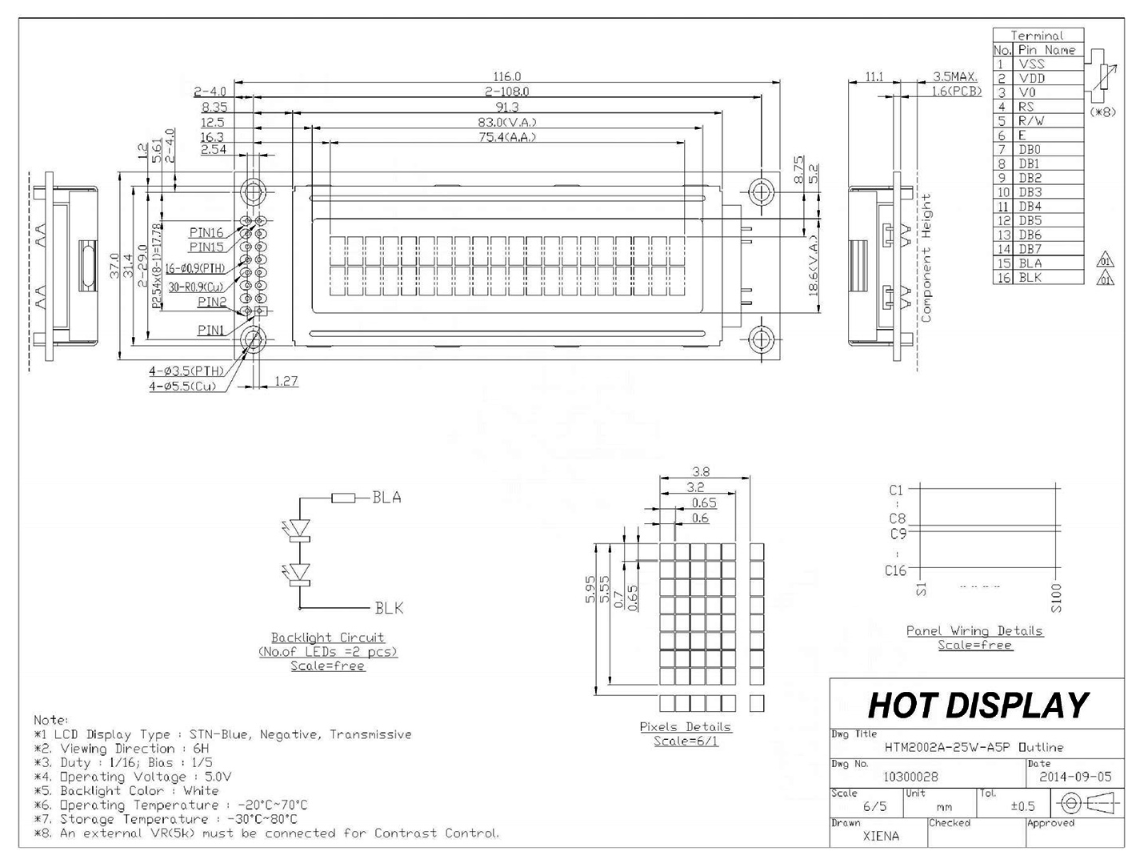

? Overall dimensions (mm): 116.0x37.0x14.6
? VA size (mm): 83.0x18.6
? AA size (mm): 75.4x11.5
? Point spacing mm: 0.65x0.7
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: white
? Number of PINs: 16PIN
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

character LCD Module | FSTN+Monochrome 2X20 white background gray character display with white backlight + English/Japanese/Russian character library | 5.0v| STU7066U | Arduino
The character LCD Module，Hot Display's 20X2 character LCD displays characters with dark pixels on a bright white background. The transparent mode of RoHS-compliant monitors ensures visibility in ambient light or with the help of backlighting. The best viewing angle of this htm2002a - 31w - a5p Monitor is at 6:00, with standard English and Japanese fonts and an operating voltage of 5v, compatible with arduino and available in various environments. Complies with RoHS standards.

Project	Specification content	Unit
name	HTM2002-31W-A5P
Number of dots	20x2	dots
Module size	116.0（W） × 37.0（H） × 14.6 （T）	mm
Visual (VA) area	83.0x18.6	mm
AA size	75.4（W） × 11.5（H）	mm
Point (pixel) spacing	0.65（W） × 0.70（H）mm	mm
IC	ST7066U driver
Applied voltage	5.00V	V
back light	white
model	FSTN+
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
Polarizer type	Transflective polarizer
