? Model: HTM2002A-11Y-A5P
? Type: character LCD Module
? Display content: 20x2 characters

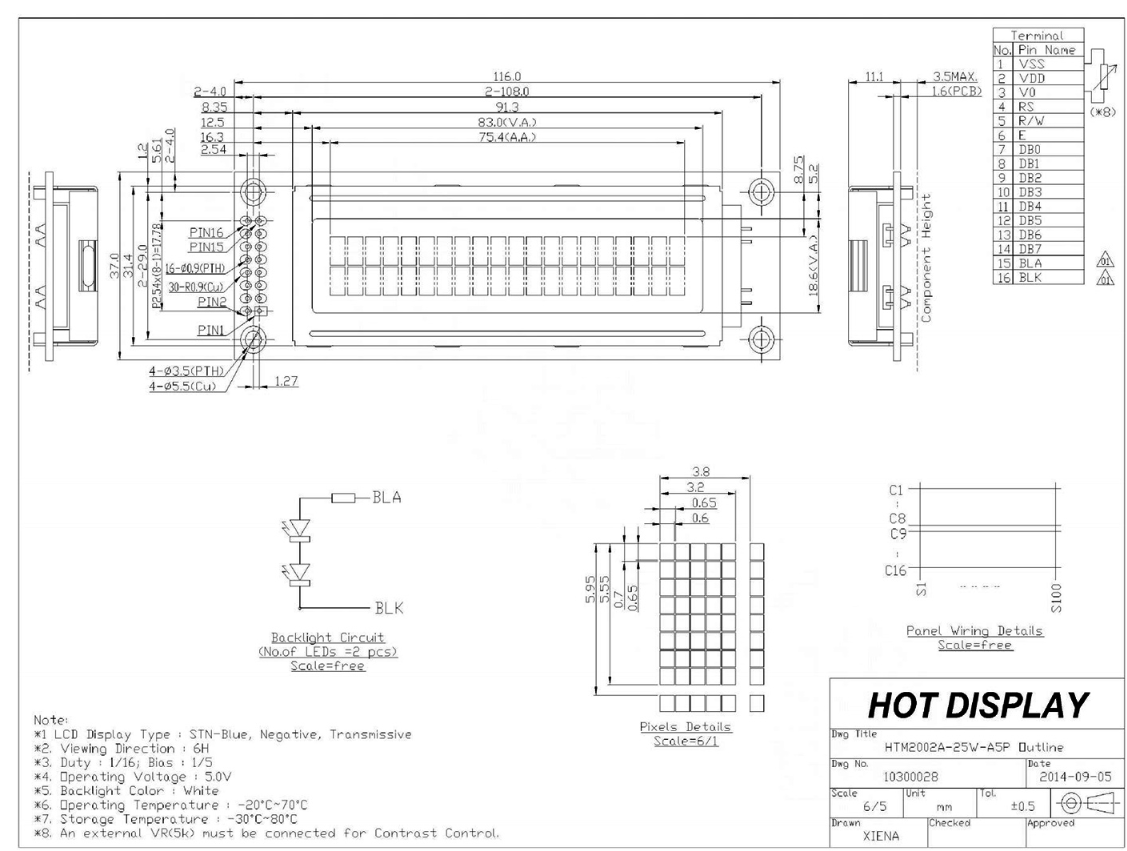

? Overall dimensions (mm): 116.0x37.0x14.6
? VA size (mm): 83.0x18.6
? AA size (mm): 75.4x11.5
? Point spacing mm: 0.65x0.7
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: yellow/green
? Number of PINs: 16PIN
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip:ST7066U
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

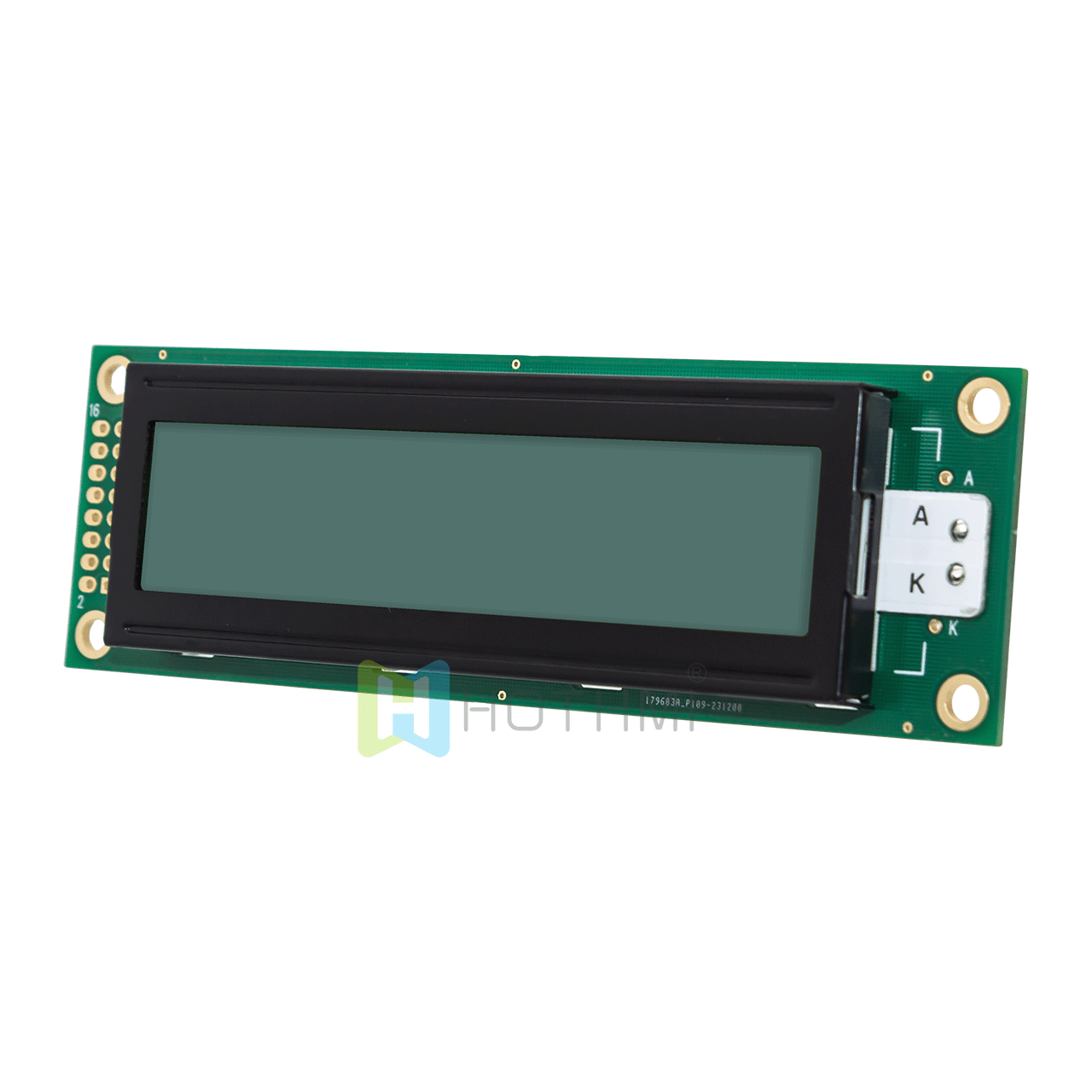

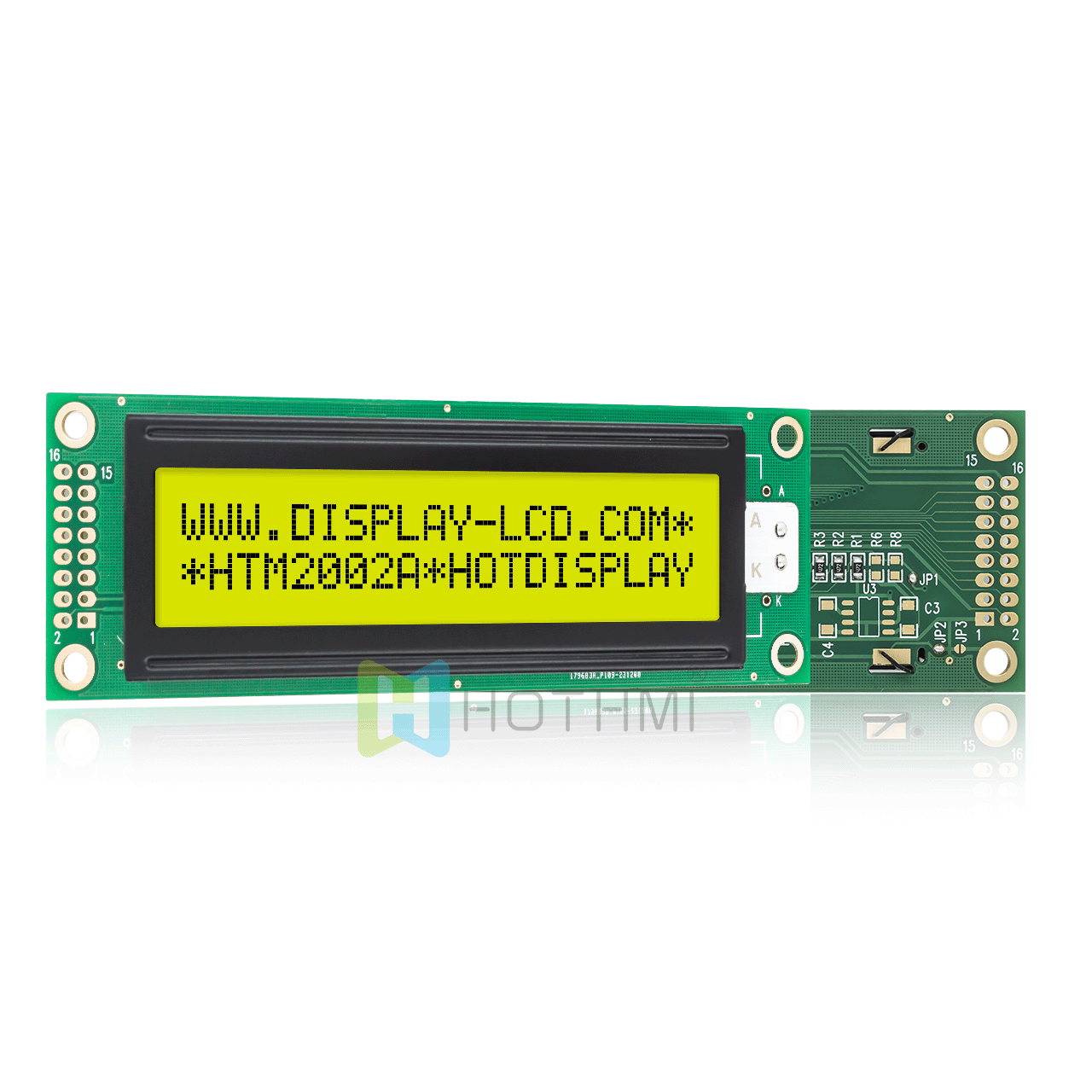

Hot Display 20X2 Character LCD displays characters with black pixels on a bright yellow/green background. This transparent LCD ensures clear visibility in ambient and backlight conditions. The best viewing angle for this monitor is at 6 o'clock. This monitor operates on 5v and is compatible with arduino.
Project | Parameter Description | Unit |
name | HTM2002A-11Y-A5P | |
Number of dots | 20 wors × 2lines | dots |
Module size | 116.0 × 37.0 × 14.6 (MAX) | mm |
Visual (VA) area | 83.0（W） × 18.6（H） | mm |
Valid (AA) area | 75.4（W） × 11.5（H） | mm |
Point (pixel) spacing | 0.65 × 0.70mm | mm |
IC | ST7066U driver chip | |
voltage | 5.0V | V |
back light | Yellow/green backlight | |
display mode | STN（+） | |
Drive mode (Duty) | 1/16 duty cycle | |
type | Character LCD | |
characteristic | Transflective |
Search keywords: 20x2 LCD display, 20x2 monochrome display, 2X20 LCD display, STN(+), Arduino
