China LCD TFT Display Manufacturer, Global Supplier

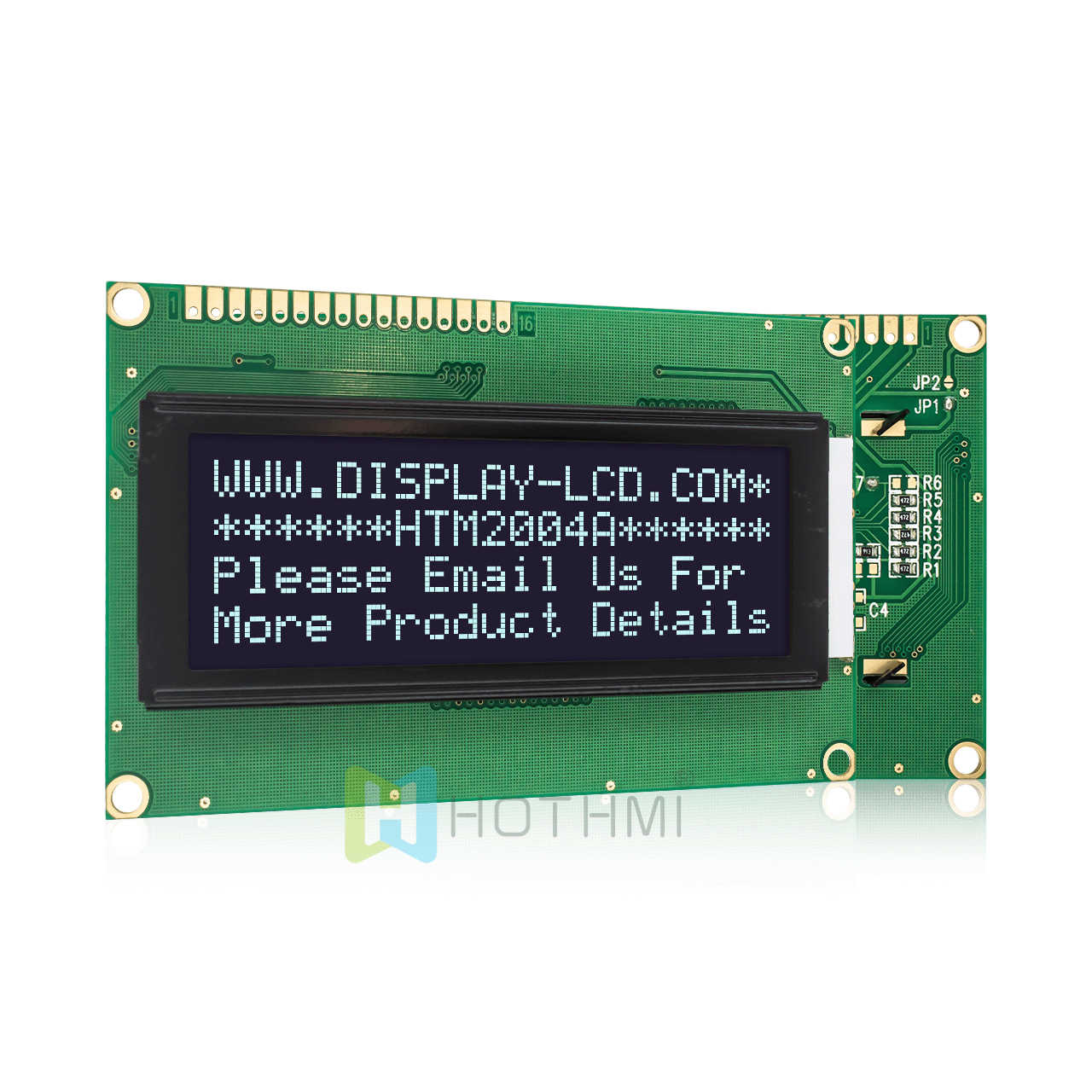

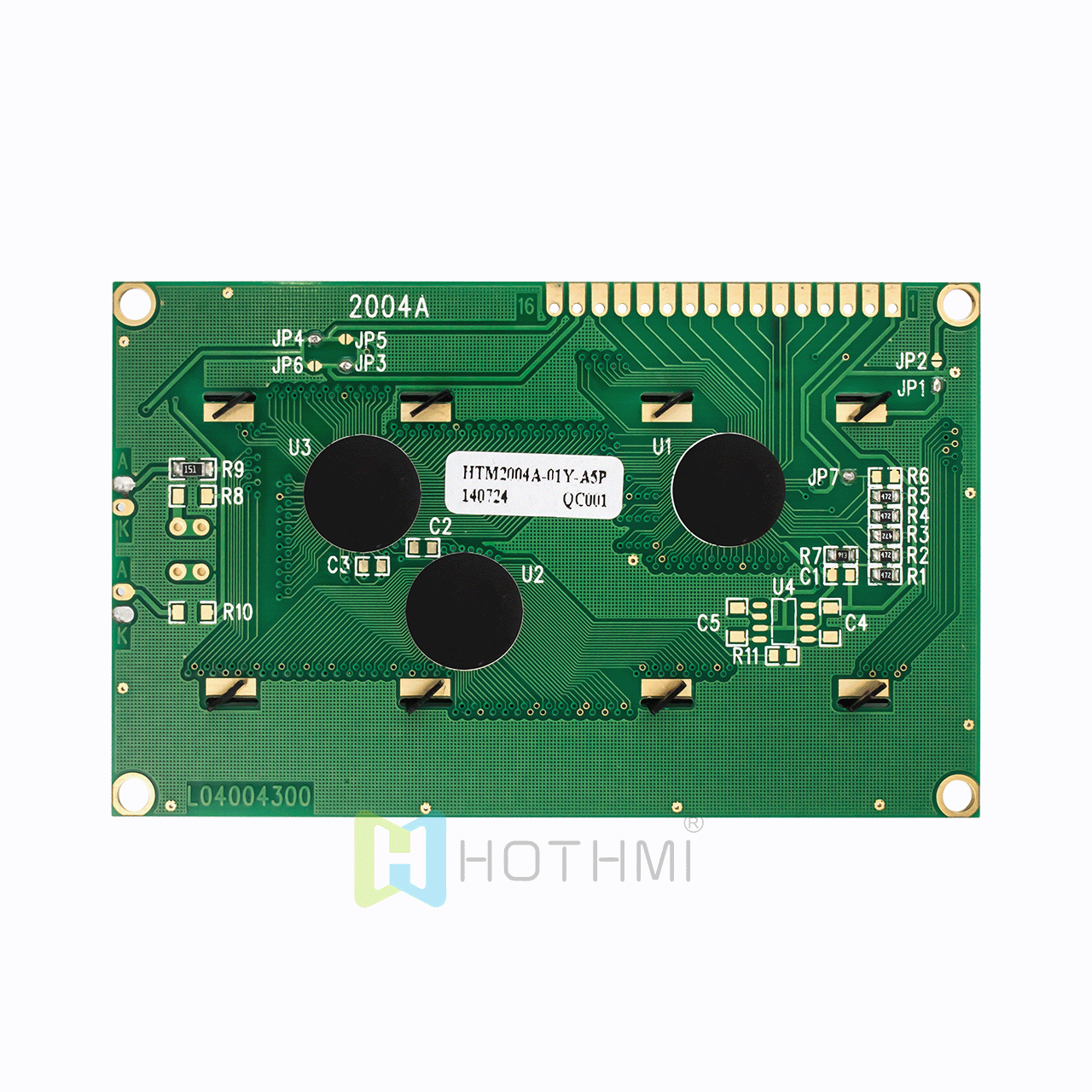

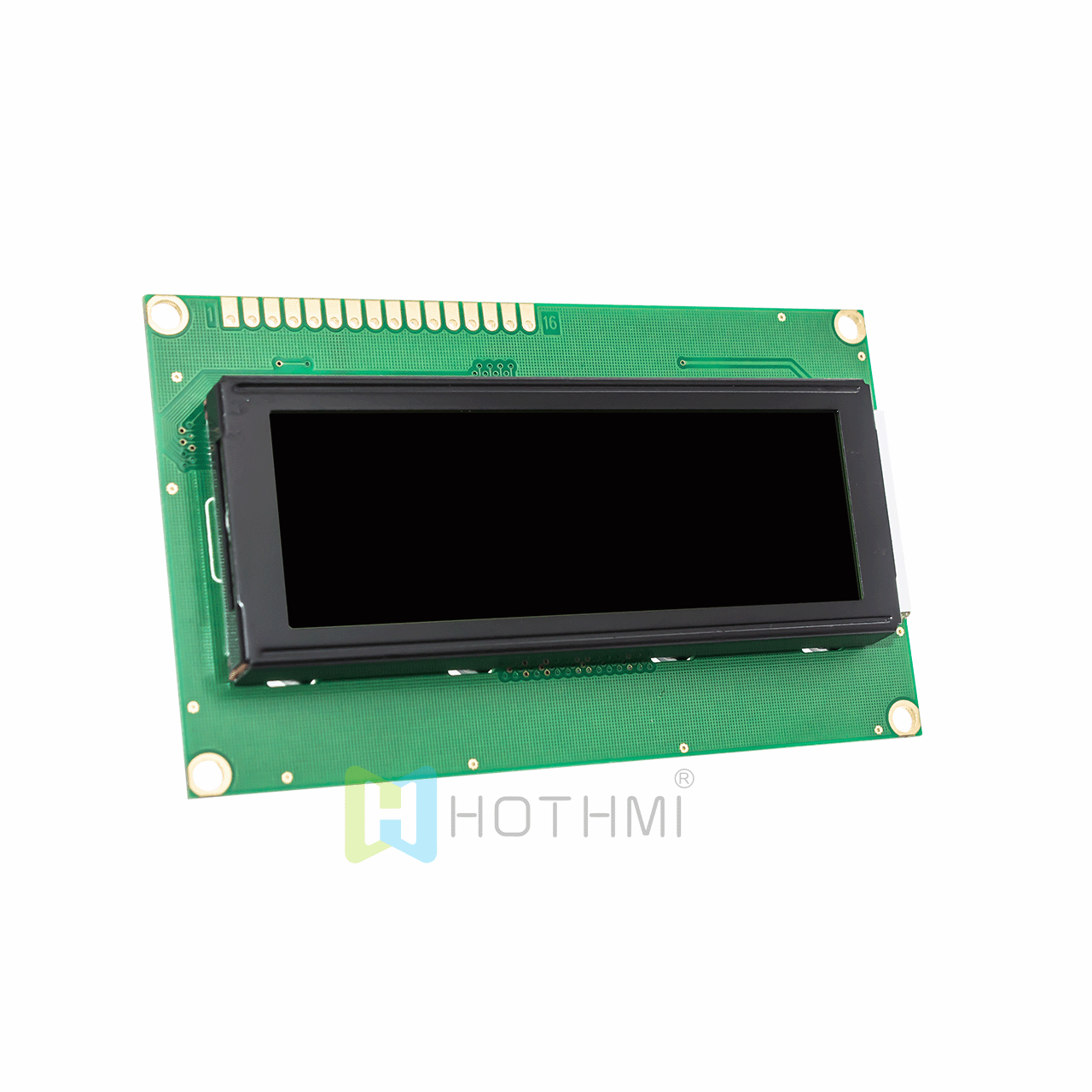

character LCD module |20x4 | Monochrome DSTN - | With white side backlight | Arduino display | Transflective | White text on black background | 3.3v/5.0v | ST7066 control

? Model: HTM2004A-47W-A5P

? Type: character LCD module
? Display content: 20x4 characters
? Overall dimensions (mm): 98.0x60.0x14.2
? VA size (mm): 76.0x25.8
? AA size (mm): 70.4x20.8
? Point spacing mm: 0.6x0.6
? Application: Industrial instrumentation
? Viewing angle: 12H
? Backlight type:white light
? Number of PINs: 16PIN
? Interface mode: MCU/8bit
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

character LCD module |20x4 | Monochrome DSTN - | With white side backlight | Arduino display | Transflective | White text on black background | 3.3v/5.0v | ST7066 control
This character LCD module semi transparent LCD screen can be viewed around or under backlight, and provides a wide operating temperature range of -20 to 70 ° C. This 20X4HTM-2004A-47W-A5P character display line is clearest at 6 o'clock. Compatibility with Arduino and other similar development boards has improved usability in various projects. The working voltage of the monitor is 3.3V or 5.0V, and it is equipped with an ST7066U controller that complies with RoHS standards.

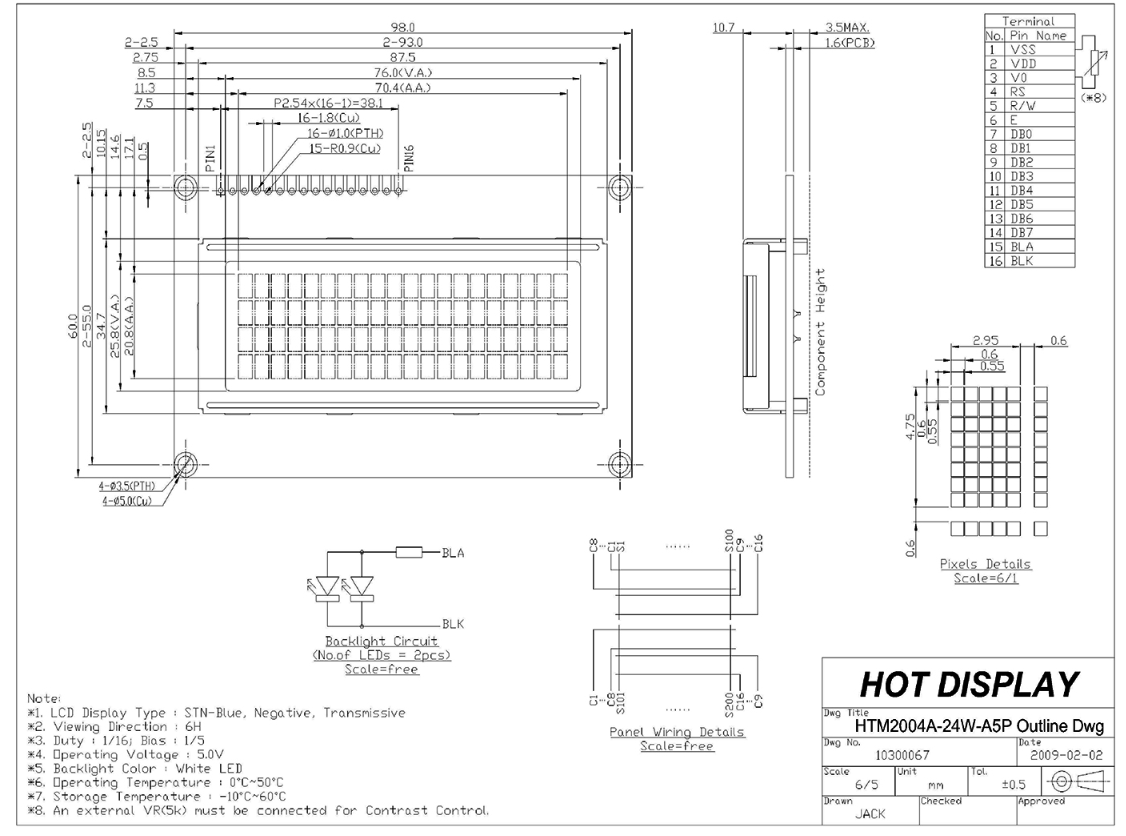

project	Parameter Description	unit
name	HTM-2004A-47W-A5P
Number of dots	20x4 Character	dots
Module size	98.0 × 60.0 × 14.2 (MAX)	mm
VA size	76.0（W） × 25.8（H）	mm
AA size	70.4（W） × 20.8（H）	mm
Pixel pitch	0.60 × 0.60	mm
IC	ST7066
voltage	5.0V	V
backlight	White backlight
display mode	DSTN(-)
Drive mode (Duty)	1/16 duty cycle
type	Character Module
characteristic	Transmissive
