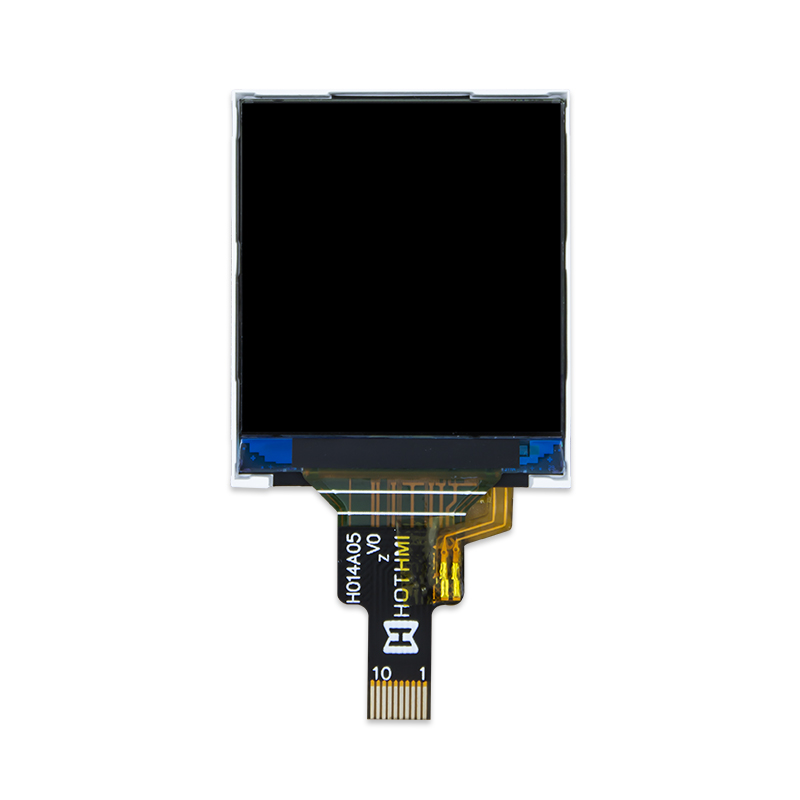

TFT-H014A05QQTST3N10 | 1.44 inch TFT LCD square display 128x128 pixel SPI ST7735 applied to Handheld devices
This 1.44 inch TFT LCD square display is suitable for a variety of projects, from embedded systems to industrial equipment and handheld devices. It offers clear 128x128 pixel resolution and bright LED backlight brightness of 350 cd/m2, ensuring high-quality color image display.
In terms of connection, it uses a 4-wire serial SPI interface and is connected through pin headers, which improves communication efficiency with devices such as Arduino/C8051. Developers can also flexibly develop their own driver and control boards based on their needs. For users lacking development capabilities, we've also prepared the HTM-H014A05-SPI-A01 driver board. This model features metal pin headers that plug directly into the motherboard, making it easy and convenient to operate, making it a great display solution partner for development engineers.
Although this display does not have touchscreen capabilities, its compact size, low power consumption (using a 3.3-volt power source), and Multi-Domain Vertical Alignment (MVA) technology allow it to provide stunning clarity at viewing angles of up to 70°. This makes it ideal for projects that don't require touch functionality but require visual output in portrait mode.
In addition, the display is RoHS compliant and adheres to strict environmental and safety standards, reflecting the emphasis on environmental protection and user safety. Overall, this display combines performance, flexibility, and reliability for a variety of modern electronic devices and projects.
