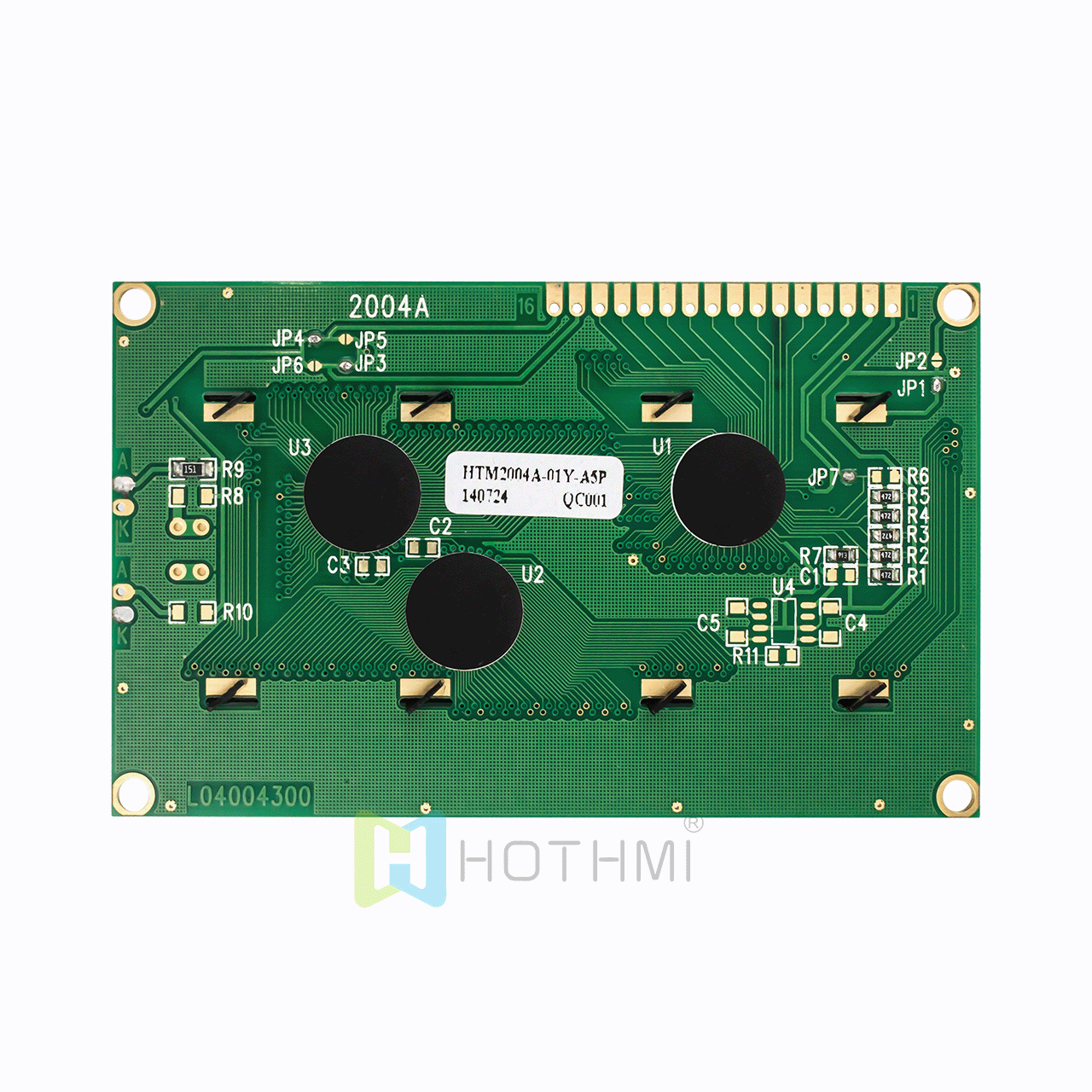

Character LCD module | FSTN + | RGB |20x4 | Arduino display | Total transflective | 5.0V

? Model: HTM2004A-35S-A5P

? Type: Character LCD module
? Display content: 20x4 characters
? Overall dimensions (mm): 98.0x60.0x14.2
? VA size (mm): 76.0x25.8
? AA size (mm): 70.4x20.8
? Point spacing mm: 0.6x0.6
? Application: Industrial instrumentation
? Viewing angle: 6H
? Backlight type:red/green/blue light
? Number of PINs: 16PIN
? Interface mode: MCU/8bit
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD module | FSTN + | RGB |20x4 | Arduino display | Total transflective | 5.0V

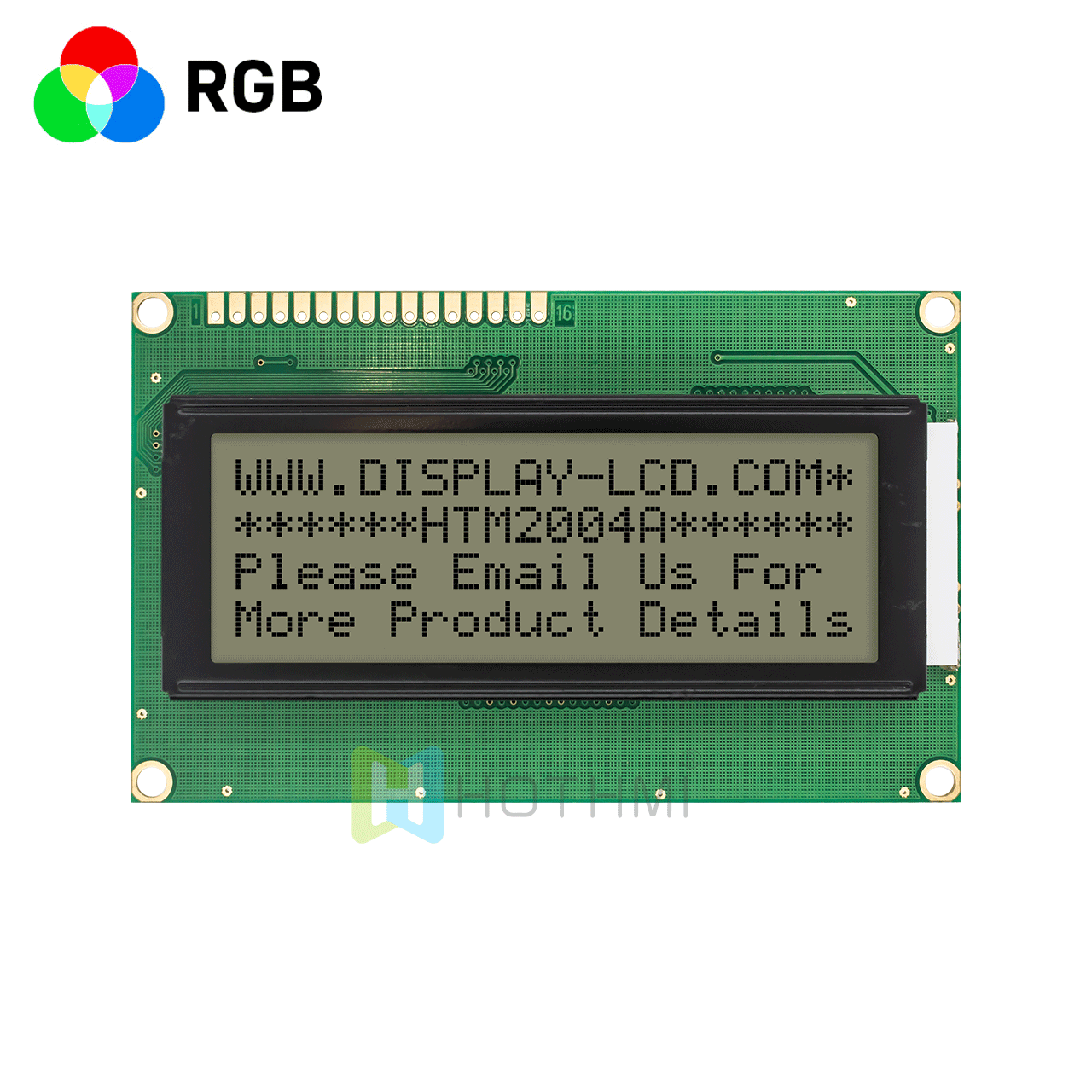

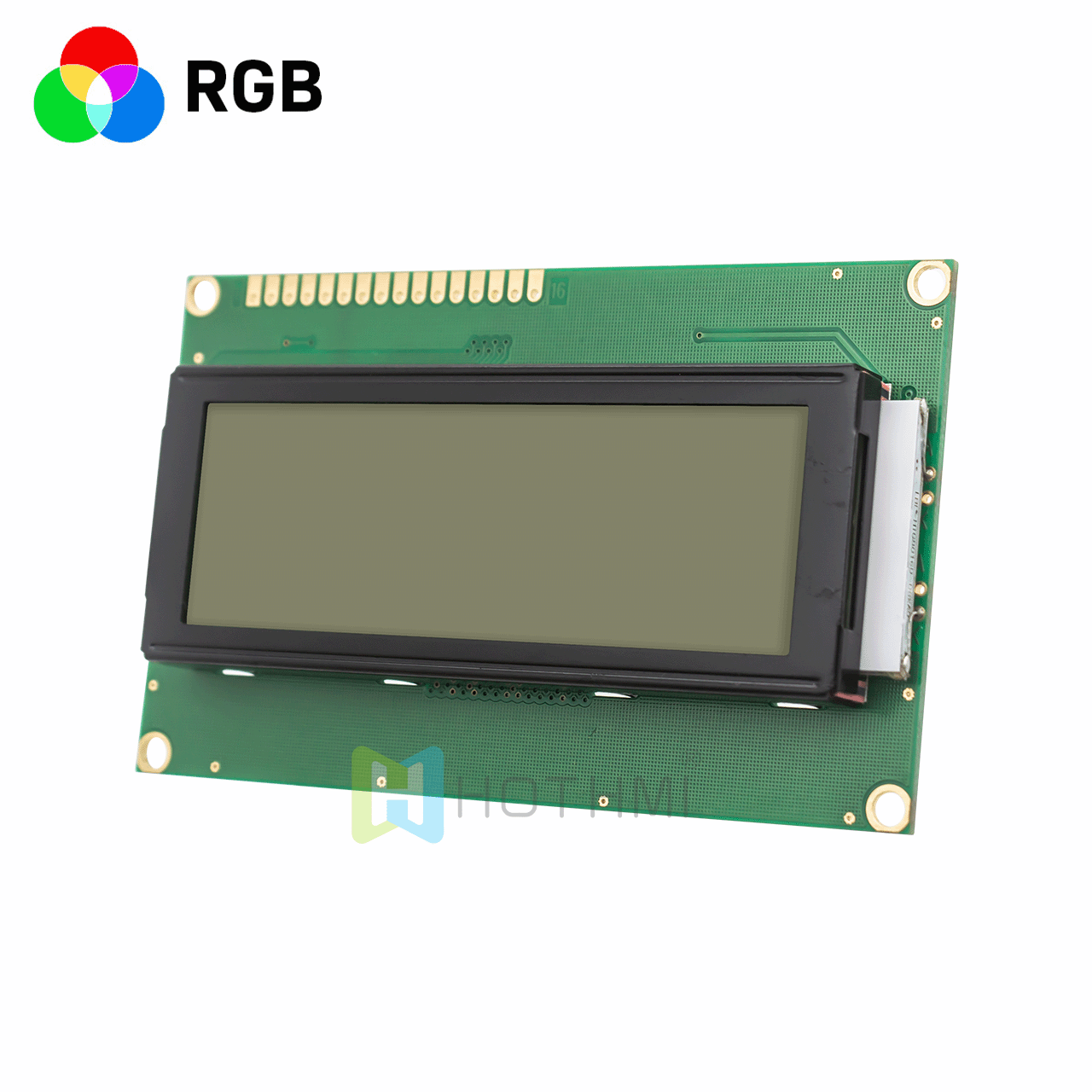

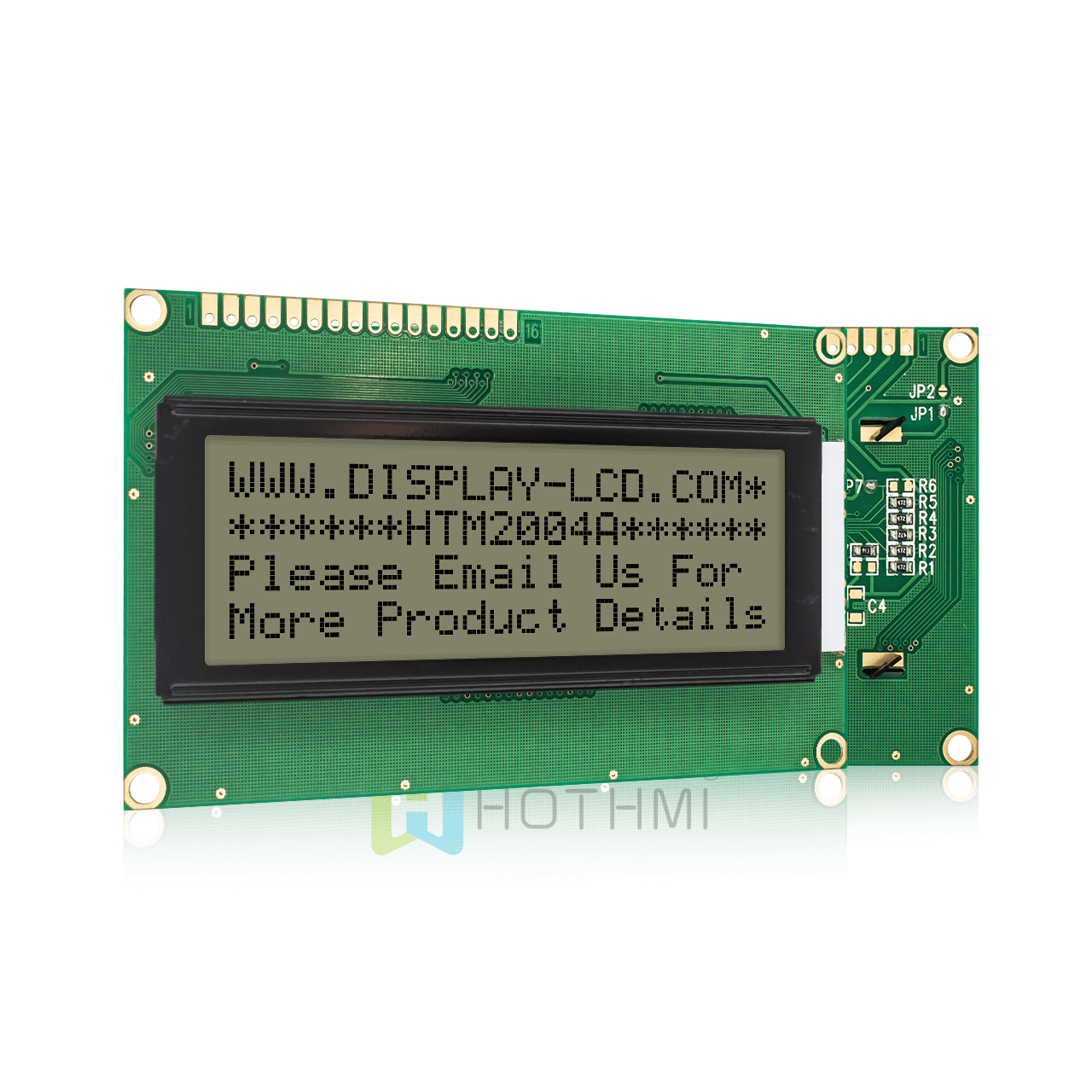

Character LCD module This 20x4 character LCD displays dark pixels on a vivid yellow/green background. The transflective LCD display provides excellent visibility under ambient lighting conditions and with the help of backlight. Offers wide operating temperature (-20 to 70 degrees Celsius), parallel interface, 6:00 viewing angle and built-in ST7066U controller.

This premium LCD operates on a 5.0V supply voltage and is compatible with Arduino and other development boards

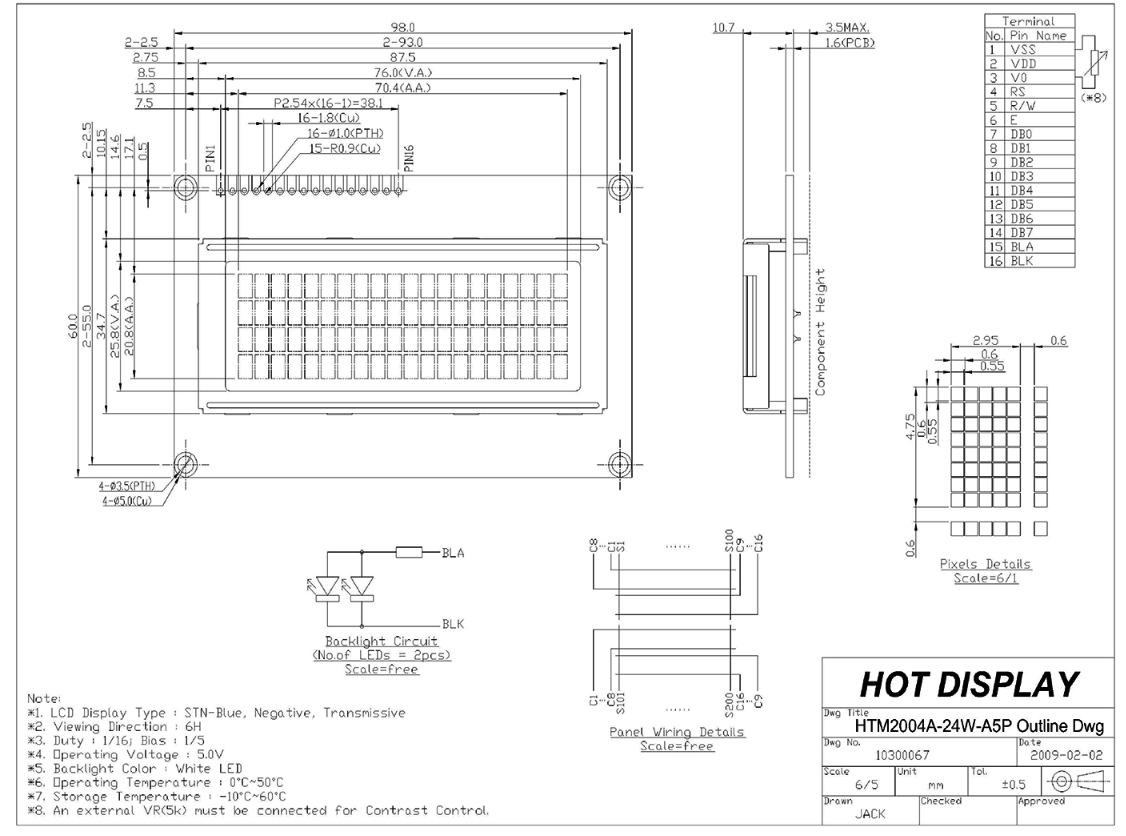

project	Parameter Description	Unit
name	HTM-2004A-35S-A5P
Number of dots	20 words × 4lines	dots
Module size	98.0 × 60.0 × 14.2 (MAX)	mm
Visual (VA) area	76.0（W） × 25.8（H）	mm
Valid (AA) area	70.4（W） × 20.8（H）	mm
Point (pixel) spacing	0.60 × 0.60mm	mm
IC	ST7066U driver chip
voltage	5.0V	V
back light	RGB
display mode	FSTN（+）
Drive mode (Duty)	1/16 duty cycle
type	Character LCD display
characteristic	Totally transflective polarizer
