3.5 inch IPS TFT LCD | RGB interface | 480x800 resolution LCD Display | Optional capacitive touch

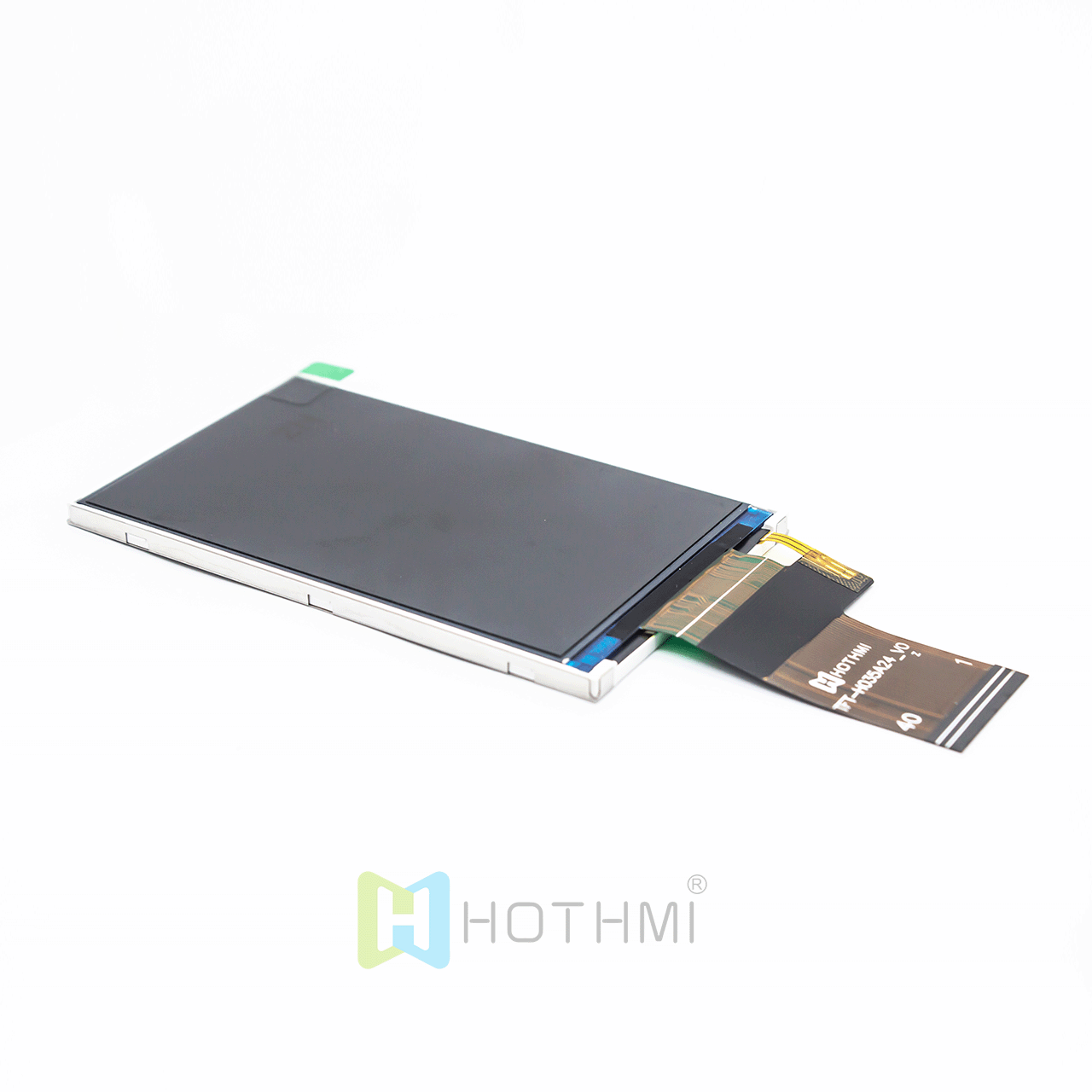

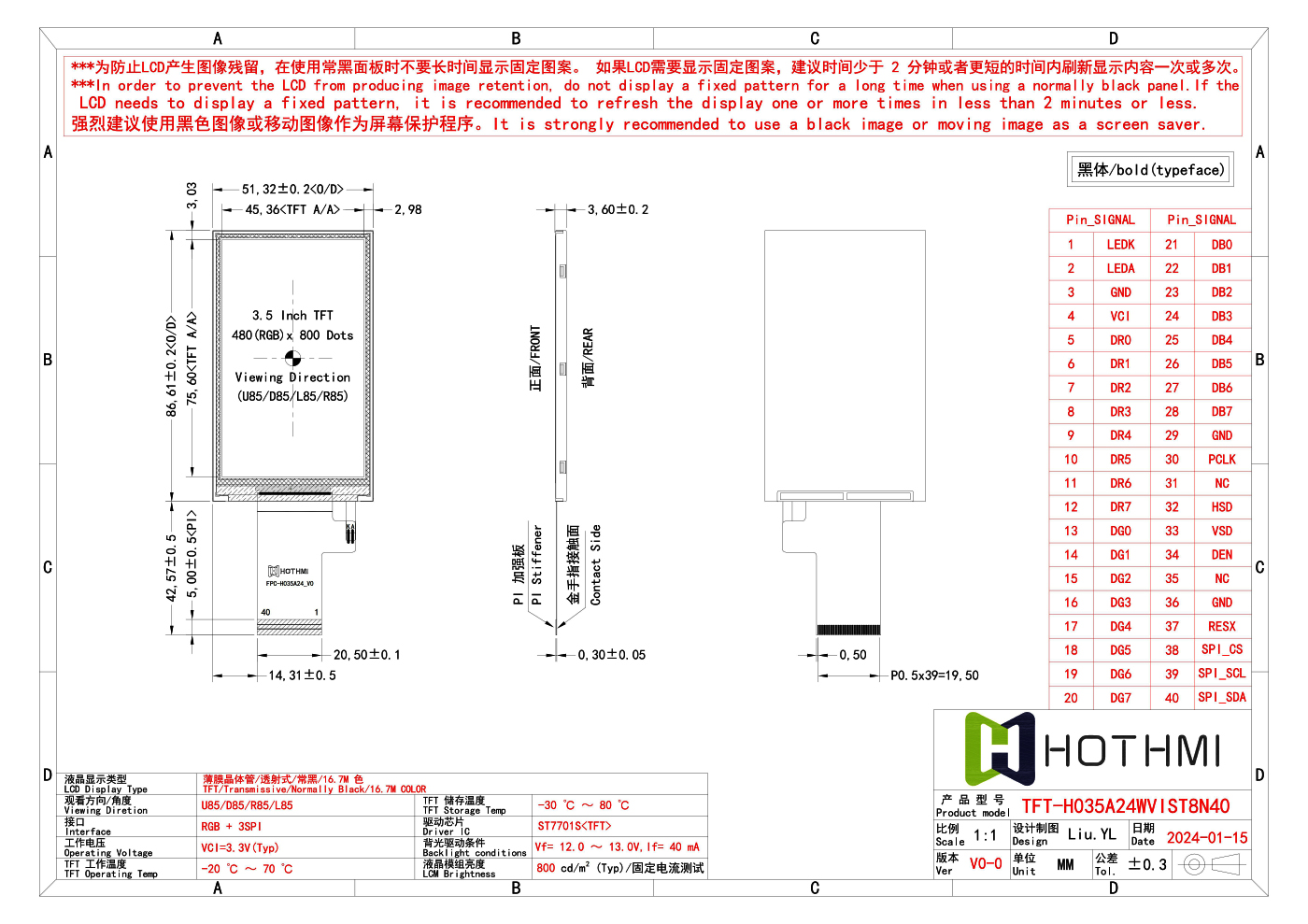

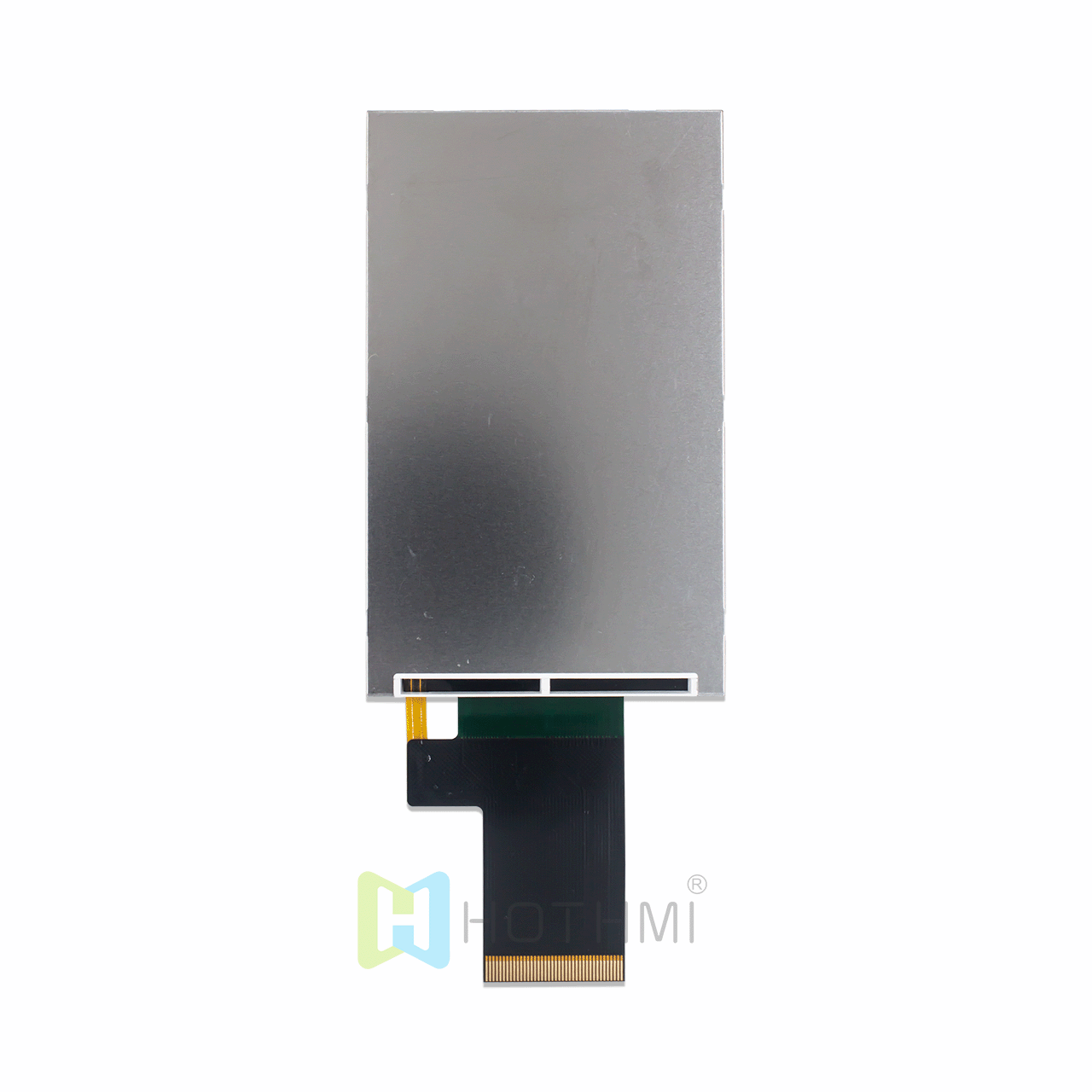

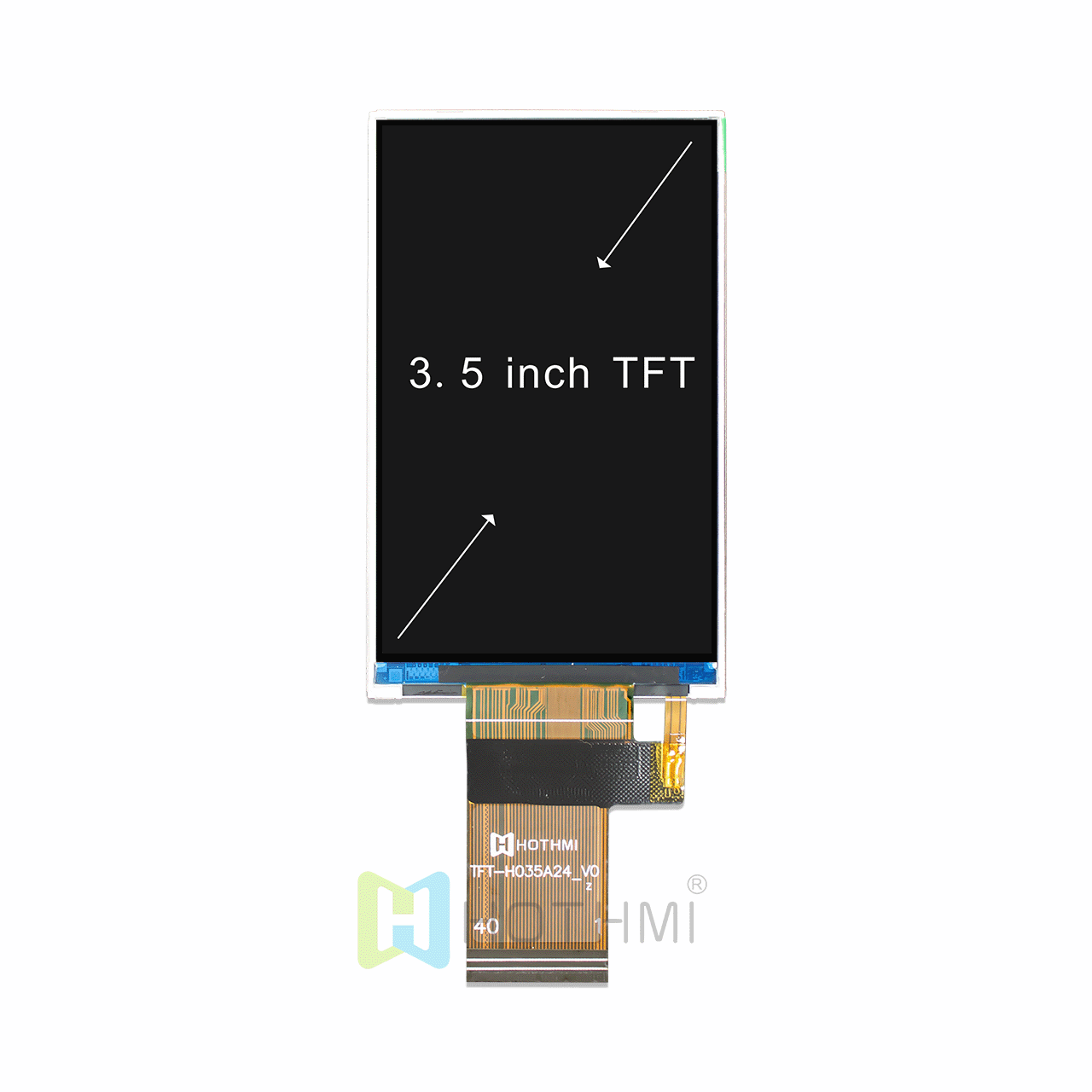

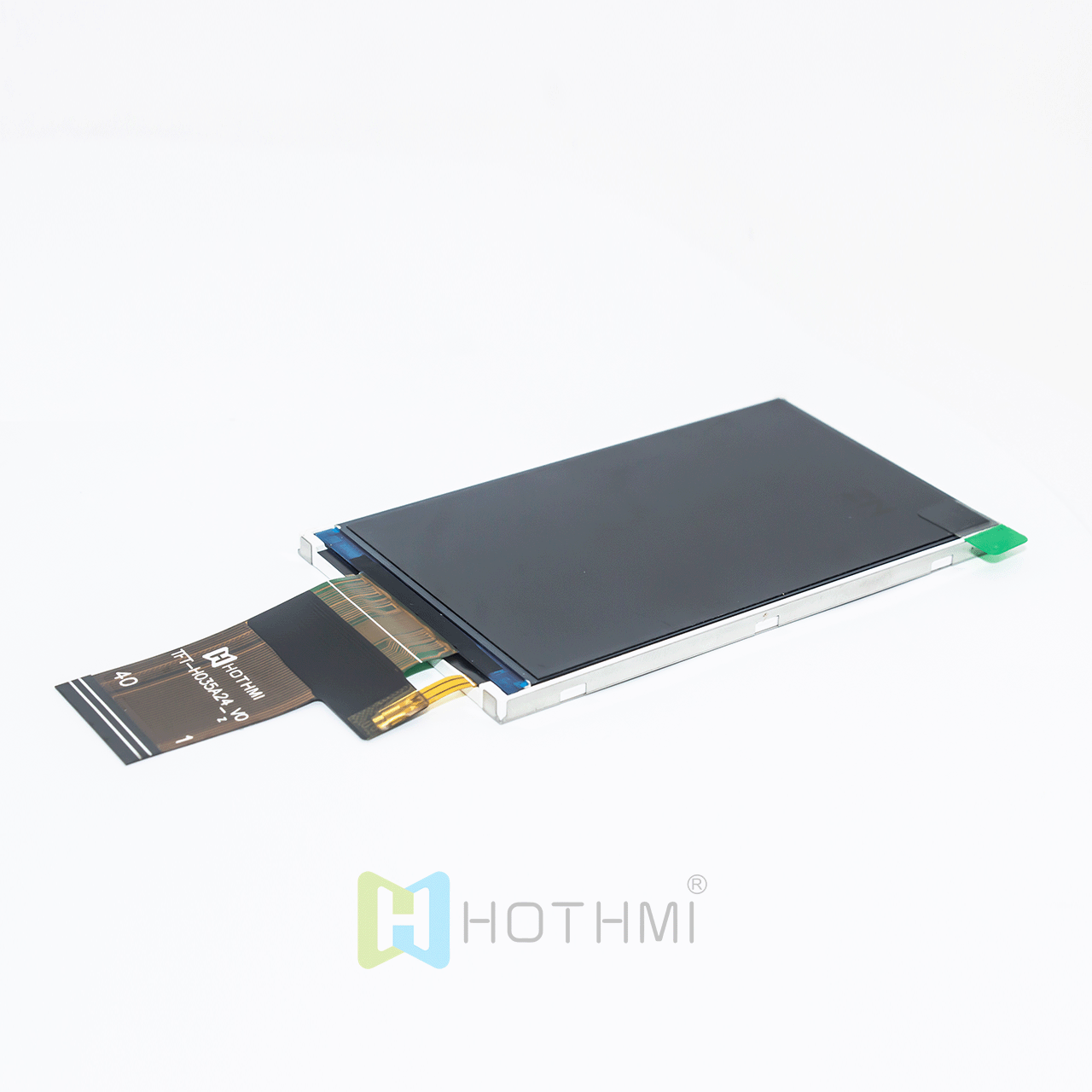

TFT-H035A24WVIST8N40 is a 3.5 inch IPS full-view color LCD display module with a resolution of 480x800. It has a built-in ST7701S controller. The display module provides high-quality visual effects and a wide viewing angle, supports RGB interface, 8080 8-bit, 9-bit, 16-bit parallel interface, and 3-wire, 4-wire serial interface. It has 16.7 million true colors and runs at 3.3V. The IPS full-view angle combined with high brightness makes this display present a high-quality picture. The RGB interface carried by FPC has good performance in terms of transmission information volume and transmission stability. Users can directly plug the flexible cable FPC into the connector on the main control board. This connection method is very convenient for developers. At the same time, it reduces the workload caused by the welding process and saves labor costs.
This means that even in a bright indoor environment or a certain amount of outdoor light, the screen content is still clear and sharp, effectively overcoming the glare problem and ensuring that key information is always clear at a glance. Combined with the "Normally Black" panel feature, the screen has a deep background color in a static black screen, which significantly improves the overall contrast, making the text sharper and the image layering clearer.
The TFT-H035A24WVIST6C40 module has become an ideal choice for applications with high requirements for visual performance and durability, such as industrial control, portable devices, and smart home display terminals, with its high-brightness and high-definition display effect, compact and solid physical structure, stable characteristics of wide temperature operation, and in-depth attention to long-term reliability. It transforms cold parameters into warm and reliable sensory experience, and is a high-quality visual engine that connects the digital world with real perception.
The module supports horizontal or vertical screen display and complies with RoHS environmental protection standards. It is widely used in various instruments and smart devices, and is compatible with a variety of microcontroller development platforms, such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.
This product is a standard product without touch function. If the user needs to realize the touch function, just need to choose the version with touch function: TFT-H035A24WVIST6C40. We also provide horizontal version of the same series of products: TFT-H035A26 VGIST4N30, TFT-H035A6QVIST9N40.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
