China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / 20 x 4 Character LCD Module | STN+ With Yellow-Green Backlight

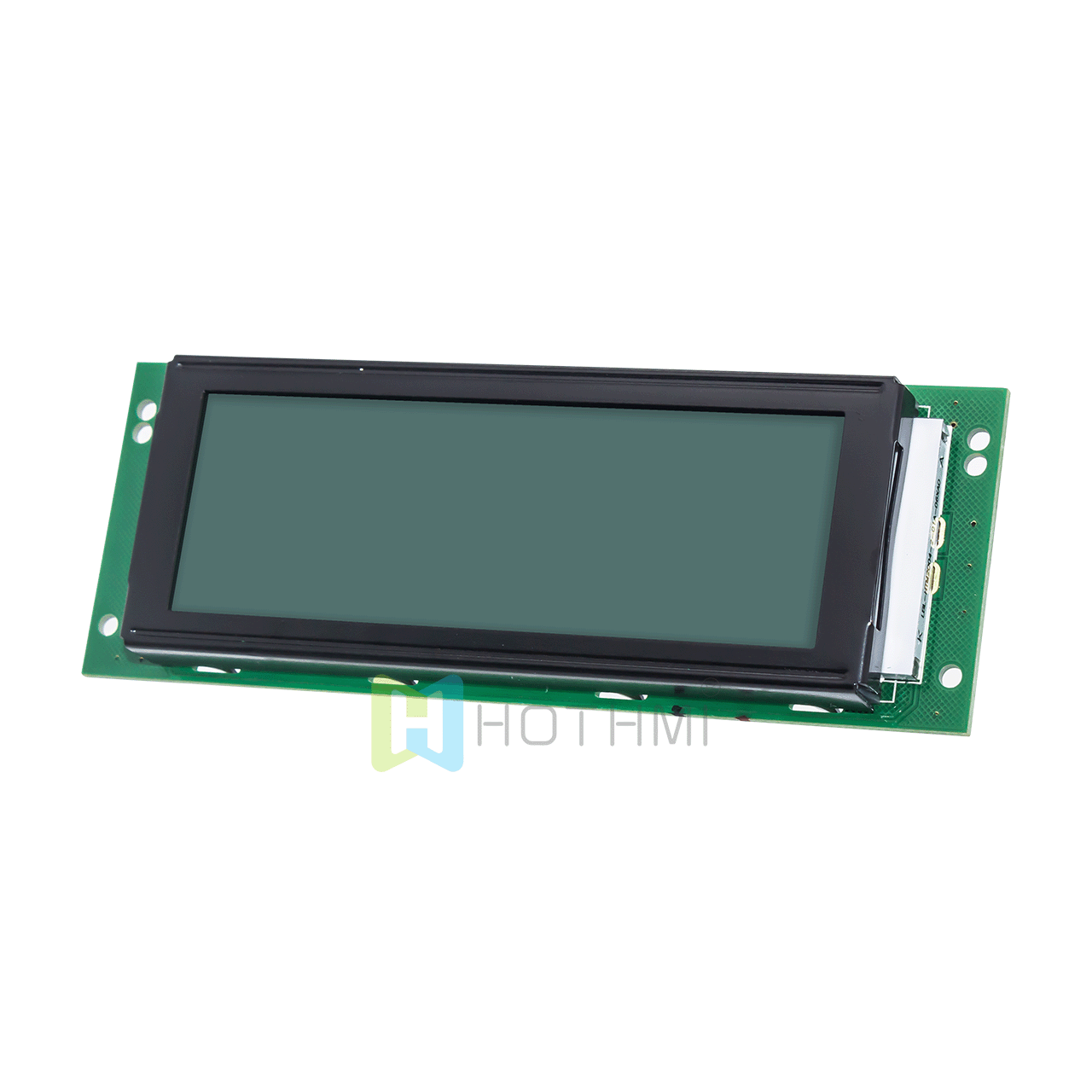

20 x 4 Character LCD Module | STN+ With Yellow-Green Backlight

? Model: HTM2004-2-11Y-A3P

? Type: 4X20 character LCD module
? Display content: 20x4 characters

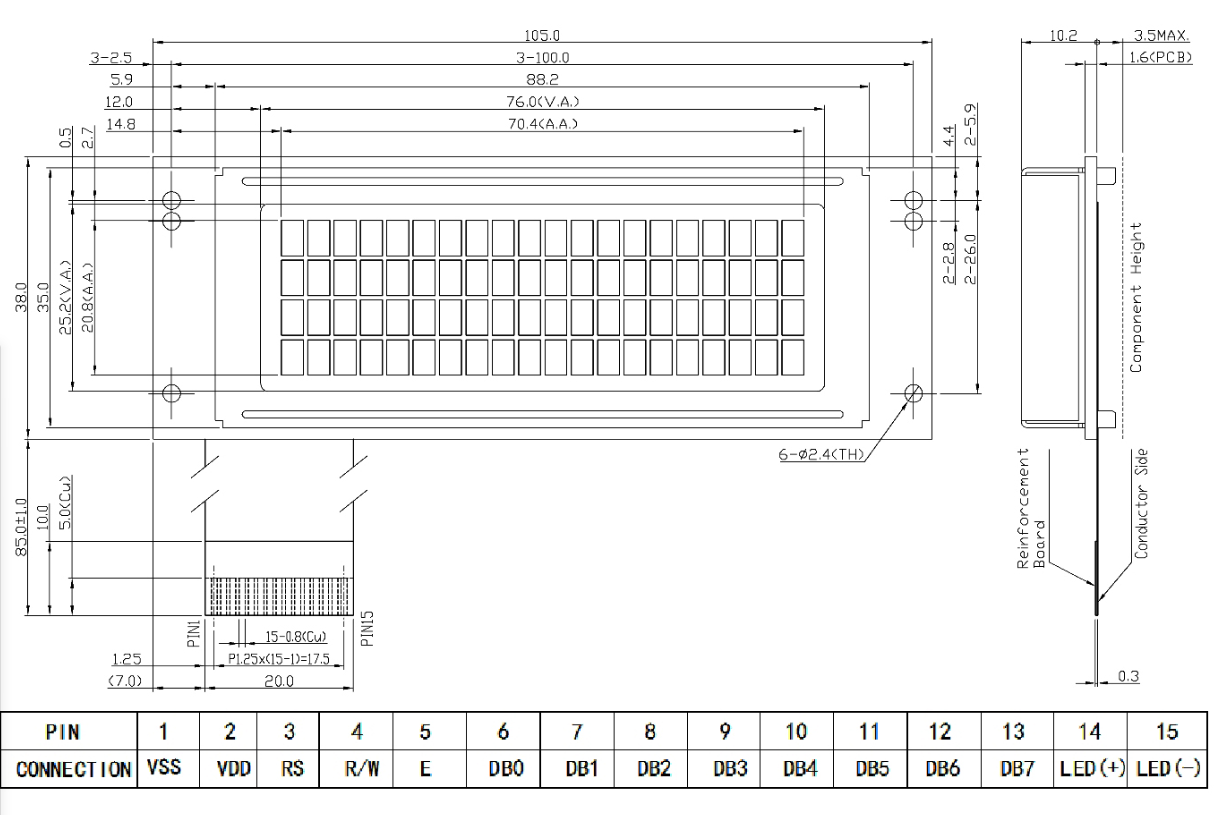

? Overall dimensions (mm): 105.0x38.0x10.2
? VA size (mm): 76.0x25.8
? AA size (mm): 70.4x20.8
? Point spacing mm: 0.60x0.60
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: yellow/white light
? Number of PINs: 15PIN
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 3.3V
? Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

4X20 character LCD module / monochrome STN+ gray display / with yellow-green backlight / Arduino display / transflective LCD display
4X20 character LCD module dark pixel characters on a bright yellow/green background. This transflective display is visible in natural light environments or when using a backlight in low light conditions. It offers a wide operating temperature range from -20 to 70 degrees Celsius. This HTM - 2004 - 2 - 11Y - A5P display has an optimal viewing angle of 6:00 and operates at 3.3V .This premium LCD is also compatible with Arduino and other development boards, making it a top choice for hobbyists and developers.

parameter	Specifications	unit
Model	HTM-2004-2-11Y-A3P
Resolution	20 words × 4lines	dots
Module size	105.0（W） × 38.0（H） × 10.2 （D）mm	mm
Viewable (VA) area	76.0 × 25.8mm	mm
Active (AA) area	70.4 × 20.8	mm
Pixel pitch	0.60 × 0.6	mm
IC	ST7066U
Applied voltage	3.3V	V
Backlight	Yellow/green backlight
Display mode	STN+
Drive mode	1/16 duty cycle
Product type	Character LCD
Features	Transflective
