China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / 4X20 character LCD module/ monochrome 3.3v/5.0v/FSTN positive display/white backlight/white background with gray characters/Arduino/transflective LCD display

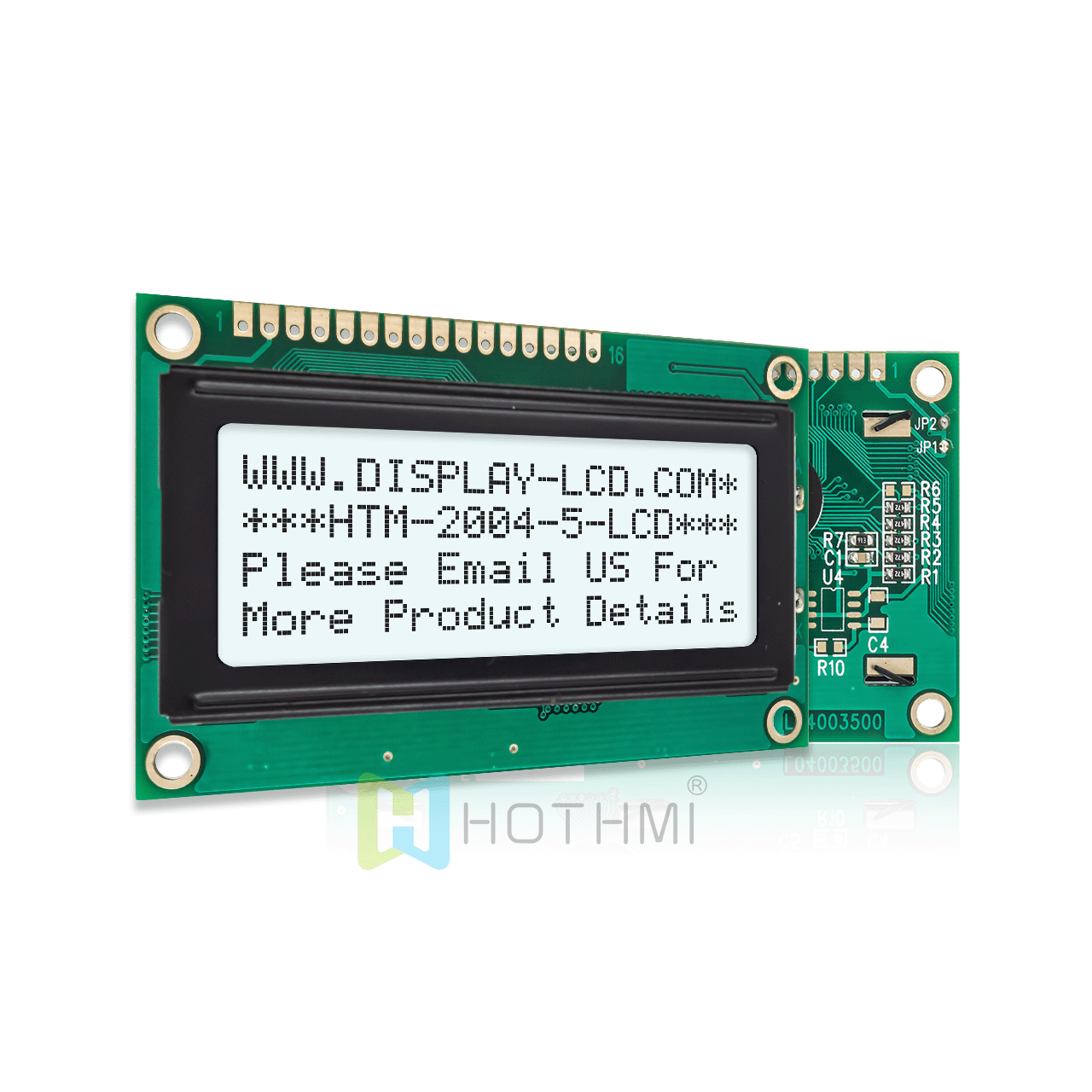

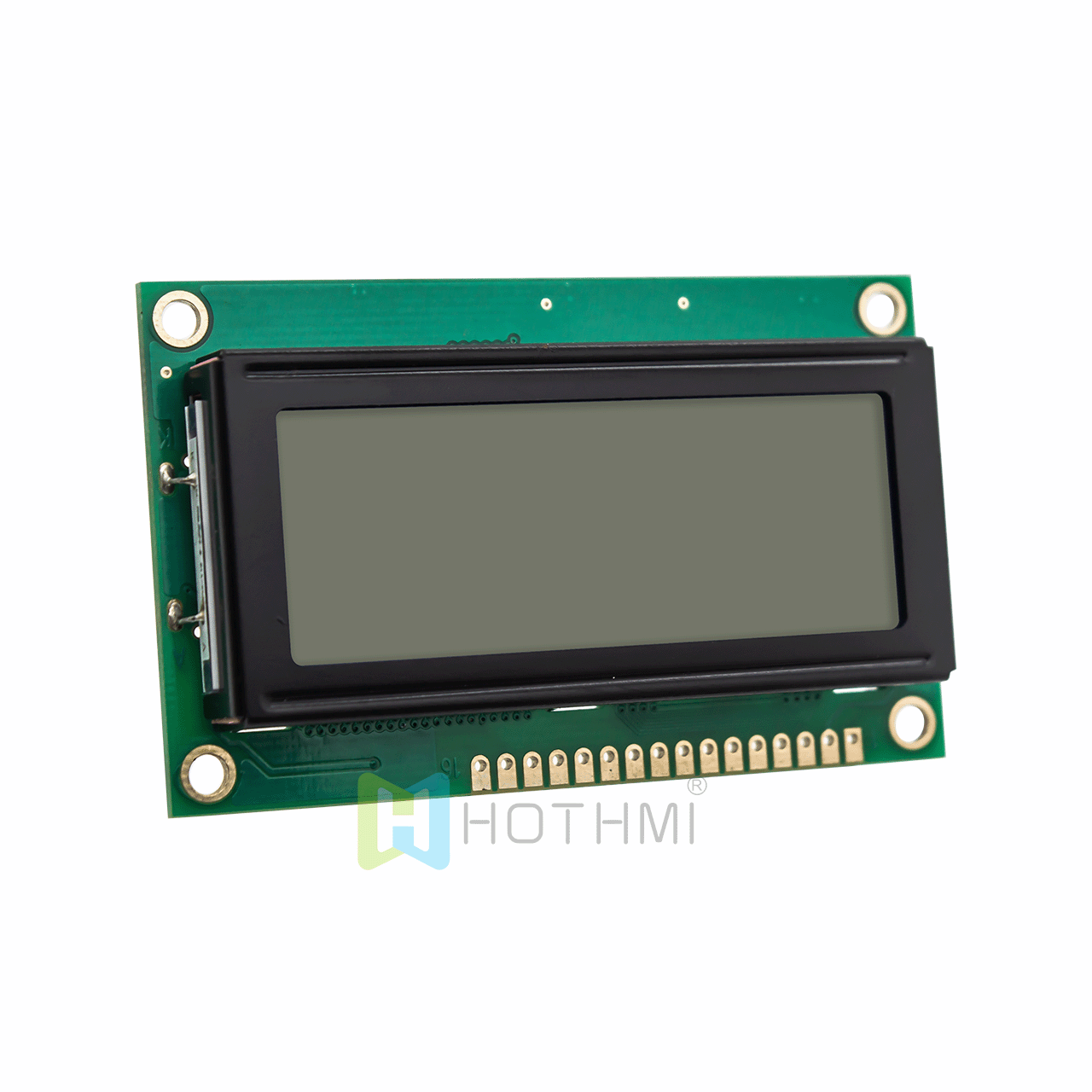

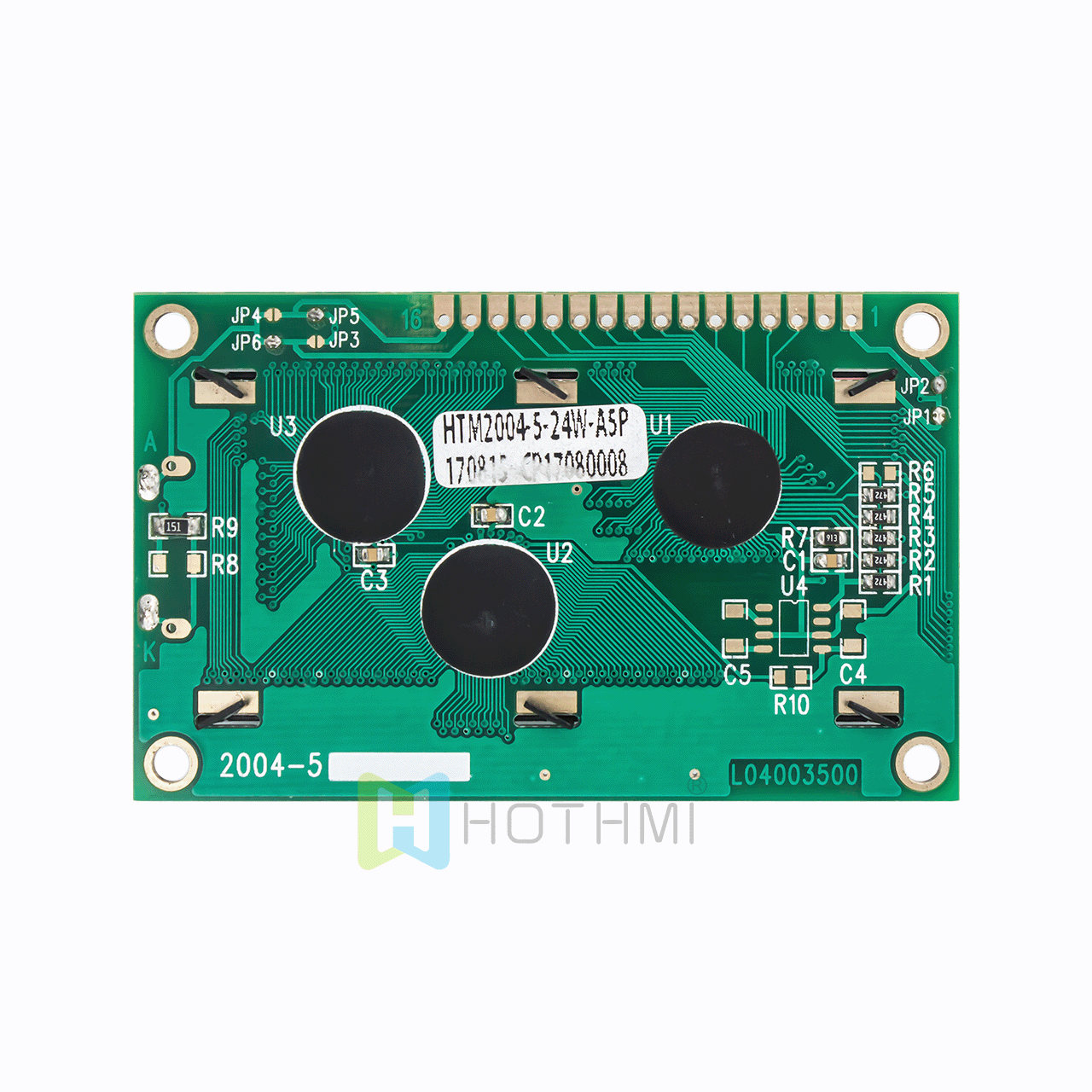

4X20 character LCD module/ monochrome 3.3v/5.0v/FSTN positive display/white backlight/white background with gray characters/Arduino/transflective LCD display

? Model: HTM2004-5-31W-A5P

? Type: 4X20 character LCD module
? Display content: 20x4 characters
? Dimensions (mm): 77.0x47.0x14.7
? VA size (mm): 60.0x22.2
? AA size (mm): 55.12x17.56
? Pixel pitch mm: 0.47 x 0.51
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: white light
? Number of PINs: 16PIN
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 5.0V
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

4X20 character LCD module/ monochrome 3.3v/5.0v/FSTN positive display/white backlight/white background with gray characters/Arduino/transflective LCD display
The 4X20 character LCD module dark gray pixels on a white background. This transflective LCD display is clearly visible in ambient light or backlight. It has a wide operating temperature range, ranging from -20 to 70 degrees Celsius. The optimal viewing angle of this HTM2004-5-31W-A5P display is 6:00. It operates on a supply voltage of 3.3 volts or 5.0 volts and has parallel communication capabilities, making it an ideal choice for Arduino and other development boards.

parameter	Specifications	Unit
Model	HTM-2004-5-31W-A5P
Resolution	20words × 4lines	dots

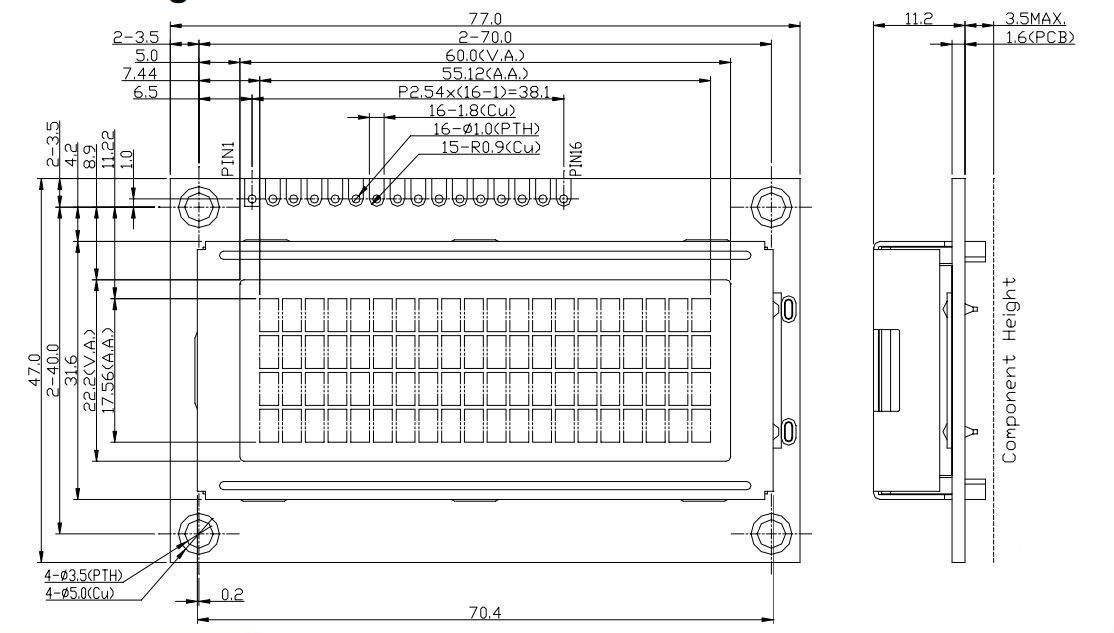

Module size	77.0（W） × 47.0（H） × 14.7 （D）mm	mm
Viewable (VA) area	60.0 × 22.2mm	mm
Active (AA) area	55.12 × 17.56	mm
Pixel pitch	0.47 × 0.51	mm
IC	ST7066U
Applied voltage	5.0V	V
Backlight	White
Display mode	FSTN+
Drive mode	1/16 duty cycle
Product type	Character LCD
Features	Transflective
