China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / 4X20 character LCD module/ monochrome 5.0v/STN negative display/white backlight/Arduino/full transflective LCD display/blue background with white characters

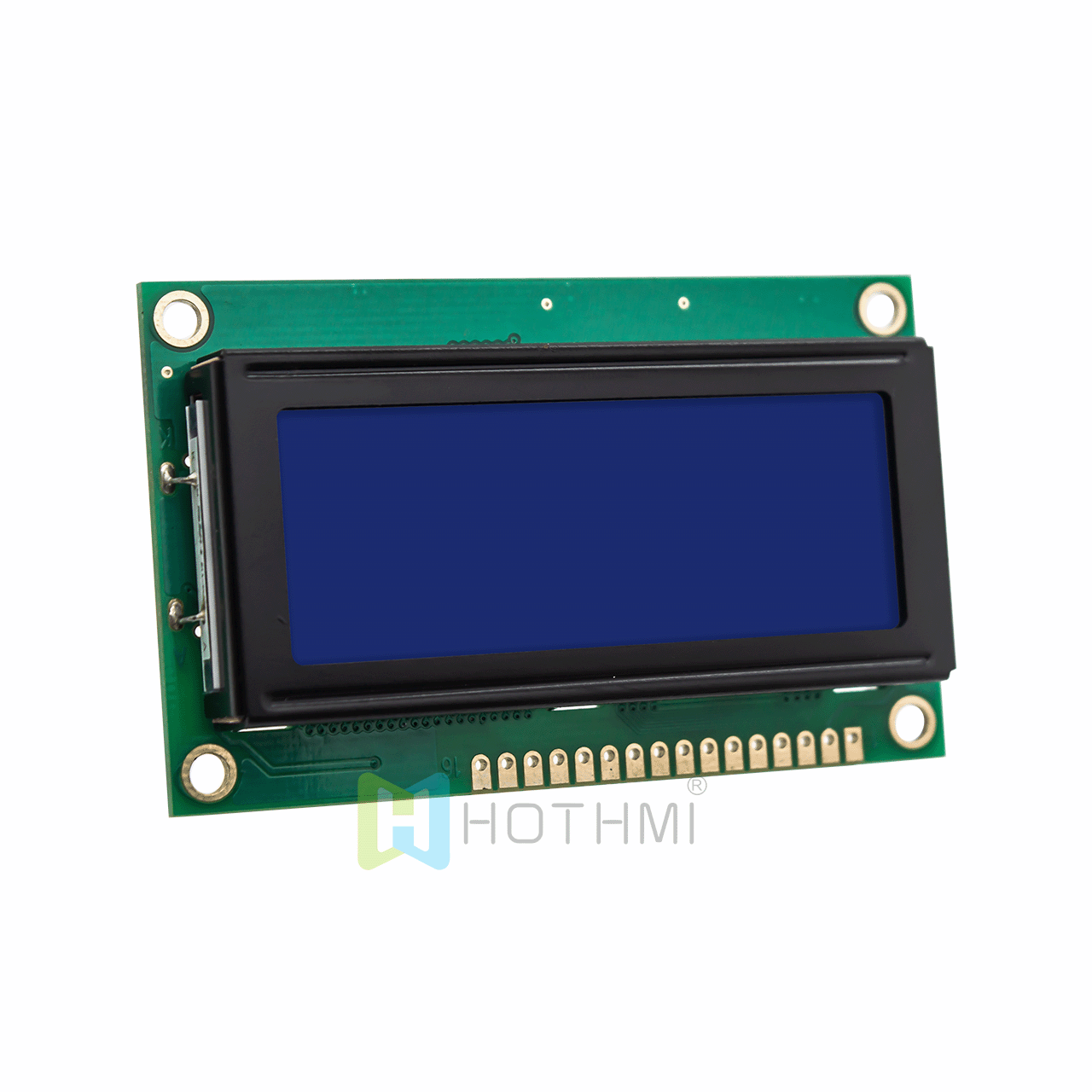

4X20 character LCD module/ monochrome 5.0v/STN negative display/white backlight/Arduino/full transflective LCD display/blue background with white characters

? Model: HTM2004-5-25W-A5P

? Type: 4X20 character LCD module
? Display content: 20x4 characters

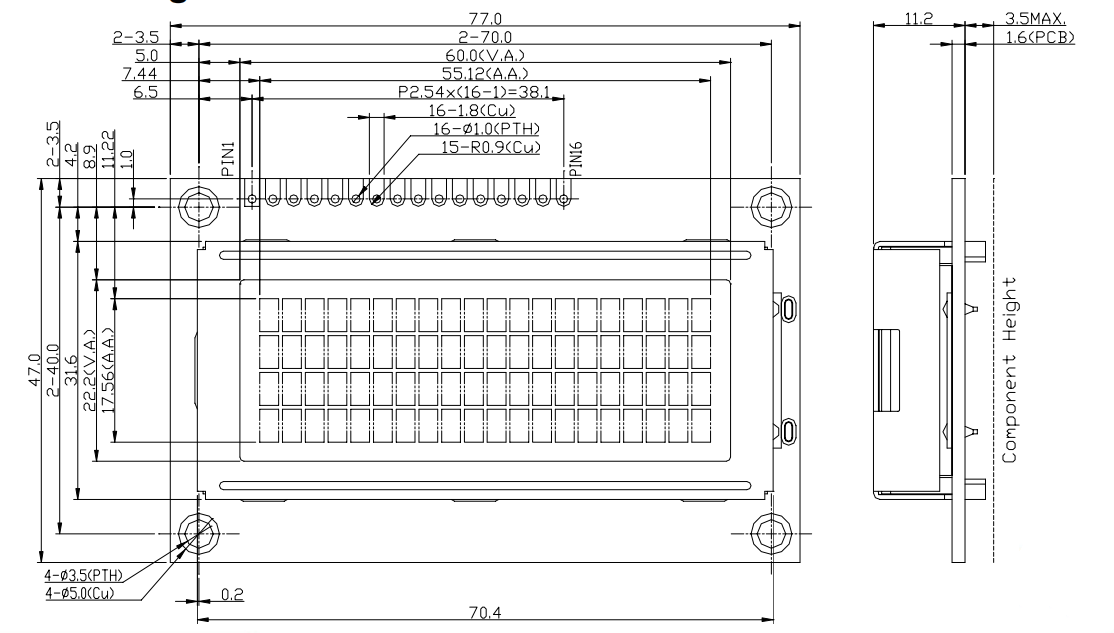

? Dimensions (mm): 77.0x47.0x14.7
? VA size (mm): 60.0x22.2
? AA size (mm): 55.12x17.56
? Pixel pitch mm: 0.47 x 0.51
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: white light
? Number of PINs: 16PIN
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 5.0V
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

4X20 character LCD module/ monochrome 5.0v/STN negative display/white backlight/Arduino/full transflective LCD display/blue background with white characters

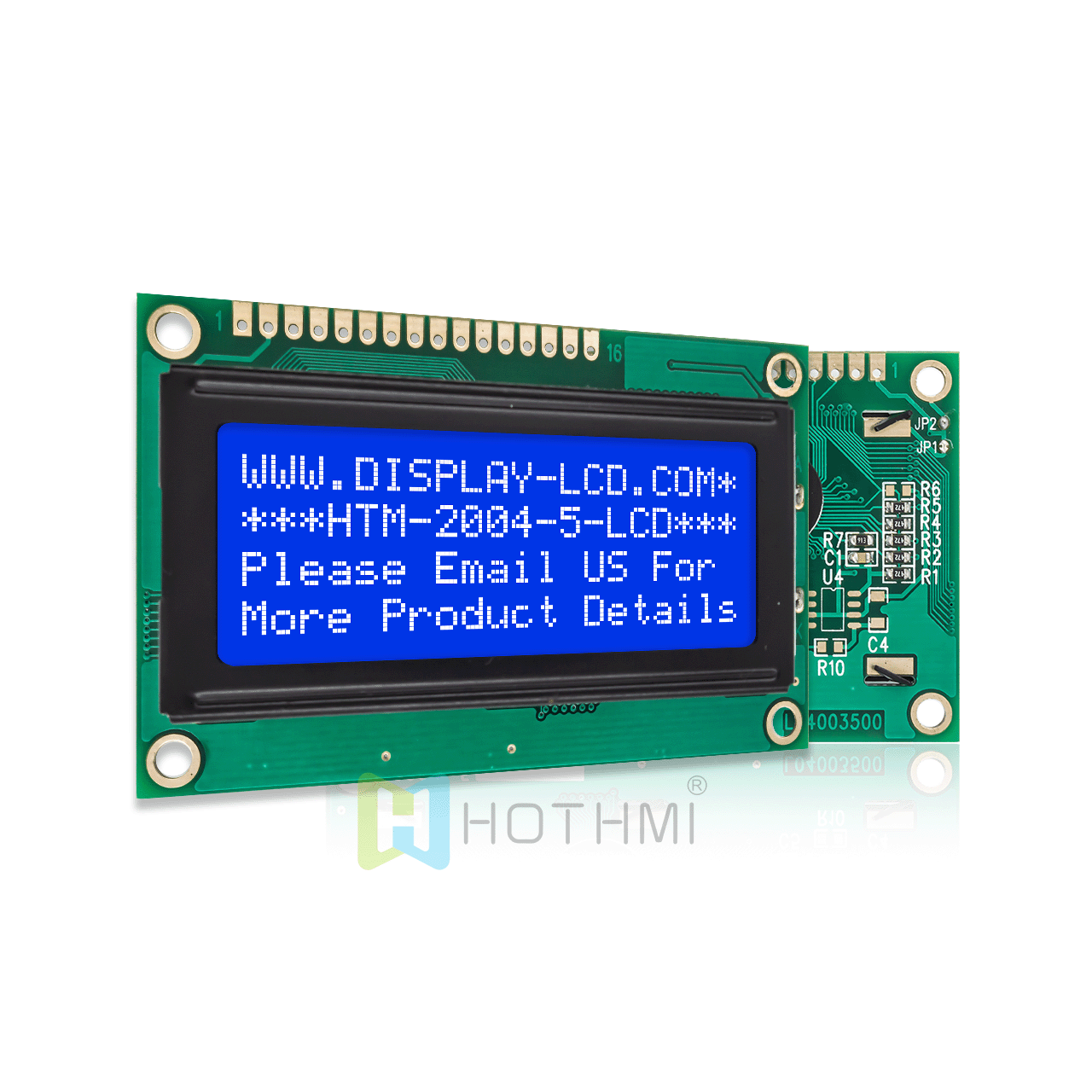

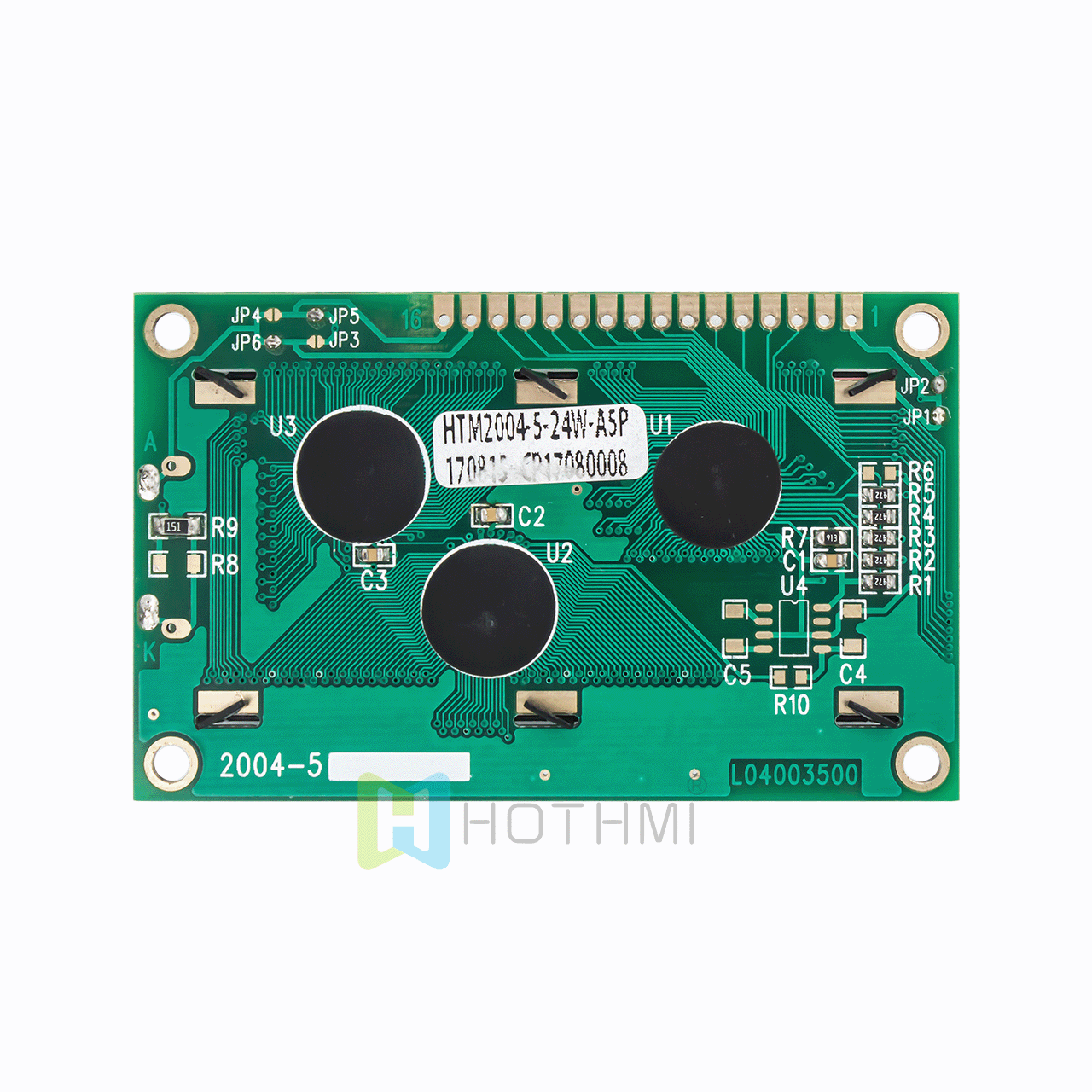

The 4X20 character LCD module HTM - 2004 - 5 - 25W - A5P model is a 20x4 character LCD with a blue screen and white light. It is a fully transfective LCD, and this dial has a wide range of operating temperatures from -20 to 70 degrees Celsius, making it suitable for different applications. The characters on the screen are dark pixels on a bright yellow/green background. The rear light is a white LED that provides uniform illumination throughout the screen. The screen communicates through parallel communication, operates at 5V, and has a built-in ST7066U control chip. This high quality RSP compatible display module is RSP compatible and can be used in Arduino projects and is compatible with other development panels. The HTM2004 - 5-25W-A5P display module undergoes rigorous quality testing to ensure its durability and performance under various conditions.

item	Specifications	unit
Model	HTM-2004-5-25w-A5P
Character × Line	20words × 4rows	dots
Module Size	77.0 × 47.0 × 14.7 (MAX)	mm
VA Size	60.0（W） × 22.2（H）	mm
AA Size	55.12 × 17.6	mm
Pixel Pitch	0.47（W） × 0.51（H）mm	mm
IC	ST7066U
Applied Voltage	5V	V
Backlight	White light
Mode	STN-
Drive Mode	1/16 duty cycle
Type	LCD Module
Polarizer Type	Full reflection
