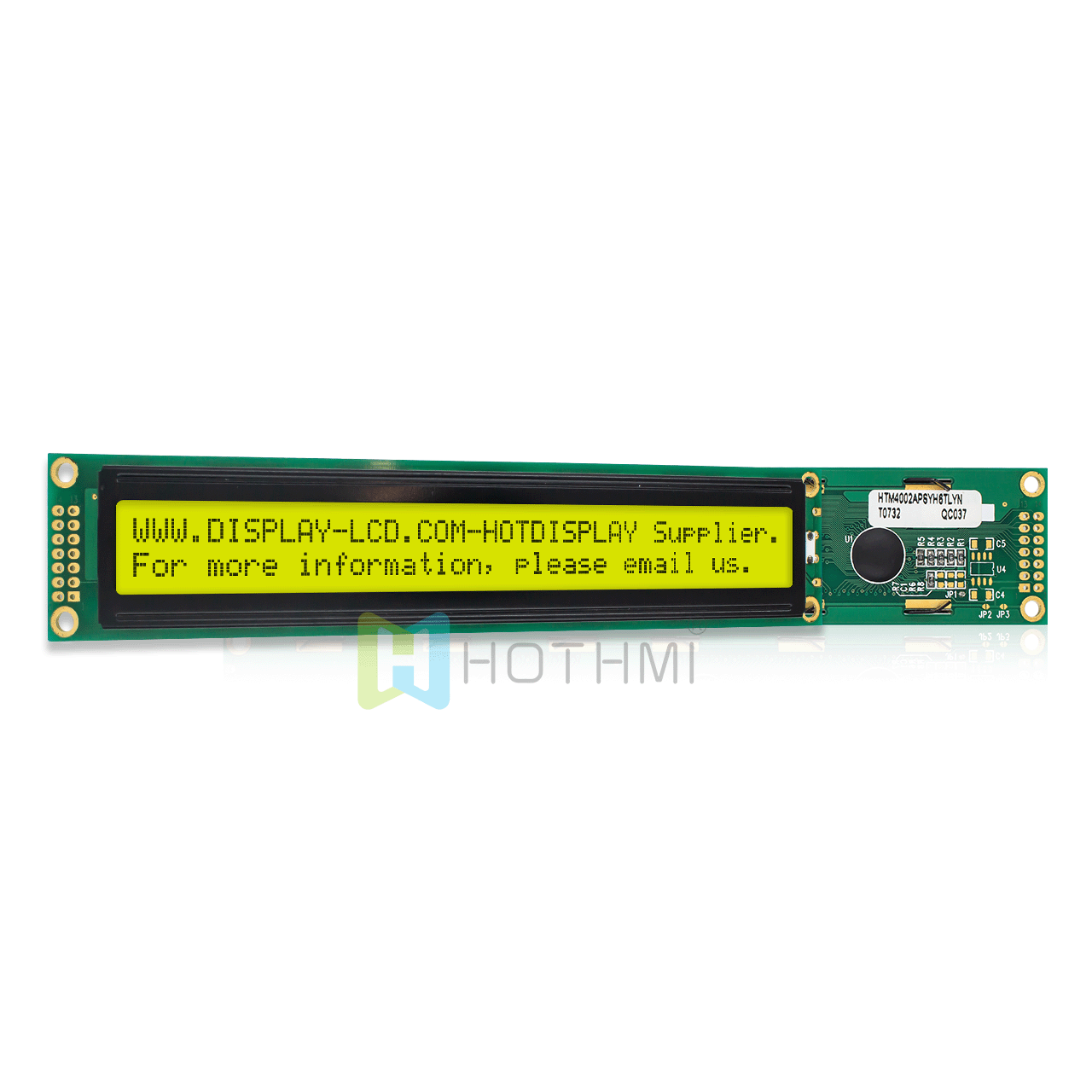

2X40 Character LCD Module | Yellow-Green Display For Arduino

? Model: HTM4002A-01Y-A5P

? Type: 2X40 character LCD module
? Display content: 40x2 characters
? Dimensions (mm): 182.00x33.5x14.0
? VA size (mm): 155.1x16.0
? AA size (mm): 147.5 x 11.5
? Pixel pitch mm: 0.65 x 0.7
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: yellow-green light
? Number of PINs: 16PIN
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 5.0V
? Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

2X40 character LCD module | monochrome display STN display | with yellow-green backlight | Arduino display | 5.0v

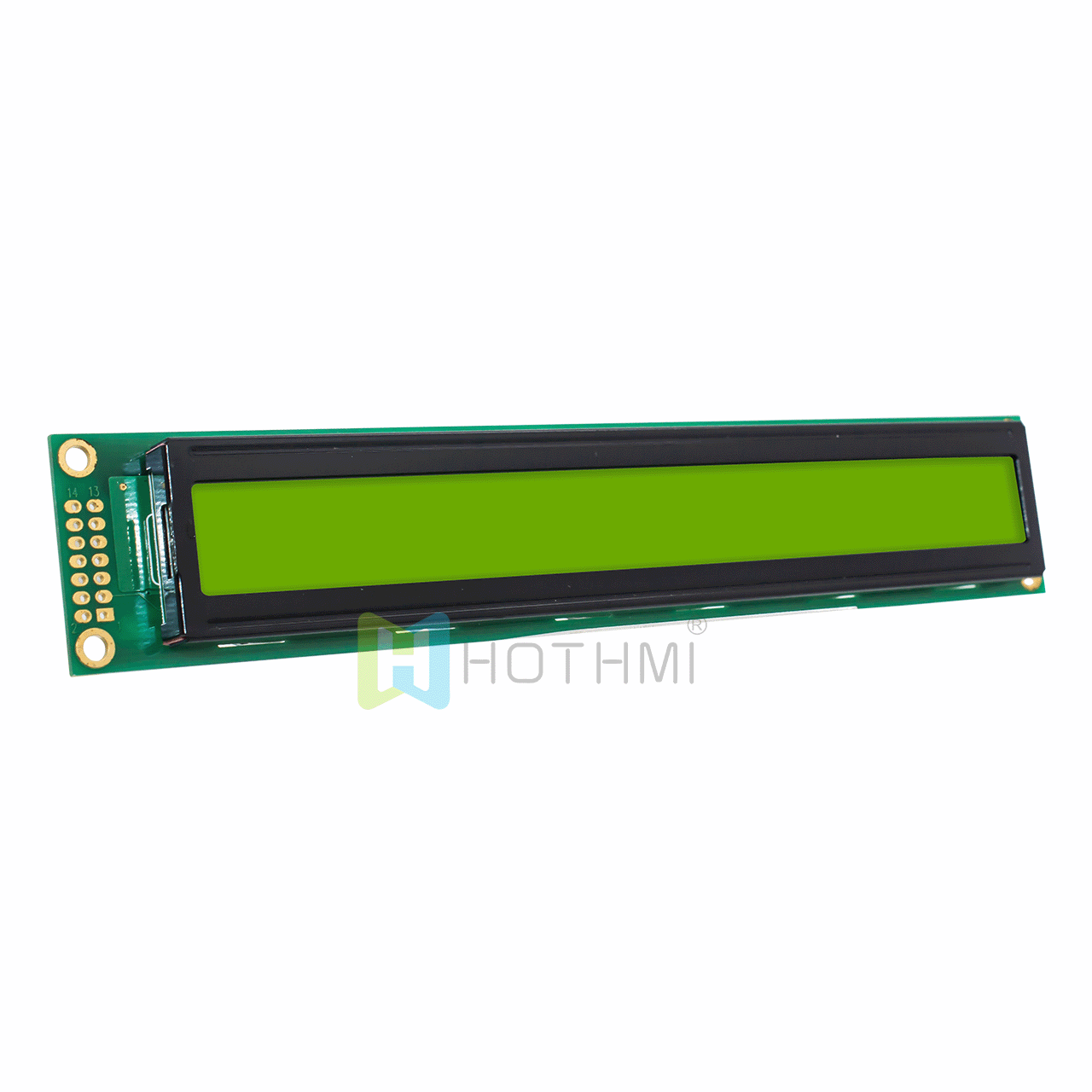

This 2X40 character LCD module shows dark pixelated characters on a bright yellow/green background. Transparent mode makes this LCD screen clearly visible in natural light; a built-in backlight can be used in low-light conditions. It has an optimal viewing angle of 6:00 and an operating voltage of 5V. This dial offers a wide operating temperature range from -20 to 70 degrees Celsius.

This long character LCD screen can display up to 80 characters in a 40x2 display format on an amber background. It has ST7066U-based control and is compatible with Arduino and other development boards.

item	Specification content	Unit
Model number	HTM4002A-01Y-A5P
Word × line	40words × 2rows	dots

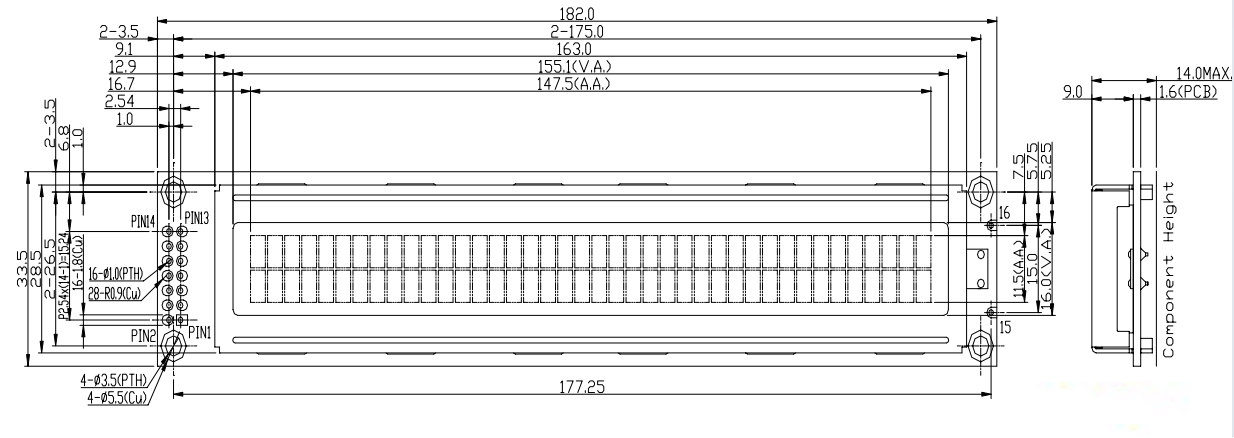

Module size	182.0 x 33.5 x 14.0 (MAX)	mm
Visual (VA) area	155.1 x 16.0	mm
Valid (AA) area	147.5 x 11.5	mm
Dot (pixel) spacing	0.65 x 0.7	mm
IC	ST7066U
Supply voltage	5V	V
backlight	Yellow/green backlight
mode	STN(+)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD module
peculiarity	Semi-transparent reflector polarizer
