China LCD TFT Display Manufacturer, Global Supplier

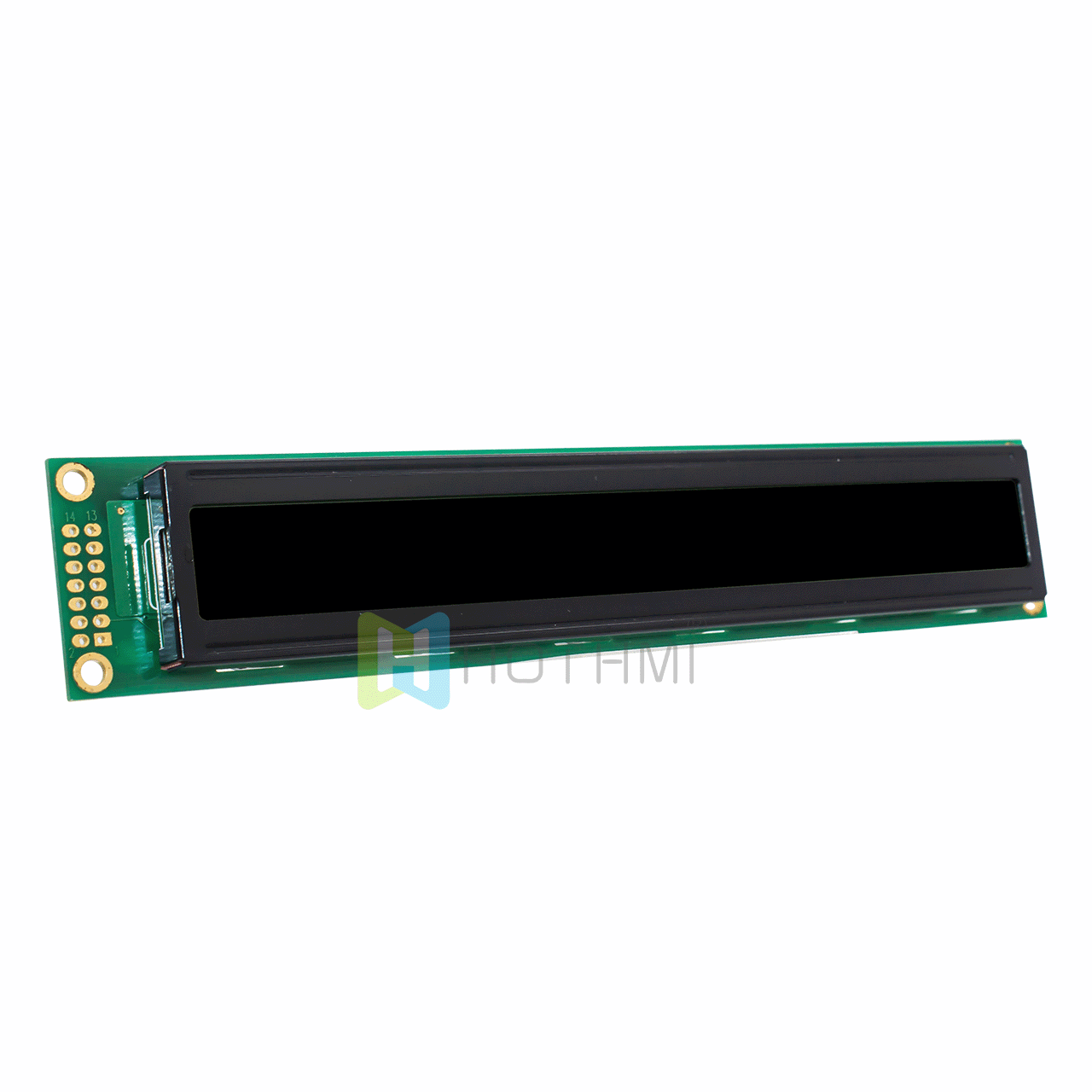

2X40 character LCD module | monochrome display DFSTN negative display | with white backlight | black background and white characters | Arduino display | 5.0v

? Model: HTM4002A-47W-A5P

? Type: 2X40 character LCD module
? Display content: 40x characters
? Dimensions (mm): 182.00x33.5x14.0
? VA size (mm): 155.1x16.0
? AA size (mm): 147.5 x 11.5
? Pixel pitch mm: 0.65 x 0.7
? Product application: industrial control
? Viewing angle: 12H
? Backlight type: white light
? Number of PINs: 16PIN
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 5.0V
? Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

2X40 character LCD module | monochrome display DFSTN negative display | with white backlight | black background and white characters | Arduino display | 5.0v

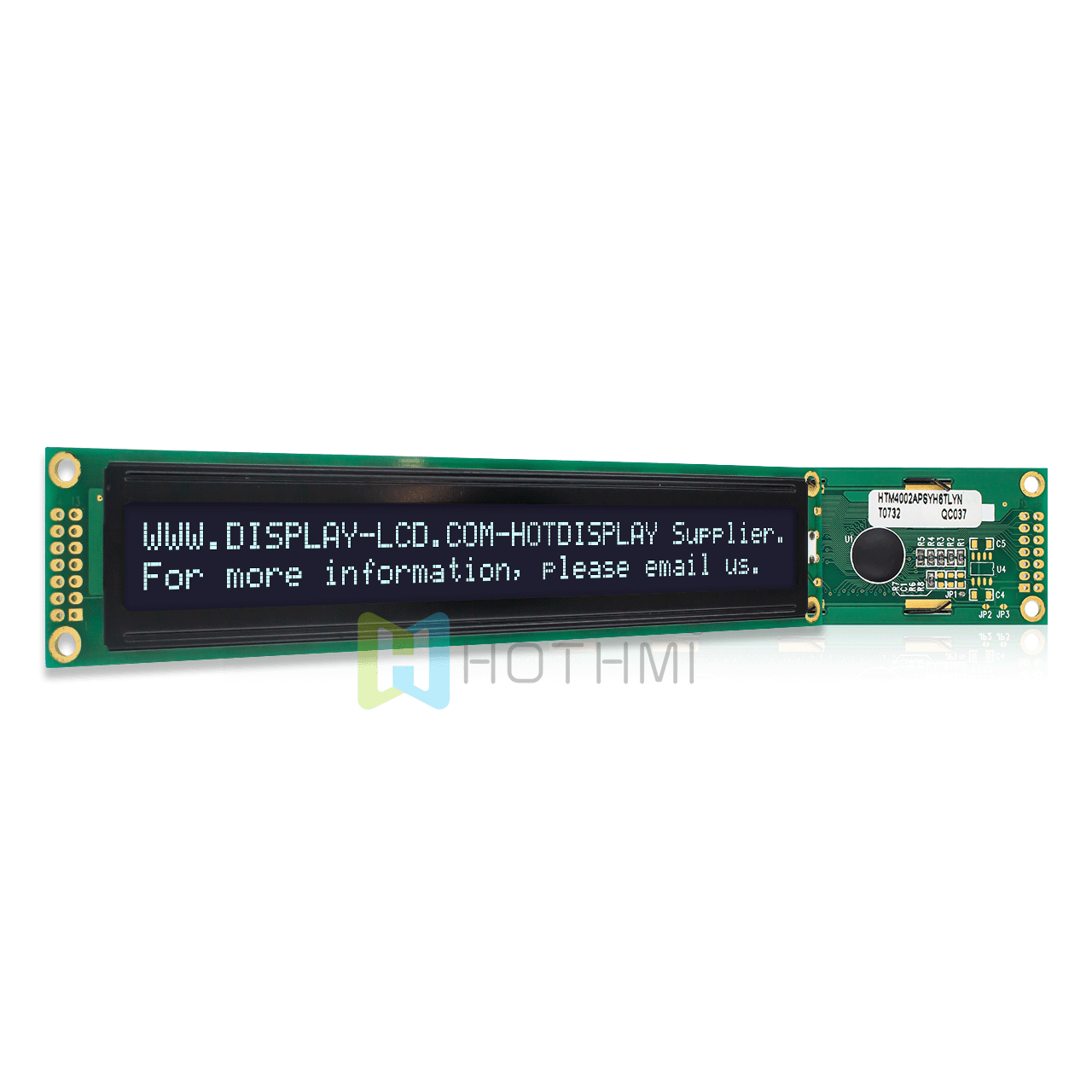

The 2X40 character LCD module HTM-4002A-47W-A5P is an 80-character LCD screen with 2 lines of white characters on a black background. This single-line transmission screen operates on a 5V supply voltage. The compact blue LCD display offers you the best visualization experience with an optimal display orientation of 6:00. It operates over a wide temperature range, from as low as -20°C to as high as 70°C. It stands out with its unique white side-facing backlight that improves visibility and readability in low-light environments. This LCD display has a built-in ST7066U controller that ensures high compatibility with a wide range of interfaces and development boards, including Arduino.

parameter	Parameter Description	Unit
name	HTM4002A-47W-A5P
Character display line	40 words × 4 rows	dots
External dimensions	182.0 x 33.5 x 14.0 (MAX)	mm
VA size	155.1 x 16.0	mm
AA size	147.5 x 11.5	mm
Pixel spacing	0.65 x 0.7	mm
Driver chip	ST7066U
Application voltage	5V	V
Back lighting	White
display mode	FSTN(+)
Drive mode	1/16 duty cycle
product type	Character lcd module
Polarizer Type	Transmissive
