HOME / Product / Character LCD Modules / 40x4 Character LCD Modules | FSTN+gray With White Backlight

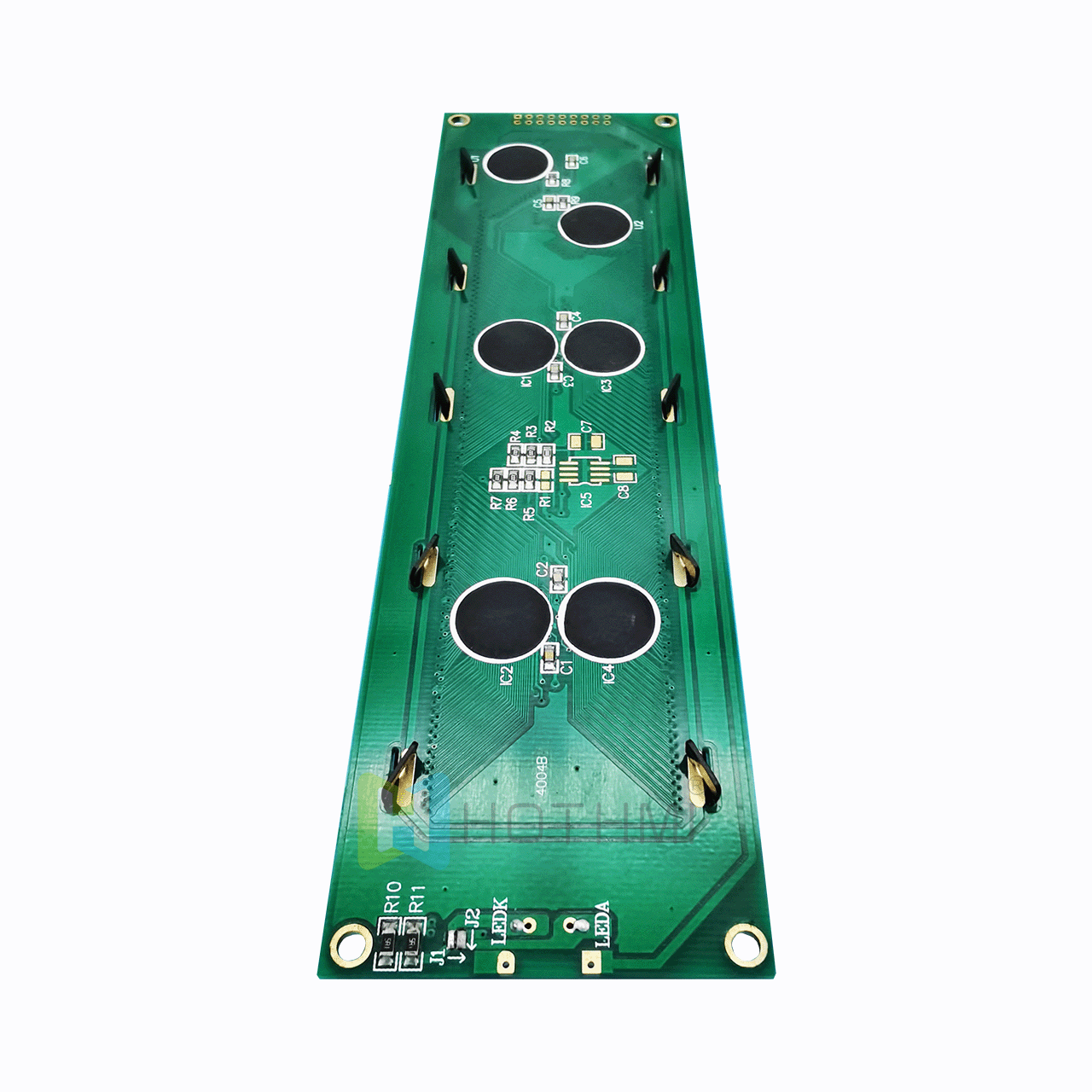

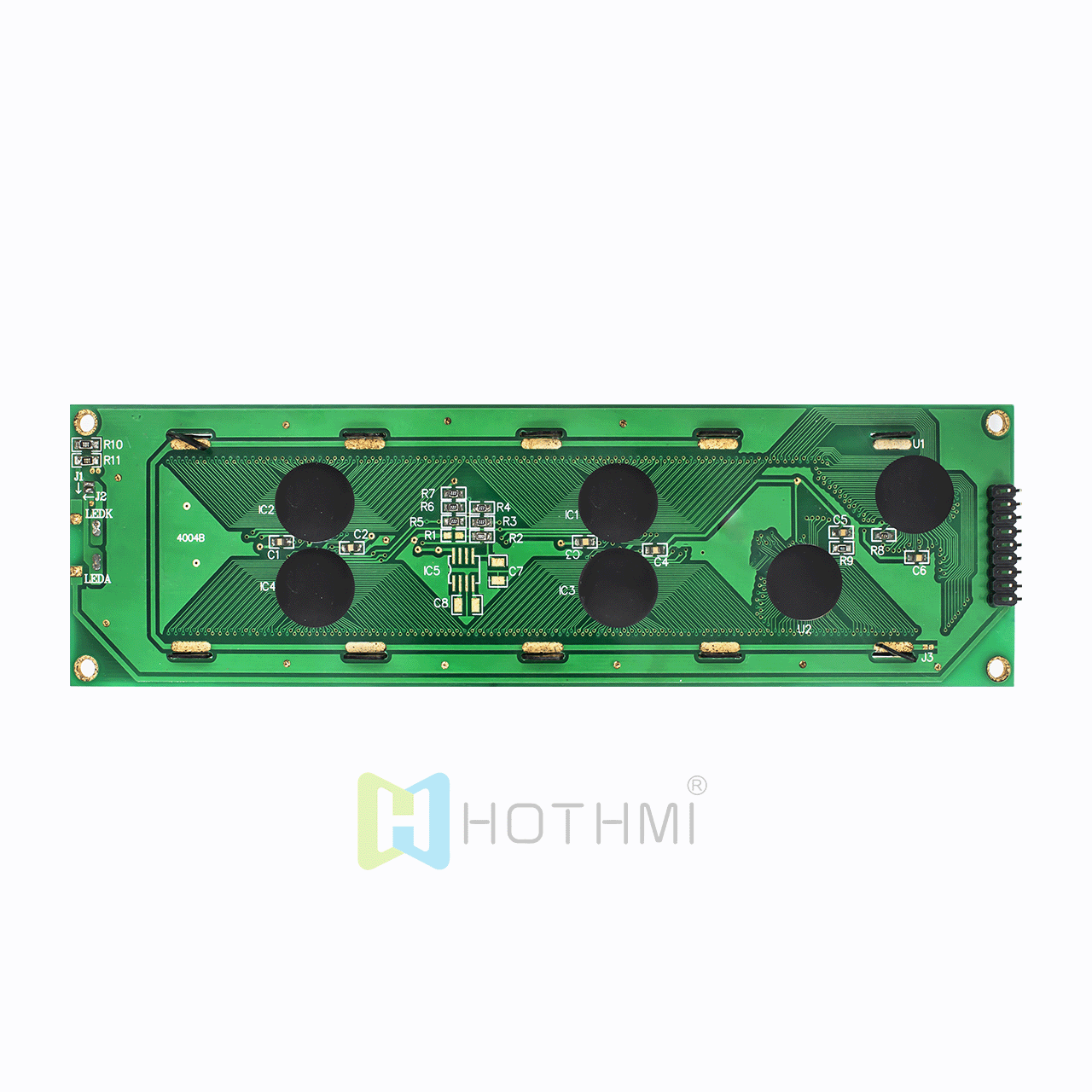

40x4 Character LCD Modules | FSTN+gray With White Backlight

? Model: HTM4004B-31W-A5P

? Type: 4X40 Character LCD Modules
? Display content: 40x4 characters
? Dimensions (mm): 190.0 x 54.0 x 14.9
? VA size (mm): 147.0 x 29.5
? AA size (mm): 140.47 x 23.18
? Pixel pitch mm: 0.57 x 0.62
? Product application: industrial control
? Viewing angle: 6H
? Backlight type: white light
? Number of PINs: 16PIN
? Interface mode: MCU
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 5.0V
? Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

4X40 Character LCD Modules |5.0v FSTN Positive Display | With White Backlight | Arduino Display | ST7066U | Transflective Display

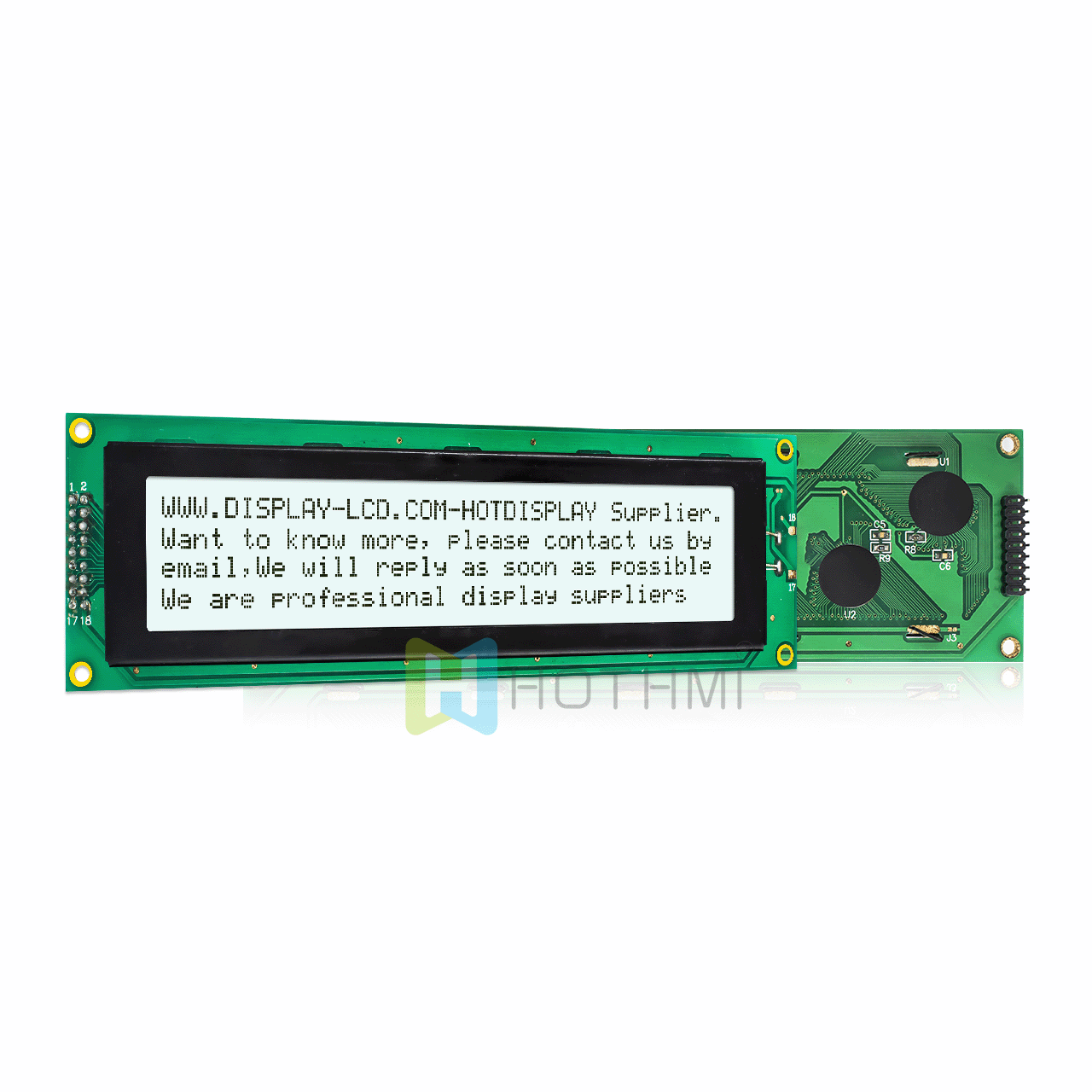

This 4X40 Character LCD Modules dark grey pixels on a bright white background. The transflective LCD mode makes this screen clearly visible in any environment, including low light, ambient light, and very bright light environments. It has a wide operating temperature range of -20 to 70 degrees Celsius and a supply voltage of 5V. It comes with standard sources in English and Japanese. This screen is compatible with Arduino and other popular development boards.

item	Specifications	unit
Model	HTM4004B-31W-A5P
Character × Line	40 WORDS × 4lines	dots

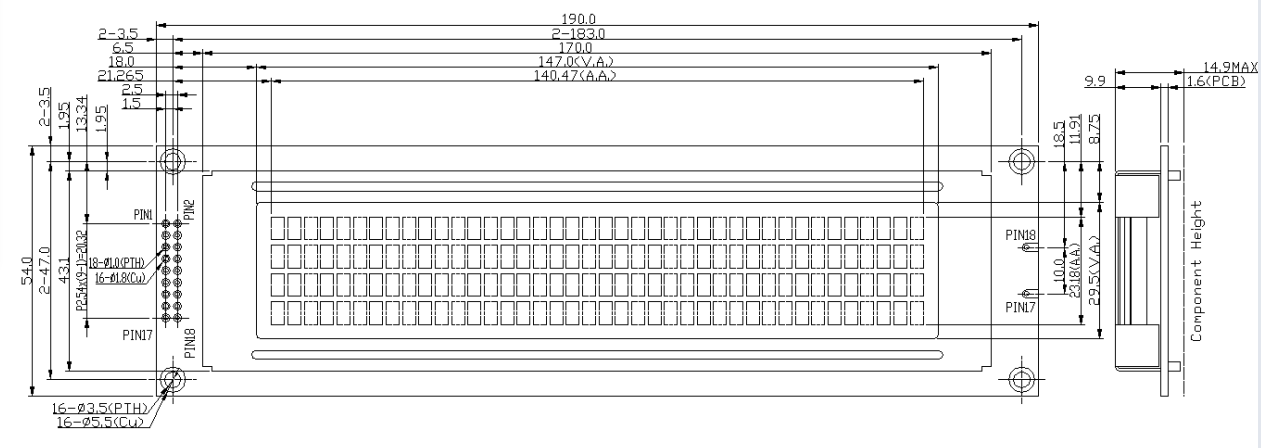

Module Size	190.0 x 54.0 x 14.9 (MAX)	mm
VA Size	147.0（W） × 29.5（H）	mm
AA Size	147.47 x 23.18	mm
Pixel Pitch	0.65（W） × 0.70（H）mm	mm
IC	ST7066U
Applied Voltage	5V	V
Backlight	White backlight
Mode	FSTN+
Drive Mode	1/16 duty cycle
Type	Character LCD Module
Polarizer Type	Transflective
