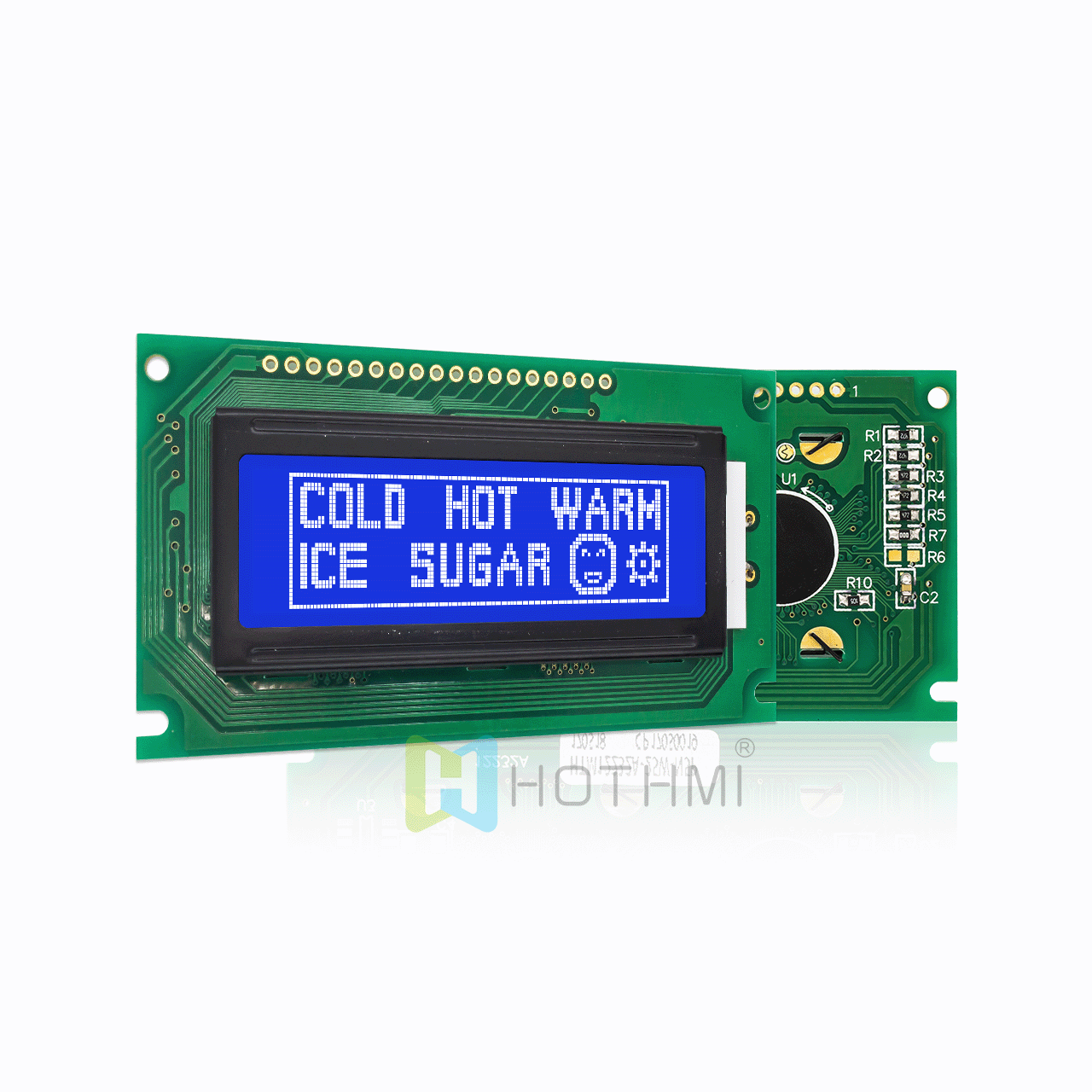

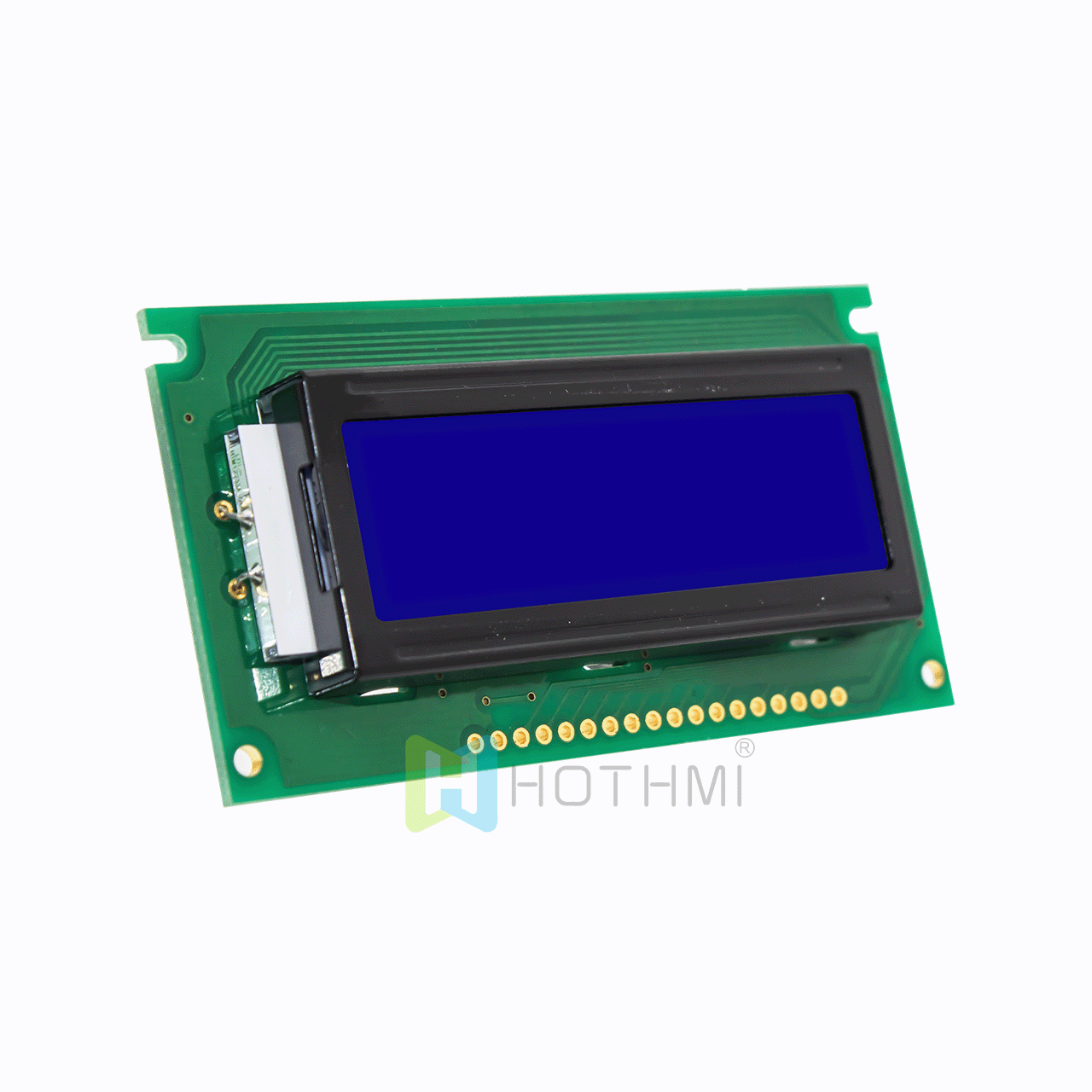

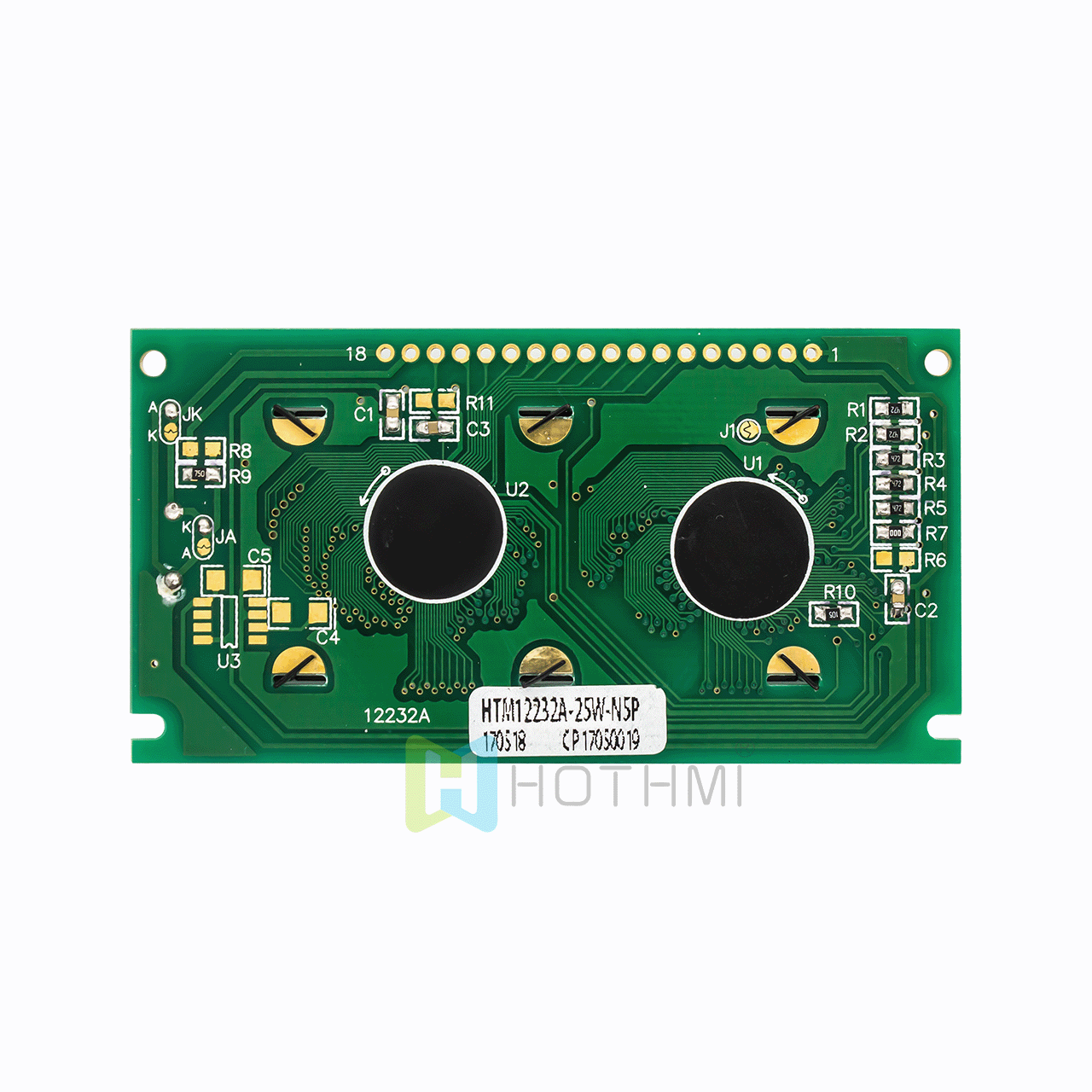

122X32 Monochrome Graphic LCD Display | STN (-) Display with White Side Backlight | Arduino

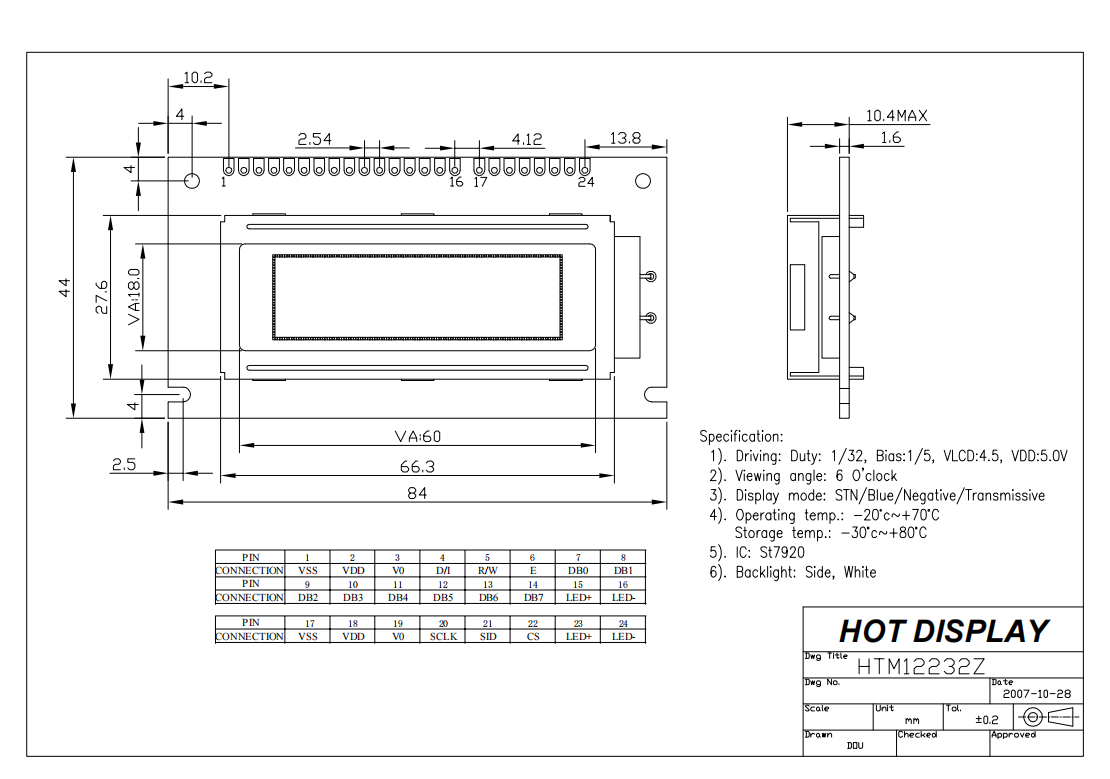

This 122x32 LCD Graphic Module features bright white pixels for a very bright and vivid display. This transmissive LCD is ideal for optimal viewing and has a flat surface that is useful in ambient conditions. The display is designed to perfectly match the 4D contrast and ensure transparency of all graphics in Switzerland. This LCD Graphic Module is compatible with Arduino and allows for simple and transparent connection with electronic systems for a wide range of applications. Model HTM12232Z - 25W - A5P is designed to withstand different functional conditions, both functions are useful in a temperature range of -20 to 70 degrees Celsius. The LCD display has an optimal screen angle of 6:00, an operating voltage of 5V and is compatible with RSP.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
