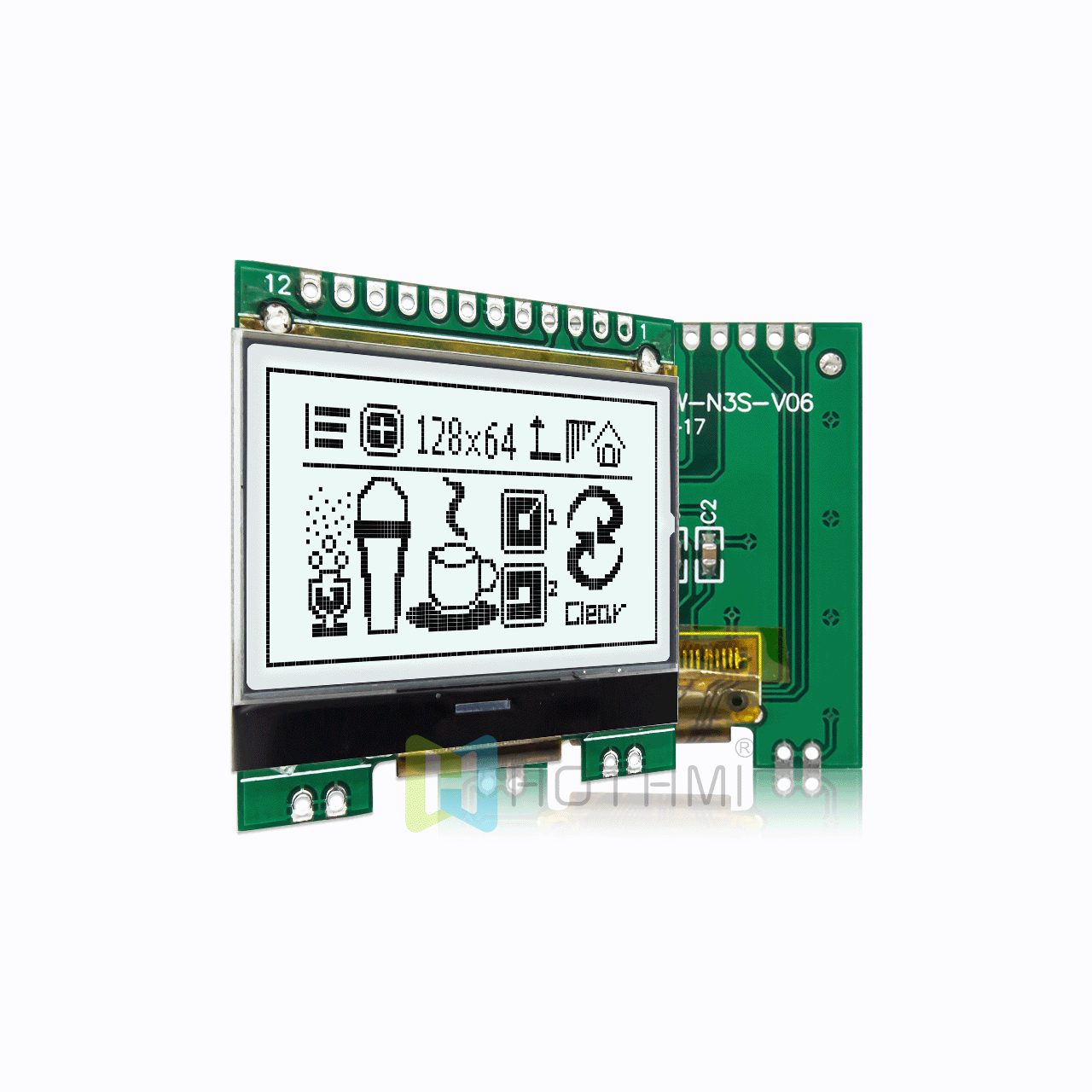

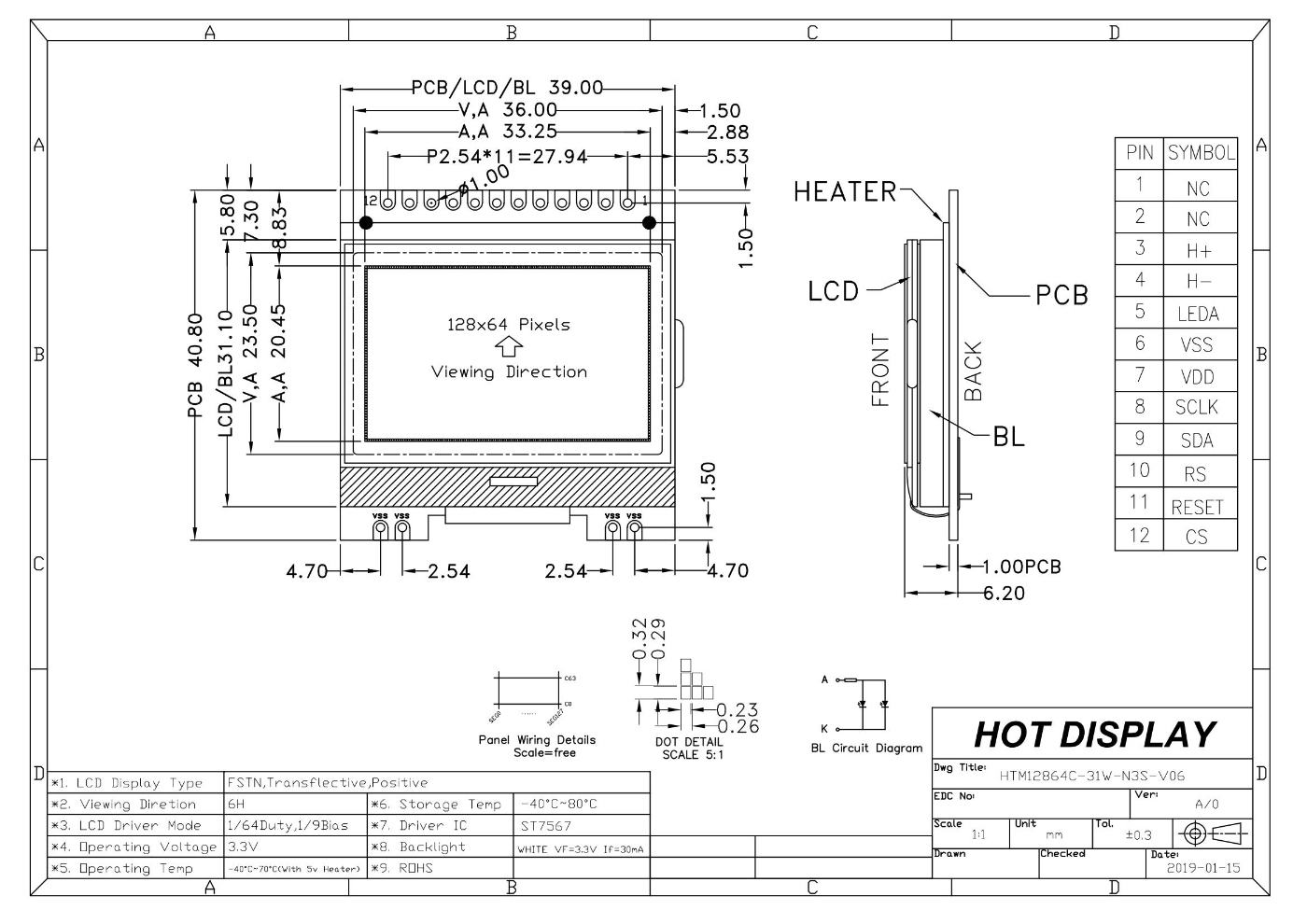

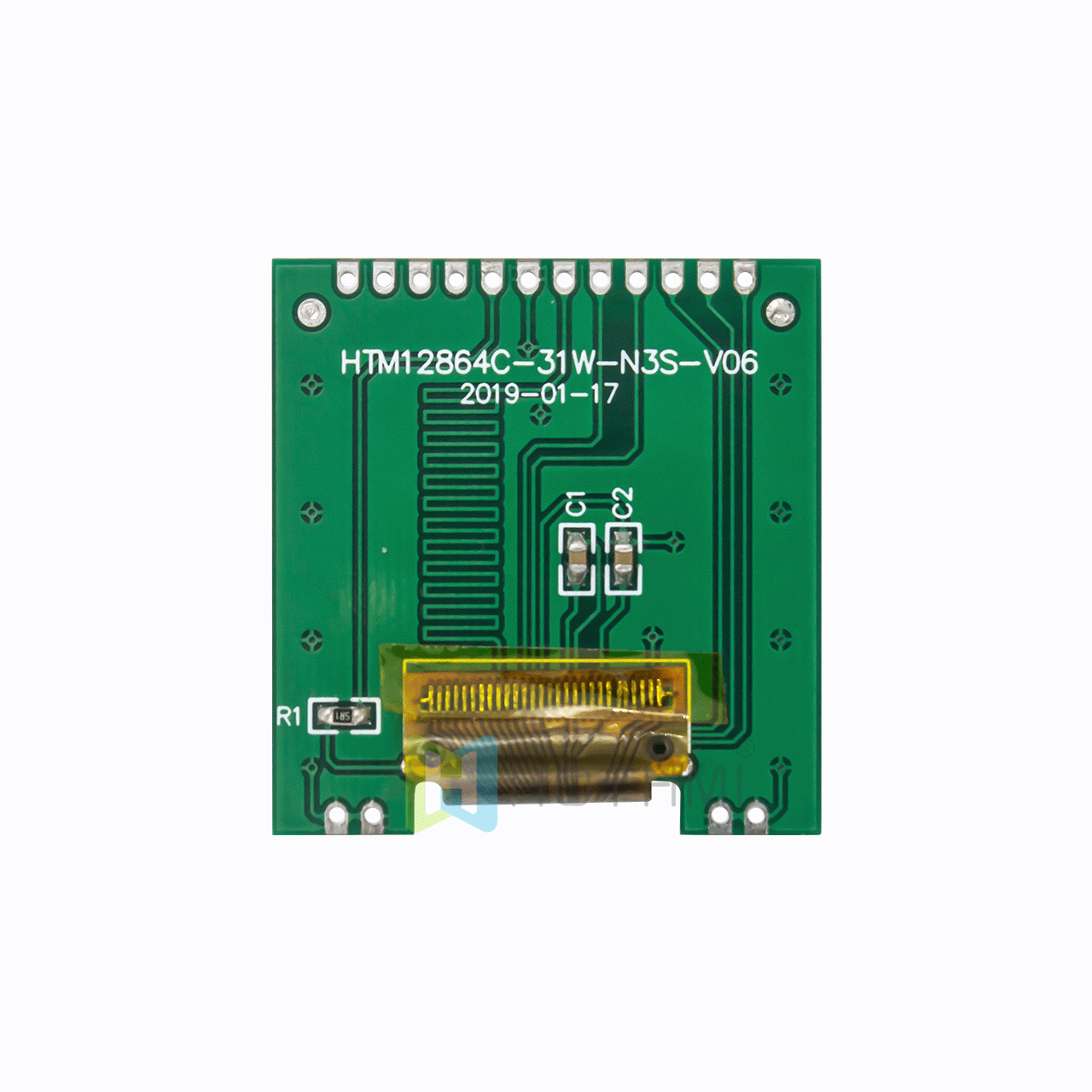

HTM12864C-31W-N3S-V06 | Monochrome graphics module | 128x64 pixels | Semi transparent reflective LCD display | Side white backlight | FSTN (+) positive display | -40 ℃~70 ℃ ultra-low temperature
This HOTISOLAY 128x64 graphic LCD display module displays dark black pixels illuminated on a bright white background. This reflective LCD monitor is carefully designed to provide optimal visibility in various lighting conditions in various environments. Under bright sunlight, the display screen uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD comes with strong backlight, providing high contrast and displaying clear graphics to viewers. This advanced display technology ensures that the display screen is always easy to read regardless of lighting conditions.
This graphic LCD display module is fully compatible with Arduino and can seamlessly connect with other electronic systems, making it suitable for various applications. The HTM12864C-31W-N3S-V06 model is specifically designed to withstand harsh working conditions and performs well when used in the temperature range of -40 to 70 degrees Celsius. Design and install a heating element that can work in ultra-low temperature environments. The optimal viewing angle of this LCD is 6:00, the working voltage is 3.3V, and it complies with RoHS standards.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
