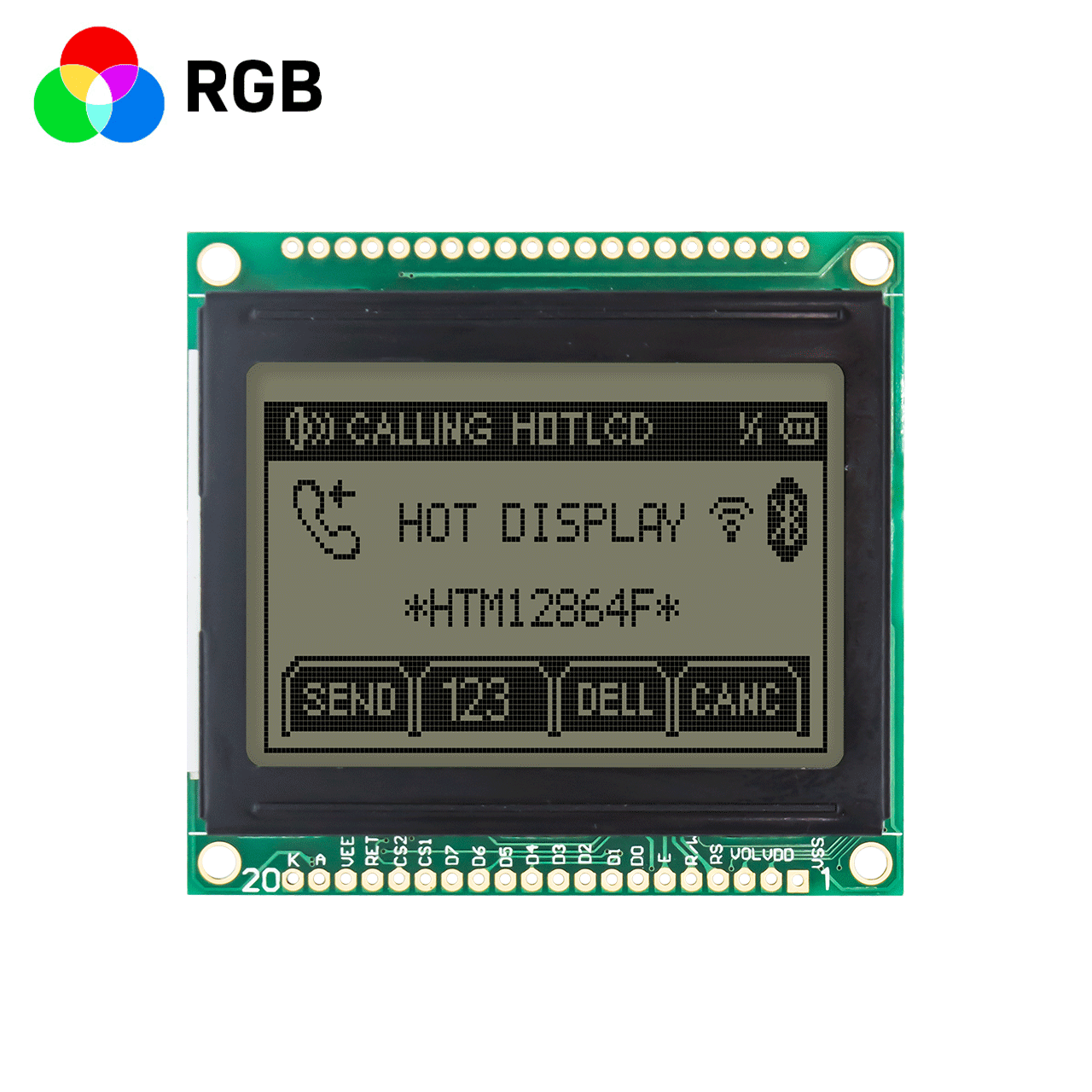

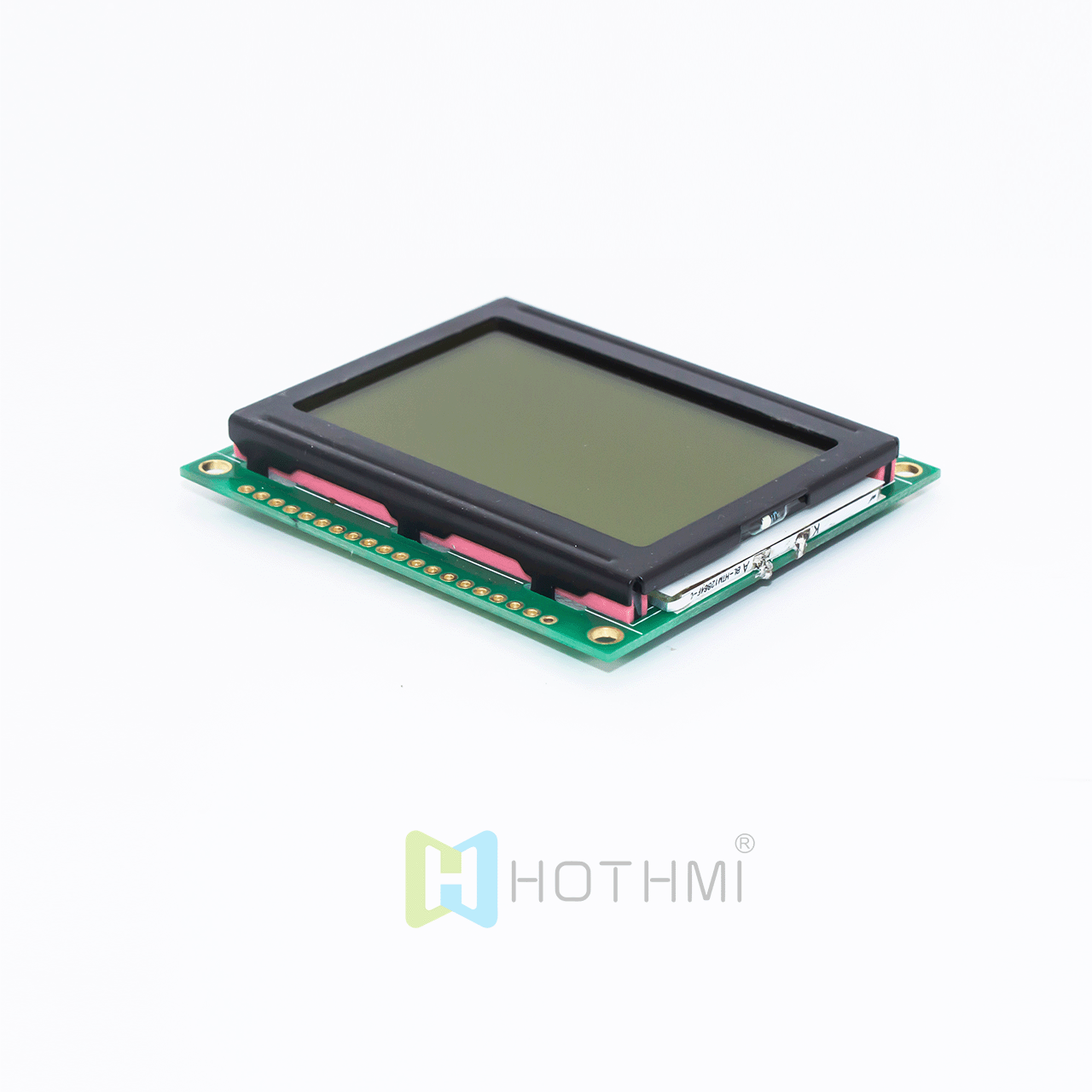

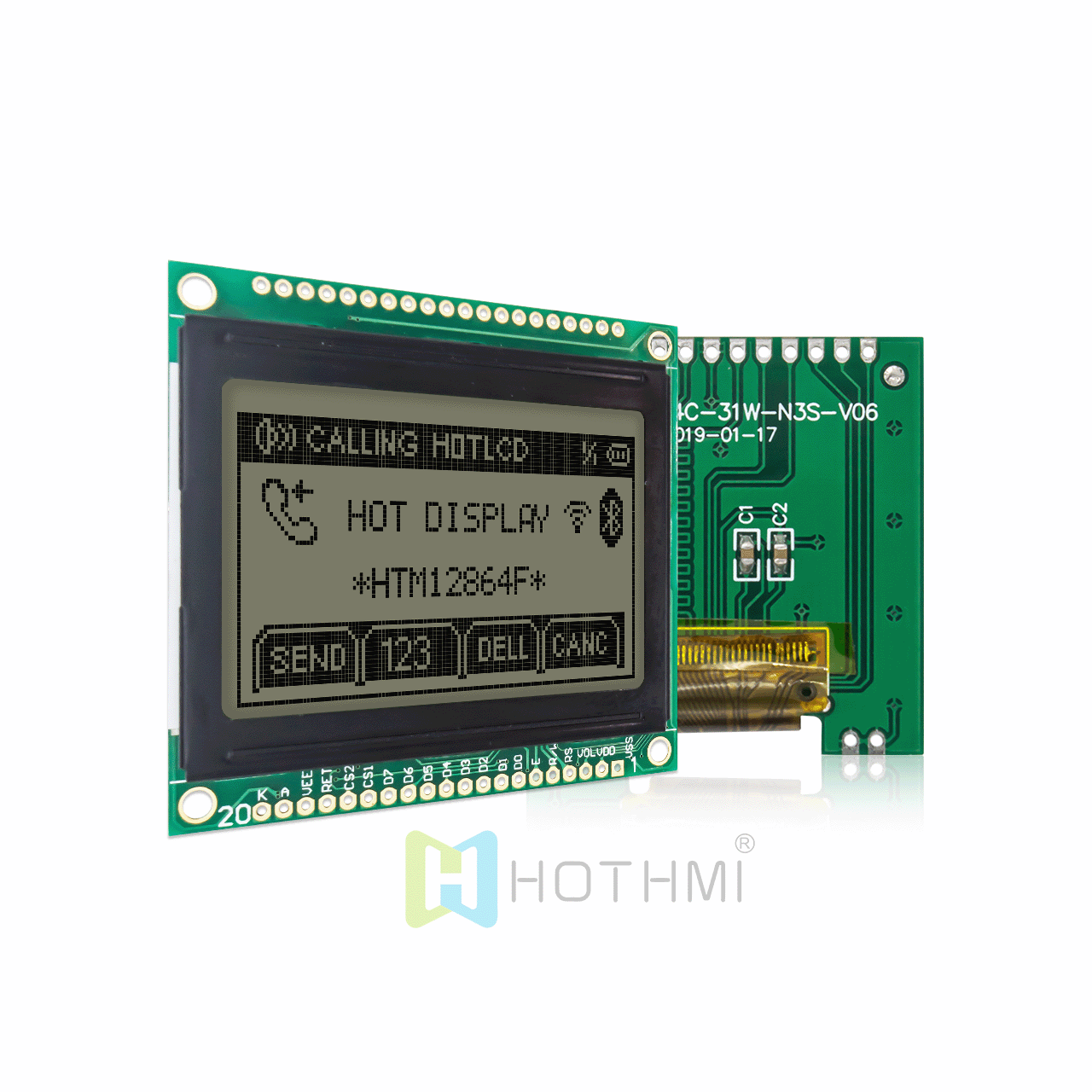

HTM12864F-35S-A5P |2" Graphic Transmissive LCD | 128X64 Graphic LCD Module | FSTN+ | RGB | Arduino
This 128x64 LCD module can display dark gray pixels on a red, green, and blue background. This improved LCD monitor is designed to provide optimal visibility in a variety of lighting conditions in a variety of environments. Under sunlight, the fully transparent polarizer makes the display interface brighter and clearer, making the screen easier to read. In darker environments, the LCD has a powerful built-in backlight, and the backlight color is RGB red, green, and blue. Provides high contrast and displays clear graphics to viewers.
This graphic LCD module is fully compatible with Arduino/C8051 and can be connected with other electronic systems for various applications. The HTM12864F-35S-A5P model is designed to withstand harsh operating conditions and works well in the -20-70°C temperature range.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |

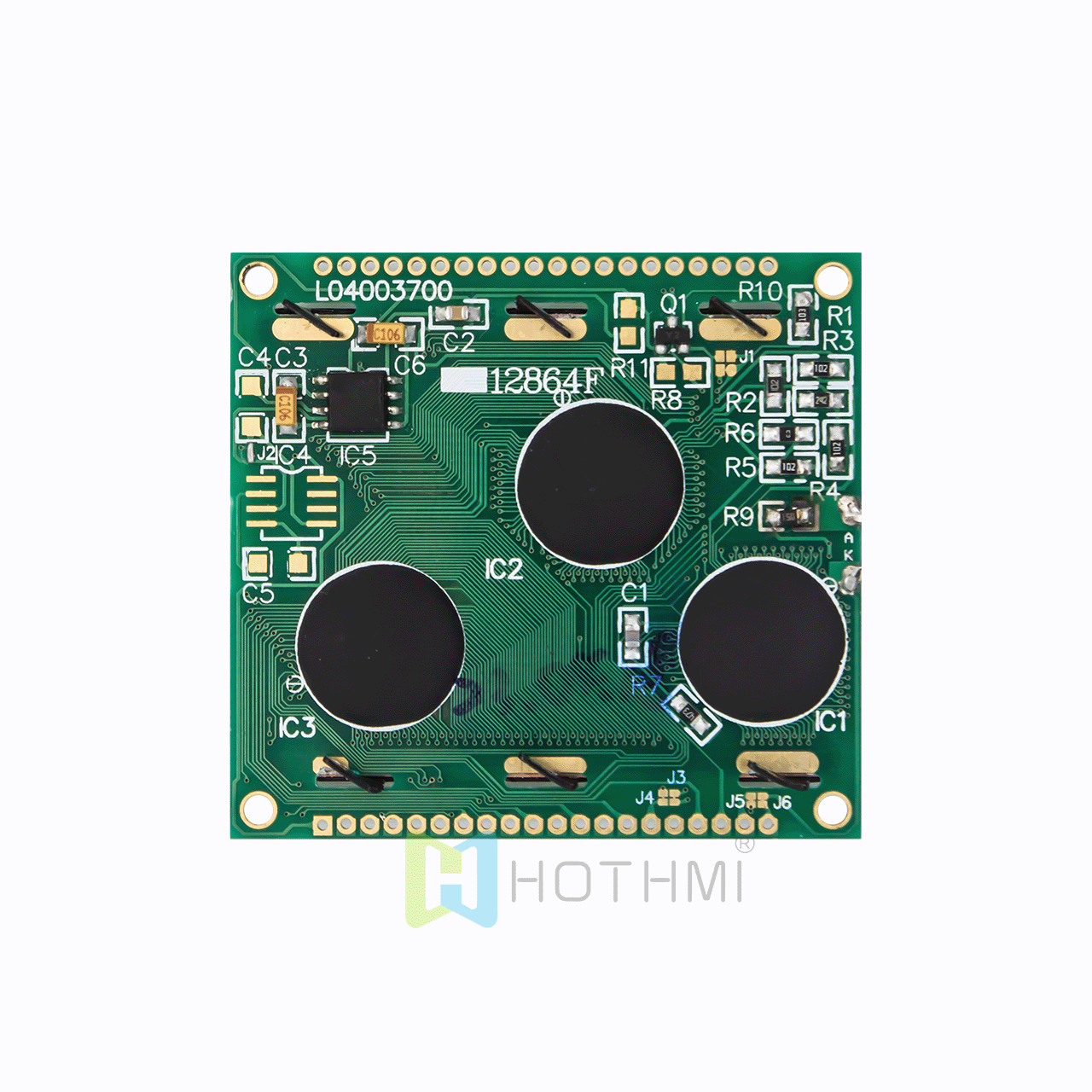

PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
