HTM12864C02-25W-A3P/1.7-inch graphic dot matrix module/128x64 resolution/white text on blue background/ST7565R control chip/MCU

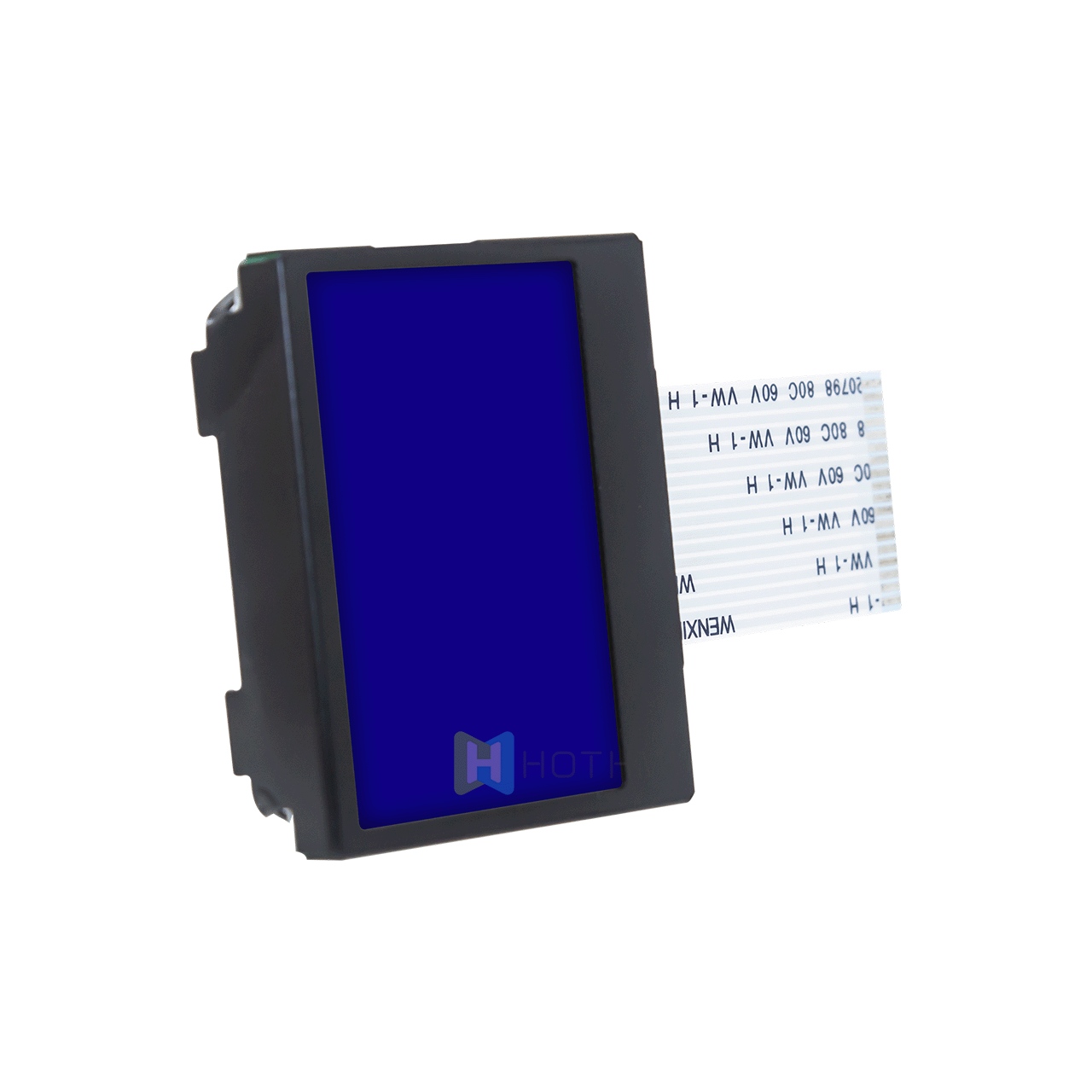

HTM12864C02-25W-A3P is a 1.7-inch 128x64 monochrome graphic dot matrix LCD display module, with white characters on a blue background, wide temperature, 3.3V voltage, ST7565R control IC, MCU interface, wide viewing angle and high contrast. All materials comply with environmental requirements RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
