China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Graphic LCD Modules / 2.7-inch LCD12864 LCD screen/LCM128x64 graphic dot matrix module/yellow-green backlight/with Chinese font library

2.7-inch LCD12864 LCD screen/LCM128x64 graphic dot matrix module/yellow-green backlight/with Chinese font library

? Model: HTM12864N01A-01Y

? Type: Standard COB LCD module
? Display pixels: 128x64

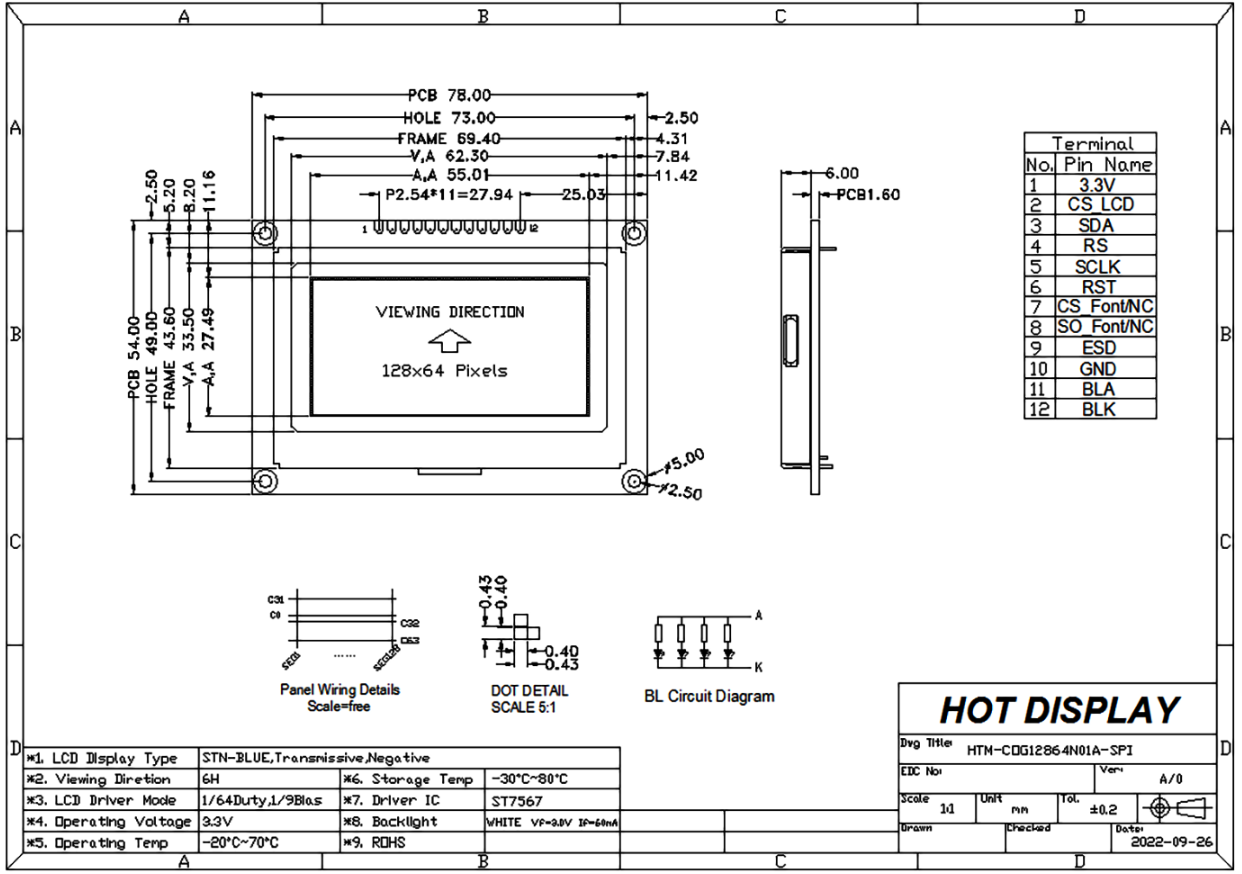

? Overall dimensions (mm): 78.0x54.0x7.6
? VA size (mm): 62.3x33.5
? AA size (mm): 55.01x27.49
?Viewing angle: 6H
? Point spacing (mm): 0.43x0.43
? Backlight/brightness: white light
? Pin: 12PIN
?Interface mode: SPI
? Working temperature: -20~70℃
? Special instructions: Chinese font library can be brought
? Supply voltage: 3.3v
? Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

2.7-inch LCD12864 LCD screen/LCM128x64 graphic dot matrix module/yellow-green backlight/with Chinese font library

2.7-inch LCD12864 LCD screen HTM12864N01A-01Y-A5P is a 128x64 monochrome graphic dot matrix LCD module, built-in ST7567 controller, 5V voltage, yellow-green LED backlight, brightness can be adjusted through the resistor behind the board, STN display LCD, Positive display, when lit, it shows gray fonts on a yellow-green background, with a built-in Chinese character library. The operating temperature is minus 20 degrees to above zero 70 degrees. The pin header is connected (you can choose whether to buy it and weld it to the board). All materials comply with environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

item	Specification content	unit
model	HTM12864N01-01Y-A5P
Column × Row	128 Columns × 64rows	dots
Module size	78.0 x 54.0 x 7.6 (MAX)	mm
Visual (VA) area	62.3 x 33.5	mm
Valid (AA) area	55.01 x 27.49	mm
Point (pixel) spacing	0.43 x 0.43	mm
IC	ST7567
voltage	5V	V
backlight	Yellow-green
model	STN(+)
Drive mode (Duty)	1/64 duty cycle
type	Grahphic LCD Module
characteristic	Transflective polarizer
