2.7 inch LCD Graphic 128x64 Module | STN Positive | White Backlight | SPI Interface | Arduino | Gray Background with Blue Text

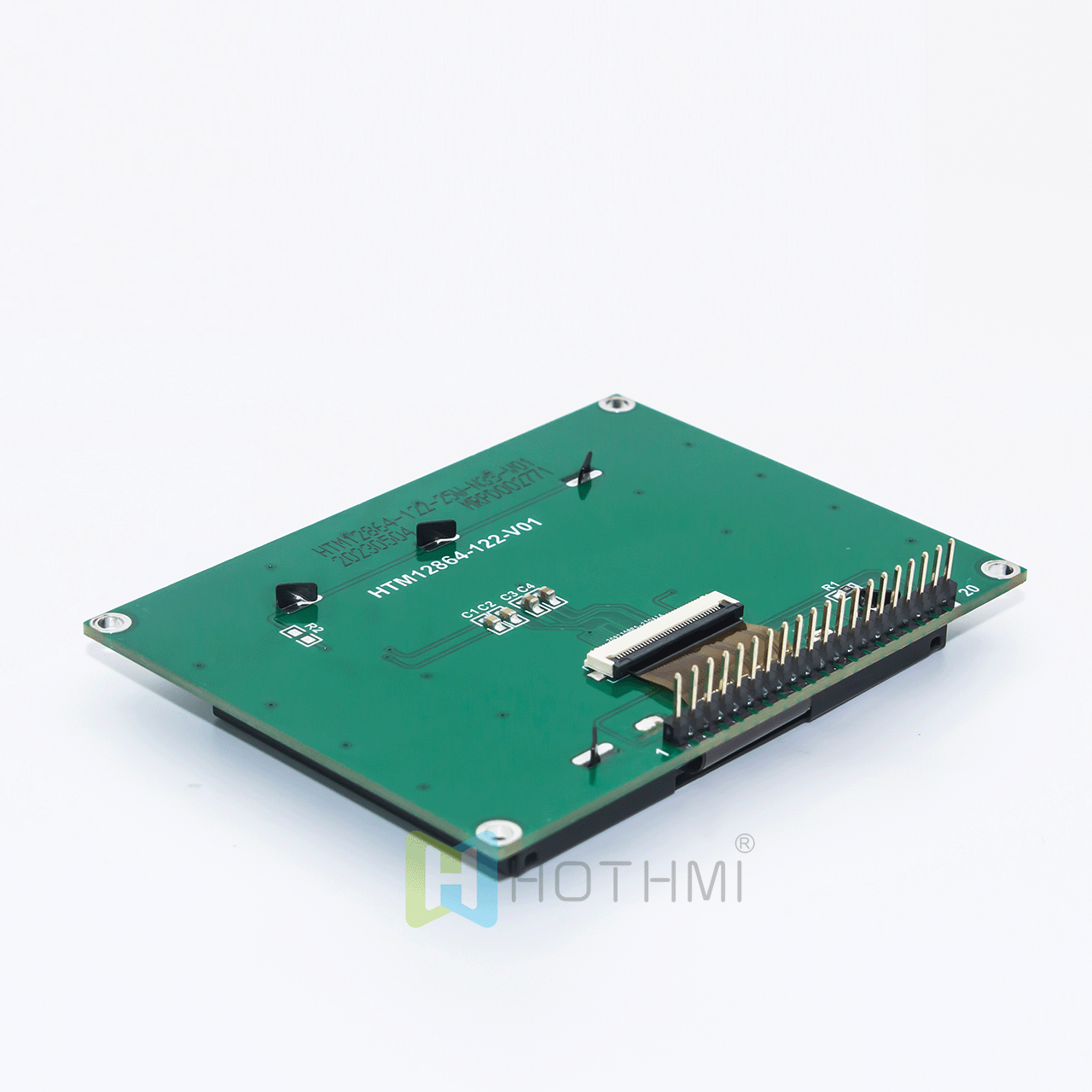

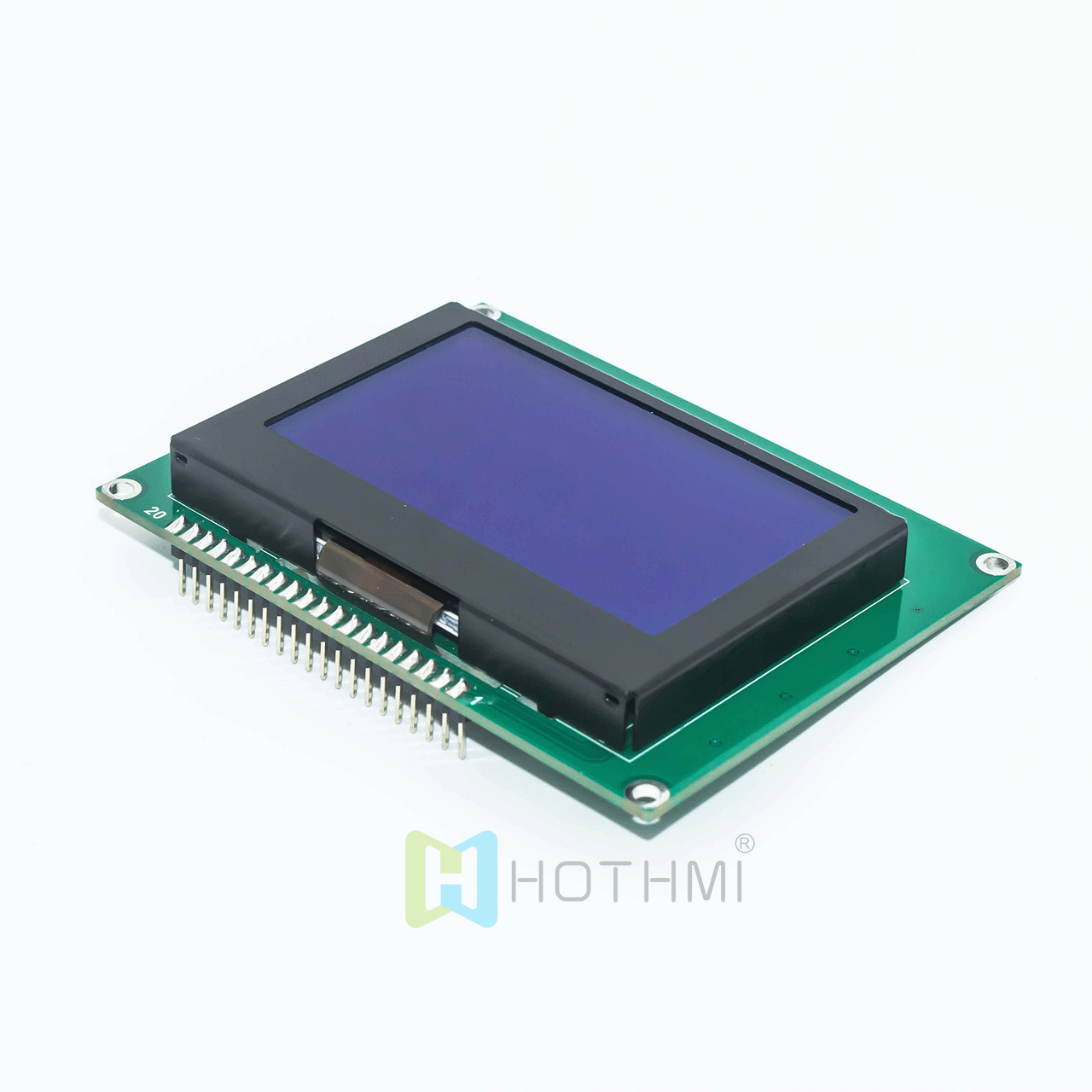

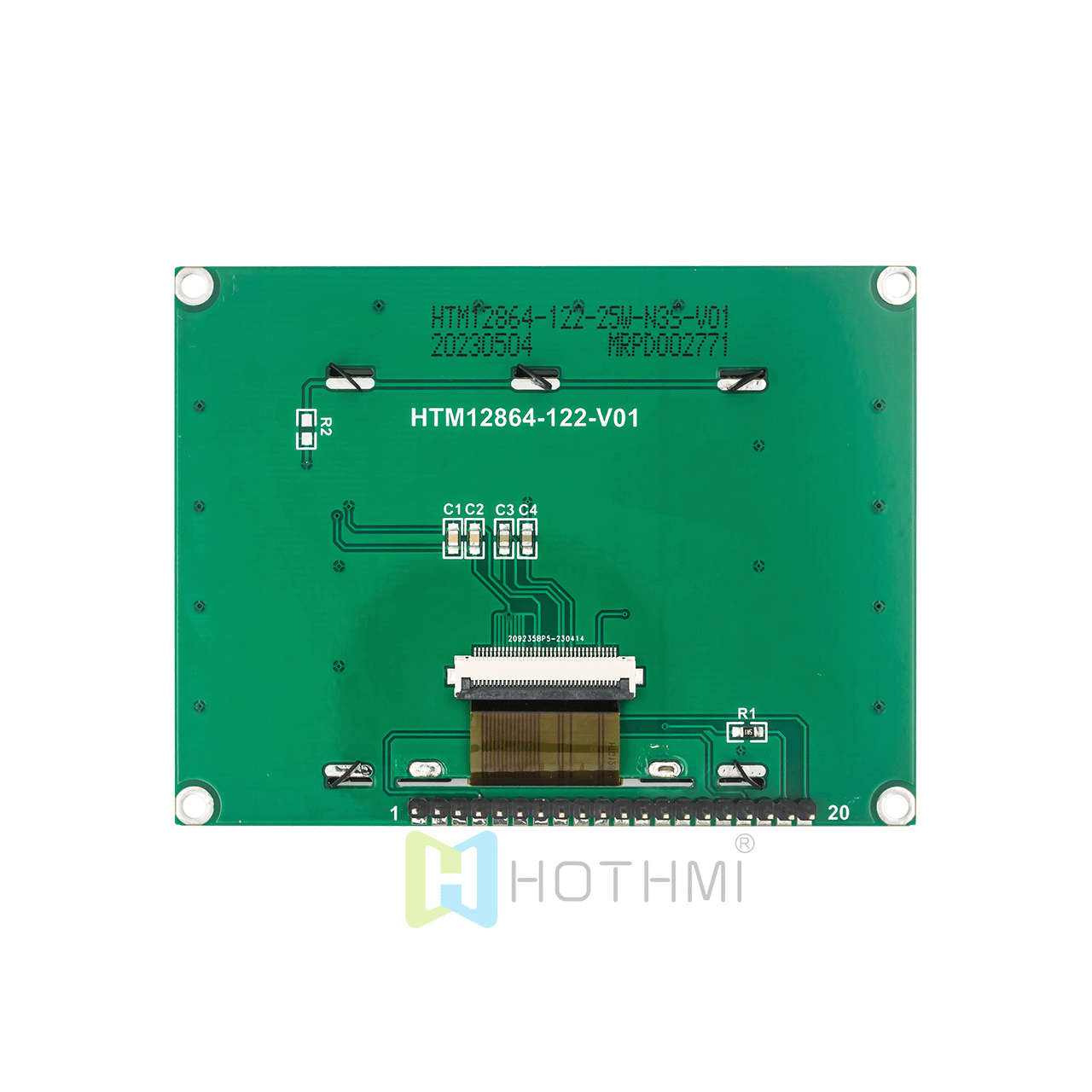

It is 2.7 inch white background with 128x64 monochrome blue pixel cob (chip on pcb board) LCD module, ST7567 controller, moderate size, high contrast, wide operating temperature, white LED backlight, stn-lcd positive, optional pin header and font chip (contains Chinese characters or ISO8859, ASCII, Unicode, LCM characters), it is 4-wire serial spi interface.
It is easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.
Of course, we will not ignore customer questions and needs. We have prepared interface documents, product specifications, chip data, etc. for arduino due, mega 2560, uno, nano and raspberry pi or raspberry pi zero.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
