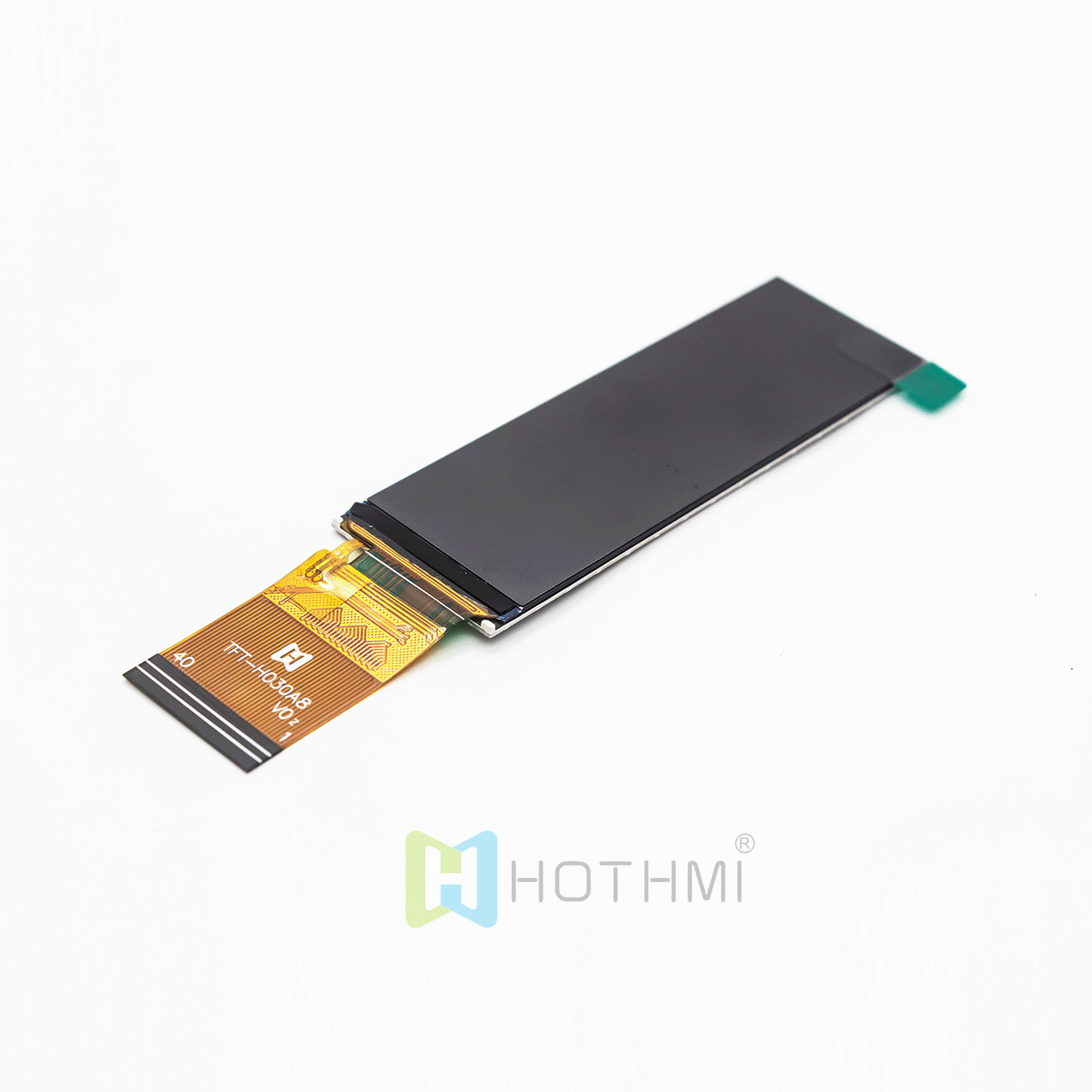

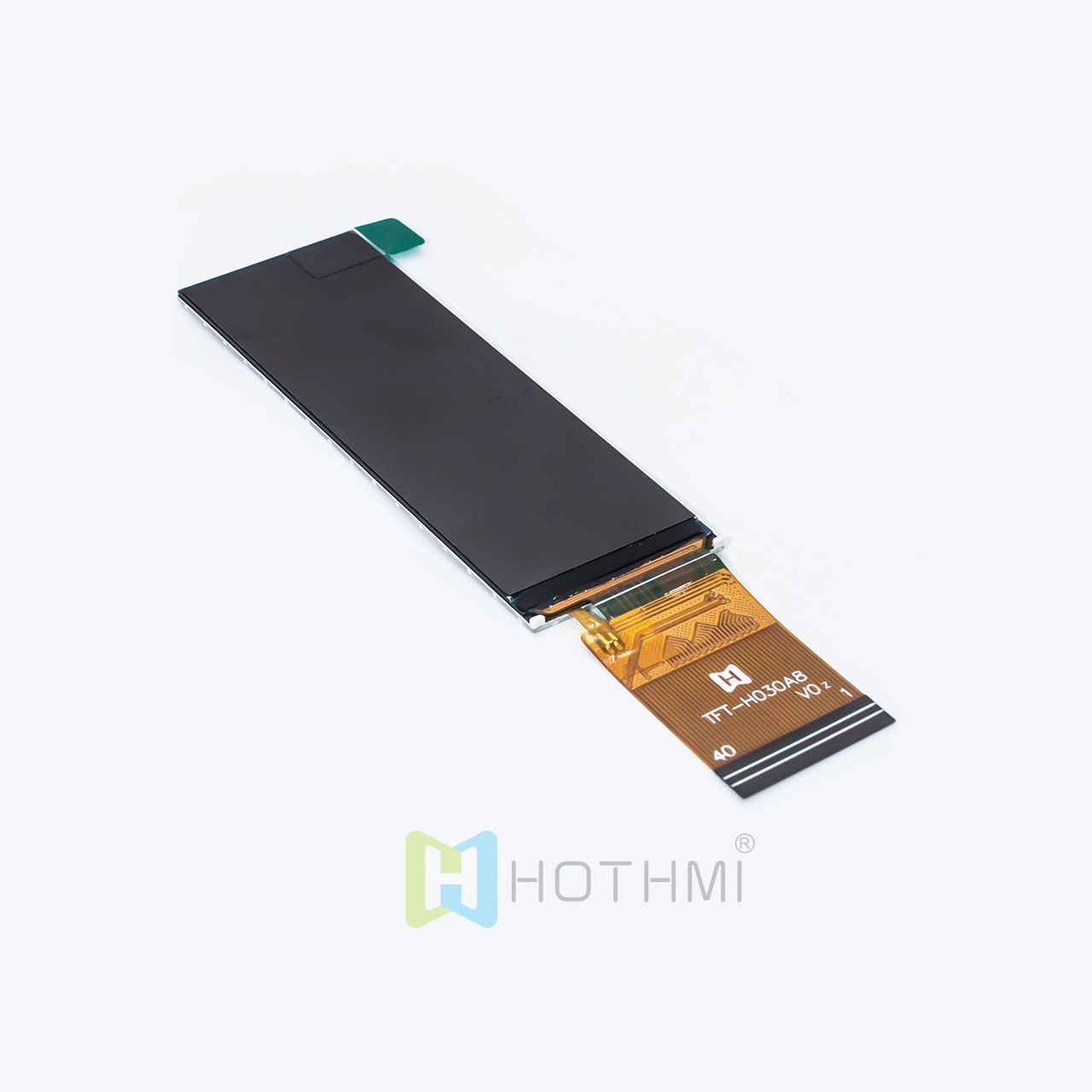

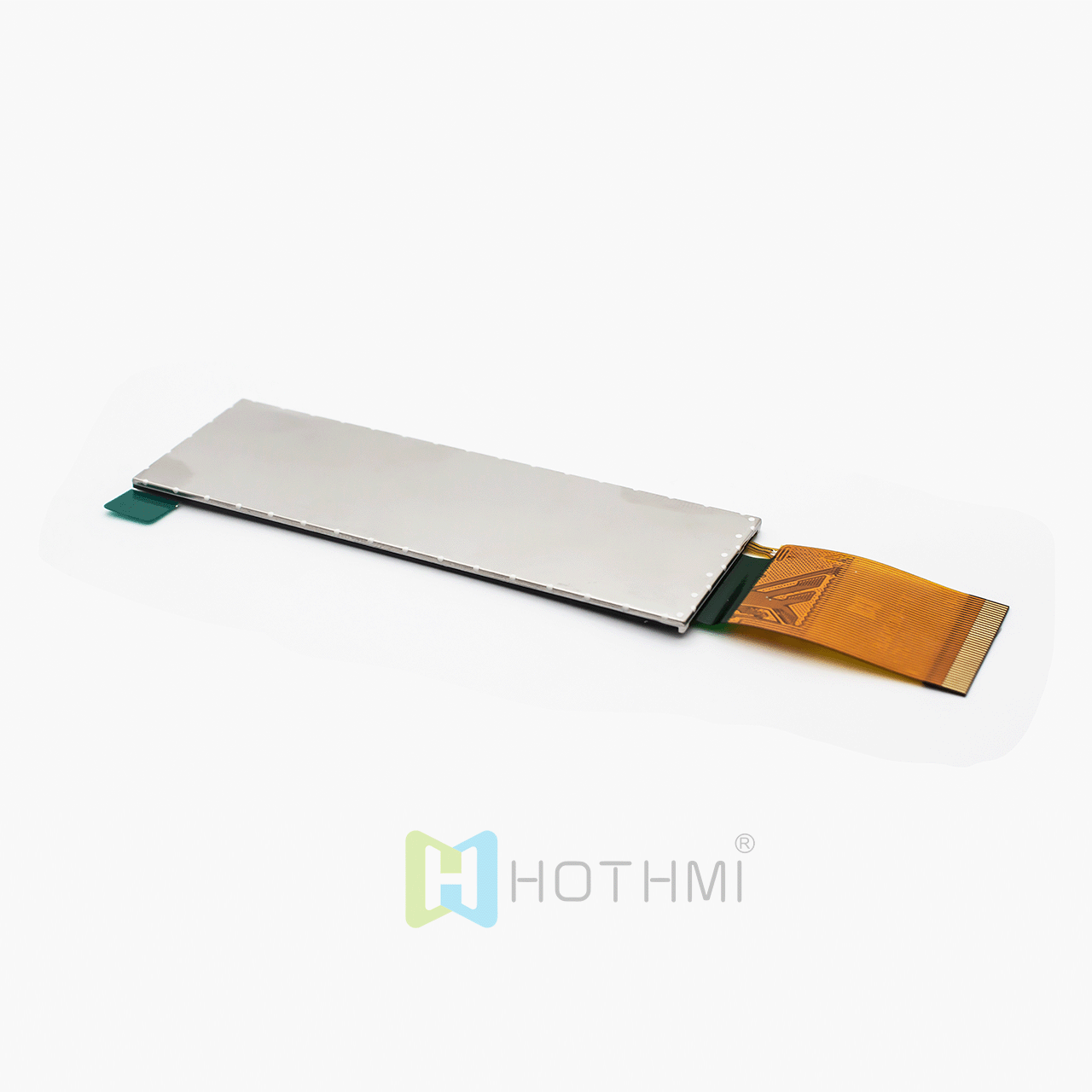

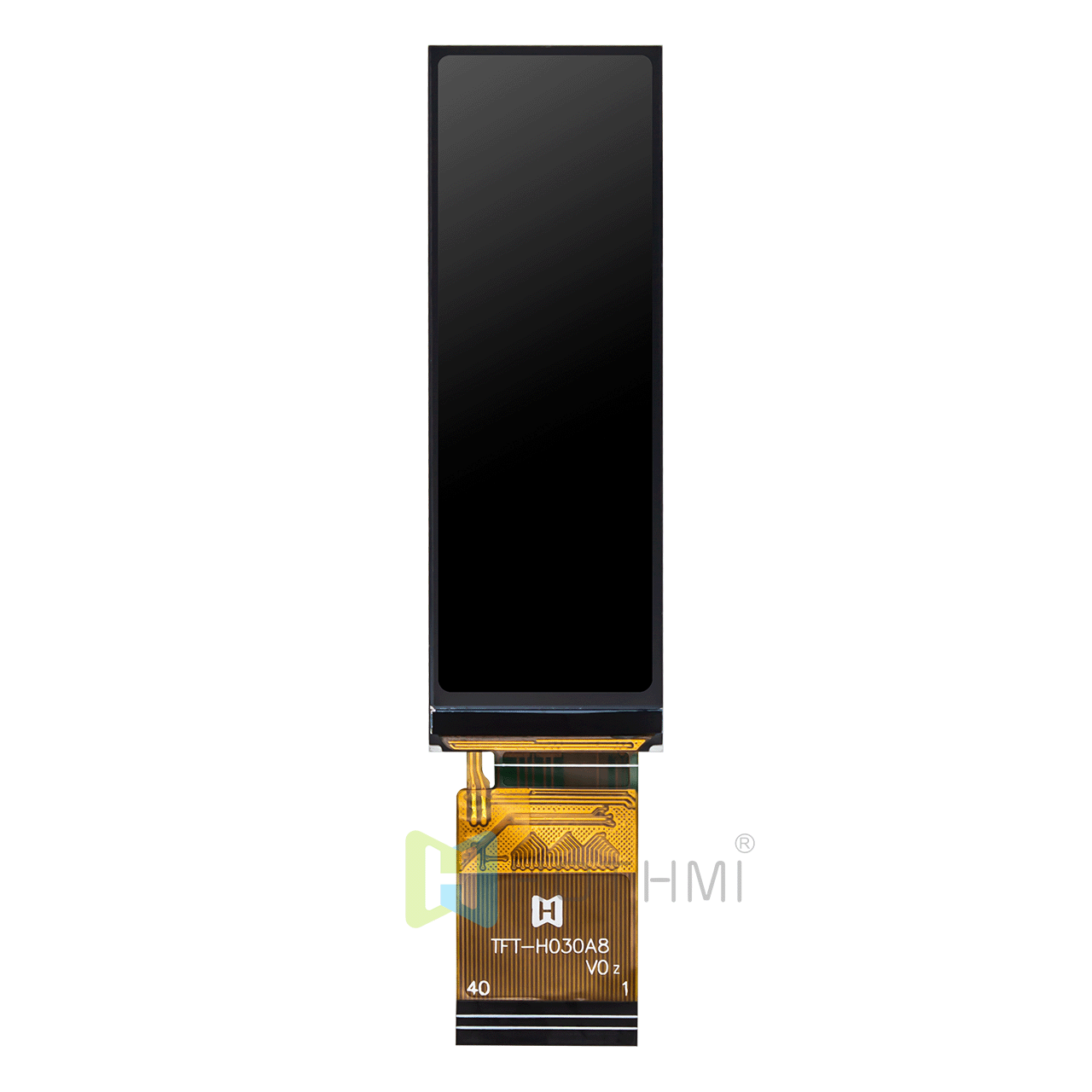

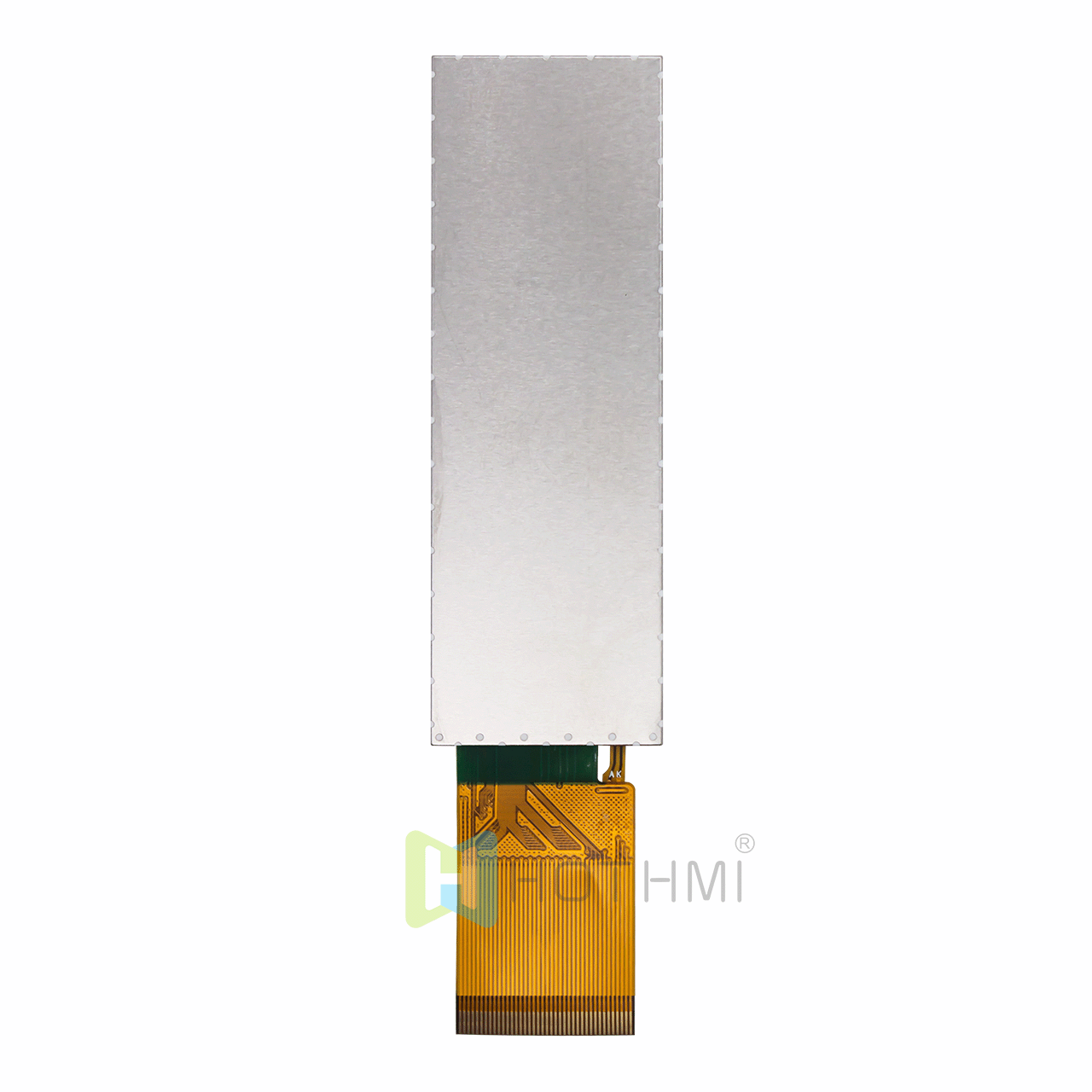

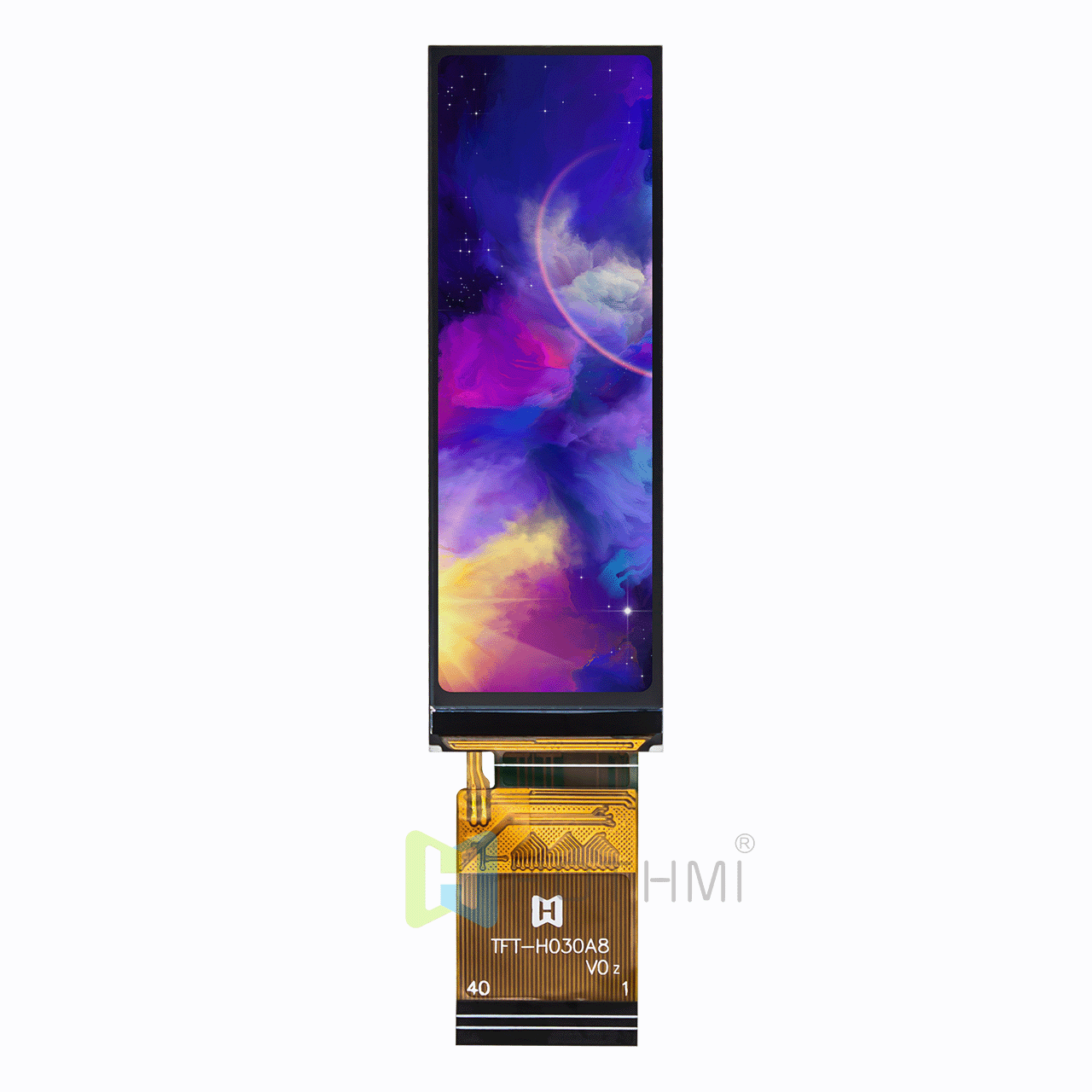

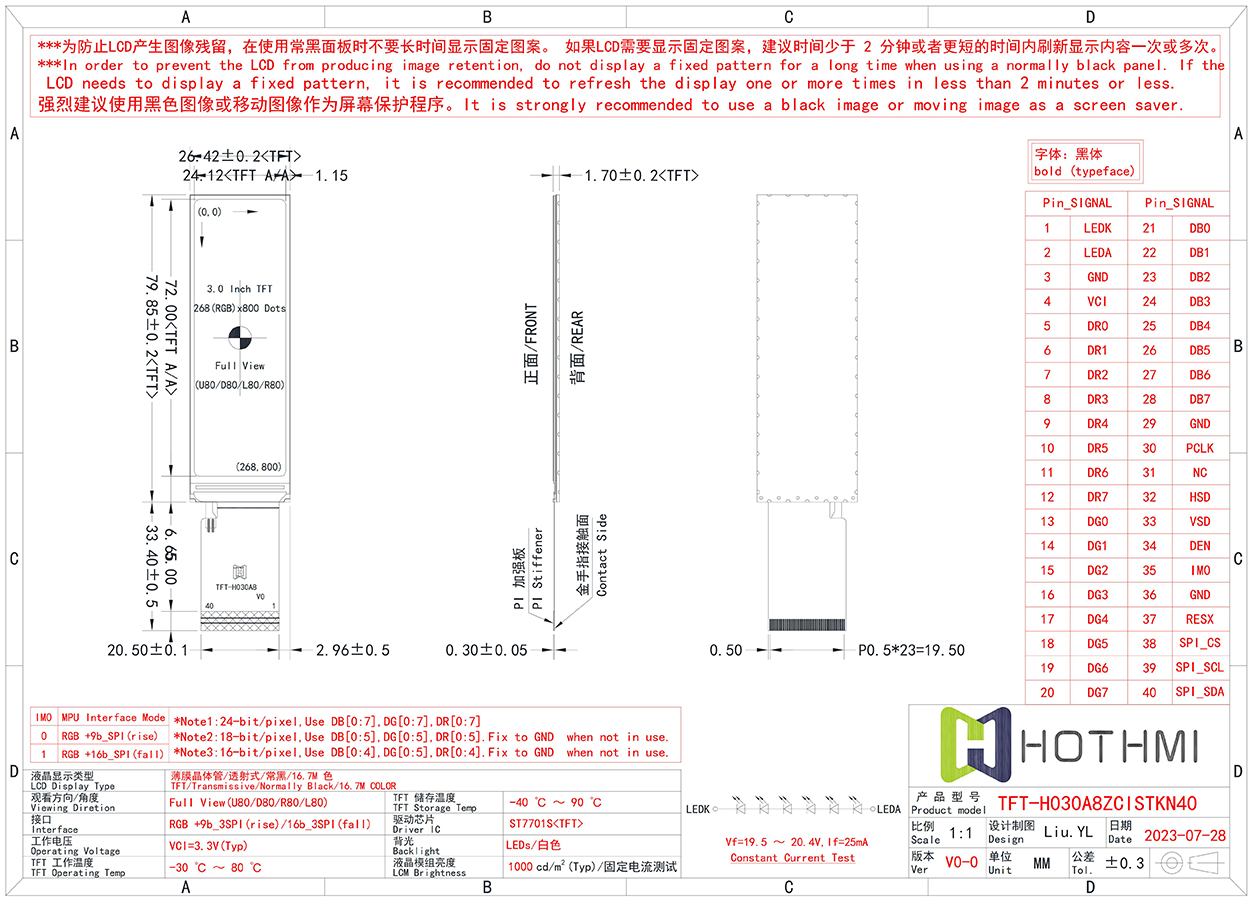

TFT-H030A8ZCISTKN40 | 3.0-inch IPS TFT bar LCD | SPI interface | 268x800 dot matrix LCD | optional capacitive touch / resistive touch | readable in sunlight | wide temperature | compatible with Arduino
TFT-H030A8ZCISTKN40 is a 3.0-inch bar LCD module with a resolution of 268x800, built-in ST7701S controller, optional touch screen, high picture quality, IPS wide viewing angle, support 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 2.8V~3.3 voltage, support vertical display. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
