China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / 20x4 Character LCD Modules | STN+ Y-G Backlight For Arduino

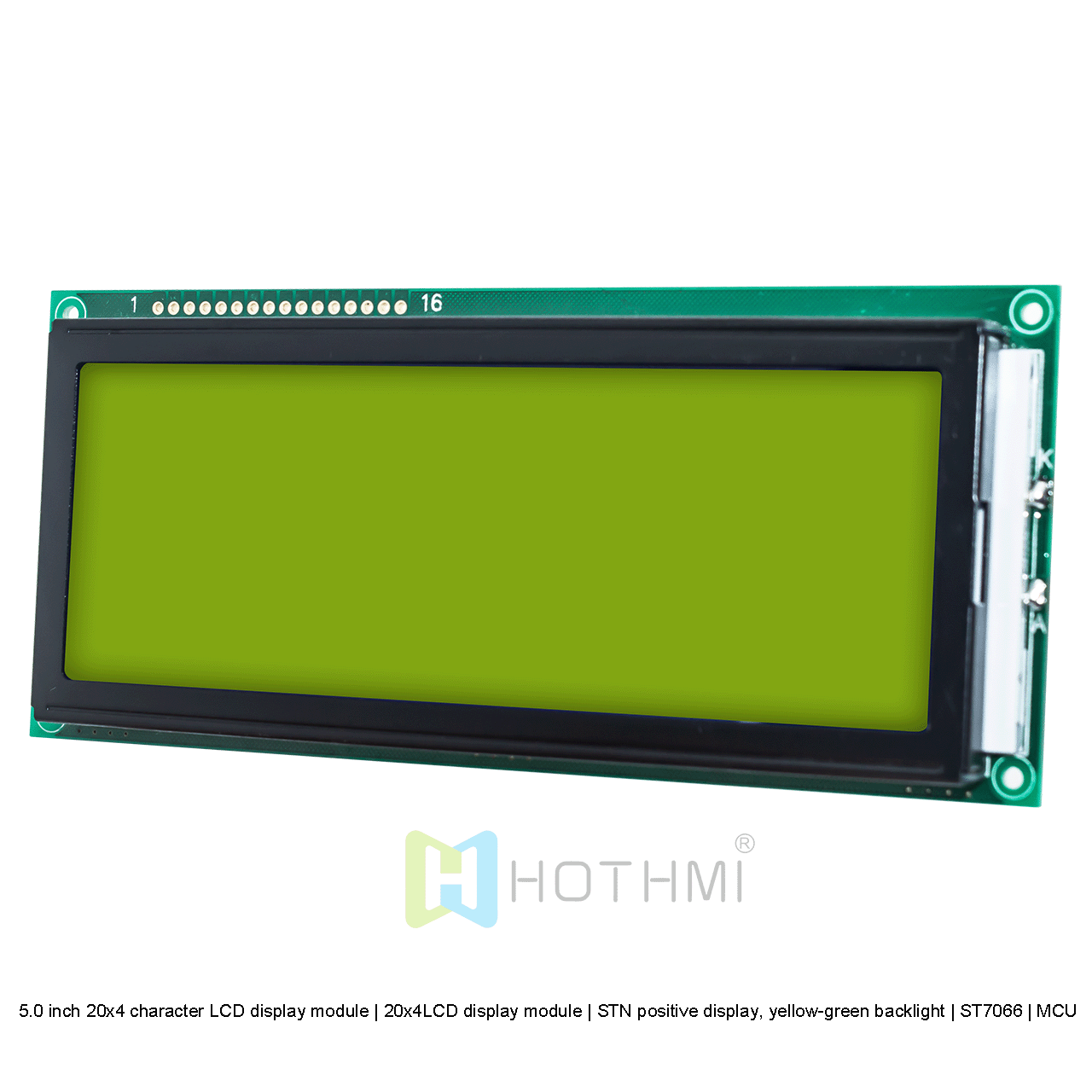

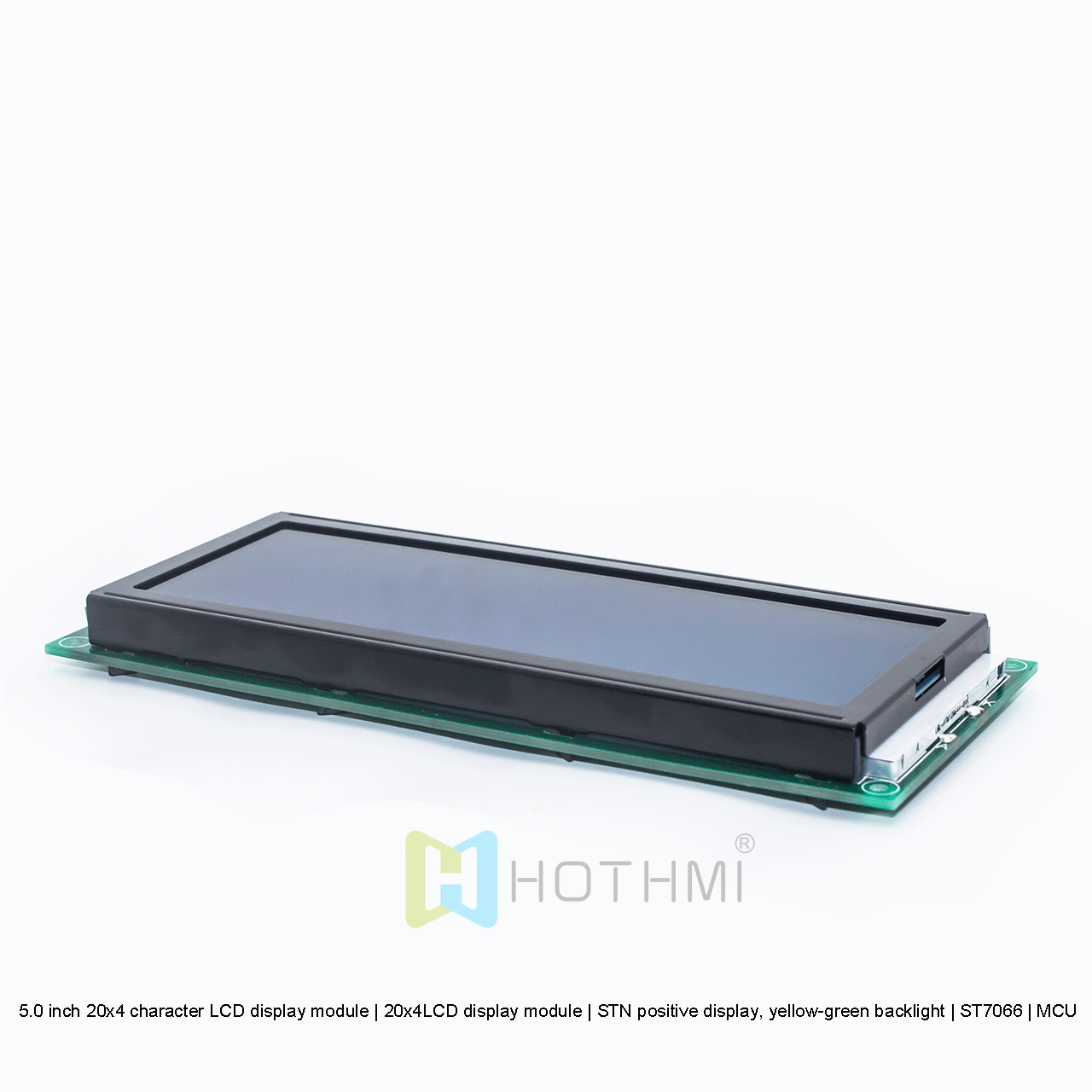

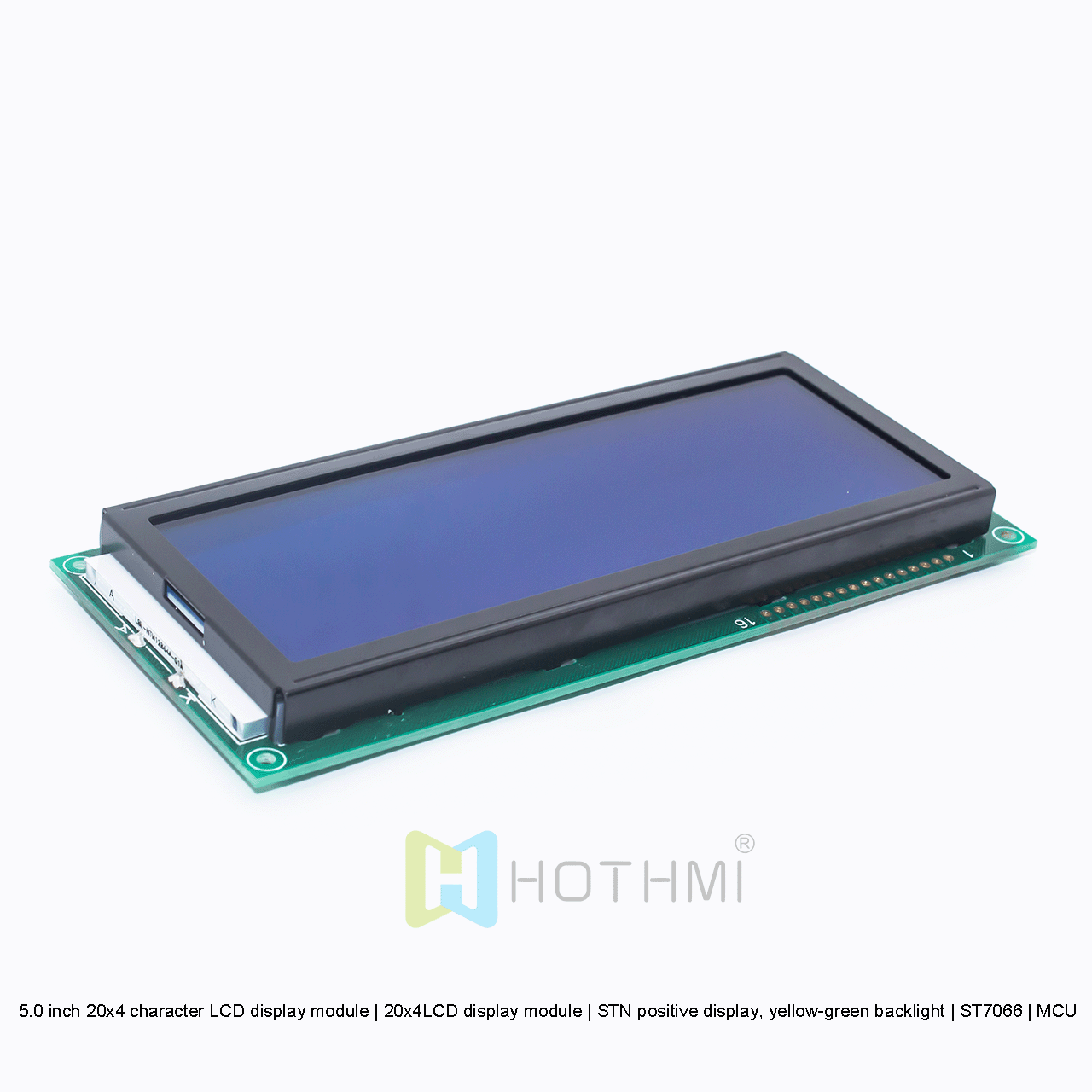

20x4 Character LCD Modules | STN+ Y-G Backlight For Arduino

? Model: HTM2004C-01Y-A5P

? Product type: 5.0 inch 20x4 character LCD modules
? Display content: 20x4 characters
? Dimensions (mm): 146X62.5X12.6
? Viewing window size (mm): 123X43
? Display size (mm): 118.84x38.47
? Dot pitch mm: 0.92x1.1
? Product application: industrial control
? Viewing angle: 6H
? Backlight: yellow-green light
? Number of PINs: 16PIN
? Interface: MCU
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 5.0v
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

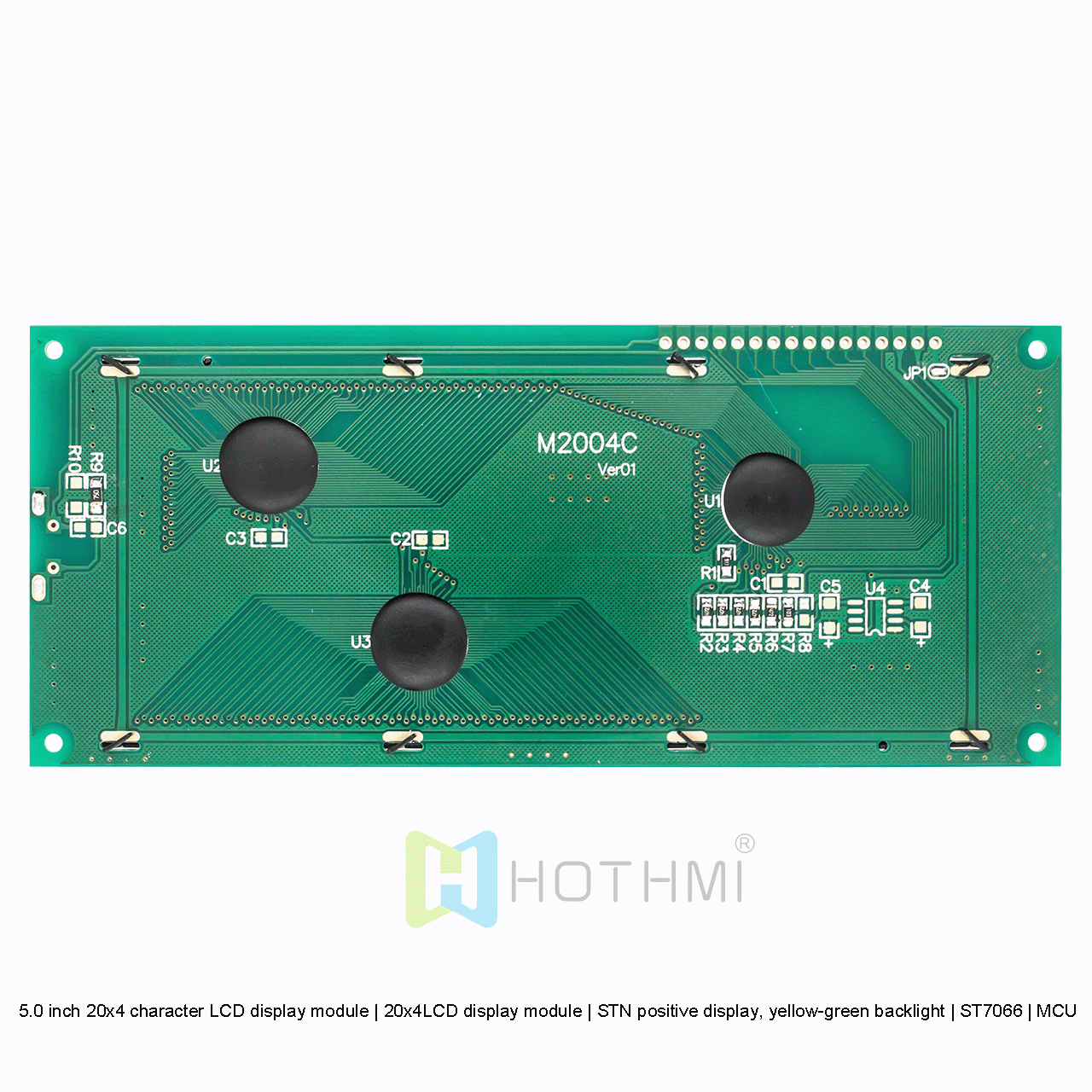

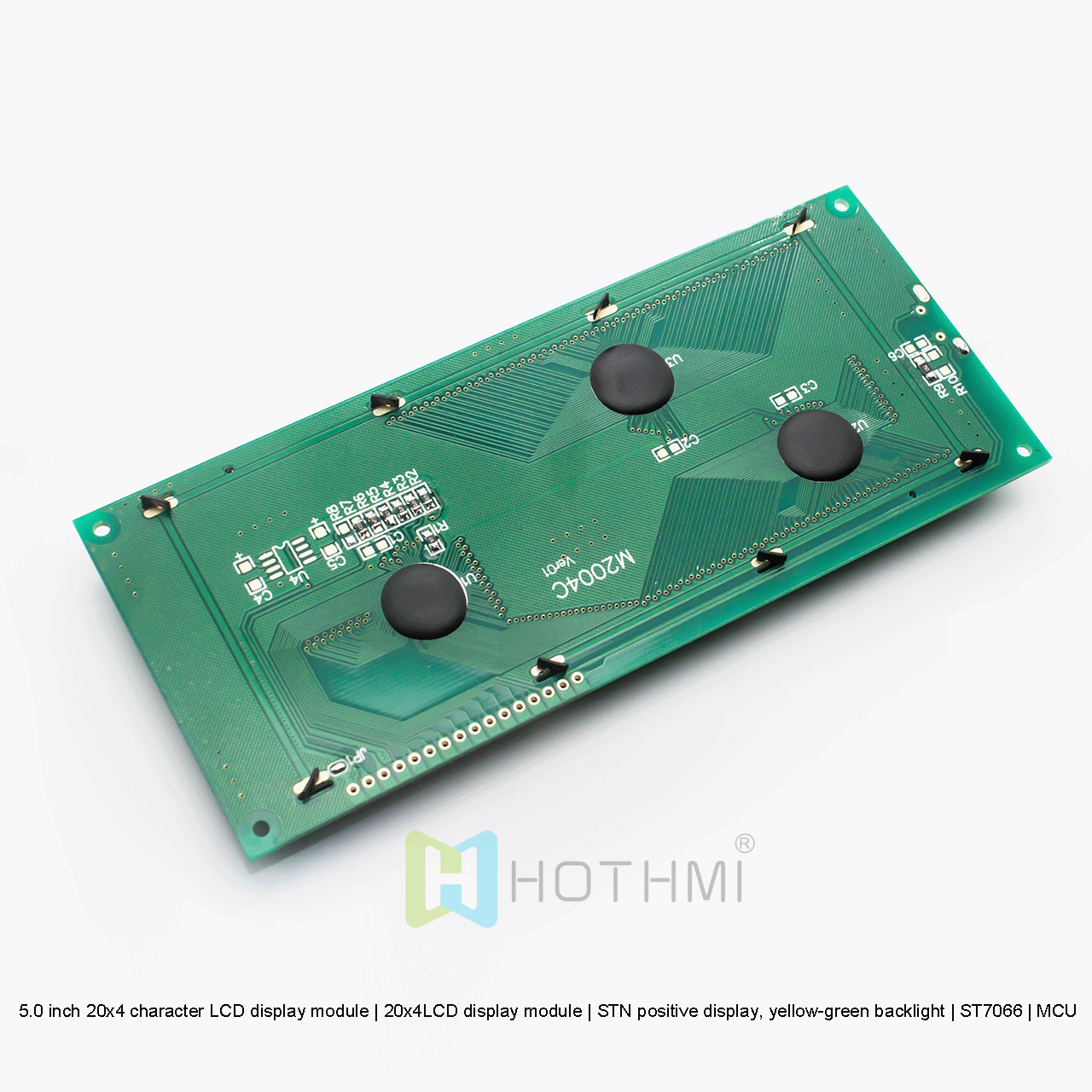

5.0 inch 20x4 character LCD display modules | 20x4LCD display module | STN positive display, yellow-green backlight | ST7066 | MCU interface
5.0 inch 20x4 character LCD modules is STN + yellow-green backlight, suitable for Arduino, can display up to 80 characters, can display two lines, each line shows 20 dark images on a yellow-green background.
This translucent LCD display uses LED backlight for excellent visibility in low light and ambient conditions. The operating temperature range is wide, ranging from -20°C to 70°C.
The best viewing time of this Arduino compatible LCD character display is 6:00. The screen runs on a 5V power supply and is RoHS compliant.

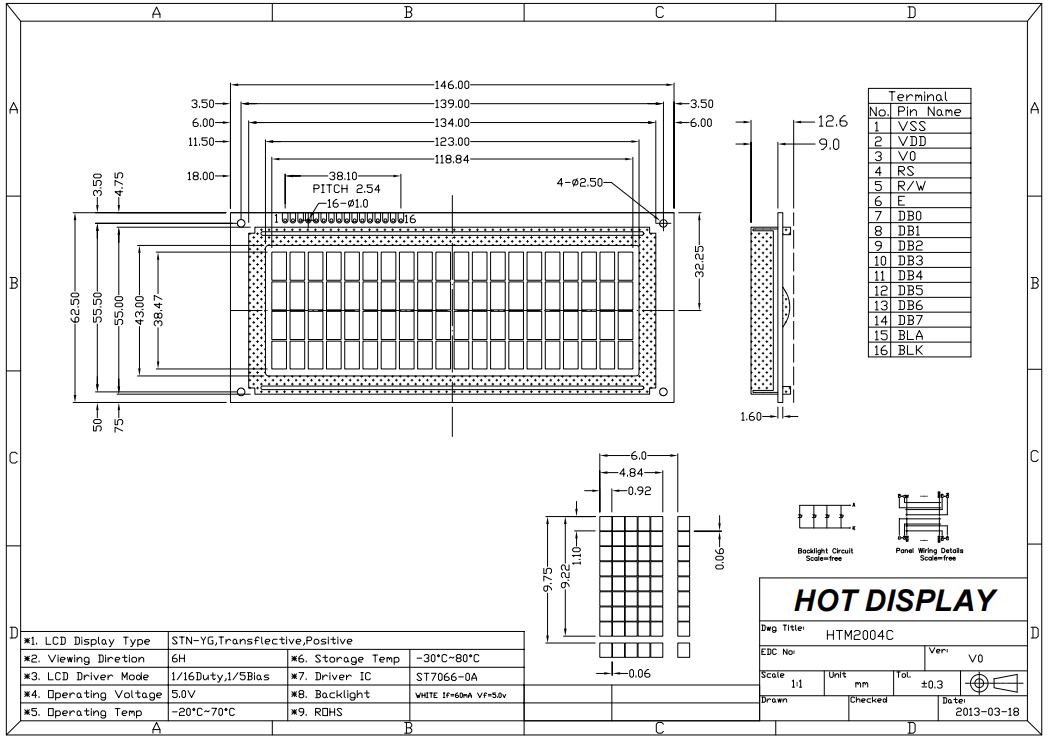

Item	Specifiction content	Unit
Model	HTM-2004C-01Y-A5P
Characters × Row	20Characters × 4Rows	dots
Module Size	146.0 x 62.5 x 12.6 (MAX)	mm
Viewable (VA) Area	123 x 43.0	mm
Active (AA) Area	118.84 x 38.7	mm
Dot (Pixel) Pitch	0.65 x 0.7	mm
IC	ST7066
Power Supply Voltage	5V	V
Backlight	Yellow-green
Mode	STN(+)
Drive Mode (Duty)	1/64 duty cycle
Type	Graphic LCD Module
Features	Transflective
