China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / 5.0"～7.0"TFT LCD Display Panels / 5.0 Inch TFT LCD Display | High Brightness Screen With RGB Interface

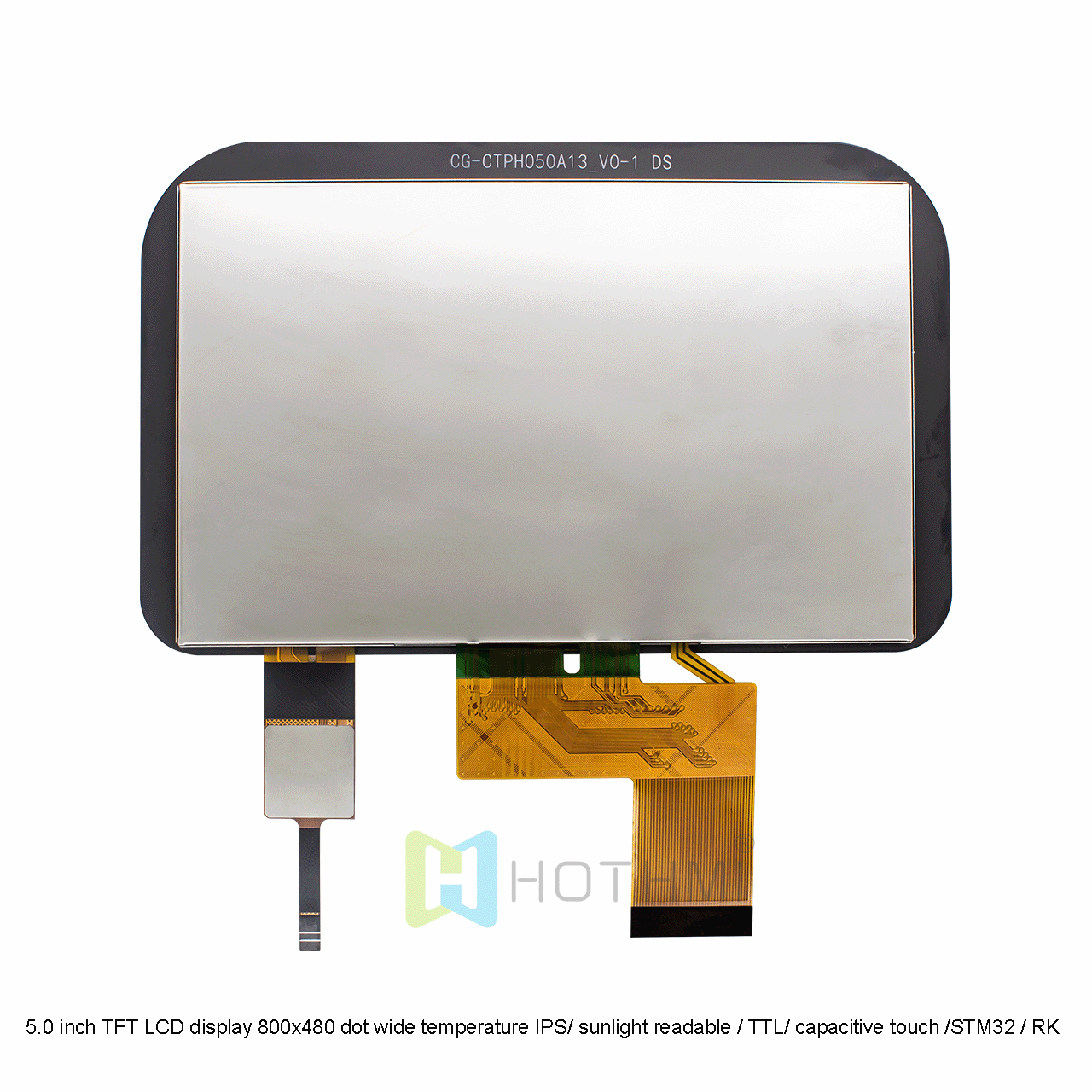

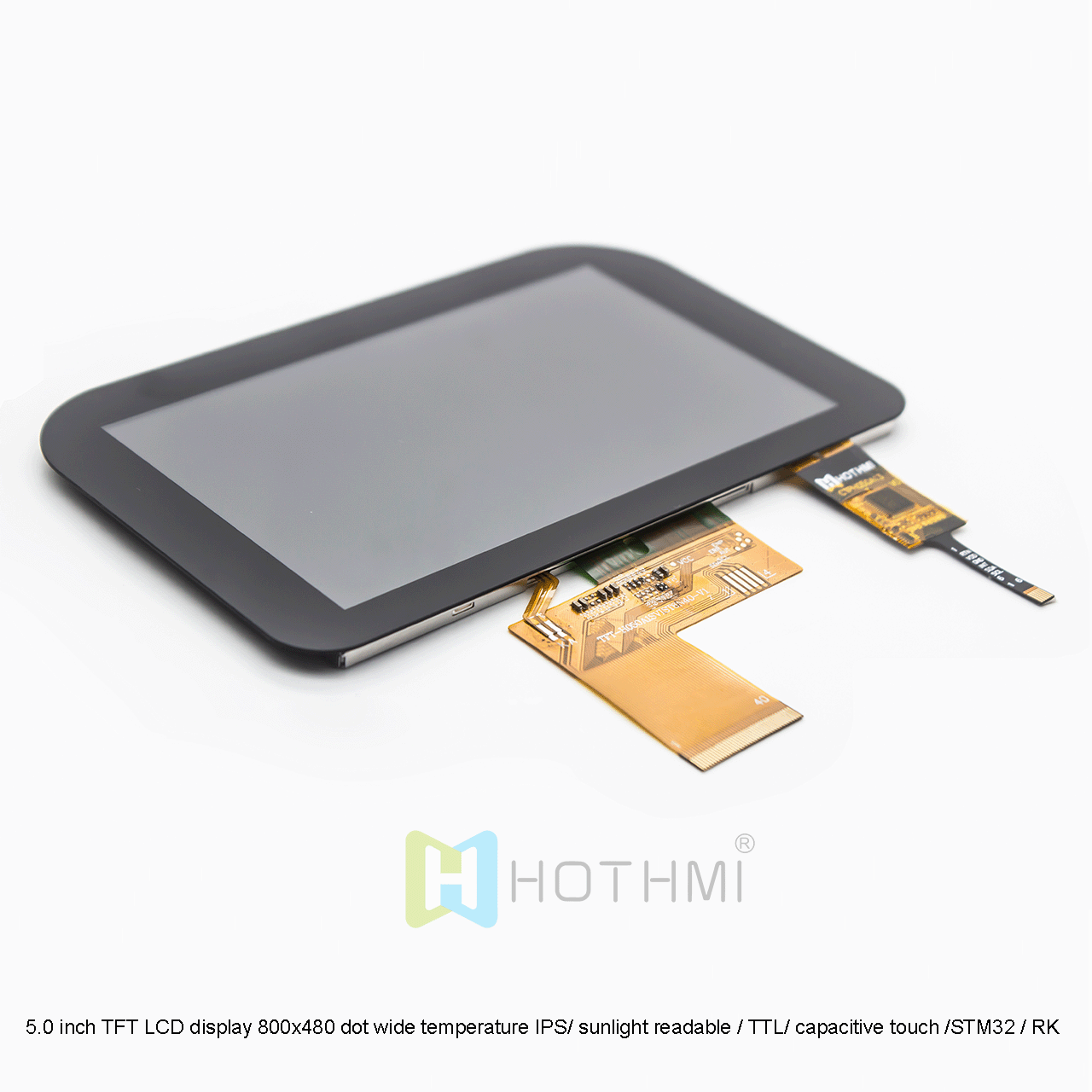

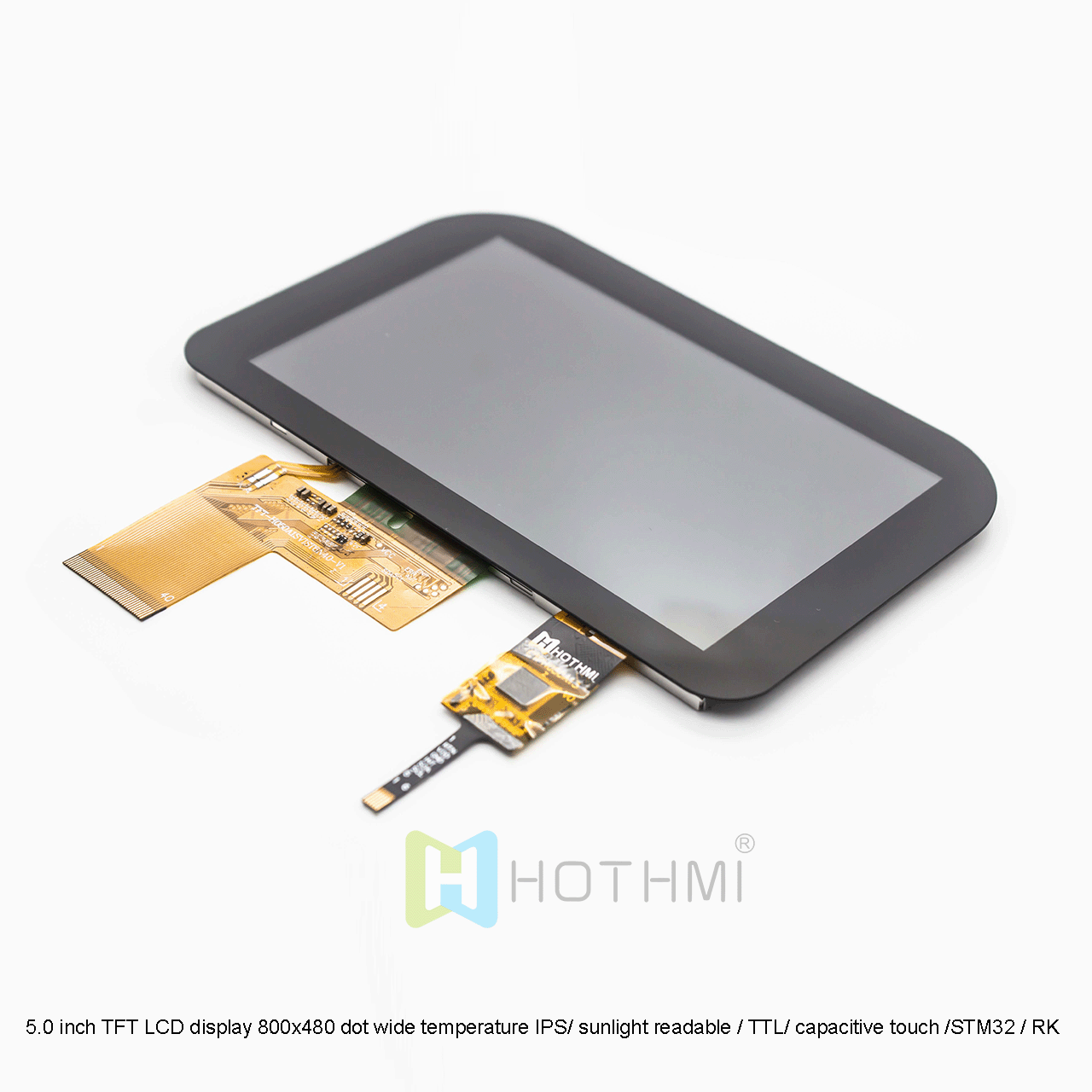

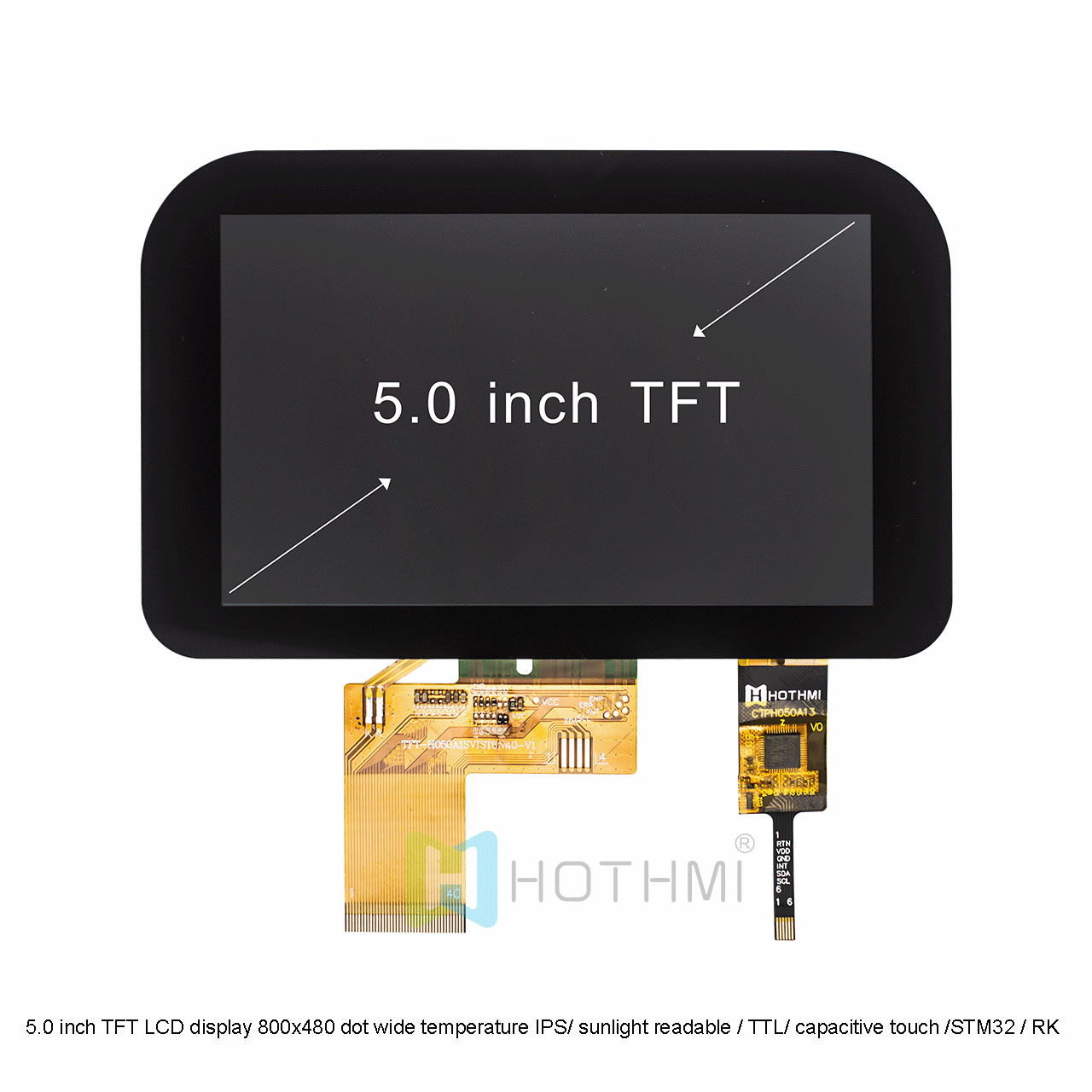

5.0 Inch TFT LCD Display | High Brightness Screen With RGB Interface

? Model: TFT-H050A1SVISTKC40

? Type: TFT wide temperature display screen
? Display pixel: 800x480 pixels
? External dimensions (mm): 135x85.25x4.75
? Display inches: 5.0"
? Effective size (mm): 108x64.8
? Application: Charging stations, smart devices
? Visual angle: IPS (U80/D80/L80/R80)
? Brightness: 1500cd/m2
? Pin: FPC-40PIN
? Interface: TTL 24 bit (RGB Mode)
? Special reminder: Anti static ESD 8KV
? Working temperature: -30~80 ℃
? Power supply voltage: 3.3V
? Driver chip: ST7262<TFT>, GT911<CTP>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

Product Description
Customized Services
Attributes

TFT-H050A1SVISTKC40 | 5.0 inch TFT wide temperature LCD screen | TTL 24 bit (RGB mode) interface | 800x480 dot matrix LCD screen | capacitive touch | wide temperature | readable in sunlight | high brightness | compatible with STM32/RK series

TFT-H050A1SVISTKC40 is a 5.0-inch TFT wide temperature LCD screen that supports TTL interface, with a resolution of 800x480, built-in ST7262<TFT>, GT911<CTP>controller, optional touch screen, high image quality, brightness up to 1500nits, IPS full view angle, supports TTL 24 bit (RGB Mode) interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for STM32/RK series microcontroller development platforms.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

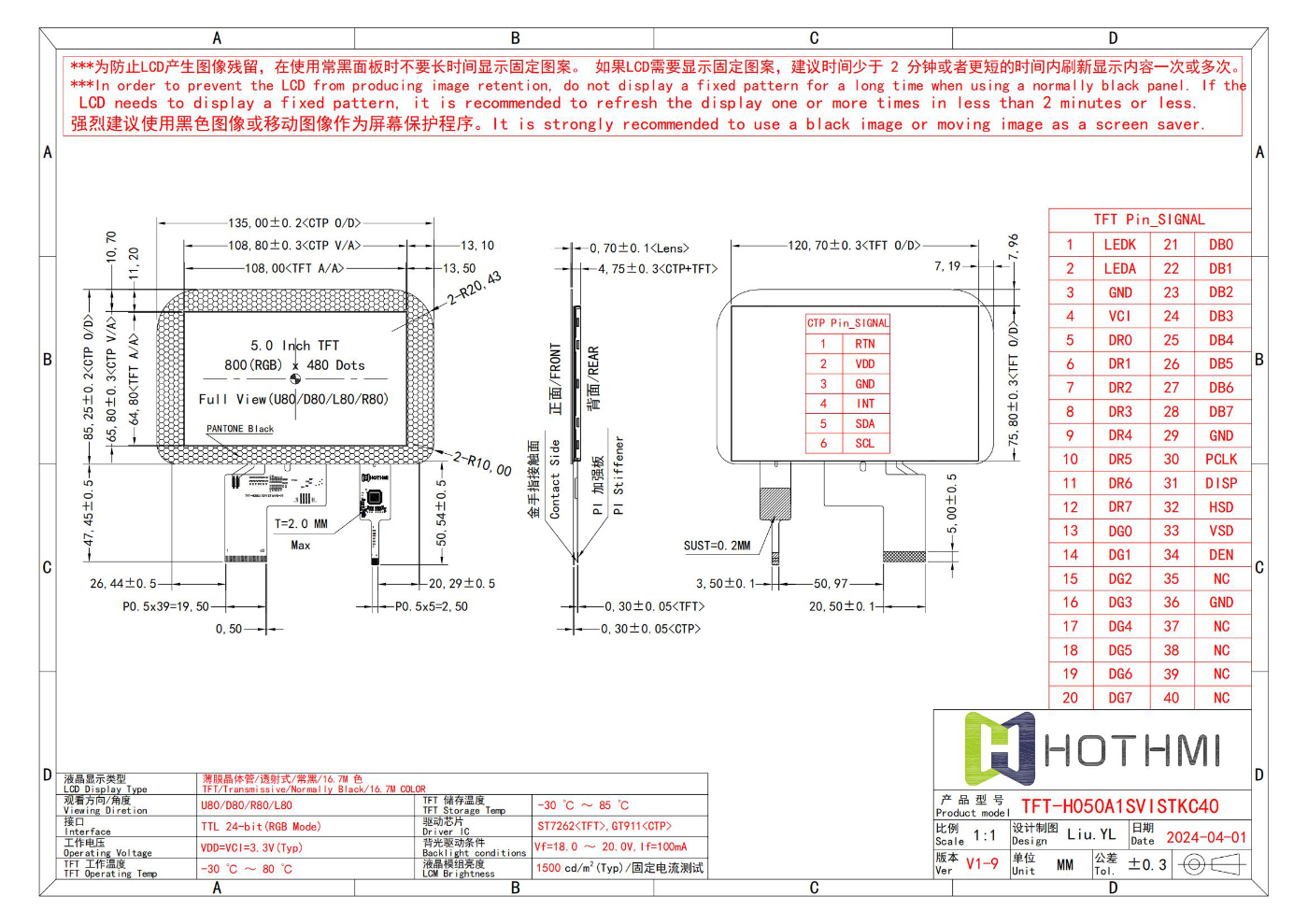

parameter	Parameter Description	unit
TFT LCD	Standard TFT
Diagonal inches	5.0”	Inch
resolution	800 × RGB × 480 (TFT)	dots
Dimensions	135x85.25x4.75	mm
Size (AA) area	108x64.8	mm
LCD specifications	TFT, white, transmissive
Display perspective	IPS(U80/D80/L80/R80)
aspect ratio	3:2
Backlight specifications	LED, white
TFT driver chip	ST7262<TFT>, GT911<CTP>
Touch glass type	Capacitive touch (CTP)
surface	Anti-glare/glossy
Display brightness	1500	cd/㎡
Operating temperature	-30~+80	°C
Storage temperature	-30~+85	°C
