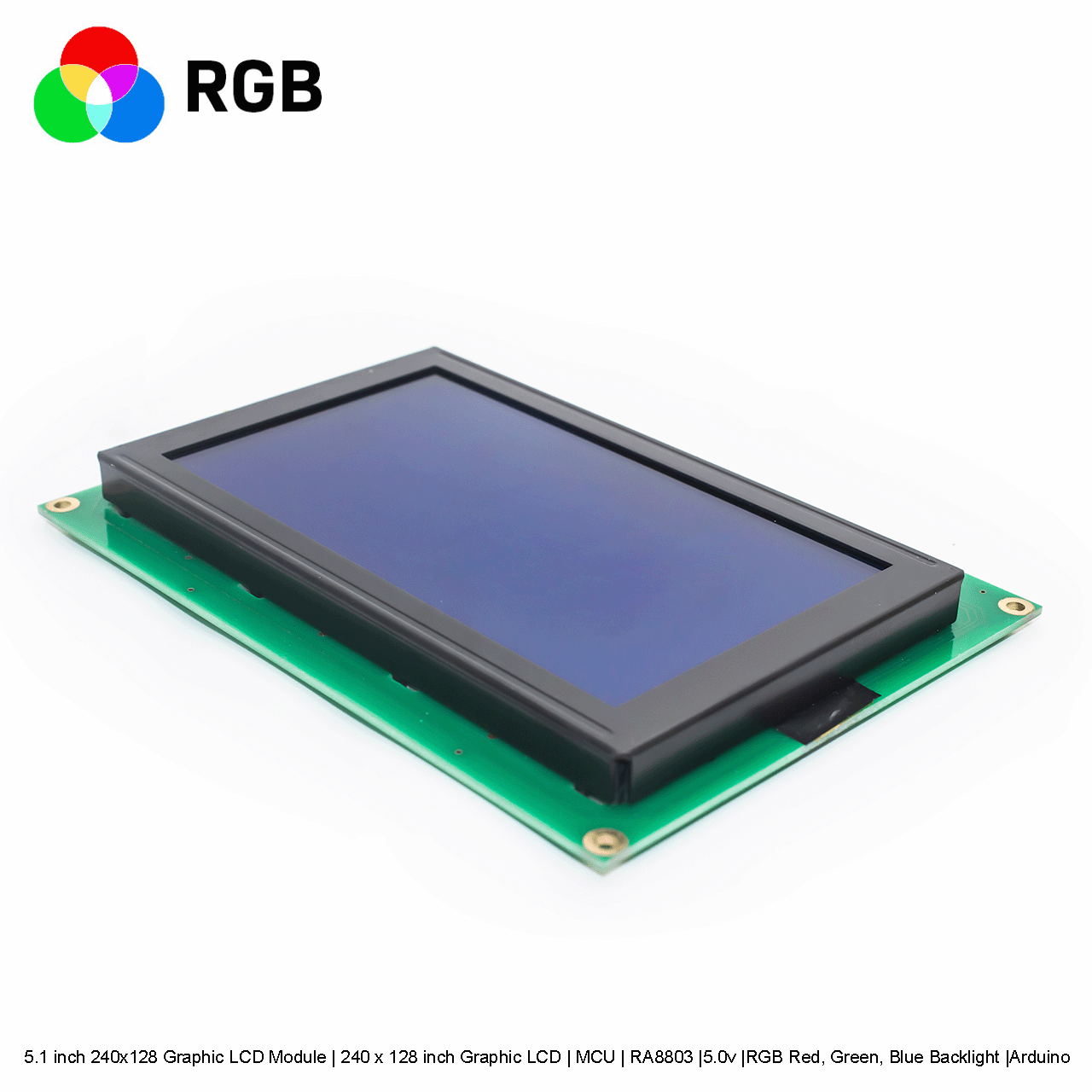

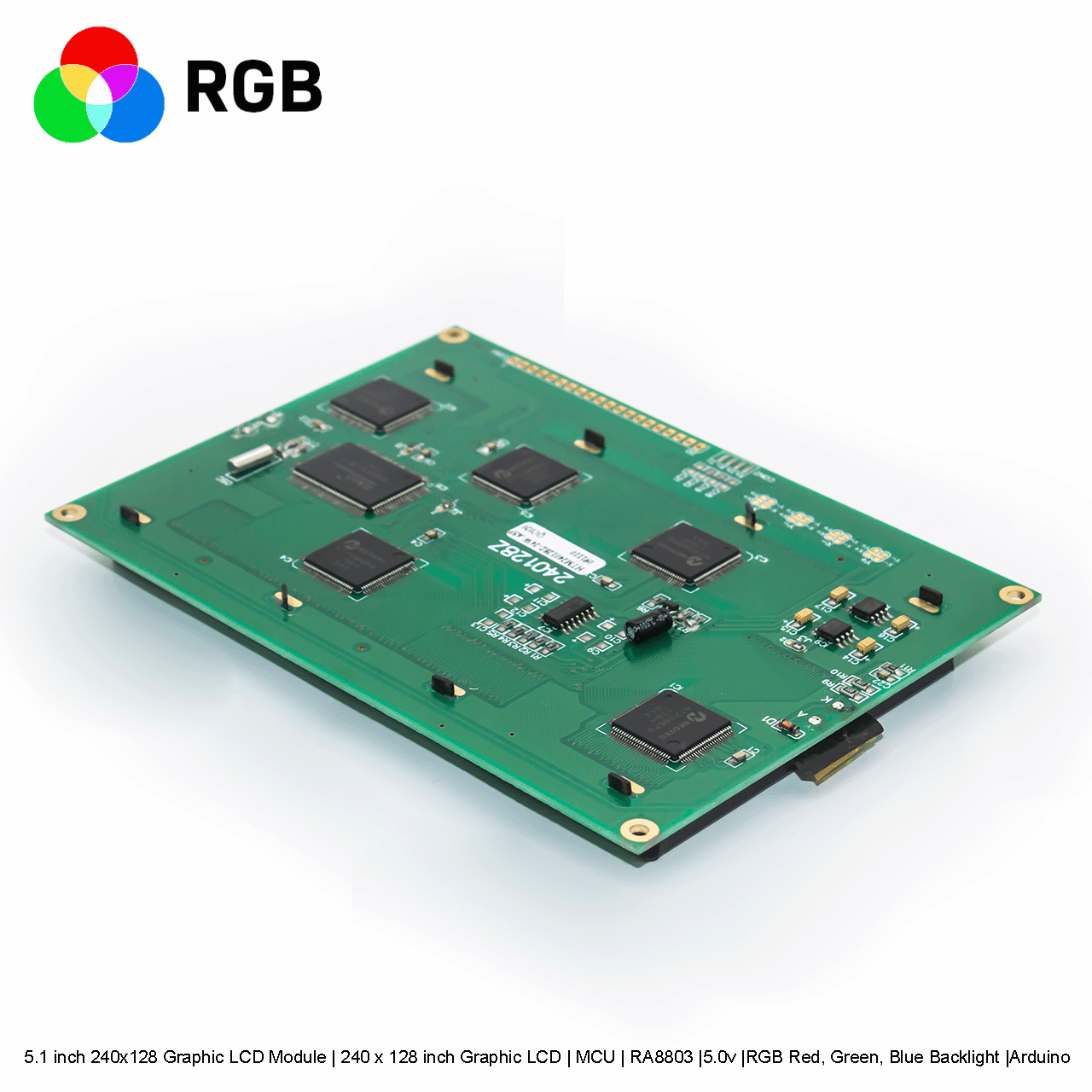

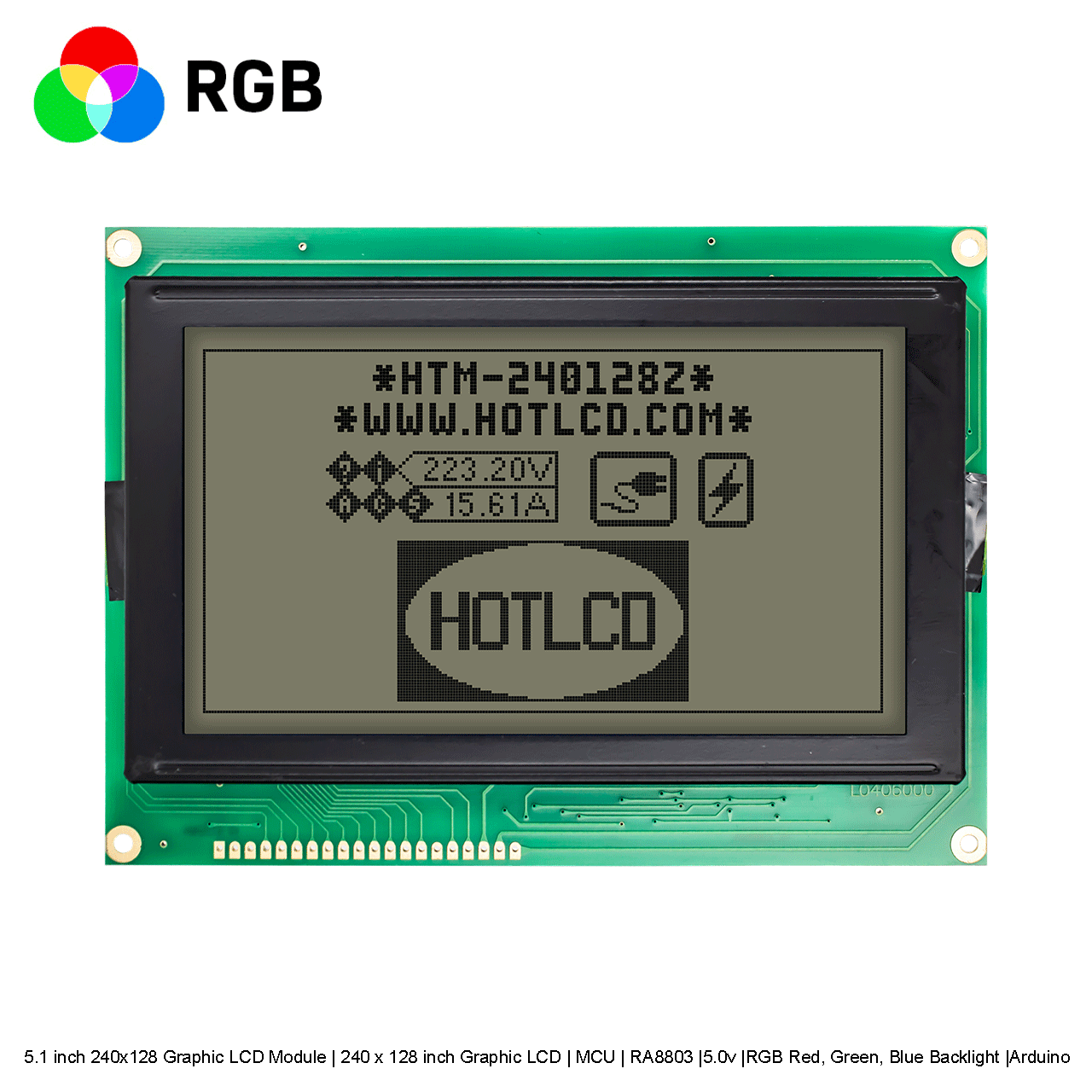

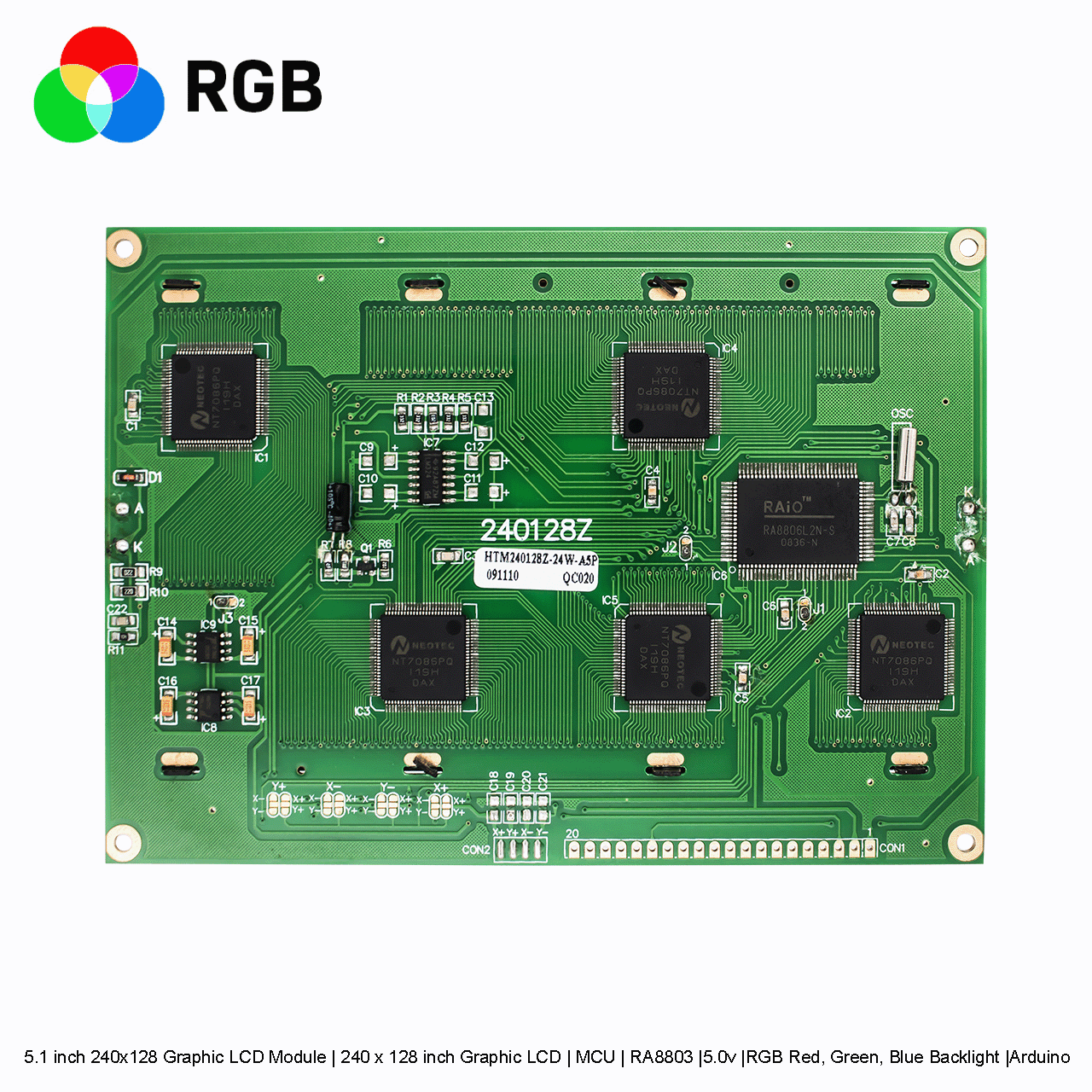

5.1 inch 240x128 Graphic LCD Module | 240 x 128 inch Graphic LCD | MCU | RA8803 |5.0v |RGB Red, Green, Blue Backlight |Arduino
The 5.1 inch 240x128 Graphic LCD Module is a 5.1 inch monochrome, 240×128 dot matrix, COB (chip on board) graphic LCD module. In STN LCD mode wide temperature range (operating temperature: -20°C to 70°C, storage temperature: -30°C to 80°C), with red, green, blue LED backlight. The fully transparent polarizer allows the backlight to pass completely, whether in a dark environment or a bright environment, the image can always be clearly displayed to the viewer. The best viewing angle is 6:00. Recommended for indoor and outdoor applications. This product has a negative voltage and is assembled on the board chip using 1/128 Duty and controller IC RA8803 or equivalent. The interface type is parallel. This is a ROHS compliant product manufactured in accordance with ISO standards and procedures.
Connector Customization:
Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.
PCB Modifications:
Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.
Backlight color customization:
The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.
Font library customization:
Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.
Cable Customization:
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
